Double Wire Fence

homeProductsWelded Wire Fence Double Wire Fence

Double Wire Fence - 2D Panel Fence From Linkland

Double wire fence, also known as 656 wire fence/868 wire fence, is a specially designed welded wire mesh guardrail that welds double horizontal wires to a single vertical wire. Its unique structure makes it more stable and can withstand greater pressure and impact. Our double wire guardrail is made of high-quality carbon steel wire, this material makes the fence high strength and corrosion resistance, with a diameter of 6/5/6 mm or 8/6/8 mm. Often, our double wire fences cannot be folded because their vertical wires are too strong to bend. In addition, galvanizing or powder coating treatment gives the double wire guardrail excellent anti-corrosion and anti-rust properties and a long service life. Double wire guardrails are very popular in the European market and are widely used in various residential, commercial and industrial applications, including but not limited to playgrounds, schools, communities, gardens, parks, etc.

Contact Us MORE INFO

Specification

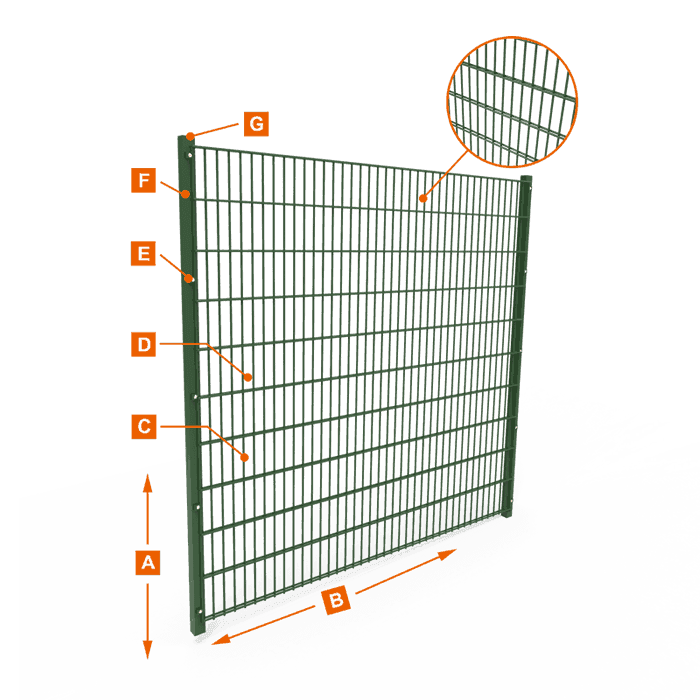

The picture shows the diagram and details of the double wire fence.

A Height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm

b Width: 2000 mm, 2500 mm, 3000 mm

c Wire Diameter: 6/5/6 mm, 8/6/8 mm

d Mesh Opening: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, mm, 55 × 200 mm, 75 × 100 mm

e Clamp: metal clamp

f Post: Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);
Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);
Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

g Post Cap: metal cap / anti-UV plastic cap

Notes:

All colors are available in Ral;
Other materials and specifications are available upon request.

Category

Surface Treatment

According to its surface treatment, our double wire fence can be divided into two types as shown below.

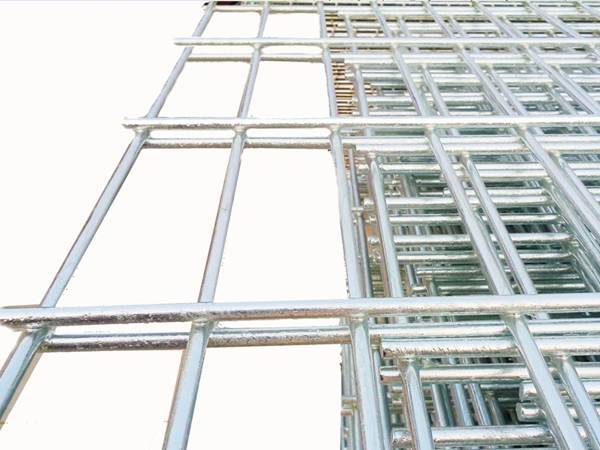

Galvanized double wire fence

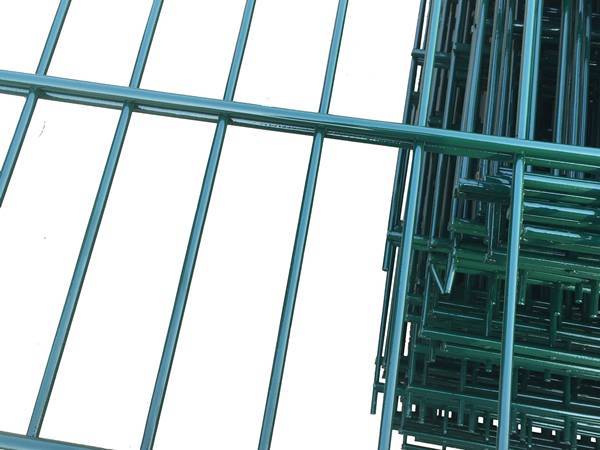

Powder coating double wire fence

Top Edge

According to the shape of its top edges, our double wire fence can be divided into two types as shown below.

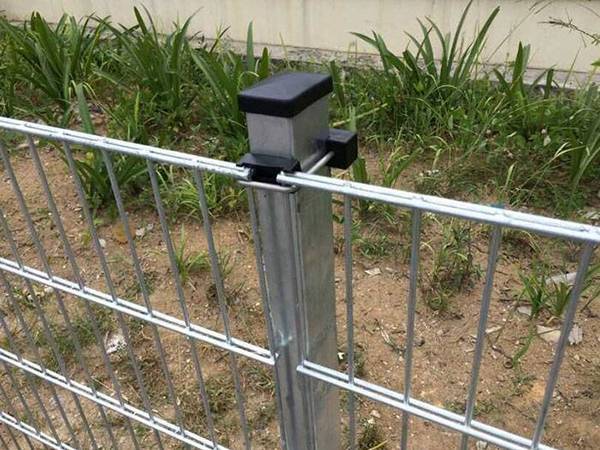

The picture shows the double wire fence with flat top.

Flat top double wire fence

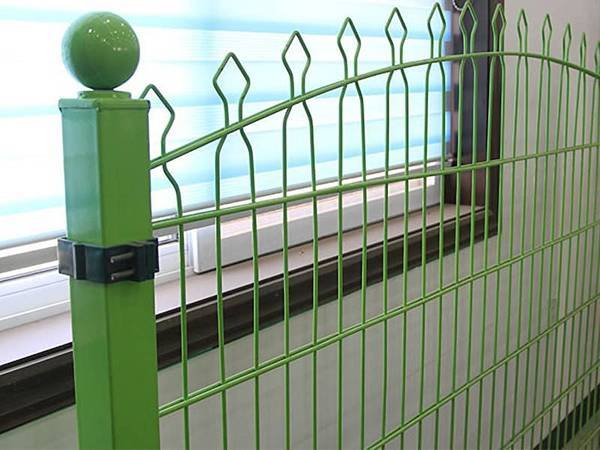

The picture shows the double wire fence with arch top.

Arch top double wire fence

Components & Accessories

The main components and connection methods of our double wire fence are as shown below.

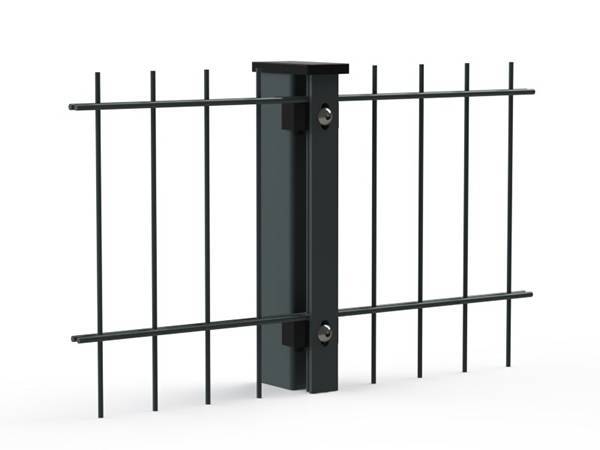

Clamp bar connection

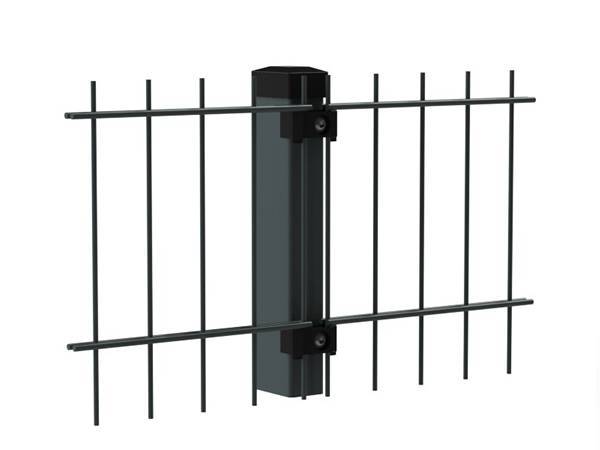

The picture shows the metal clip connection method of the double wire fence.

Metal clamp connection

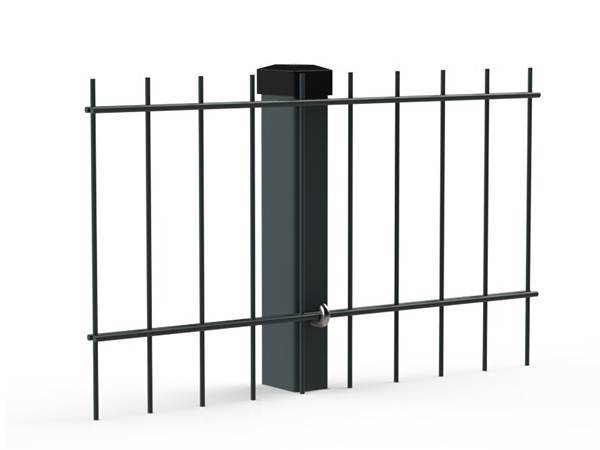

J bolt connection

U bolt connection

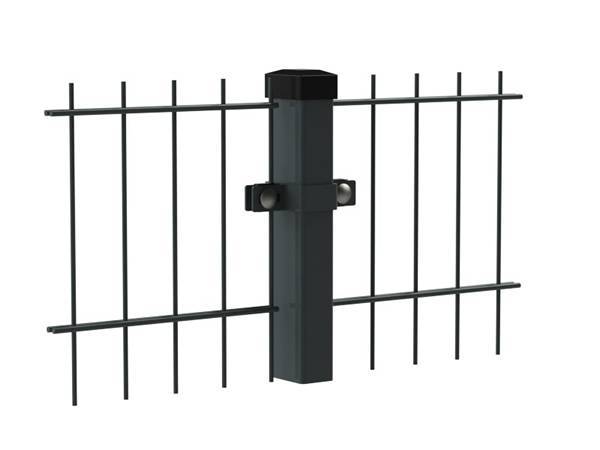

Square clamp connection

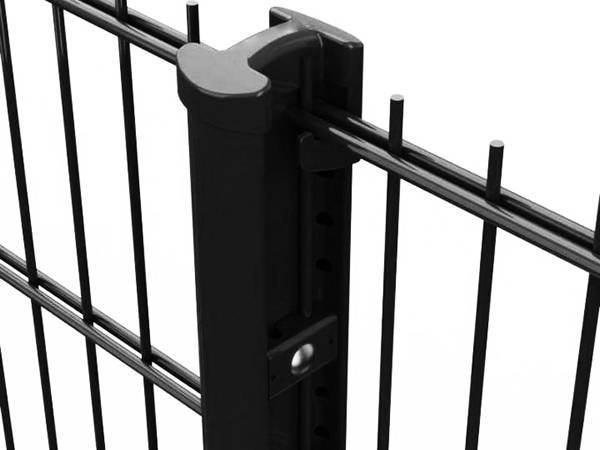

I post connection

Optional Accessories

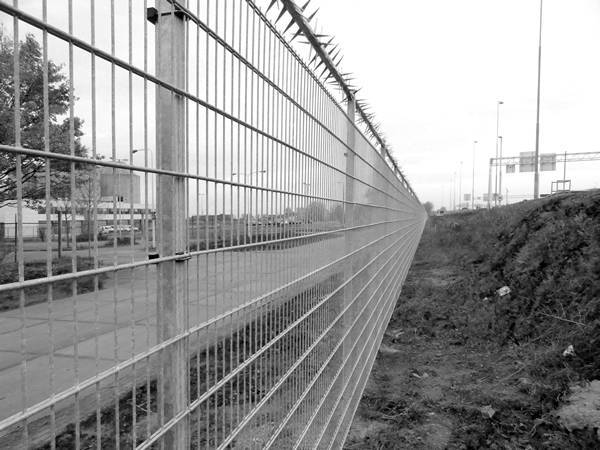

Wall spikes

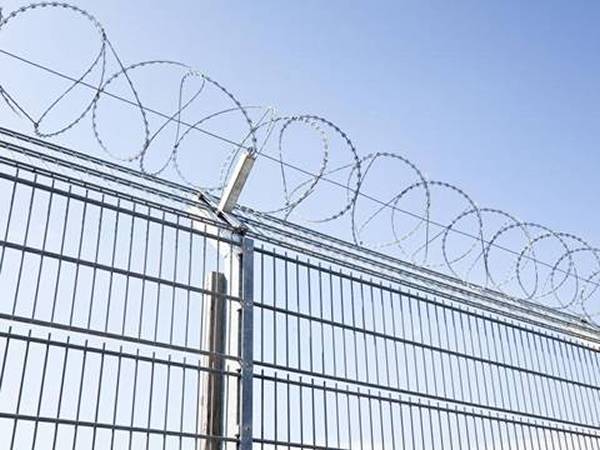

Razor wires

Production

Production Flow Chart

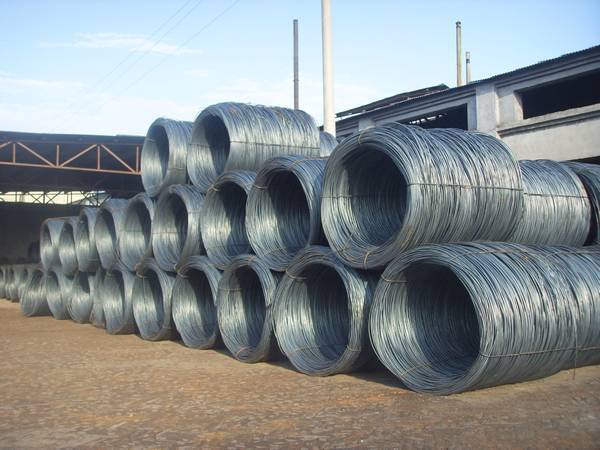

Many carbon steel wire rolls are placed on the ground.

Step 1

raw materials (carbon steel wires)

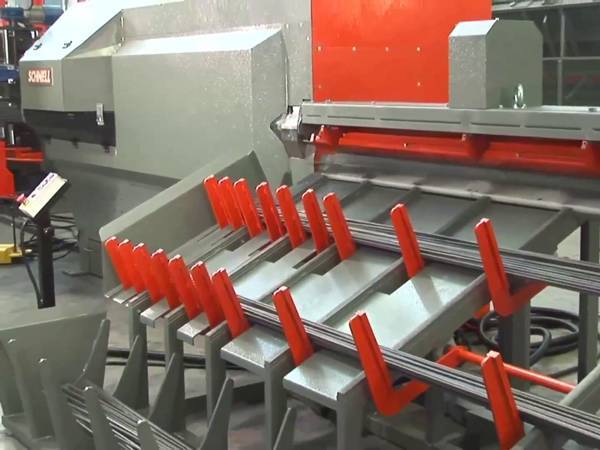

Steel wires are straightened and cut into designed length.

Step 2

steel wire straightening and cutting

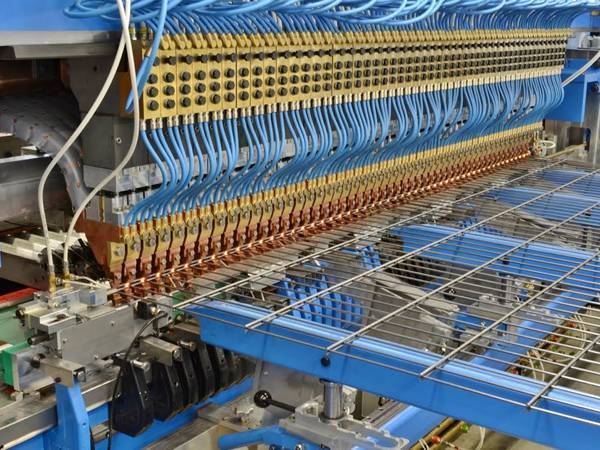

A welding machine is producing double wire mesh.

Step 3

wire mesh welding

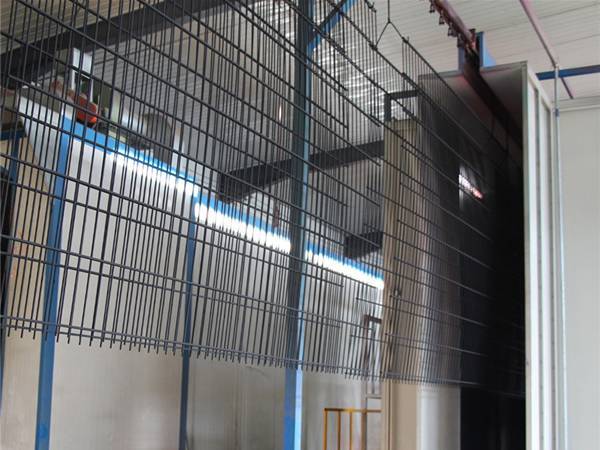

Two double wire fence panels are hanging in the air for powder coating.

Step 4

wire mesh powder coating

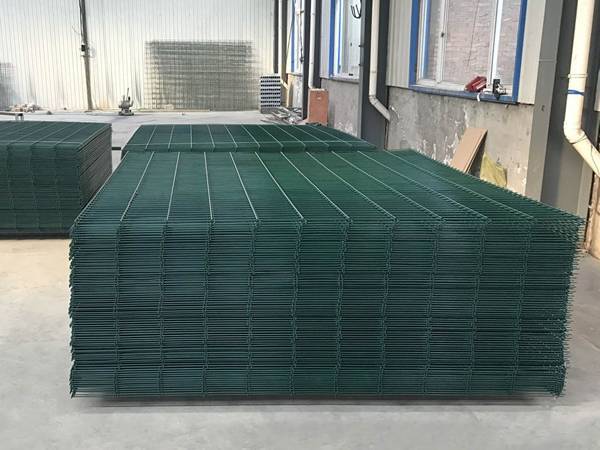

Many finished double wire fence panels are placed neatly on the ground.

Step 5

finished double wire fence (powder coating)

Package & Delivery

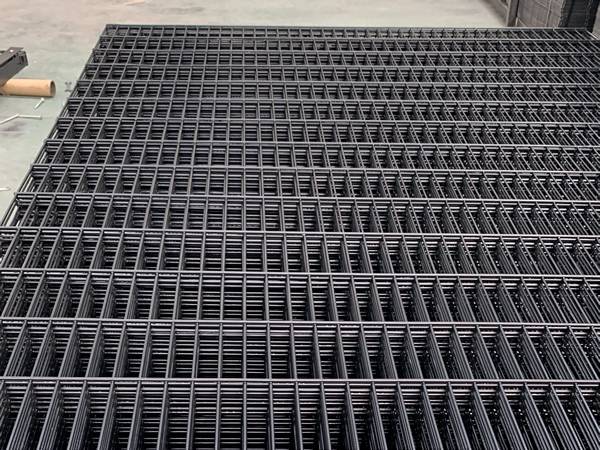

Many powder coating double wire fence panels are placed on the pallet for package.

Double wire fence panel package

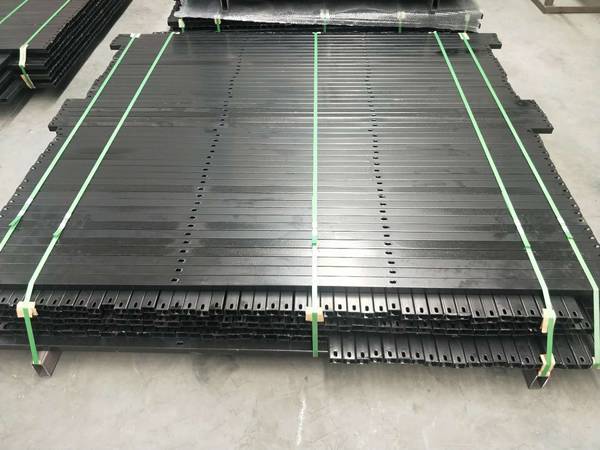

Many clamp bars are properly packaged with plastic belts.

Double wire fence accessory package

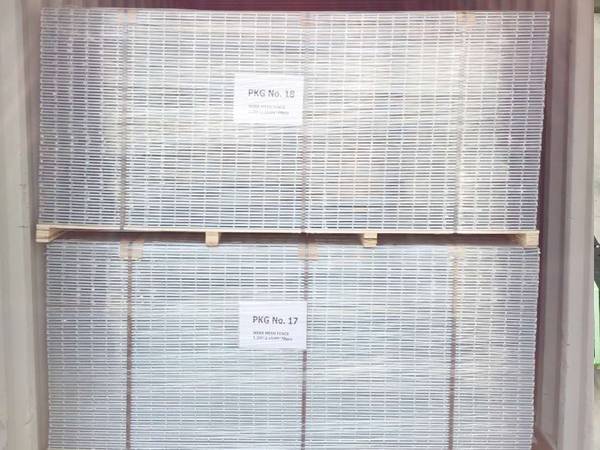

Double wire fence panels and accessories are properly packaged and placed on the compartment for delivery.

Double wire fence delivery

Features

It consists of two or more parallel steel wires, usually made of high-strength carbon steel, with a diameter generally between 0.2-0.4 cm.
The structure is stable and can withstand greater pressure and impact, effectively preventing illegal crossing.
The height can be adjusted according to actual needs, and the general height is between 1.2-2.0 meters.
It is widely used in places that require isolation, such as military bases, highways, playgrounds, ports, etc.
Double wire fence can be fixed by different assembly methods, such as tightening device or welding fixation.
The galvanized and powder coating treatment allows the double wire fence working properly for nearly 10 years.
It can effectively prevent climbing because there is a large distance between adjacent steel wires, and the double-wire structure makes it more stable，Easy to maintain, requiring only regular cleaning and inspection.

Gallery

Double wire fence is placed along roadside.

Double wire fence along roadside

Double wire fence is used to create boundaries for residential communities.

Double wire fence for residential communities

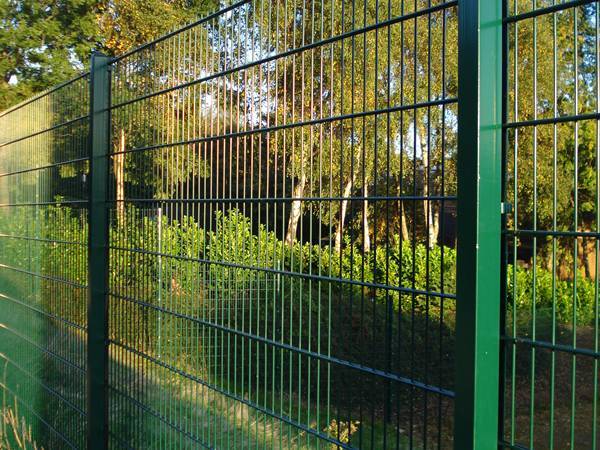

Many trees and plants are grown in the park enclosed by the double wire fence.

Double wire fence for parks

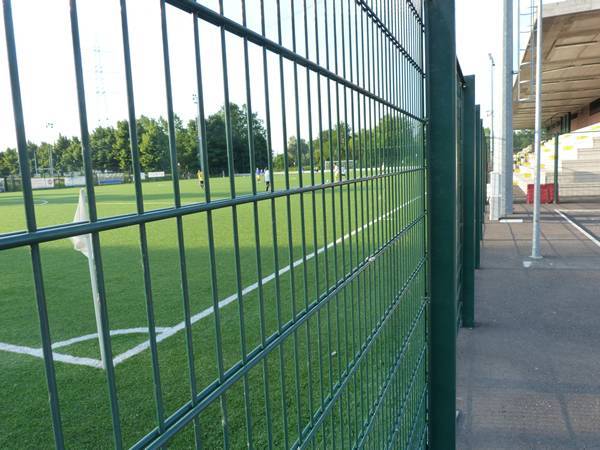

A football field is enclosed by the double wire fence.

Double wire fence for football field

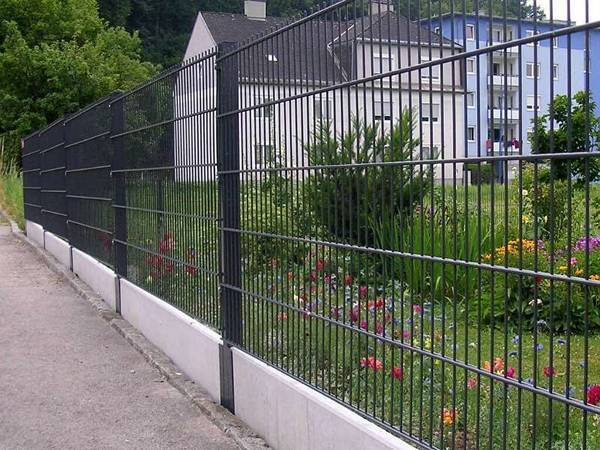

Many flowers are planted in the garden enclosed by double wire fence.

Double wire fence for gardens

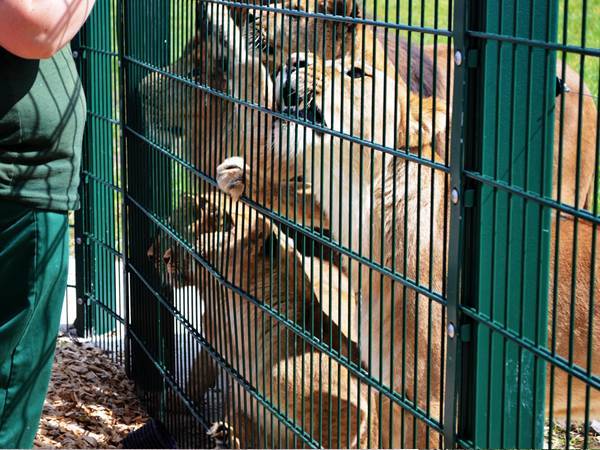

Several lions are enclosed by the double wire fence.

Double wire fence for zoo animals
