Welded Gabion

Welded Gabion Blast Barrier Mesh From Linkland

Welded gabion is manufactured from high-quality galvanized or Galfan steel wire, precisely welded by advanced automatic machinery in accordance with BS 1052 standards. The panels are cut to size and assembled using spiral binding wires or other accessories to form a strong and stable cage structure.

All units are supplied in flat panels to reduce transportation space and cost, allowing for efficient shipping and quick on-site installation.

When filled with stone or sand, welded gabions can be used as a reliable blast barrier system, capable of absorbing impact energy and reducing damage from shockwaves and debris.

They are widely applied in military defense, oil & gas facilities, mining sites, and high-security zones, while also suitable for architectural uses such as landscaping, facades, gabion planters, and decorative structures.

Contact Us MORE INFO

Specification

Popular Specifications of Welded Gabions
Gabion size (m)	Mesh opening (mm)	Wire diameter (mm)	Surface treatment
0.5 × 0.5 × 0.5	50 × 50 50 × 100 50 × 200 75 × 75 75 × 100 100 × 100	3–6	Hot dipped galvanized PVC coated Galfan stainless steel wire
1.0 × 0.5 × 0.5
1.0 × 1.0 × 0.5
1.0 × 1.0 × 1.0
1.5 × 0.5 × 0.5
1.5 × 1.0 × 0.5
1.5 × 1.0 × 1.0
2.0 × 0.5 × 0.5
2.0 × 1.0 × 0.5
2.0 × 1.0 × 1.0
3.0 × 1.0 × 1.0
4.0 × 1.0 × 1.0, etc.
Generally, stiffener length 300 mm, spiral binder wire diameter 2–4 mm All sizes can customized according to your request

Category

Two pieces of welded gabion mattresses are connected with lacing wires.

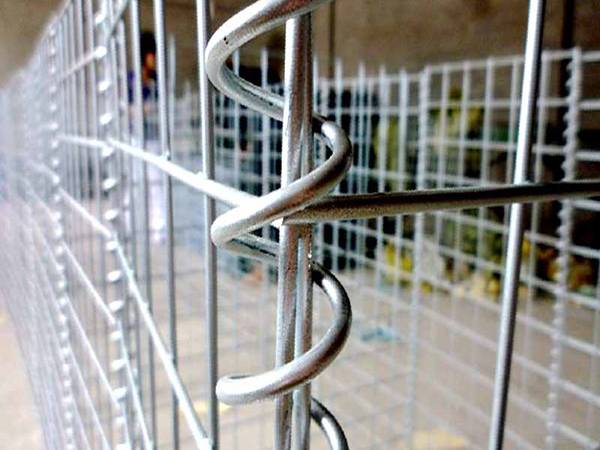

Spiral Wire Connection

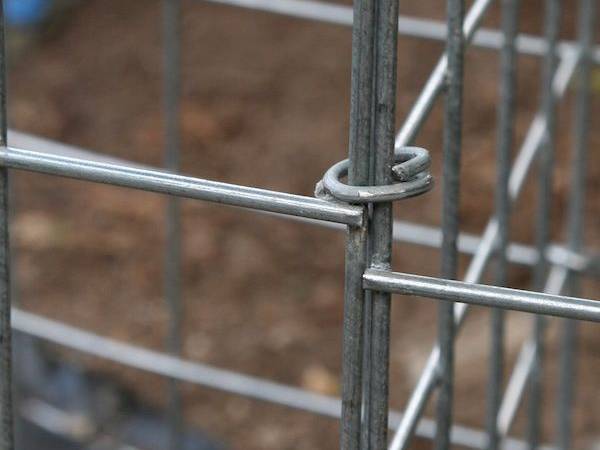

C Rings Connection

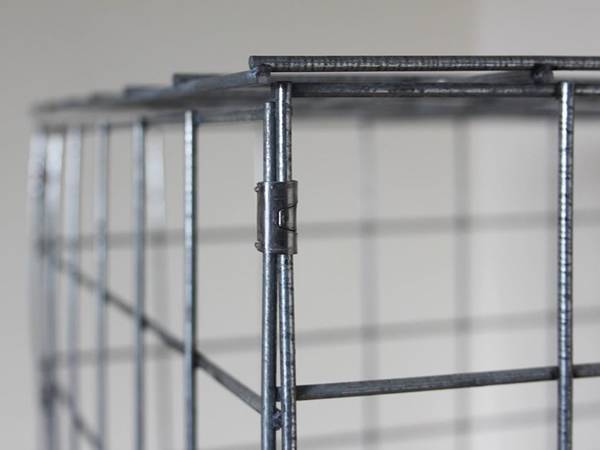

U Clips Connection

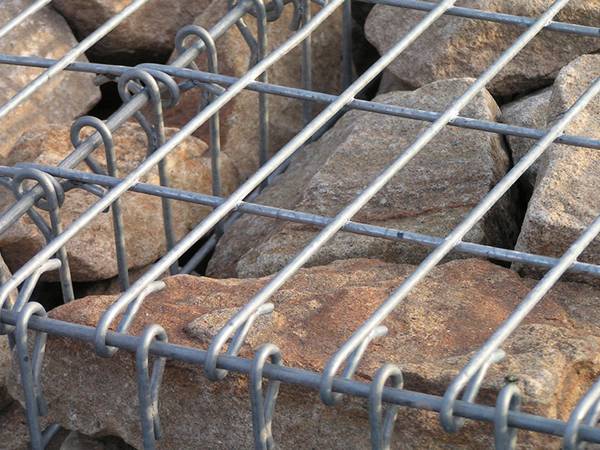

Hook Connection

Production

Production Flow Chart

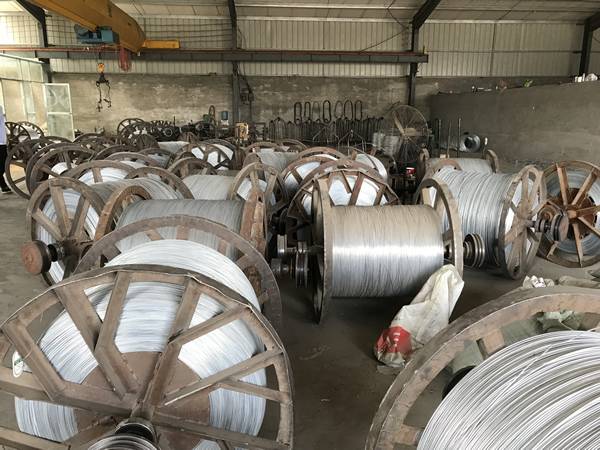

Several axis of galvanized wires in the warehouse.

Step 1

Material

Step 2

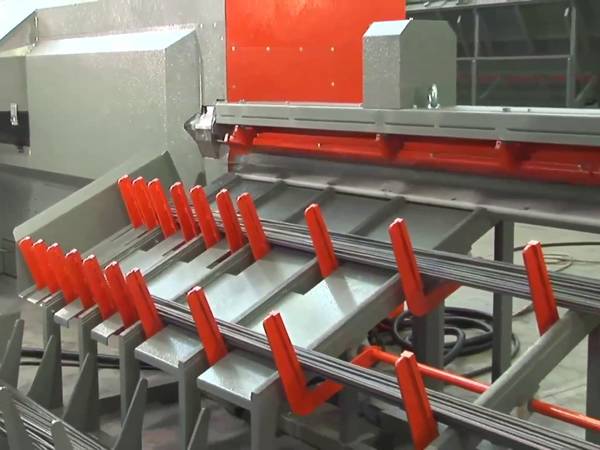

Straightening and cutting

Step 3

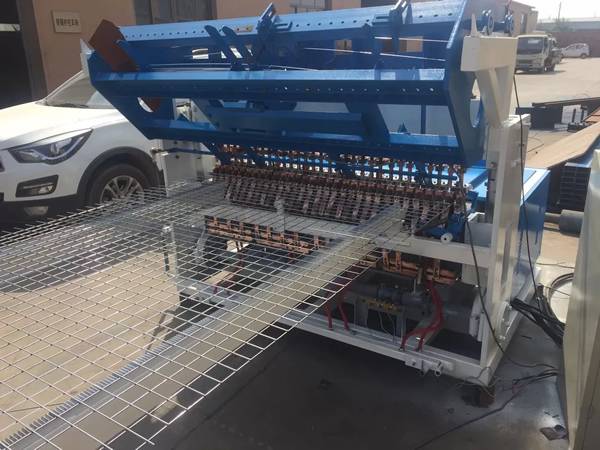

Welding

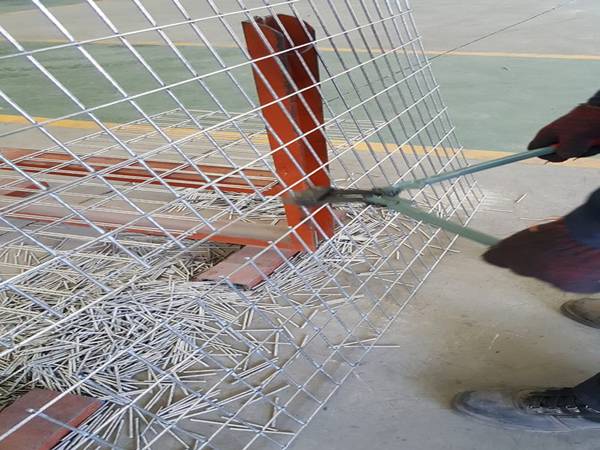

Step 4

Cutting

Step 5

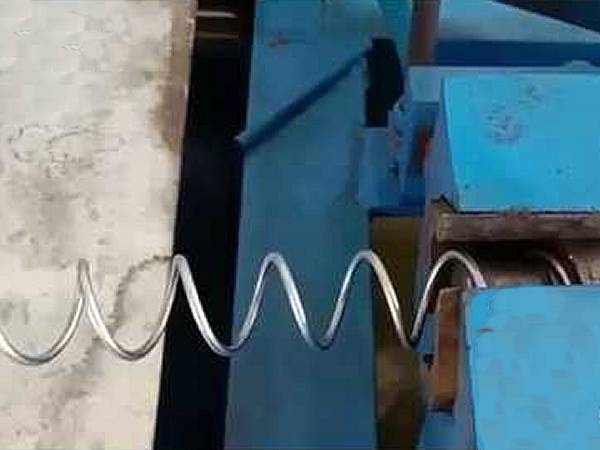

Spiral Wires

Package & Delivery

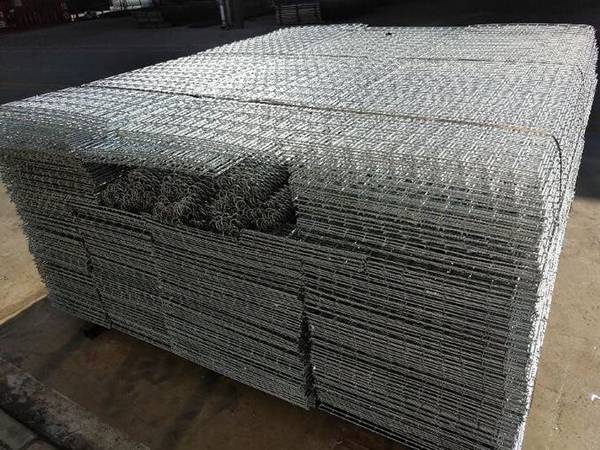

A bundle of welded gabions on the ground.

Package

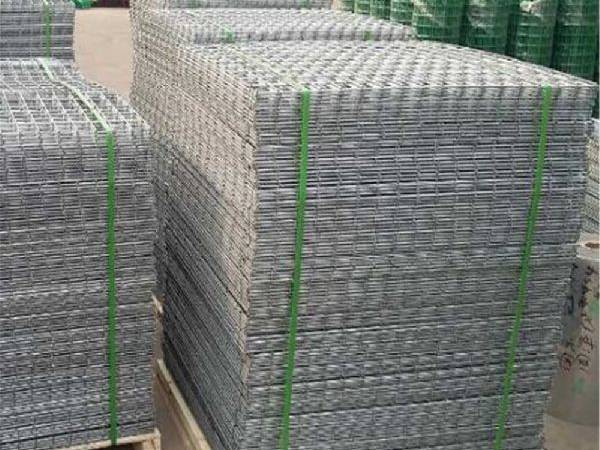

Several pallet of welded gabions in the warehouse.

Pallet package

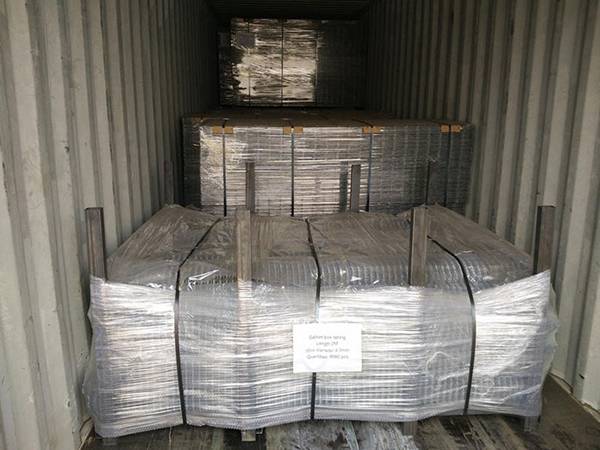

Several pallets of welded gabions and spiral wires in the container.

Delivery

Features

Durable construction and transformer prevention
High-strength steel wires and strong welds ensure that the welded gabion has a solid structure. Even if it is filled with stones, it will prevent deformation. Ribs can help maintain its structure effectively.
highest corrosion resistance
99% pure zinc coating or zinc-aluminum coating (Galfan coating) has excellent corrosion resistance and wear resistance. They hold up well even in the harshest environments.
easy to assemble
It can be easily folded and assembled on the construction site with simple accessories and tools. Tension wire, helical wire, and a variety of connection options allow for efficient installation.
Environmental friendly
Galfan or galvanized gabions are made from welded mesh panels and are considered a durable alternative to traditional concrete and timber for flood and soil erosion control. At the same time, the impact on the surrounding environment is small.
beautiful appearance
Welded gabions have a natural look and can be painted in various colors to blend in with their surroundings. At the same time, if combined with green plants or vegetation, we can provide a more aesthetic appearance.
adaptable
Welded gabion mesh can be applied in environmentally sensitive conditions, such as marine areas with high-velocity water currents - this is because the spaces between the rocks can effectively dissipate large amounts of water flow energy and actively drain the water flow.

Gallery

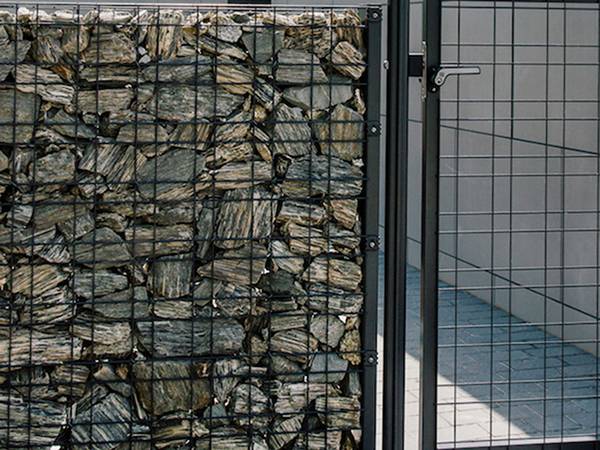

Gabion planters

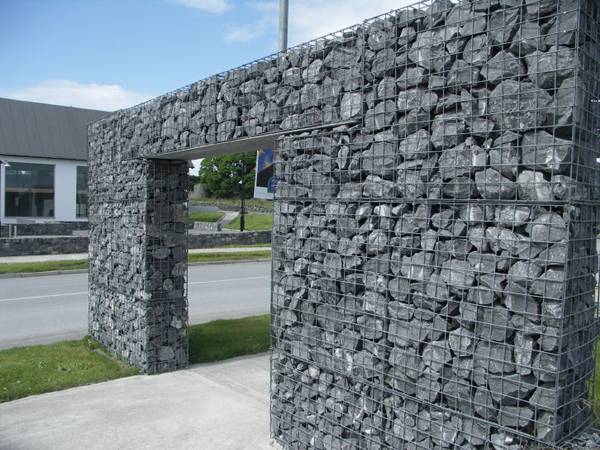

A entrance on the passage way is made by welded gabions.

Gabion architecture

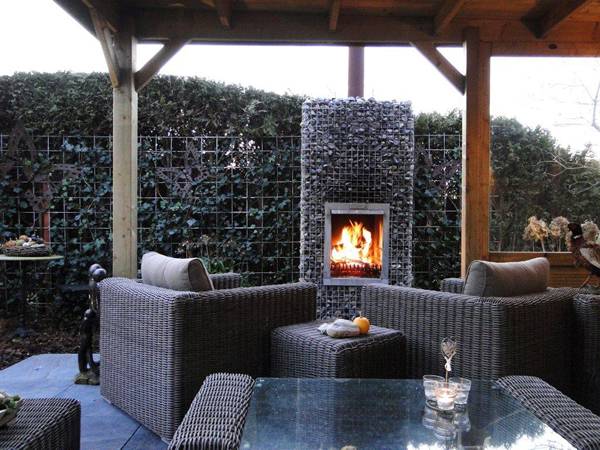

Gabion fireplace.

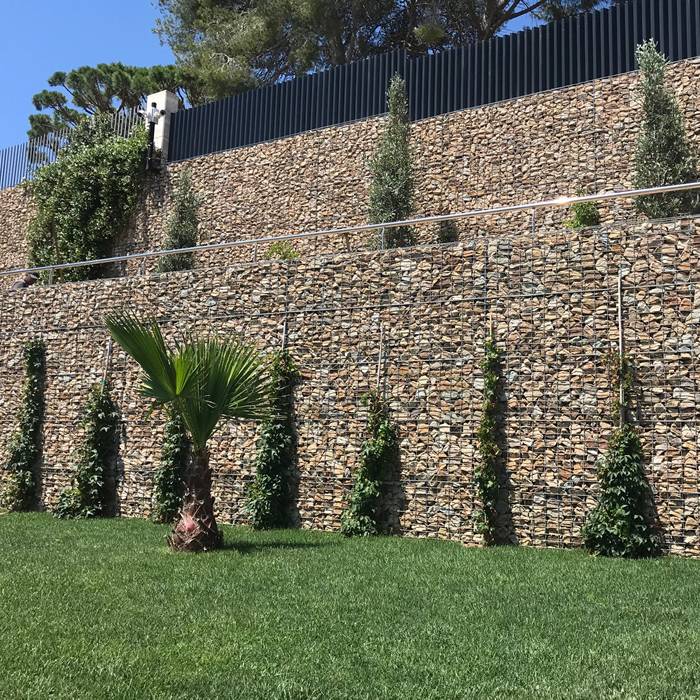

Gabion wall

Three layers of welded gabions are installed under the bridge.

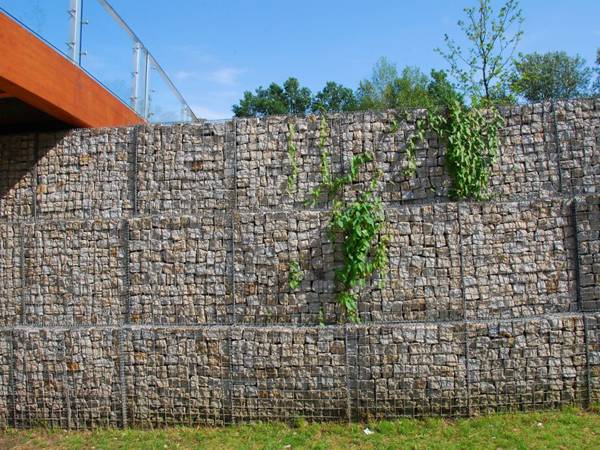

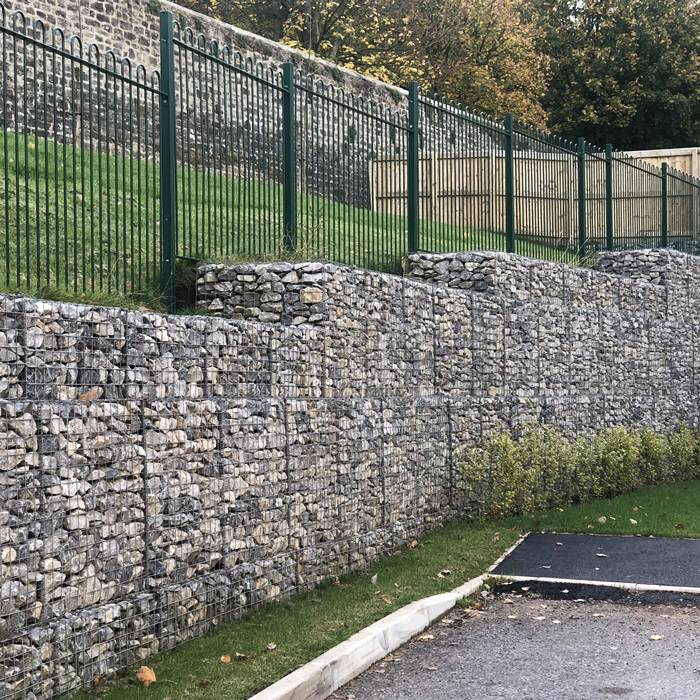

Retaining wall

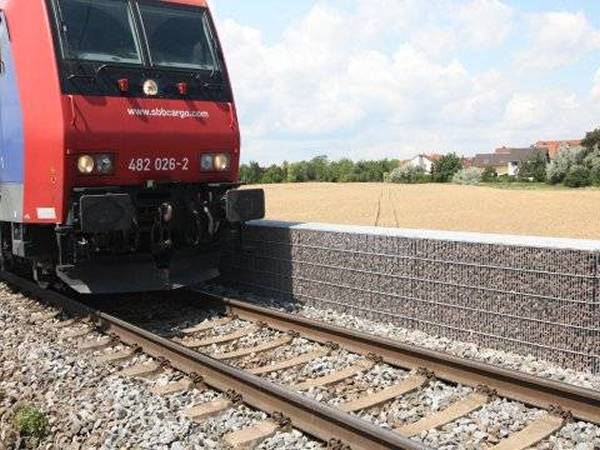

Gabion noise barrier

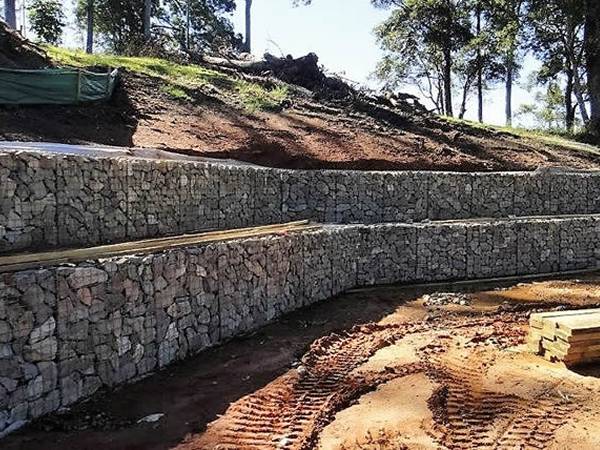

Two layers of welded gabions are installed along the slope.

Slope protection

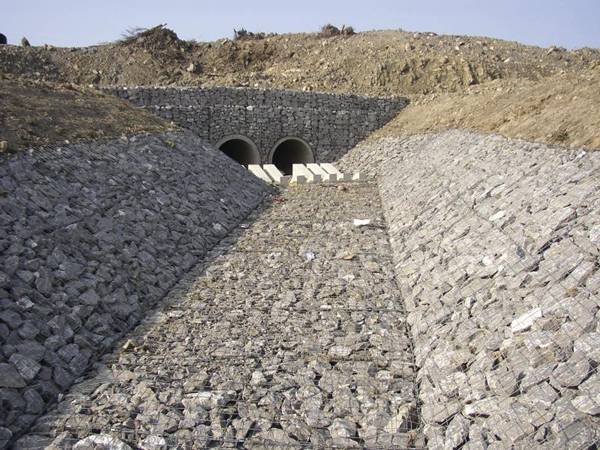

Several pieces of welded gabion mattresses are placed in the channel.

Channel lining
