Temporary Chain Link Fence From Linkland

Temporary Chain Link Fence, also known as portable chain link fence or chain link construction fence, is a kind of free-standing chain link fence with movable feet. It can be installed directly in a variety of grounds including sand, soil, asphalt and concrete without digging holes or removing excavated materials, which saves both time and labor. It is widely used to protect your property and prevent unauthorized persons from entering. Typically, temporary chain link fence is commonly seen in construction sites, residential sites, schools, major public events including sports, concerts, gatherings, swimming pools and traffic & crowd controls.

Contact Us MORE INFO

Specification

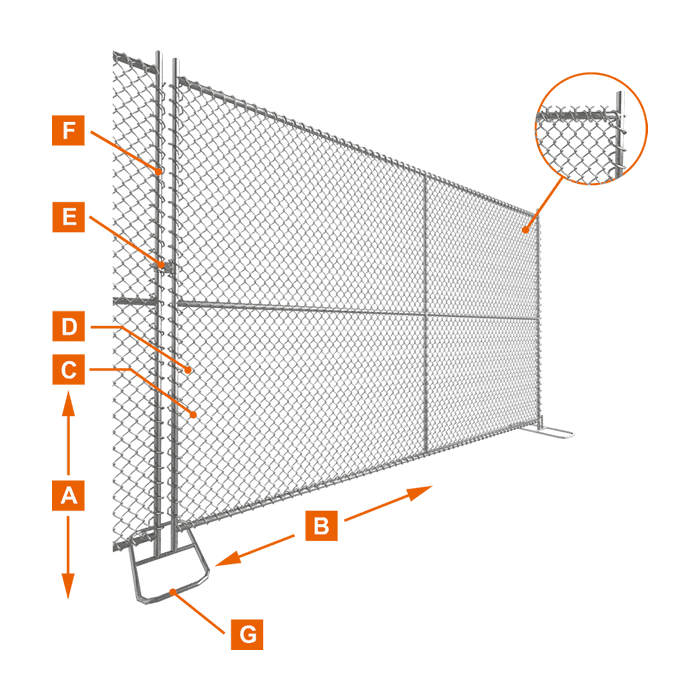

The picture shows the diagram and the details of the temporary chain link fence.

A Height: 1800 mm, 2400 mm

b Width: 2400 mm, 3000 mm, 3700 mm, 4300 mm

c Wire Diameter: 2.5 mm, 3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 5.0 mm

d Mesh Opening: 50 mm × 50 mm, 57 mm × 57 mm, 60 mm × 60 mm, 70 mm × 70 mm

e Clamp: metal clamp

f Frame: Round pipe (outside diameter 32 mm, 38 mm, 40 mm)

g Base: 915 mm × 350 mm × 200 mm, 760 mm × 460 mm × 200 mm

Notes: Other materials and specifications are available upon request.

Category

Assemble Type

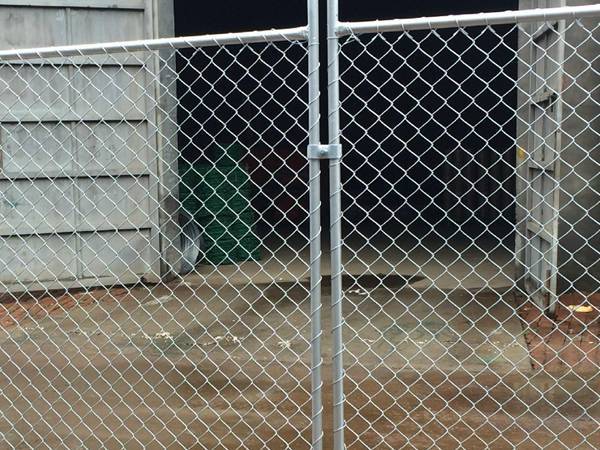

The temporary chain link fence fabric is attached to the fence frame via tie wires

Tie wire assembly

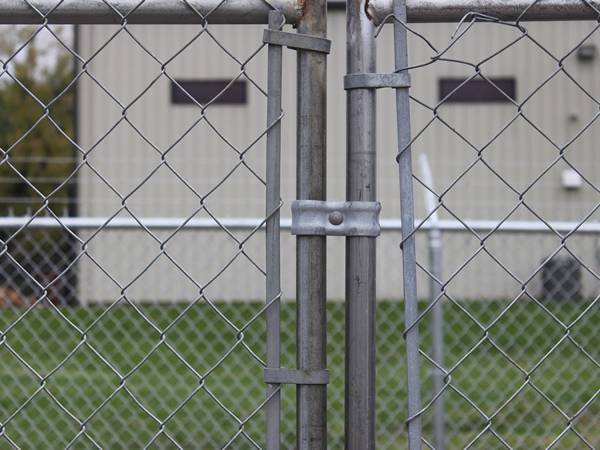

The temporary chain link fence fabric is attached to the fence frame via tension bars.

Tension bar assembly

Fence Bases

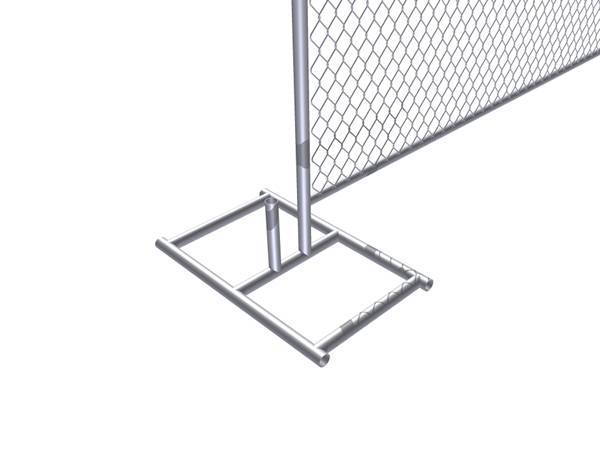

Square fence base

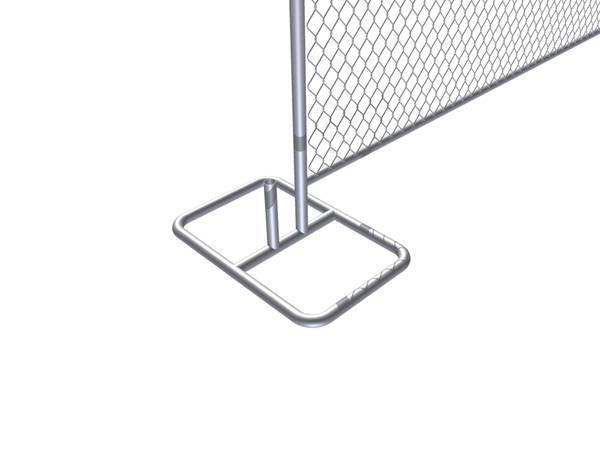

A piece of temporary chain link fence panel is inserted into the oval fence feet.

Oval fence base

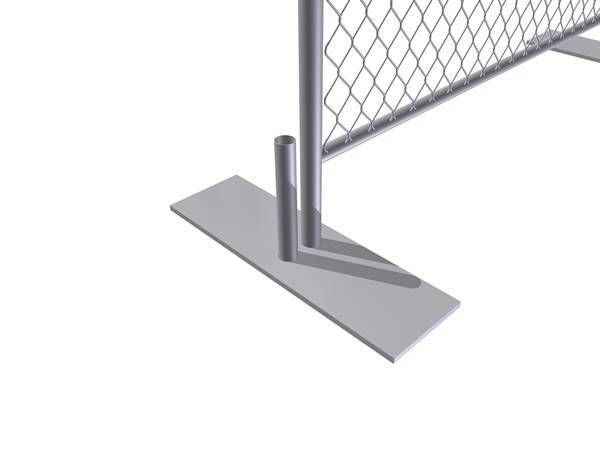

A piece of temporary chain link fence panel is inserted into the flat feet.

Flat fence base

Components & Accessories

The most important components of the temporary chain link fence are the temporary chain link fence panels, fence feet and panel clamps as shown below.

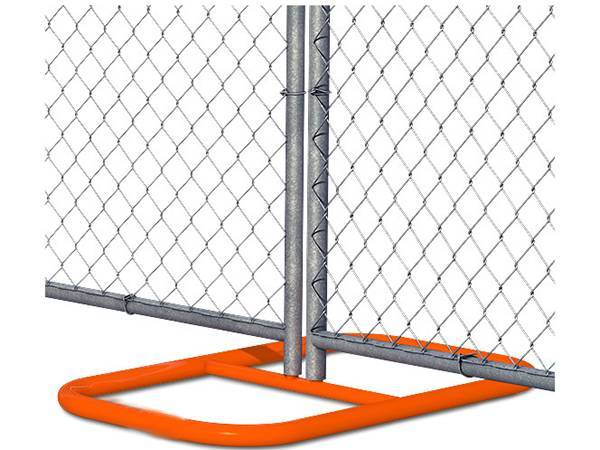

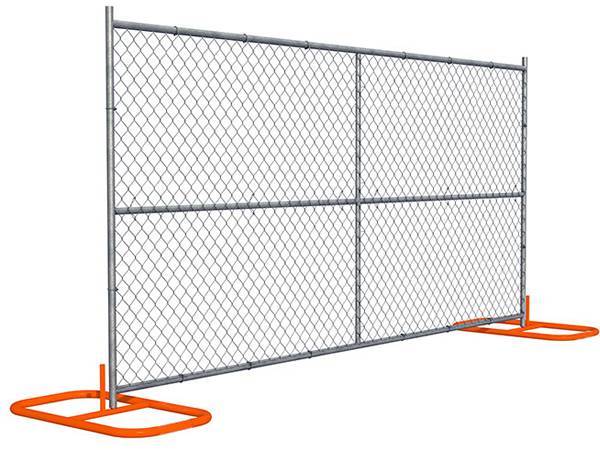

A piece of temporary chain link fence with orange feet.

Fence panel

Fence feet

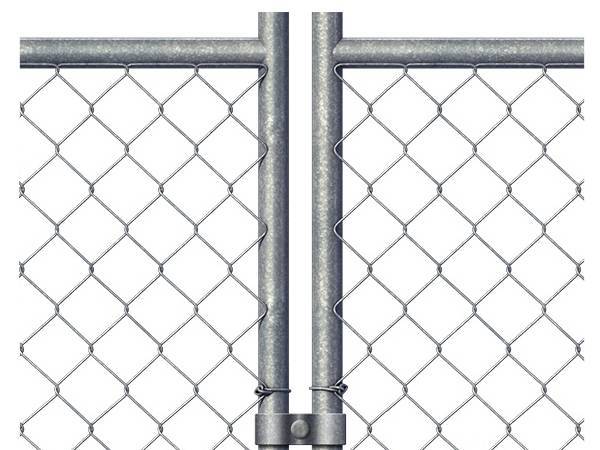

Clamp

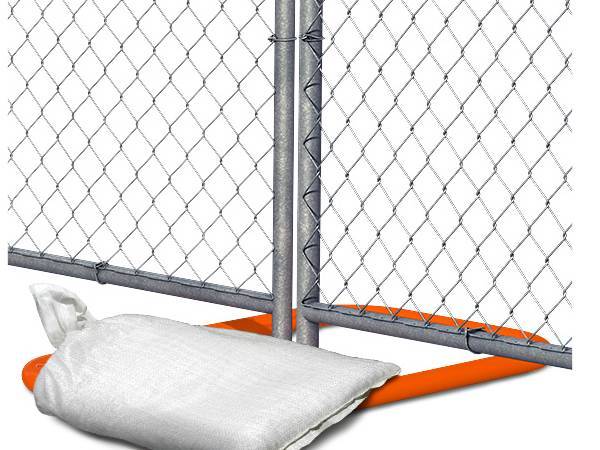

A sand bag is put on the fence panel of the temporary chain link fence to enhance its stability.

Sand bags

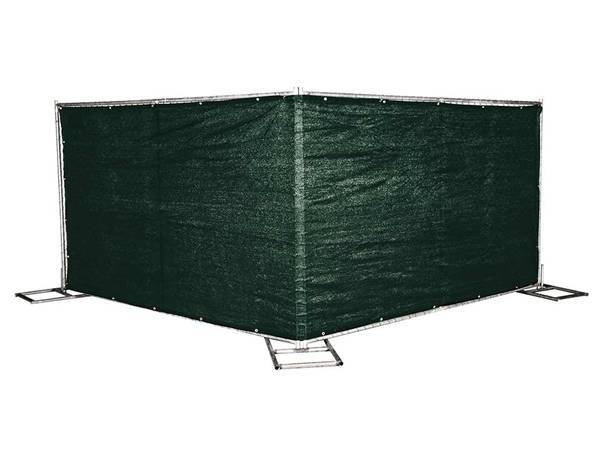

Shade cloth

Production

Production Flow Chart

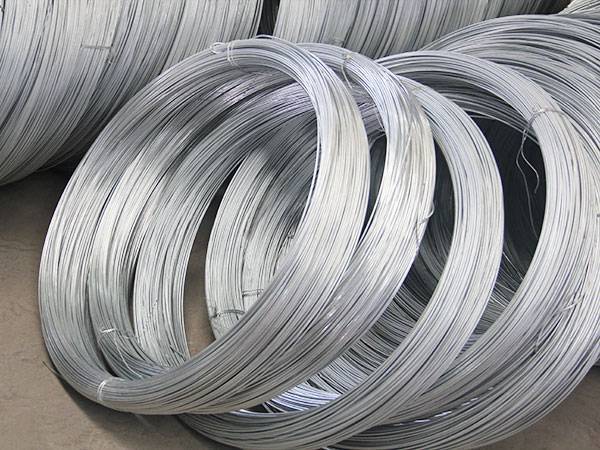

Several galvanized steel wire coils are placed on the ground.

Step 1

raw materials (galvanized steel wire coils)

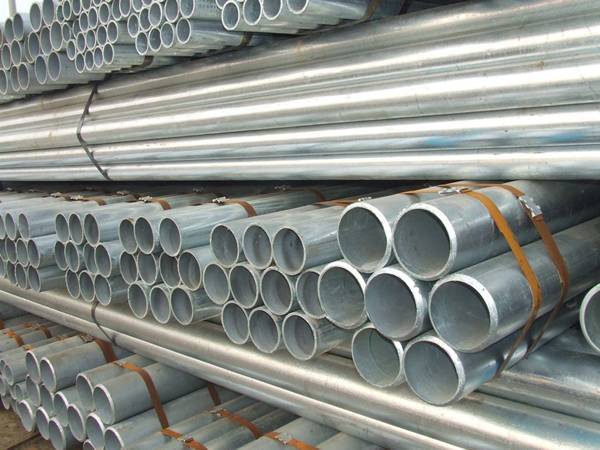

A large pile of galvanized steel pipes are placed in the warehouse.

Step 2

raw materials (galvanized steel pipes)

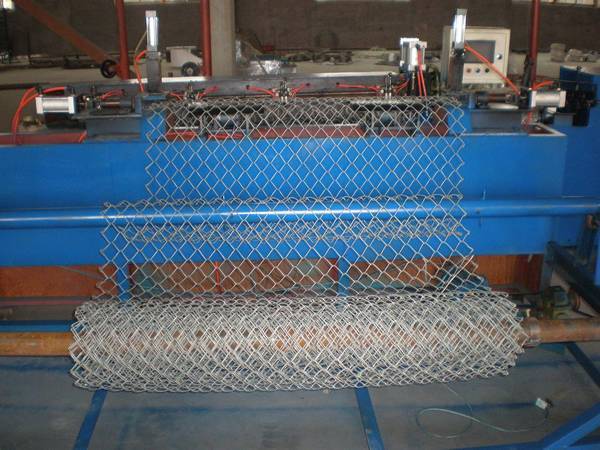

A chain link weaving machine is producing chain link fence fabric.

Step 3

galvanized chain link fence fabric weaving

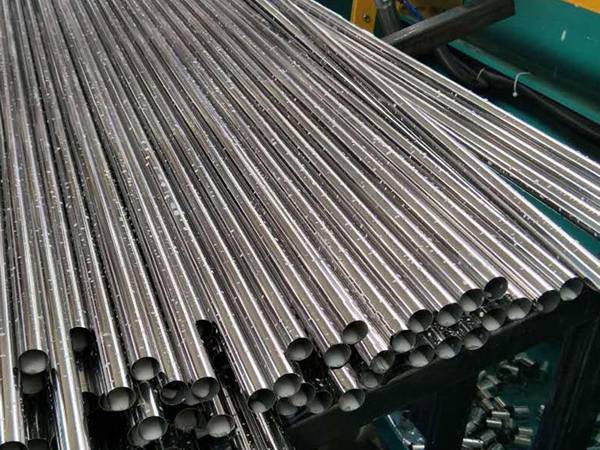

The cutting machine is cutting steel pipes into desired sizes.

Step 4

pipe cutting

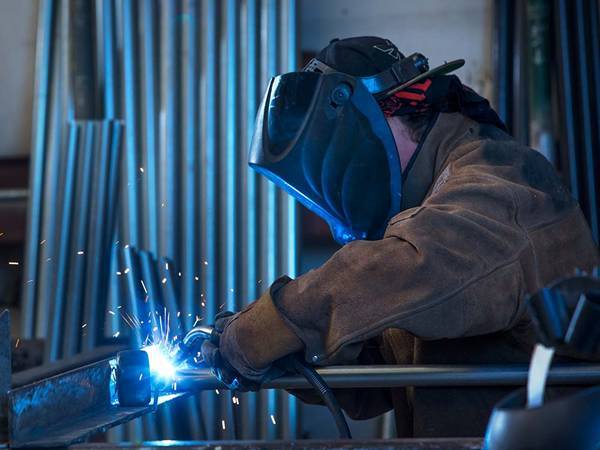

Step 5

fence frame welding

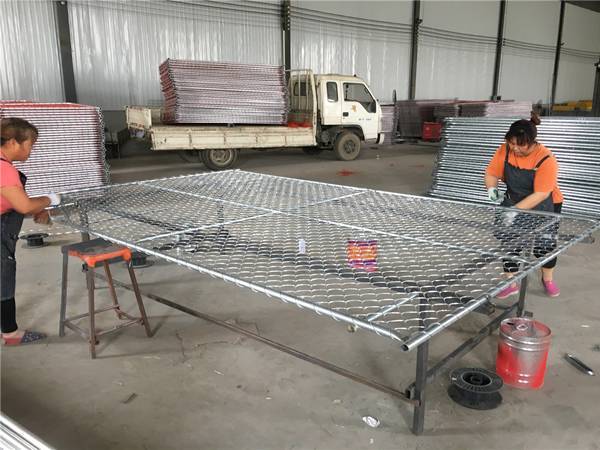

Two workers are tying the chain link fence fabric to the fence frame.

Step 6

chain link fence and frame assembly

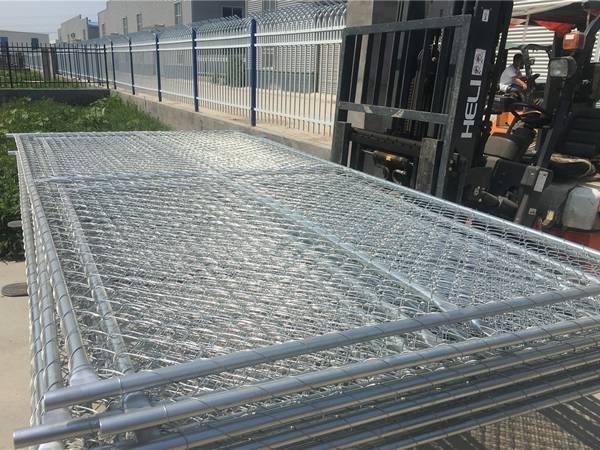

A large quantity of temporary chain link fence panels are placed on the ground.

Step 7

finished temporary chain link fence

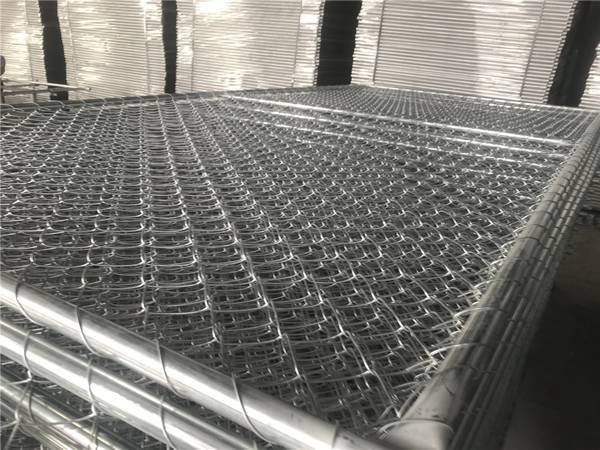

Temporary chain link fence are stored in the warehouse.

Step 8

temporary chain link fence storage

Package & Delivery

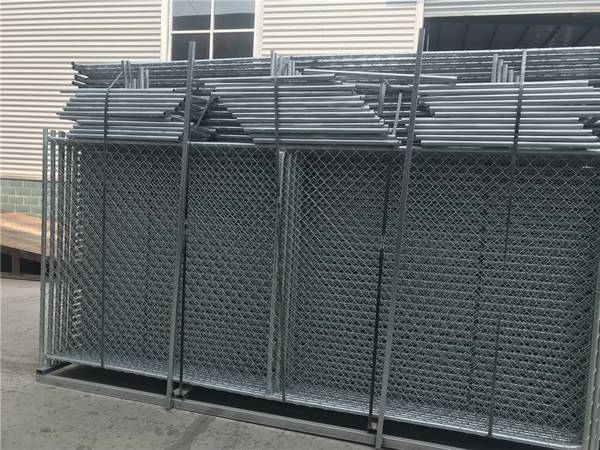

Temporary chain link fence panels and fence feet are placed on the pallet and tightened with steel packing straps.

Temporary chain link fence panels are packaged properly to ensure they are intact during transportation.

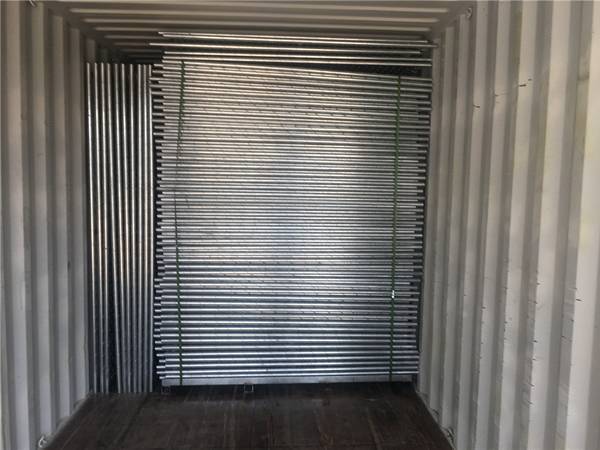

The packaged temporary chain link fences are placed orderly in the compartment for delivery.

The packaged temporary chain link fences are handled to the compartment for delivery.

Features

No digging or debris cleaning. It can be inserted into the moveable feet directly without digging holes or cleaning excavated debris.
>Easy installation and removal. It can be installed and removed easily and be stored in the warehouse for repeat uses.
Security. It can create an enclosure to prevent pedestrians from construction sites or other dangerous places and keep them safe from accidental injury.
Adaptability. It can be placed on various surfaces including sand, soil, asphalt and concrete.
Affordability. Its relatively inexpensive price is really a budge-friendly choice for all users.
Durability. High quality raw materials ensure its great corrosion, rust and weather resistance performances.
>Less maintenance. Its high strength, solid structure and corrosion and weather resistance performances make it strong enough and require less maintenance.

Gallery

Temporary chain link fence is widely used in construction sites, residential sites, schools, major public events including sports, concerts, gatherings, swimming pools and traffic & crowd controls.

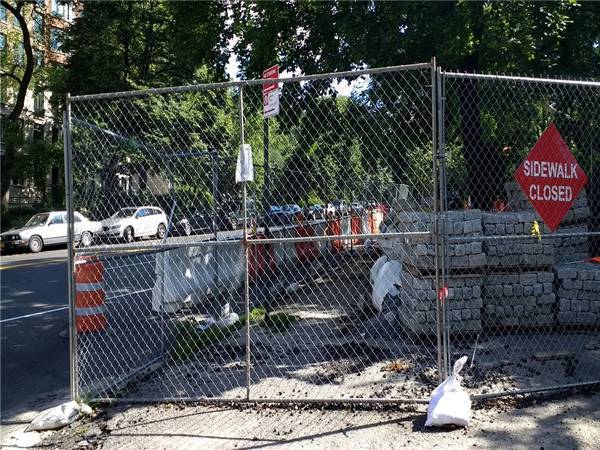

A temporary chain link fence is placed beside a construction site to keep pedestrians safe from accidental injury.

Temporary chain link fence for construction sites

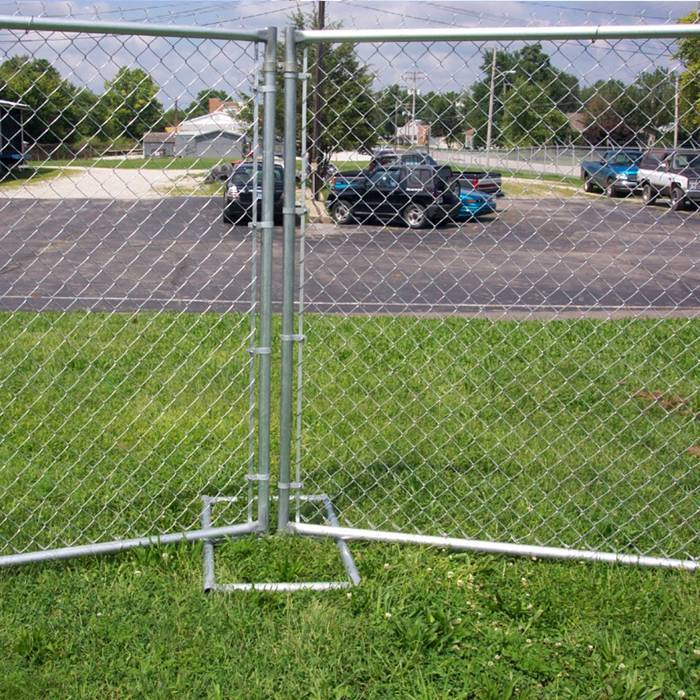

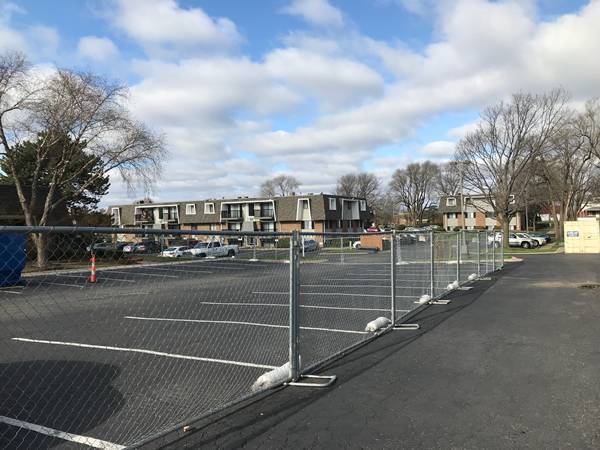

A temporary chain link fence is used to build a temporary parking lot.

Temporary chain link fence for parking lots

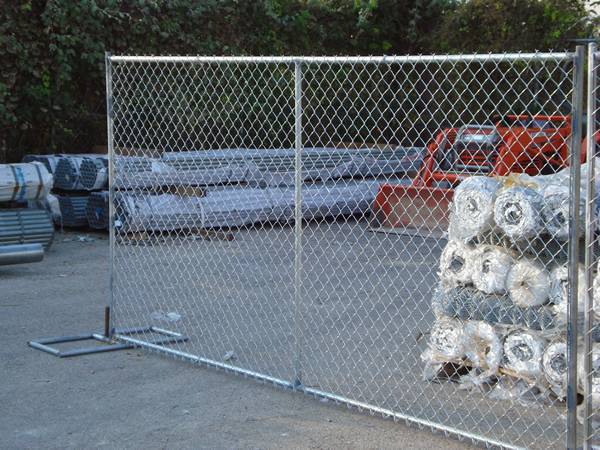

A temporary chain link fence is used to store goods.

Temporary chain link fence for storage

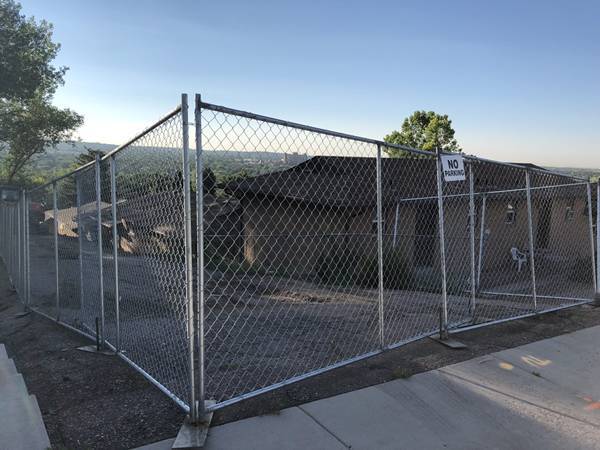

A temporary chain link fence is used to build a temporary enclosure to prevent others parking.

Temporary chain link fence for restricted area

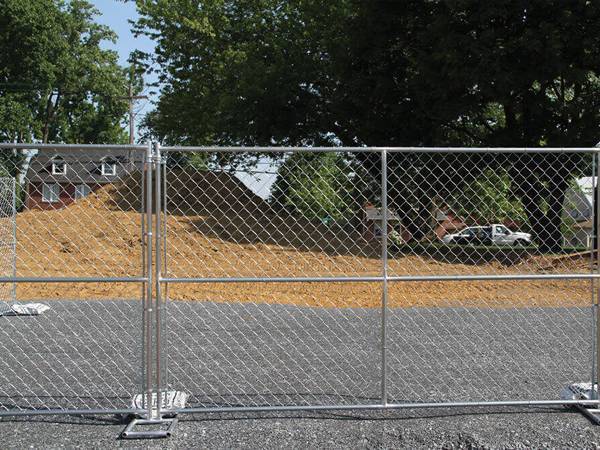

A temporary chain link fence is used for road construction.

Temporary chain link fence for road construction

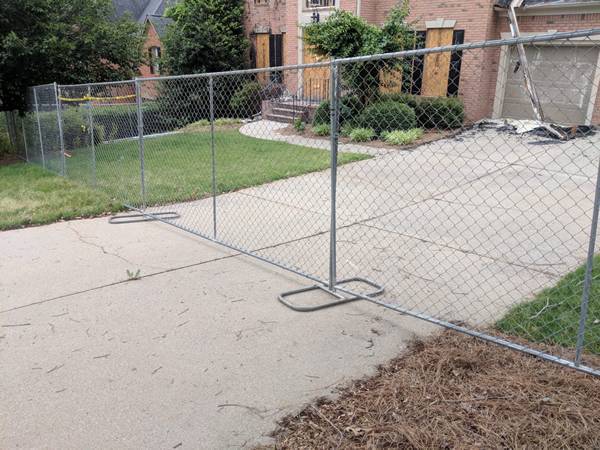

A temporary chain link fence is used to encircle the demolition sites.

Temporary chain link fence for demolition sites
