Steel Fence​

homeProductsSteel Fence
  • Apiece of black powder coating steel fence is displayed.

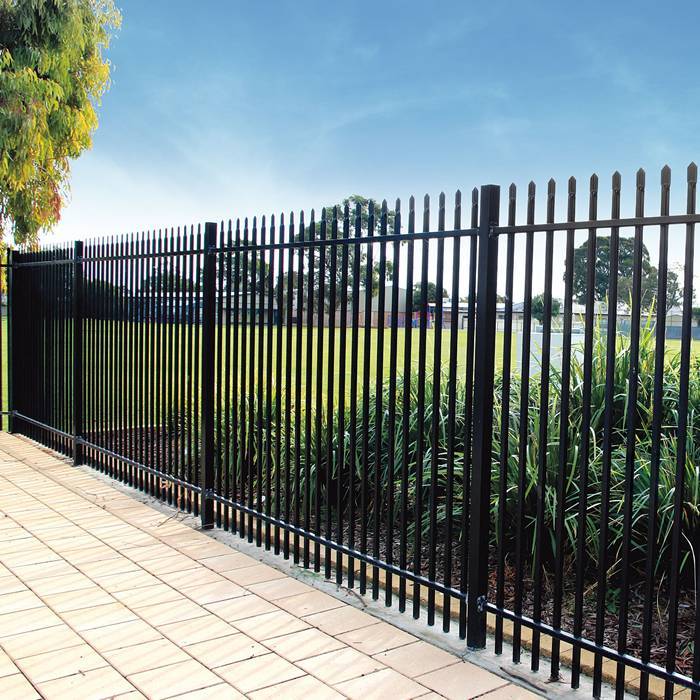

  • Steel fence is used to create boundaries for botanical gardens.

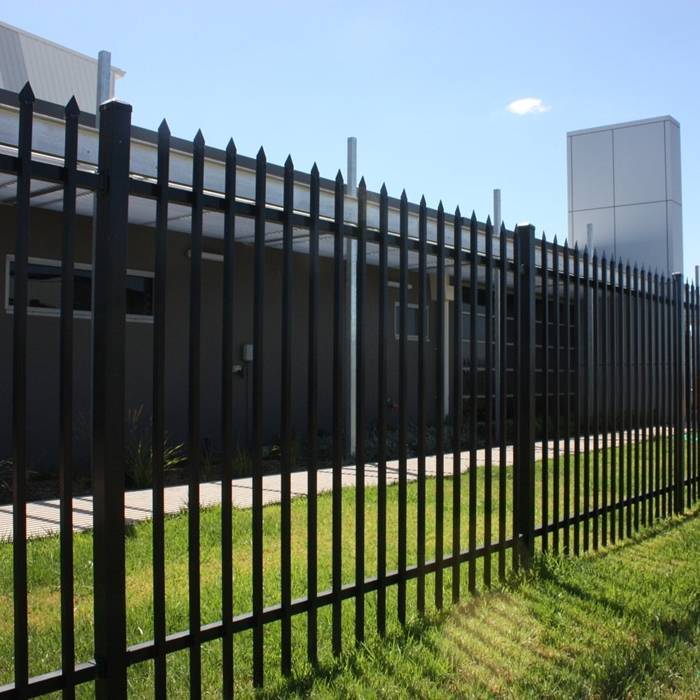

  • Steel fence is used to crate boundaries for industrial parks.
Apiece of black powder coating steel fence is displayed.

Steel Picket Fence Panels From Linkland

Steel Picket Fence Panels, also referred to as Wrought Iron Fence Panels, are decorative mesh fences known for their simple tubular structure and high defensive capabilities. These fences are constructed using galvanized steel pipes or aluminum pipes, connected by vertical steel plates and horizontal guide rails. They offer excellent corrosion and rust resistance, ensuring a long service life.

With their strong and sturdy construction, wrought iron fence panels are well-suited for various security purposes. Additionally, their powder-coated finish makes them suitable for different environments. Our steel picket fences find wide applications in commercial, residential, and industrial settings, including villas, community gardens, schools, factories, flower beds, lawns, stadiums, conference centers, squares, roads, balconies, and more.

Contact Us MORE INFO
  • Specification
  • Category
  • Components & Accessories
  • Production
  • Features
  • Gallery
Specification

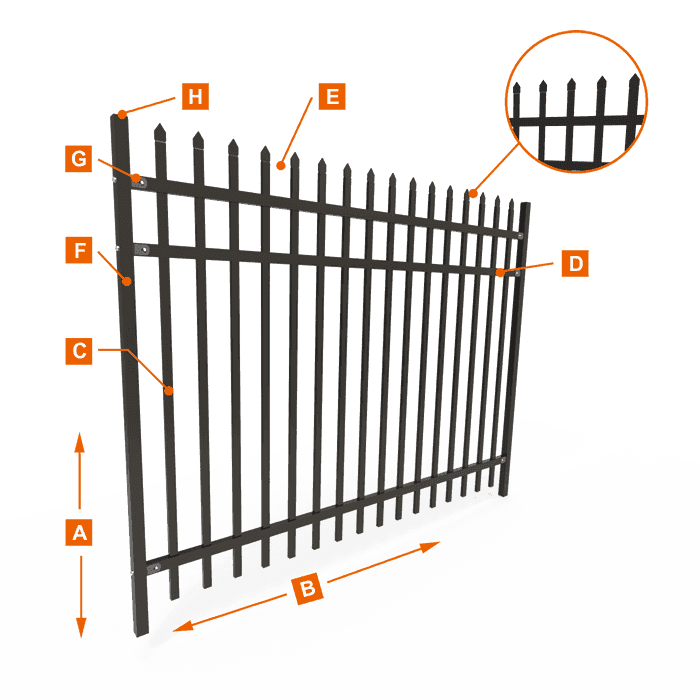

The picture shows the diagram and the details of the steel fence.

A Height: 1200 mm, 1500 mm, 1800 mm, 2100 mm

b Width: 1800 mm, 2000 mm, 2400 mm

c Vertical picket: 15 mm × 15 mm, 19 mm × 19 mm, 25 mm × 25 mm; thickness: 0.8–2.0 mm;

d Horizontal rail: 30 mm × 30 mm, 40 mm × 40 mm, 45 mm × 45 mm, 2 rails, 3 rails or 4 rails

e Vertical pipe spacing: 100 mm, 110 mm, 120 mm

f Post: 50 mm × 50 mm, 60 mm × 60 mm, 80 mm × 80 mm, 100 mm × 100 mm; thickness: 1.2–3.0 mm

g Fixing: Steel brackets or aluminum brackets

h Post Cap: metal cap / anti-UV plastic cap

Notes:

  • Popular color is black, all RAL color can be customized;
  • Double coating service is available, which provides a service life of lasting for 10 years.
Category

Top Pattern

According to their top patterns, our Steel Picket Fence can be divided into four types as shown below.

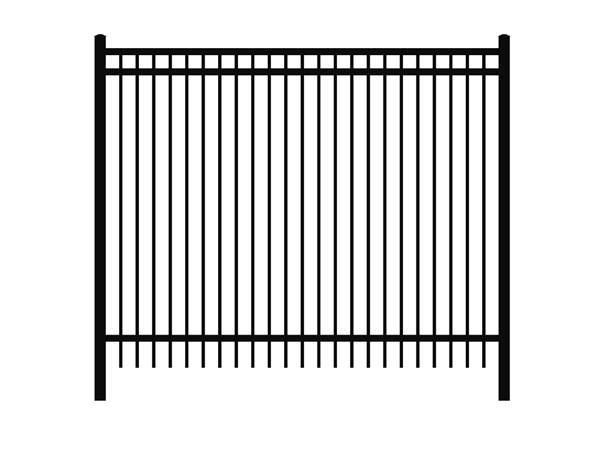

A flat-top steel fence is displayed

Flat-top steel fence

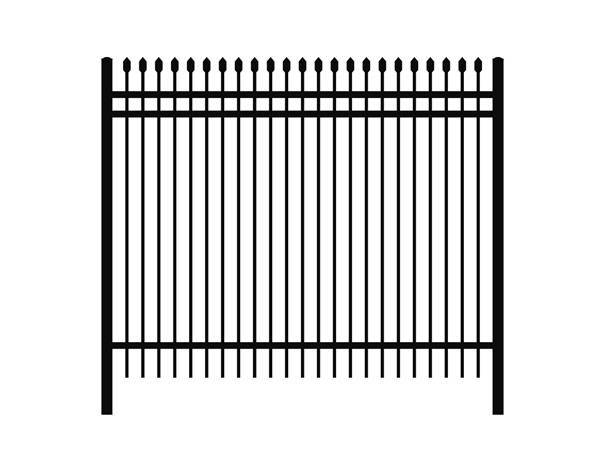

A spear-top steel fence is displayed.

Spear-top steel fence

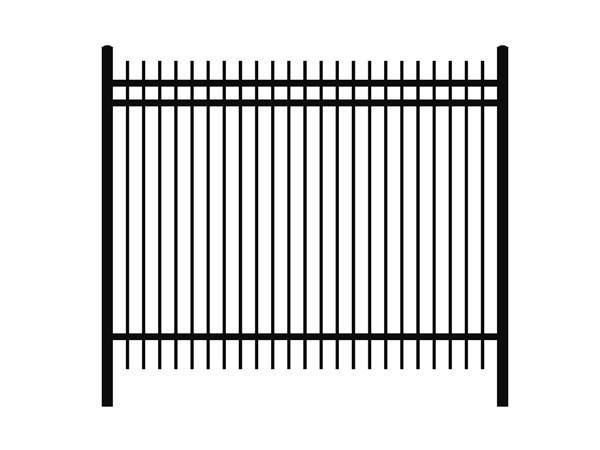

A rod-top steel fence is displayed.

Rod-top steel fence

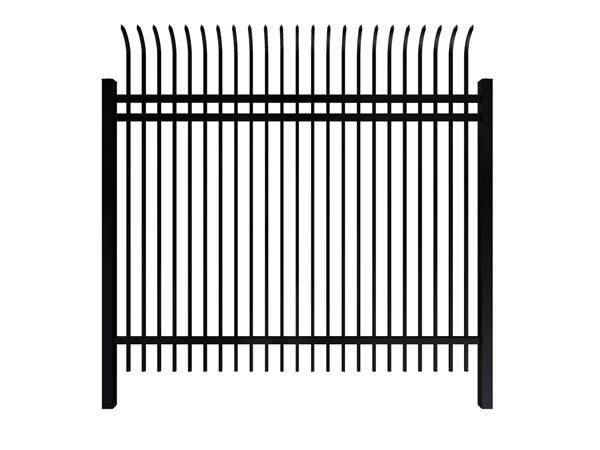

A curved-top steel fence is displayed.

Curved-top steel fence

Components & Accessories

The main components of our steel fence are Wrought Iron Fence Panels and posts as shown below.

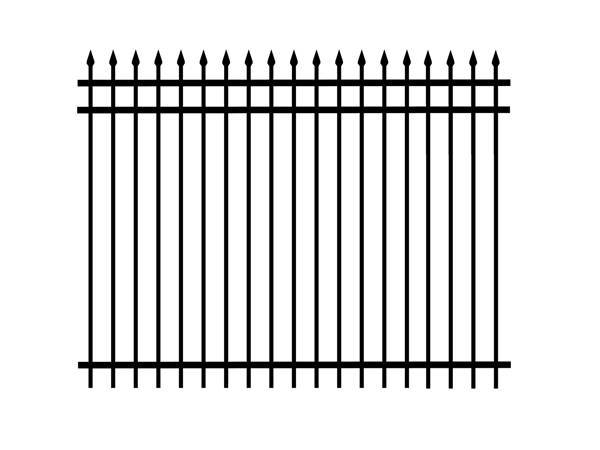

A piece of black powder coating steel fence panel is displayed.

Fence panel

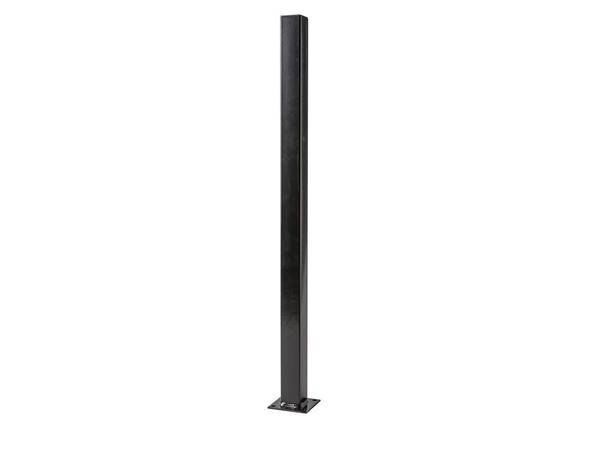

A black powder coating steel fence square post is displayed.

Square posts

Optional Accessories

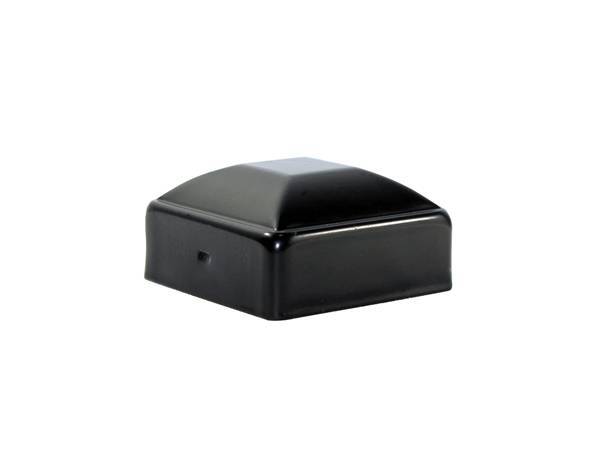

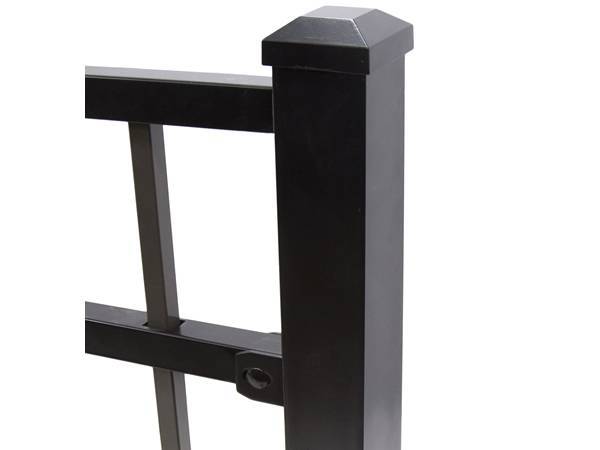

A black powder coating post cap is displayed. A black powder coating is installed on the steel fence post

Post caps

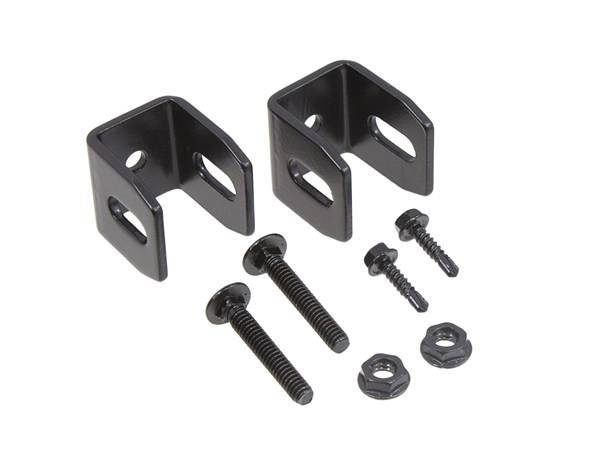

Two black powder coating mounting brackets and corresponding bolts and nuts are displayed. Mounting brackets are firmly fixed to the steel fence post.

Mounting brackets

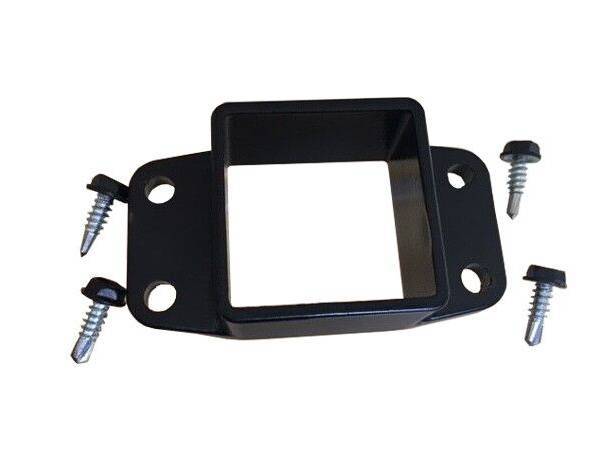

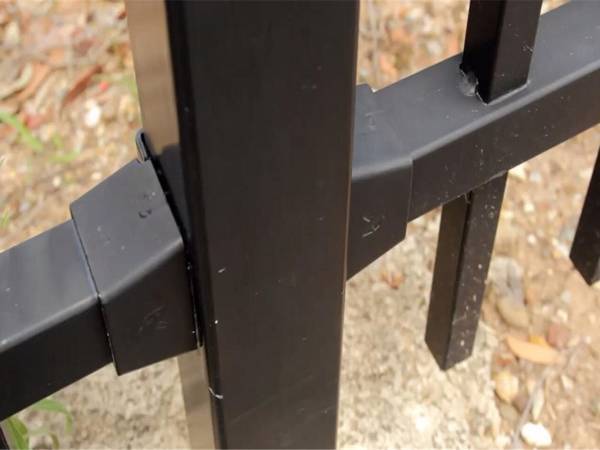

A black powder coating railing bracket and four bolts are displayed. Railing brackets are firmly fixed to the steel fence post.

Railing brackets

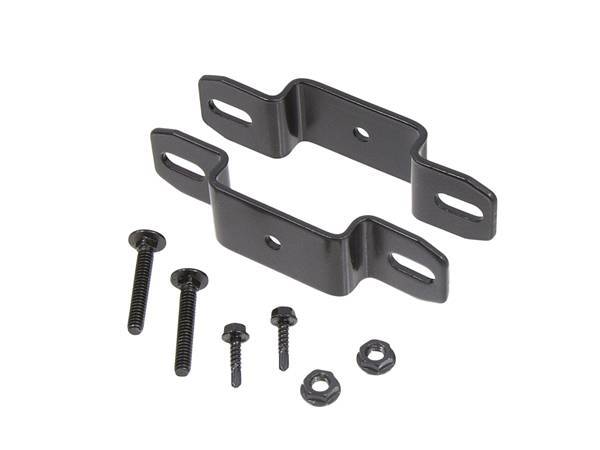

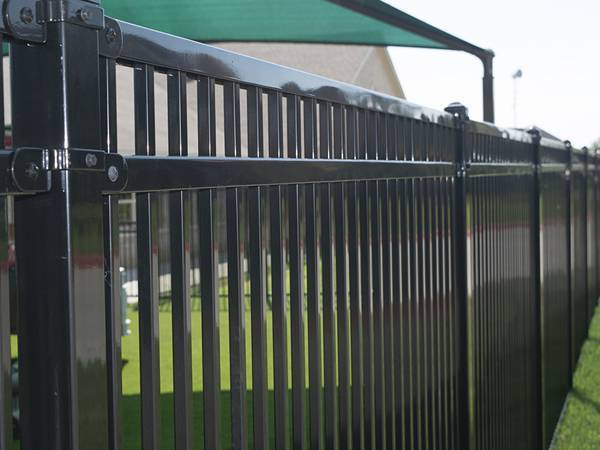

A set of powder coating line brackets, bolts and nuts are displayed. Line brackets are firmly fixed to the steel fence post.

Line brackets

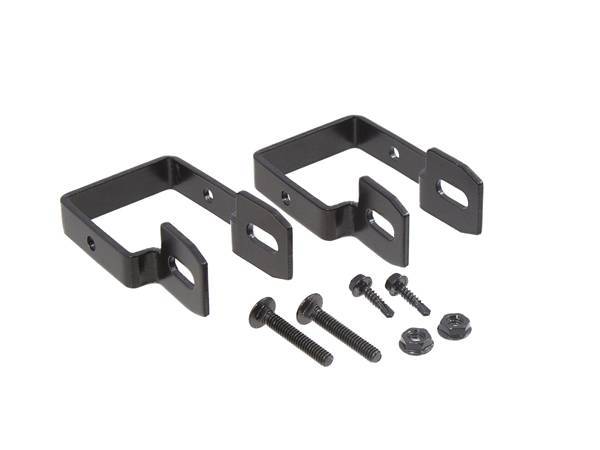

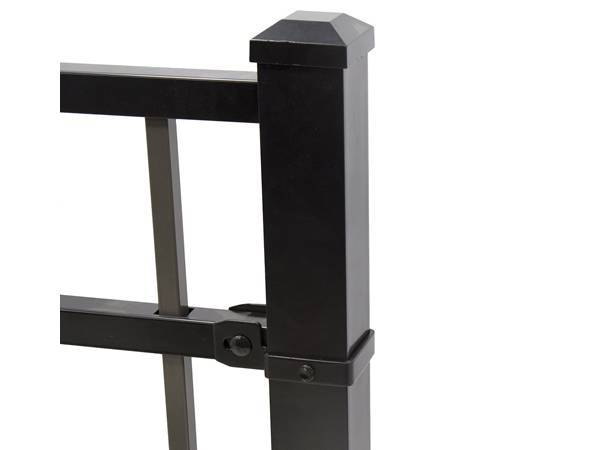

Two powder coating end brackets and corresponding bolts and nuts are displayed. End brackets are firmly fixed to the steel fence post.

End brackets

Production

Production Flow Chart

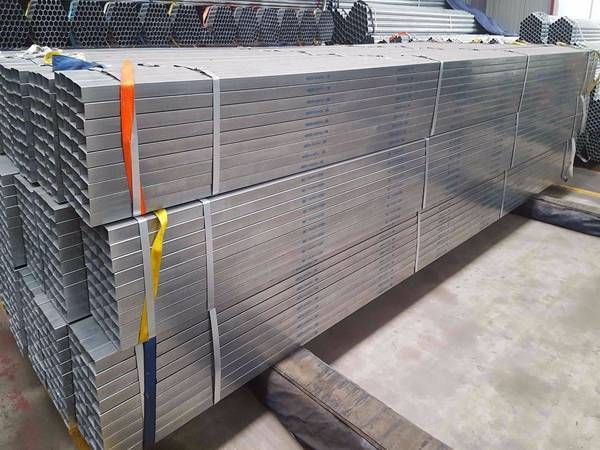

Many square steel pipes are piled on the ground. Step 1

raw materials (galvanized steel pipes)

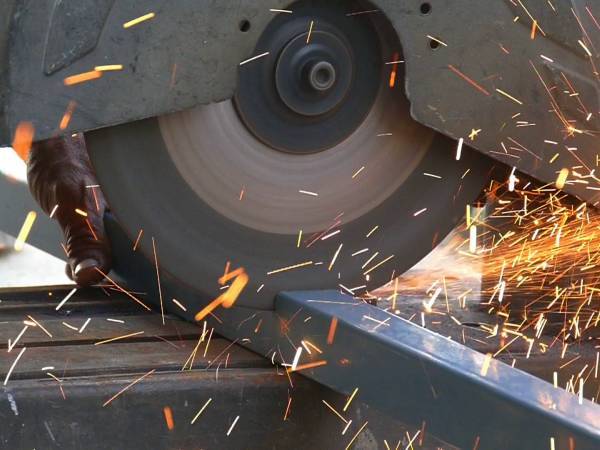

Square steel pipes are cut into standard length. Step 2

pipe cutting

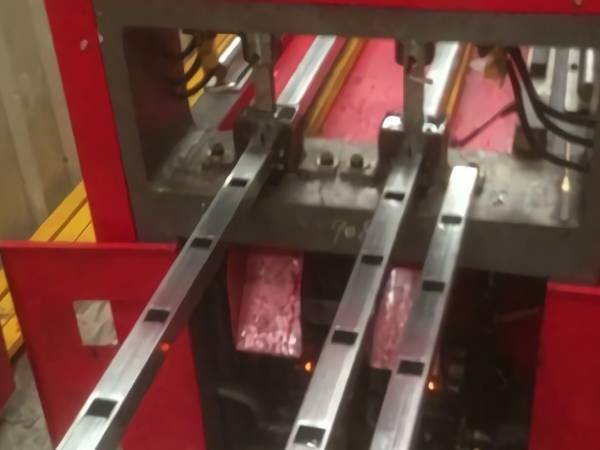

The punching machine is punching holes in the steel pipe Step 3

pipe punching

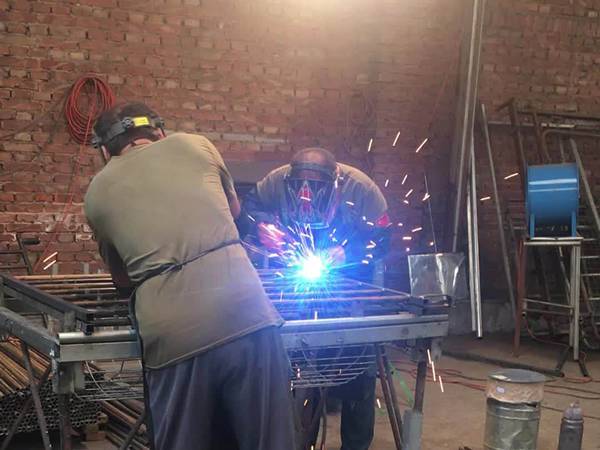

Two workers are welding steel fence panels. Step 4

Steel Picket Fence panel welding

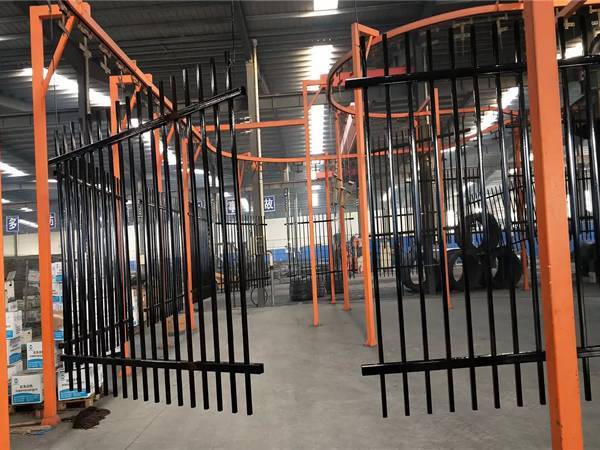

Many steel fence panels are hanging in the air after powder coating. Step 5

steel fence panel powder coating

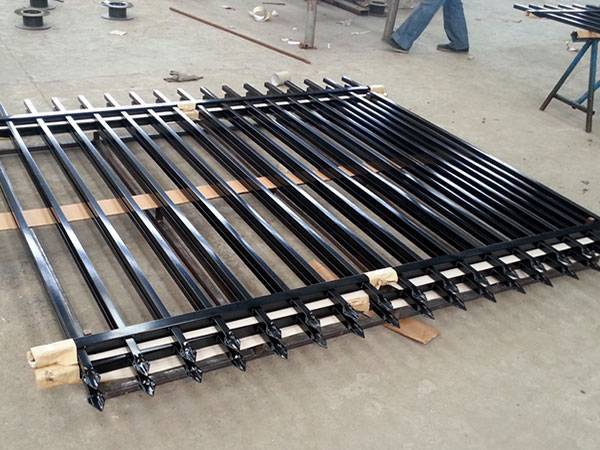

Two finished steel fence panels are placed on the ground. Step 6

finished steel fence panels

Package & Delivery

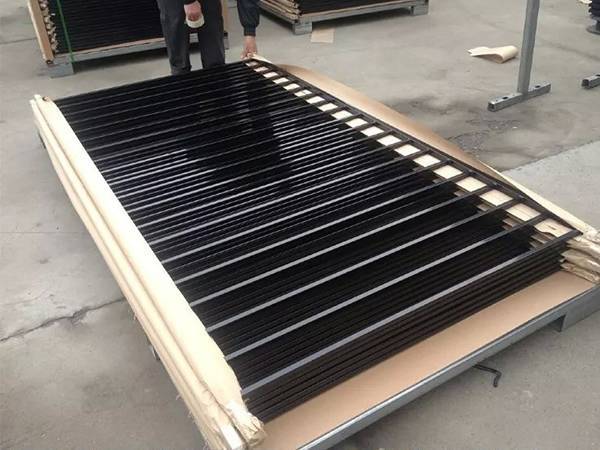

A workers are packaging steel fence panels with cardboard.

Steel fence panel package

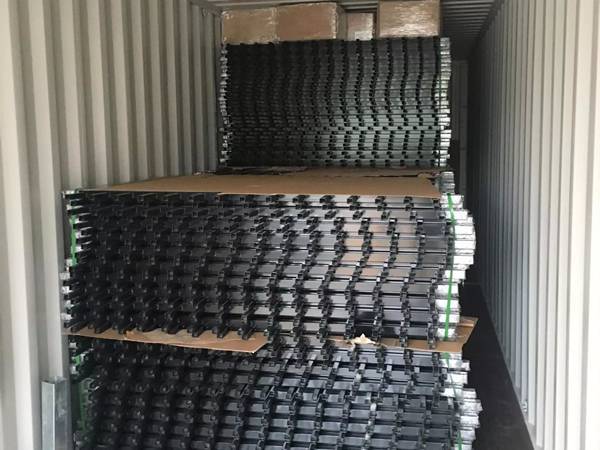

 Steel fence panels and accessories are properly packaged and placed on the compartment.

Steel fence delivery

Features
  • Pre-punched mounting holes for easy and simple Installation.
  • The galvanized and aluminum tubes provide excellent corrosion and rest resistance and weather resistance performance.
  • A variety of top pattern, heights and colors are available to adapt to most surroundings.
  • The simple yet solid structure makes it virtually maintenance free.
  • Galvanized and power coating services extend its service life and keep it working well for years.
Gallery

Steel Picket Fence is widely used in various commercial, residential and industrial applications, including but not limited to, villas, community gardens, schools, factories and other flower beds, lawns, sports stadiums, convention centers, squares, roads, balconies, etc.

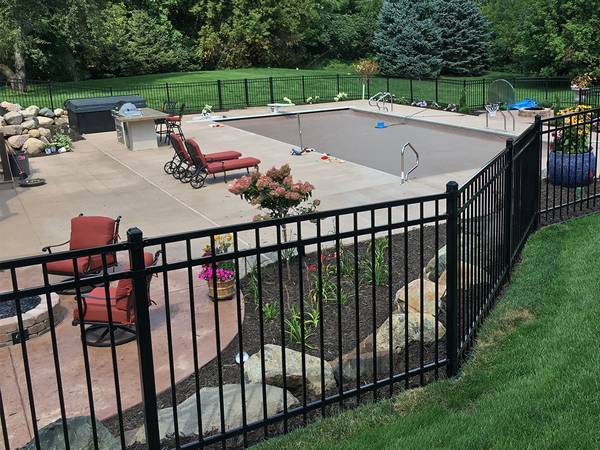

Several chairs are placed inside the yard enclosed by steel fence.

Steel fence for villa yards

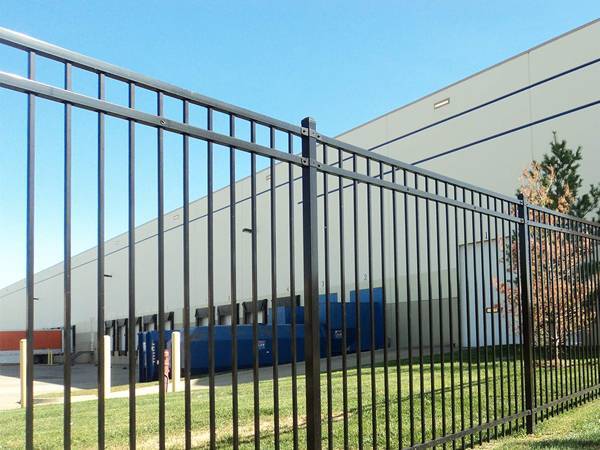

Several containers are placed in the factory yard made of steel fence.

Steel fence for factories

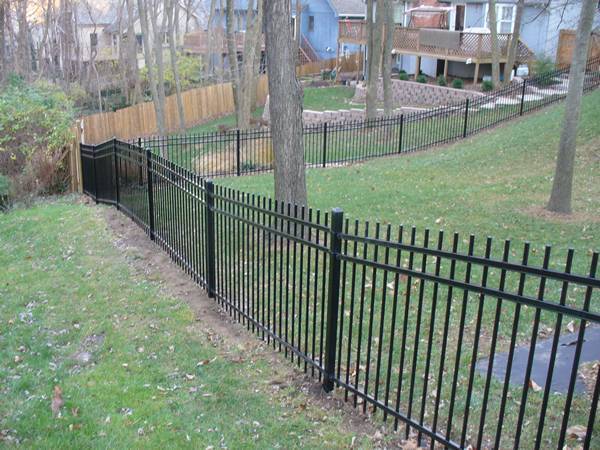

Steel fence is placed along slope to preserve soil and water.

Steel fence for slopes

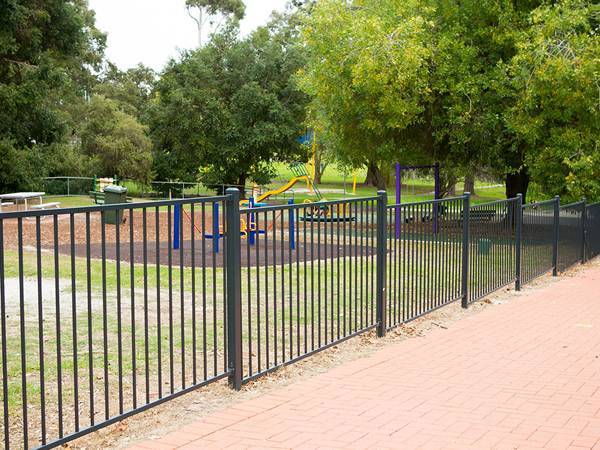

Several playing facilities are placed in the leisure park enclosed by the steel fence.

Steel fence for leisure parks

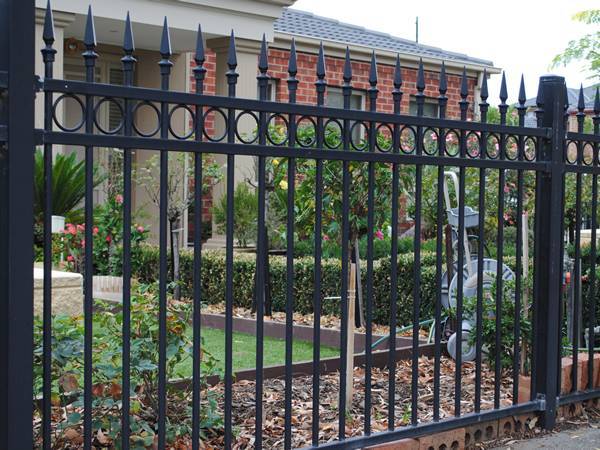

Many flowers and plants are grown in the garden encircled by steel fence.

Steel fence for house gardens

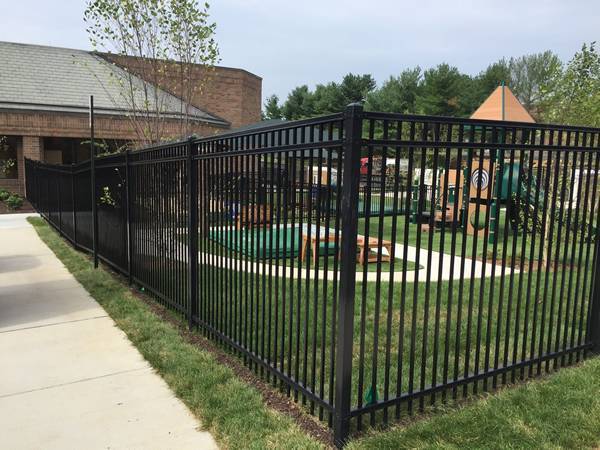

Steel fence is used to protect recreation facilities.

Steel fence for recreation facilities
