Crowd Control Barrier

homeProductsTemporary FenceCrowd Control Barrier

Crowd Control Barrier From Linkland

The Crowd Control Panel, also known as a pedestrian barrier or crowd control barrier, is an excellent choice for guiding and restricting the flow of crowds and traffic, effectively preventing unauthorized access to restricted areas. Constructed using superior steel pipes and hand-welded for maximum strength, the crowd control panel offers durability and reliability.

The crowd control panel finds wide applications in various settings, including construction sites and public events such as sports events, concerts, parades, political rallies, demonstrations, and outdoor festivals. It serves as an effective barrier to maintain order, ensuring the safety and smooth flow of both people and vehicles.

Contact Us MORE INFO

Specification

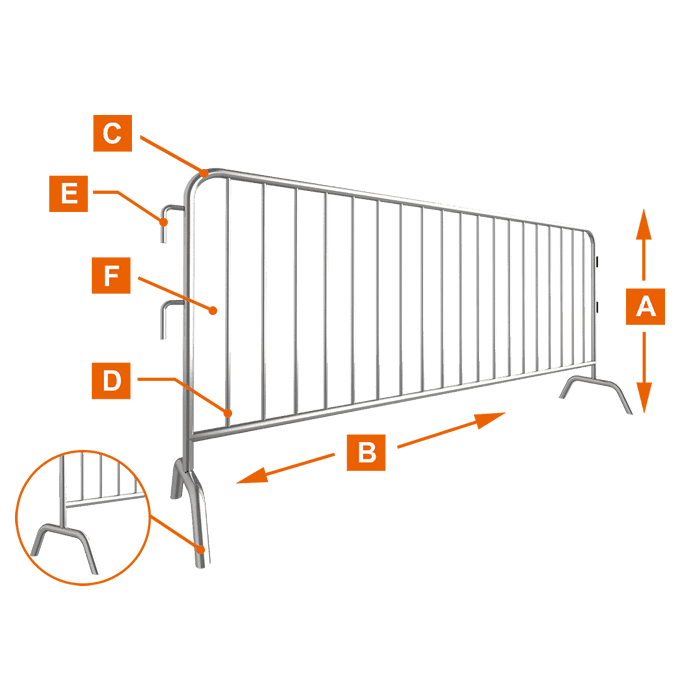

The picture shows the diagram and the details of the crowd control barrier.

A Height: 1.1 m, 1.25 m, 1.5 m

b Width: 2.0 m, 2.1 m, 2.2 m, 2.4 m, 2.5 m

c Frame: 32 × 1.2/1.5/2.0 mm
38 × 1.2/1.5/2.0 mm
42 × 1.2/1.5/2.0 mm
48 × 1.2/1.5/2.0 mm

d Inner pipe: 12 × 0.7 mm, 14 × 1.0 mm, 16 × 1.0 mm, 20 × 1.2 mm, 25 × 1.2 mm

e Connection: metal hook

f Spacing: 60 mm, 100 mm, 120 mm, 150 mm, 200 mm

Notes:

Galvanized and powder coating treatment;
All colors are available in Ral;
Other specifications are available upon request.

Category

Surface Treatment

We have both galvanized and powder coating Crowd Control Panel for your choice. All RAL colors are available.

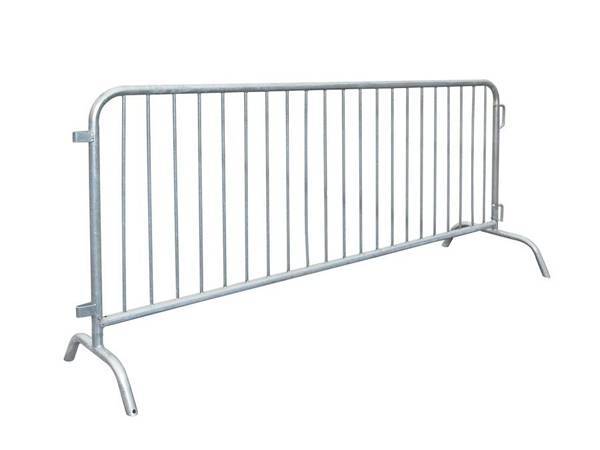

Galvanized

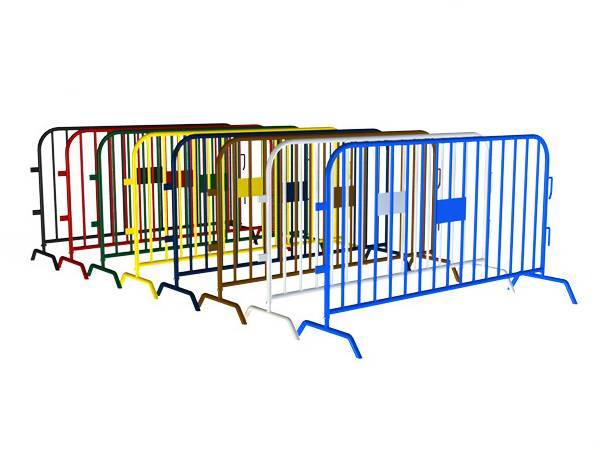

Powder coating

Components & Accessories

The main components of the crowd control panel are fence panels and bases. We have three kind of bases. Of which, fixed bases are welded to the bottom of the fence panel directly while the flat base and bridge base are bolted to the panel frame. Their specific features are as shown below.

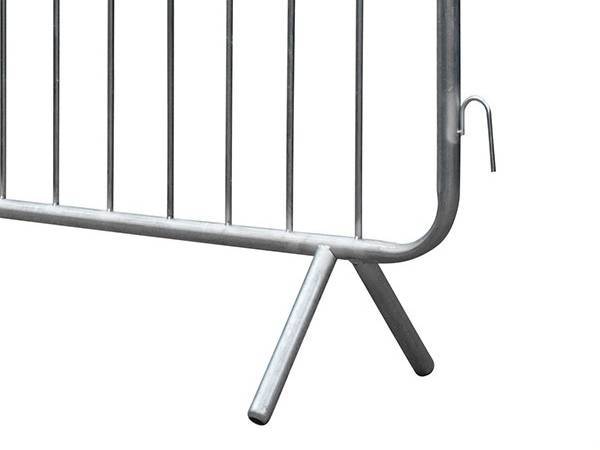

Fixed base

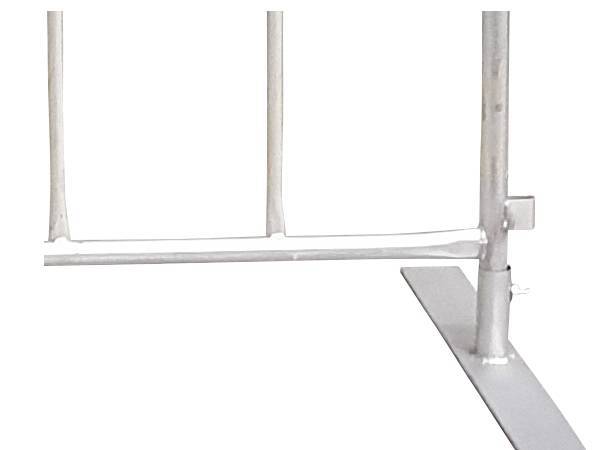

Flat base

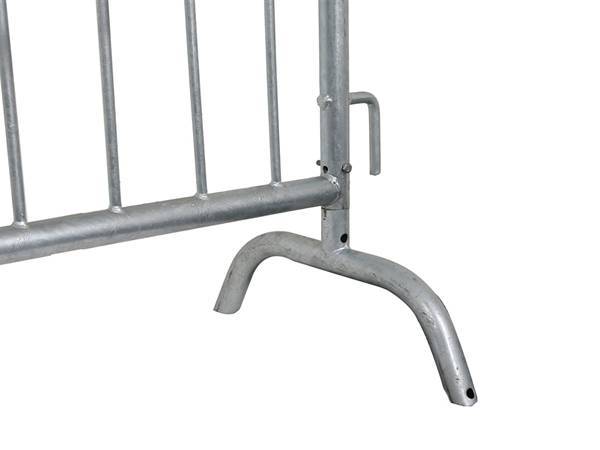

Bridge base

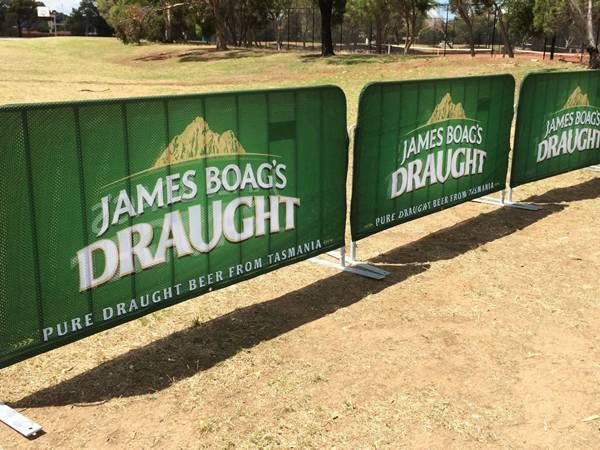

Shade cloth

Customized logos

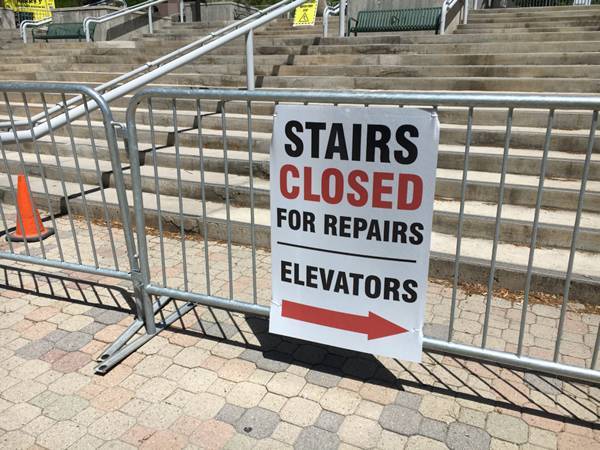

A signboard is attached to the crowd control barrier to remind pedestrians to walk the other way.

Signboards

Production

Production Flow Chart

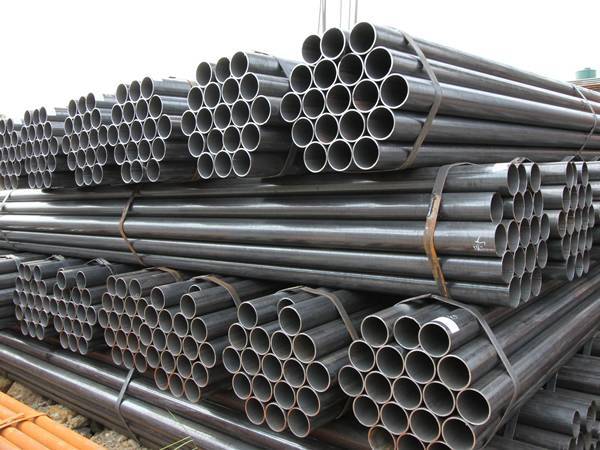

Many galvanized steel pipes are piled on the ground.

Step 1

raw materials (galvanized steel pipes)

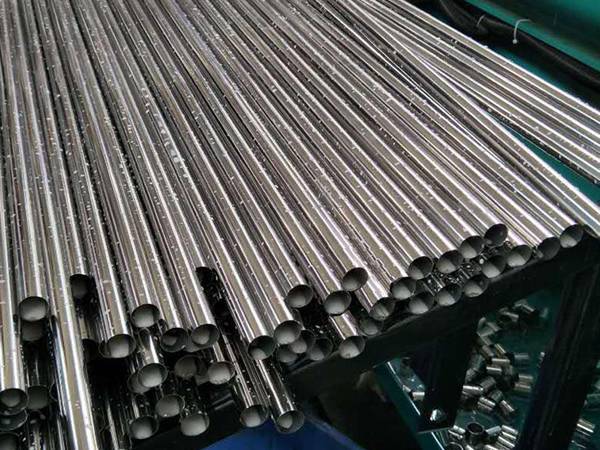

Many steel pipes are cut into standard length.

Step 2

pipe cutting

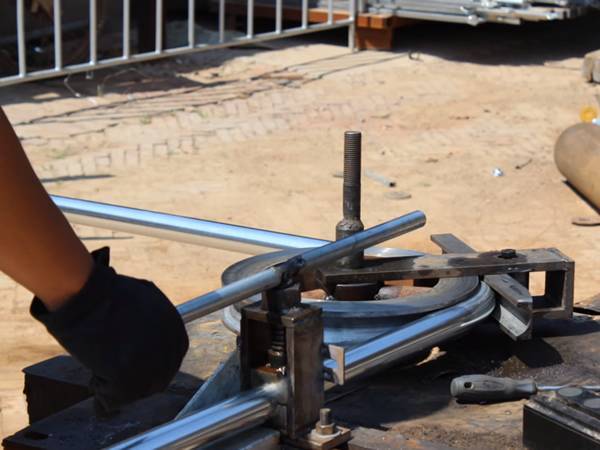

Steel pipe is bent to the desired angle by the machine.

Step 3

pipe bending

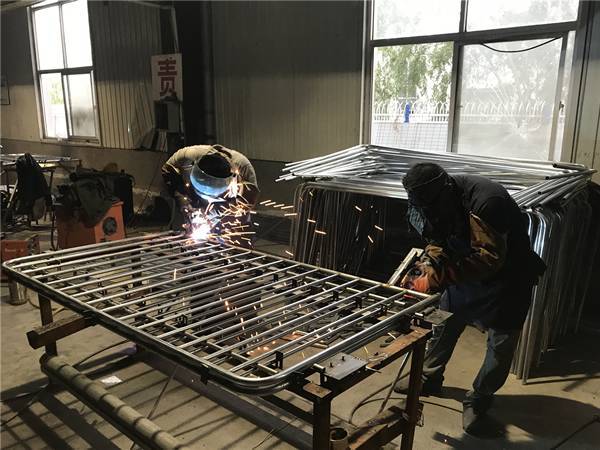

Two workers are welding crowd control barrier panels.

Step 4

crowd control panel welding

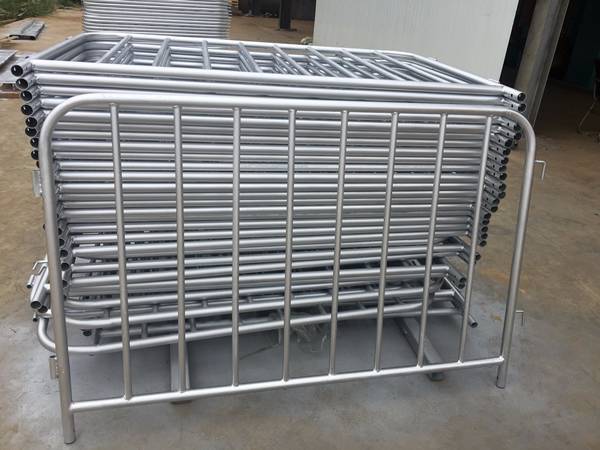

A crowd control barrier stands upright and leans against others placed on the ground.

Step 5

finished crowd control barrier panels

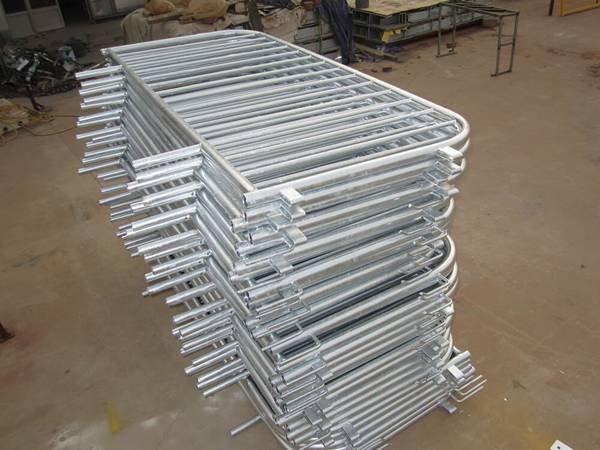

A pile of crowd control barrier panels are placed in the warehouse for storage.

Step 6

crowd control barrier panel storage

Package & Delivery

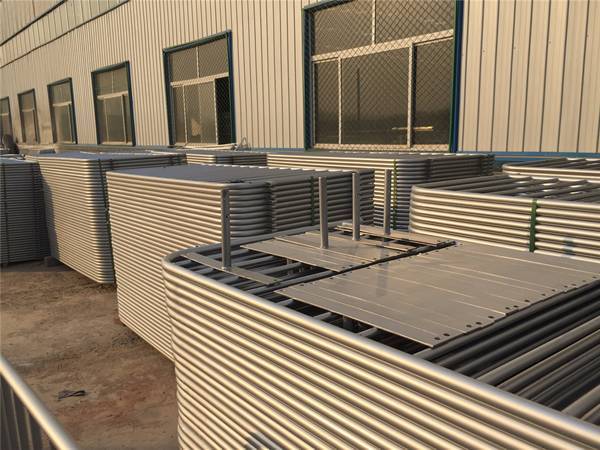

Crowd control barrier panels are packaged with plastic belt and fence feet are placed above the panels.

Crowd Control Panel package

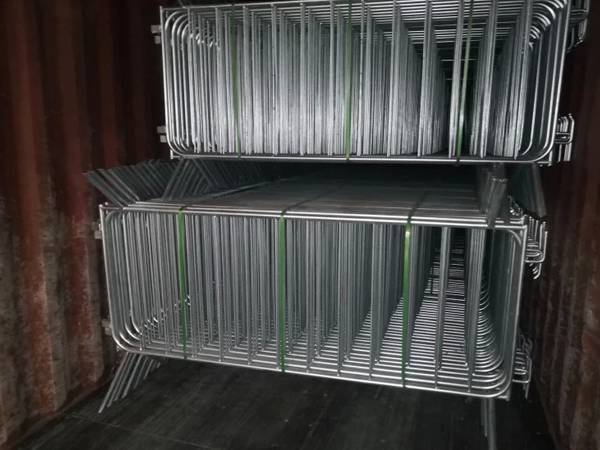

Crowd control barrier are properly packaged and shipped to the compartment for delivery.

Crowd Control Panel delivery

Features

All Crowd Control Panel are made of superior steel pipes for high strength and a long service life.
Full welding design is employed to make the barrier strong and durable.
Galvanized or power coated surface treatment makes it corrosion and rust resistance and work perfectly in harsh environments.
Crowd control barriers are provided with detachable bases, easy to handle and transport.
It adopts an interlocking system, which makes two panel are connected easily and firmly.
A variety of base types are available for you to choose from and are perfect for all ground surfaces.
Easy installation and removal. Through the interlocking system, the crowd control barrier can be installed and removed easily and be stored in warehouse for future uses.

Gallery

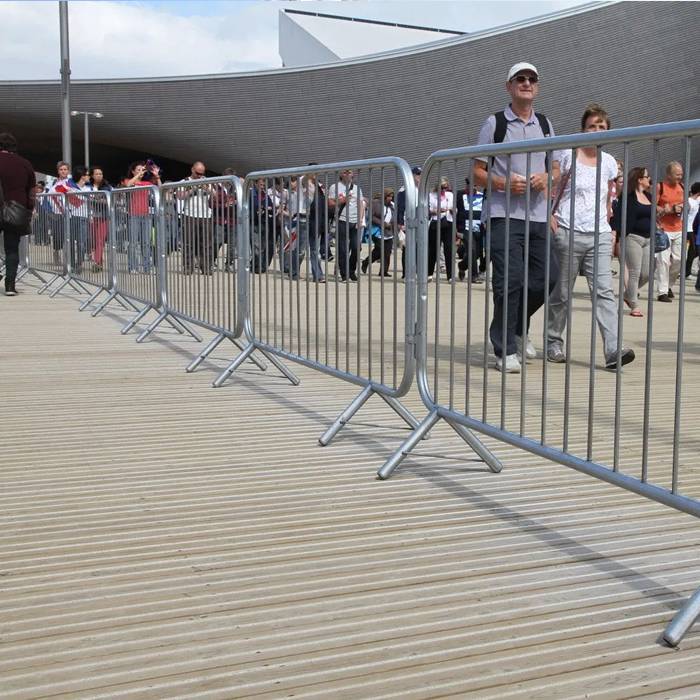

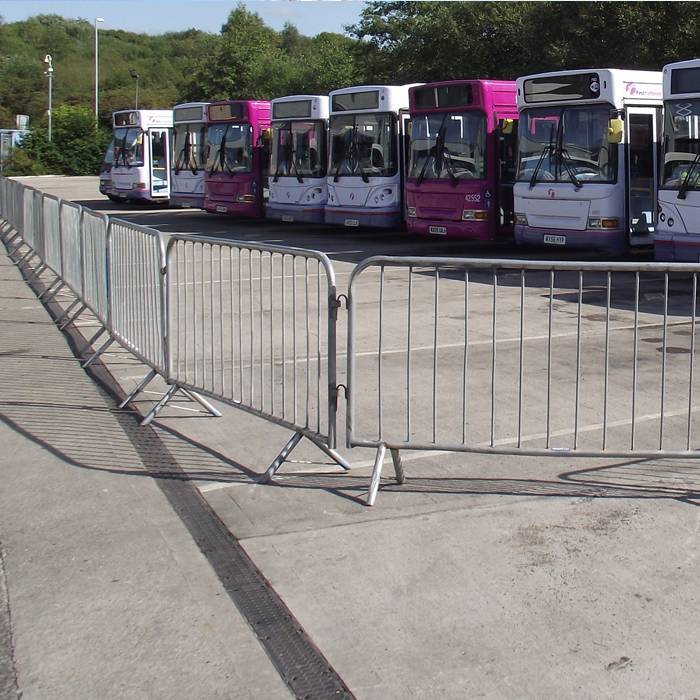

Crowd Control Panel is widely used in construction sites and many public events, including but not limited to, sports events, concerts, parades, political rallies, demonstrations and outdoor festivals.

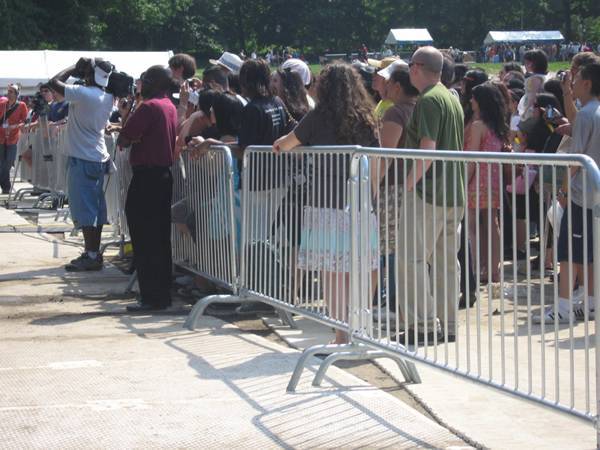

Crowd control barriers are placed to limit the number of people attending the event.

Crowd control barrier for crowd control

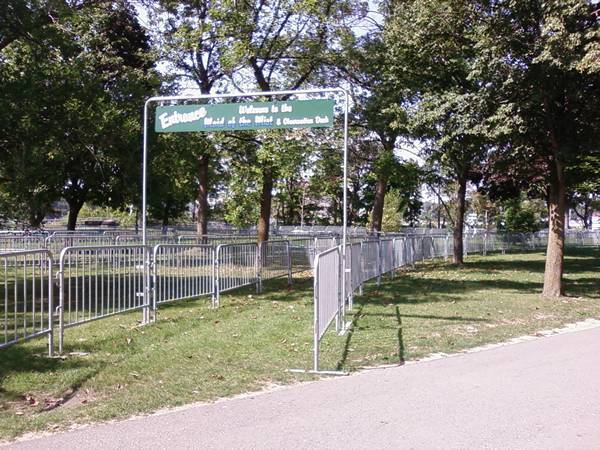

Rows of crowd control barriers are placed in the park entrance.

Crowd control barrier for park entrance

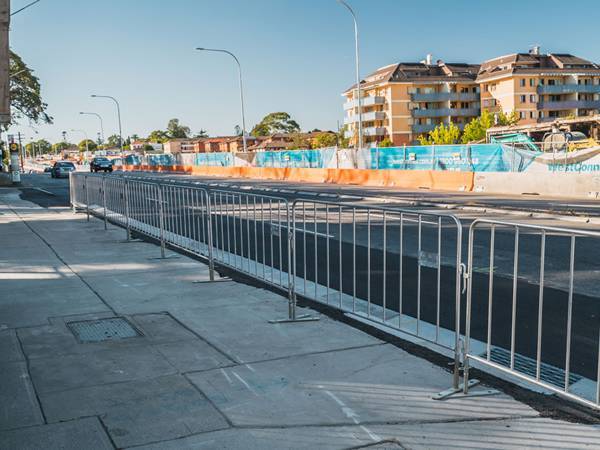

Crowd control barriers are placed along the road to control the traffic flow.

Crowd control barrier for roads.

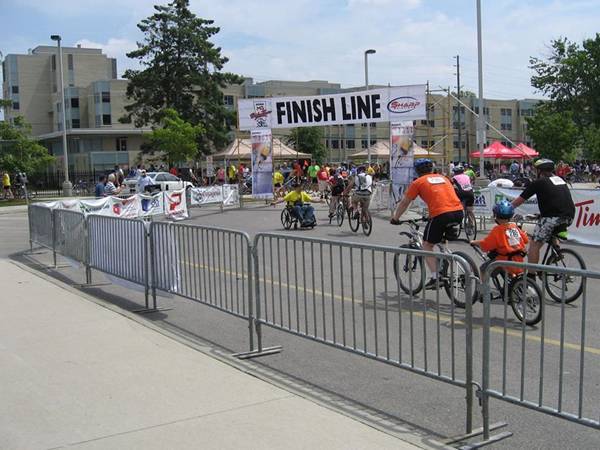

Crowd control barriers are placed along the cycle track to prevent non-players from accessing.

Crowd Control Panel for cycling race
