Fixed Knot Deer Fence

homeProductsField FenceFixed Knot Deer Fence

Hinge Joint Knot Field Fence From Linkland

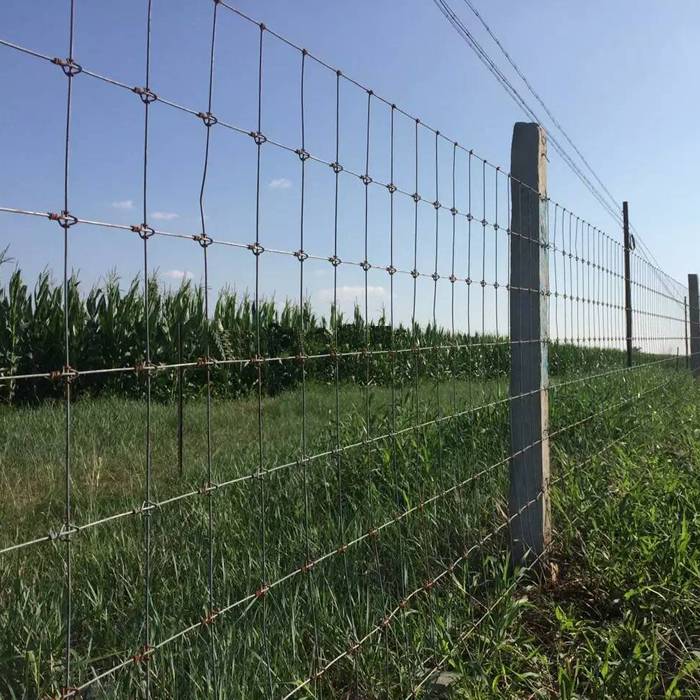

Fixed knot fences are wire-type woven mesh fences woven with high-strength carbon steel wire, similar to hinged field fences. The solid structure fence adopts a solid lock structure, which is mainly used for outdoor fences to protect deer, horses, cattle, sheep, goats and other cattle. Prairie fencing and farm fencing. This type of site fencing has a stronger fabric and can be installed quickly with fewer fence posts. This means that site fencing with fixed knots is less costly and requires less maintenance than other wire fencing.

Contact Us MORE INFO

Specification

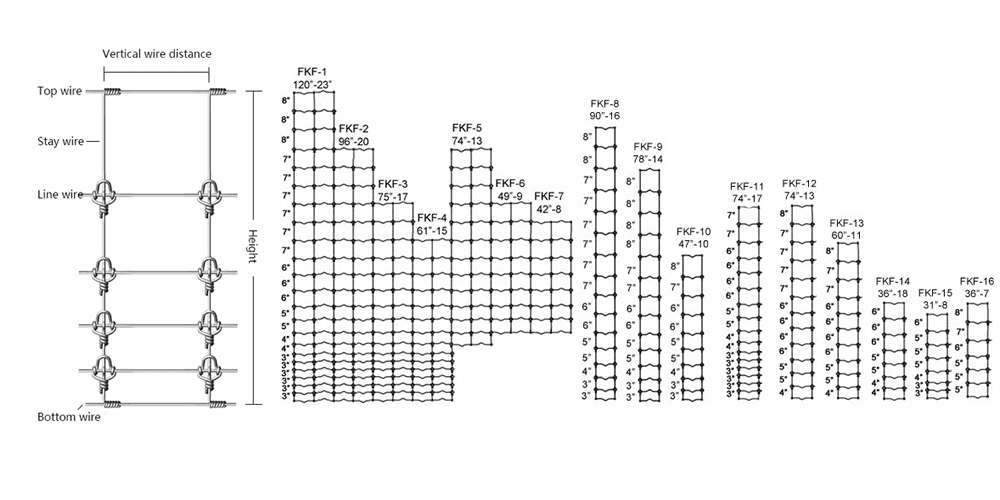

A drawing shows the popular sizes of fixed knot deer fence

Material: high quality high carbon steel wire, low carbon steel wire.
Surface treatment
- Class A: Electro galvanized fixed knot joint fencing (zinc coated: 15 g/m²)
- Class B: Hot dipped galvanized fixed knot joint fencing (zinc coated:30–50 g/m²)
- Class C: Heavy hot dipped galvanized fixed knot joint fencing (zinc coated:220–280 g/m²)
Height range: from 0.6 m to 2.45 m. Common is 1.2 m, 1.5 m and 1.8 m
Knot type: fixed knot type
Line wire diameter: 1.6/2.0/2.5/3.0 mm
Top and bottom wire diameter: 2.0/2.5/3.0/3.7 mm
Wire diameter and tensile strength
- horizontal wires: diameter 2.5 mm, tensile strength 1100–1300 N/mm²
- vertical wires: diameter 2.5 mm, tensile strength 600–850 N/mm²
- knot wires: diameter 2.2 mm, tensile strength 400–525 N/mm²

Specifications of Fixed Knot Deer Fence
Item	Horizontal Wire Number	Inside Wire Gauge	Top & Bottom Wire Gauge	Stay Spacing	Fence Height
FKF-1	23	12.5	10.5	3", 6" or 12"	120"
FKF-2	20	12.5	10.5	3", 6" or 12"	96"
FKF-3	17	12.5	10.5	3", 6" or 12"	75"
FKF-4	15	12.5	10.5	3", 6" or 12"	61"
FKF-5	13	12.5	10.5	3", 6" or 12"	74"
FKF-6	13	12.5	12.5	3", 6" or 12"	48"
FKF-7	9	12.5	12.5	3", 6" or 12"	49"
FKF-8	16	12.5	12.5	3", 6" or 12"	90"
FKF-9	14	12.5	12.5	3", 6" or 12"	78"
FKF-10	10	12.5	12.5	3", 6" or 12"	47"
FKF-11	17	12.5	12.5	3", 6" or 12"	74"
FKF-12	13	12.5	12.5	3", 6" or 12"	74"
FKF-13	11	12.5	12.5	3", 6" or 12"	60"
FKF-14	8	12.5	12.5	3", 6" or 12"	36"
FKF-15	8	12.5	12.5	3", 6" or 12"	31"
FKF-16	7	12.5	12.5	3", 6" or 12"	36"

Category

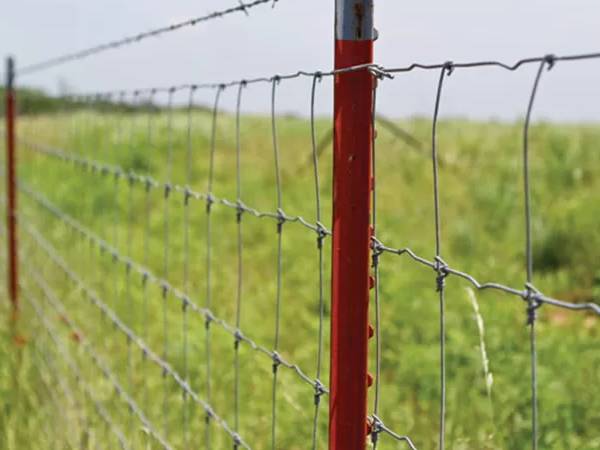

T posts

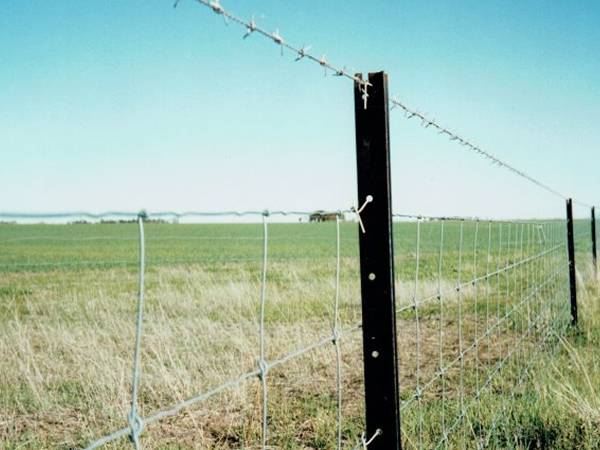

Y posts

Production

Production Flow Chart

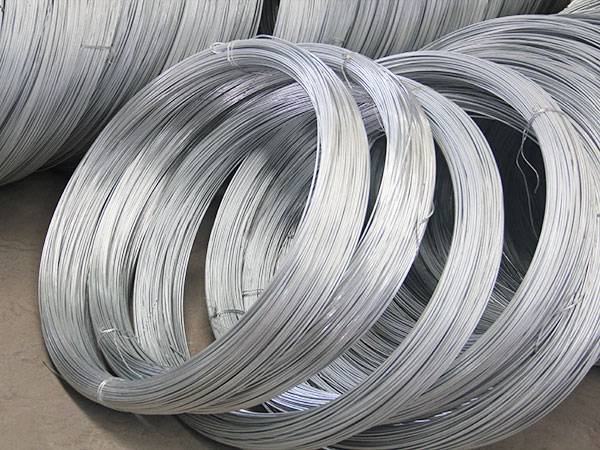

Several galvanized steel wires on the ground.

Step 1

Material

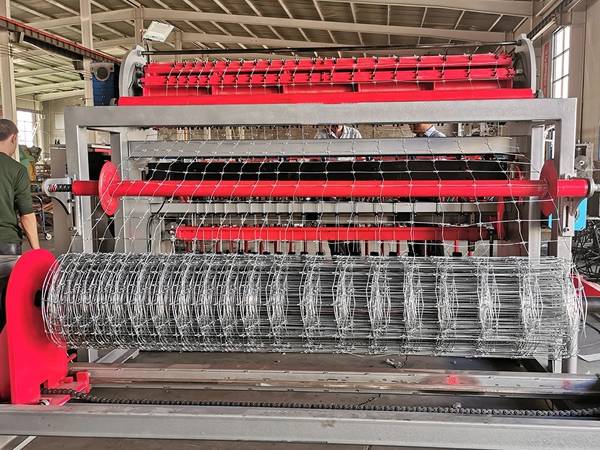

A machine is weaving the fixed knot deer fence.

Step 2

Production

Step 3

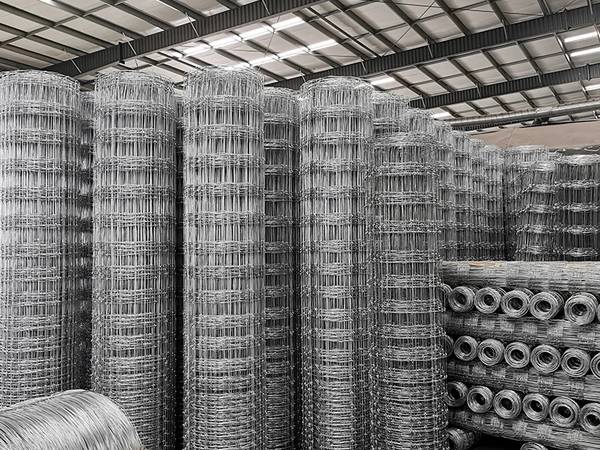

Warehouse

Package & Delivery

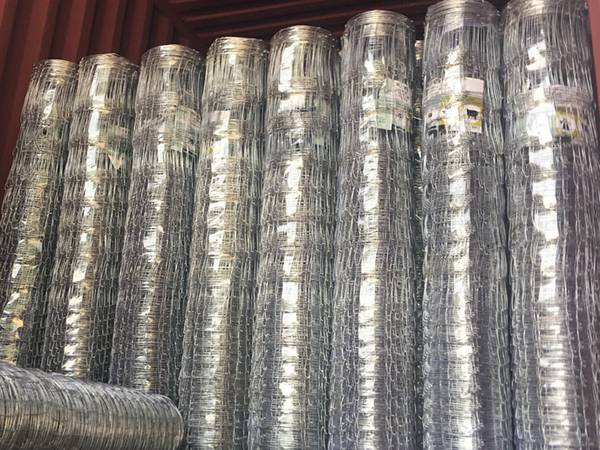

Several rolls of fixed knot field fences are wrapped with plastic films.

Plastic film package

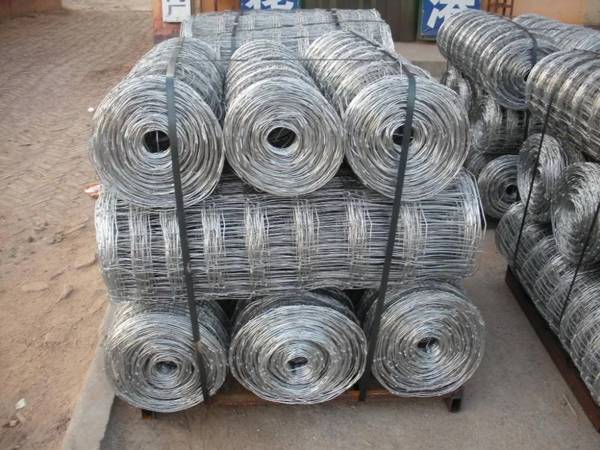

Several rolls of fixed knot field fences are packed in pallets.

Pallet package

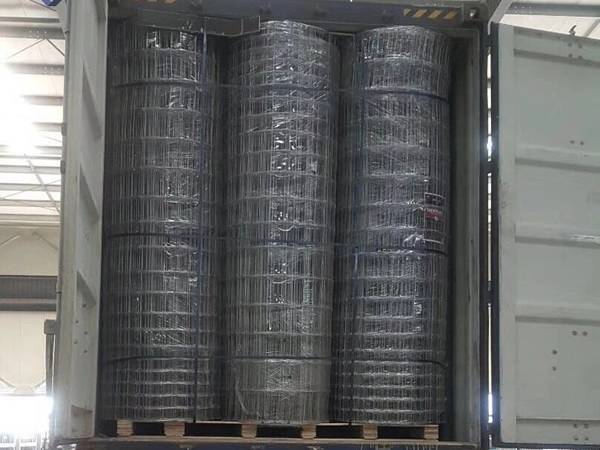

Several pallets of fixed knot field fences in the container.

Fence delivery

Features

The most economical and commonly used field fence type.
Smooth surface protect animals from being damaged.
Different height options for different animals.
Different horizontal wire spacing for different growth period.
Different vertical wire spacing for different tensile strength.
Suitable for chicken, rabbit, cat, horse, sheep, deer and even camel.

Gallery

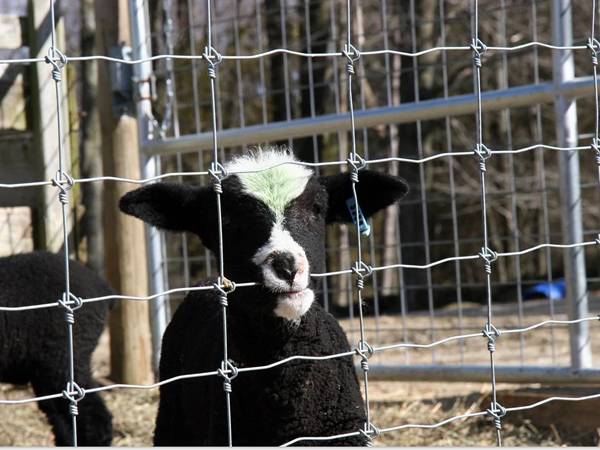

Two small cattle in the place enclosed by fixed knot field fence

For cattle

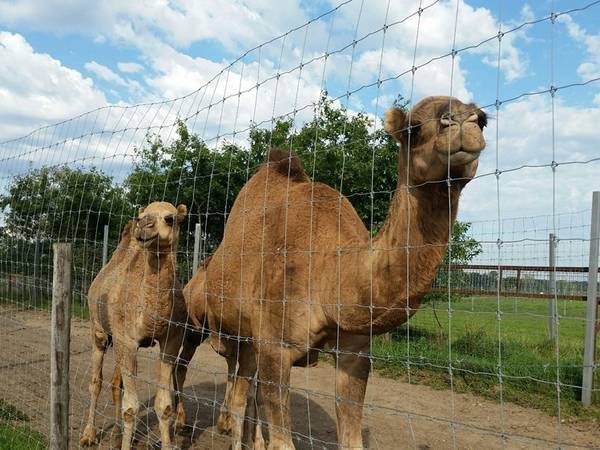

Two camels in the place enclosed by fixed knot field fence

For camel

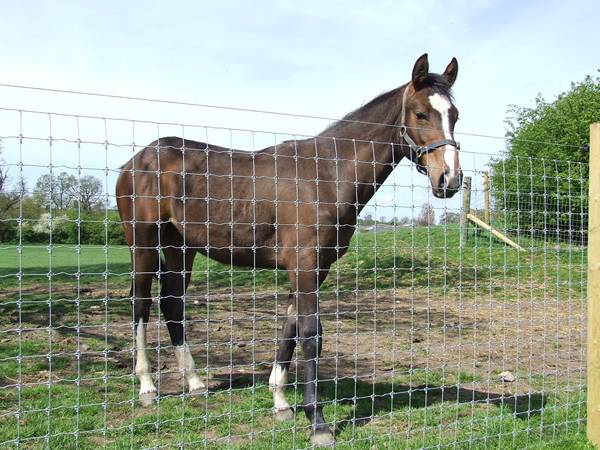

A horse in the place enclosed by fixed knot field fence

For horse

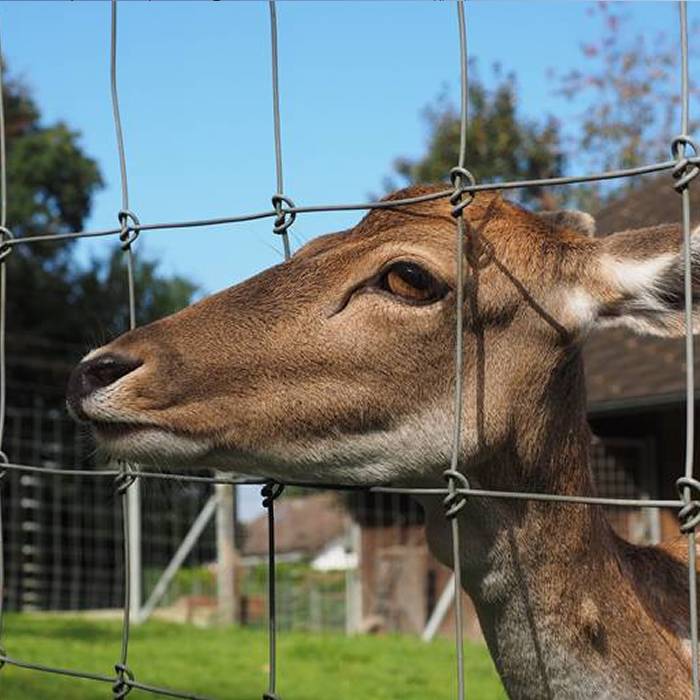

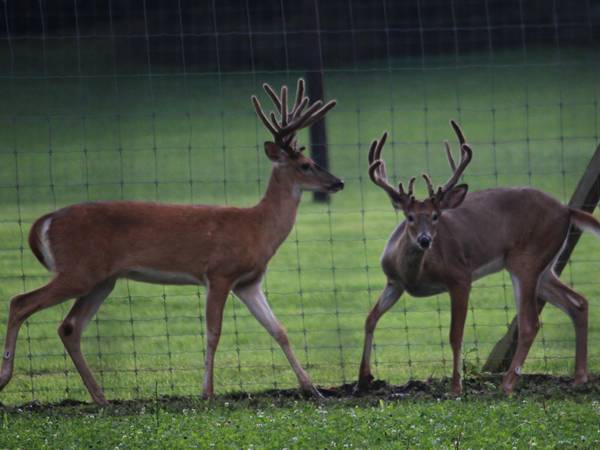

Two small deer in the place enclosed by fixed knot field fence

For deer
