PVC Coated Steel Wire

homeProductsSteel WiresPVC Coated Steel Wire

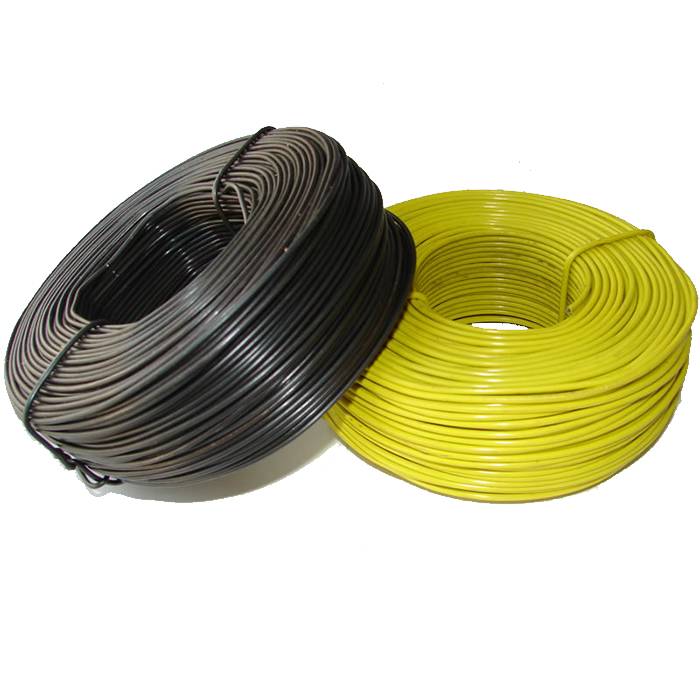

A black coil of PVC coated wire and a yellow coil of PVC coated wire are on the white background.

PVC Coated Steel Wire From Linkland

PVC coated wire can be made by low carbon steel wires or galvanized steel wires. The wires are coated firmly and uniformly with a thick layer of PVC through extrusion, making the PVC coated wire both an attractive wire with colorful and enhancing life span of the wire. The PVC layer is anti-aging, anti-corrosion and UV resistance.

The PVC coated wires are available in various colors, popular colors are green, blue, gray and yellow. Other colors are customized according to customers' requirements.

The PVC coated wires are mostly used in mesh weaving, it can also be used in agriculture and construction applications.

Contact Us MORE INFO

Specification

Material: low carbon steel wire or galvanized steel wire.
Coating material: UV resistance PVC granules.
Core wire diameter: 0.6–4.0 mm (BWG 23 to BWG 8)
Outside diameter: 0.9–5.0 mm (BWG 20 to BWG 7)
PVC coating: the lowest coating 0.3 mm.
Wire color: green, blue, gray, yellow and other customized colors.

Common Specifications of PVC coated Wire
Core Wire Diameter (mm)	Outside Wire Diameter (mm)
0.6	0.9
0.8	1.2
1.0	1.4
1.4	2.0
2.0	3.0
2.5	3.5
3.0	4.0
4.0	5.0

Production

Production Flow Chart

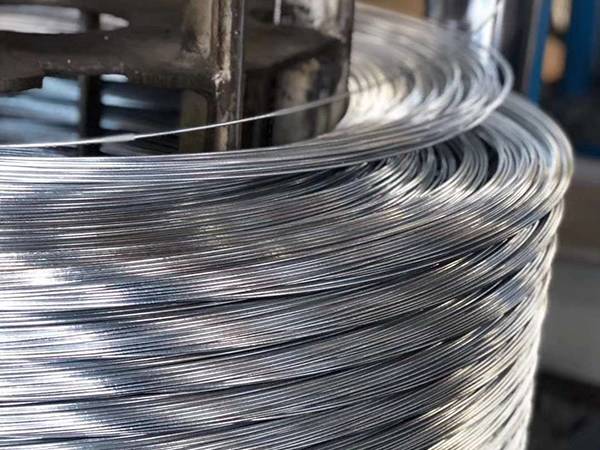

A axis of galvanized steel wire in the workshop.

Step 1

Galvanized wire material

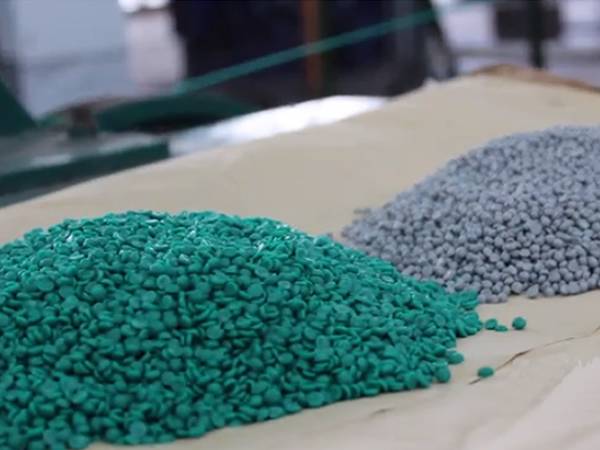

A pile of green and a pile of gray PVC granules on the table.

Step 2

PVC granules material

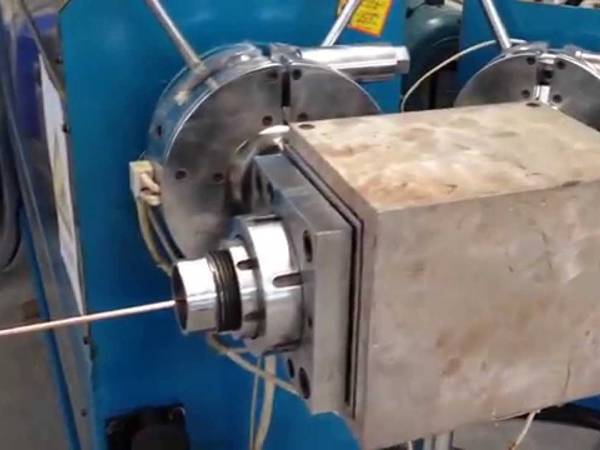

Step 3

Producing

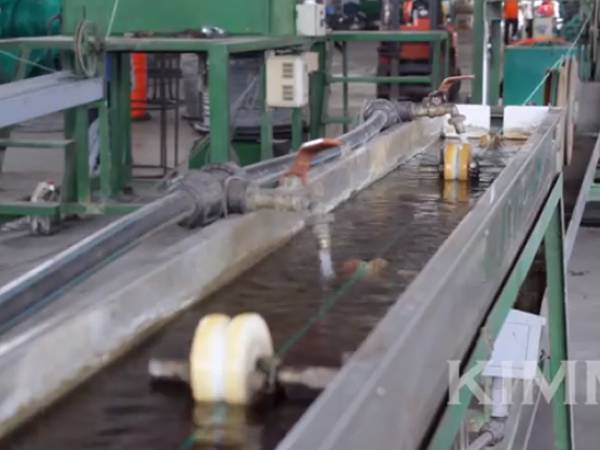

Step 4

Cooling

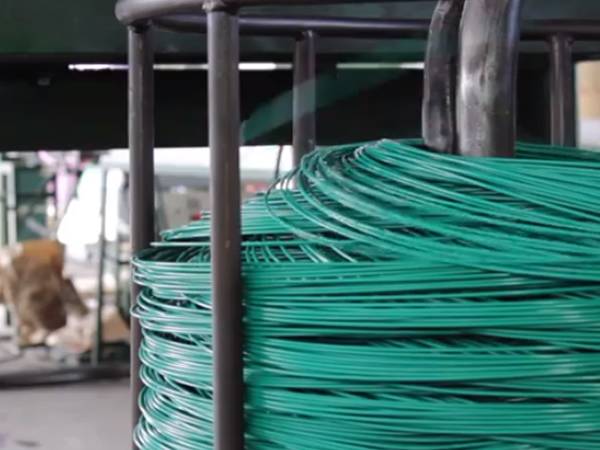

A axis of green PVC coated wires in the workshop.

Step 5

Finished

Package & Delivery

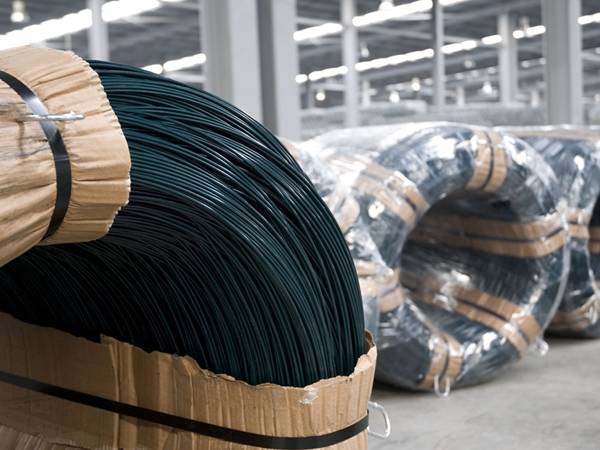

Several rolls of PVC coated steel wires are packed with plastic films.

Plastic film package

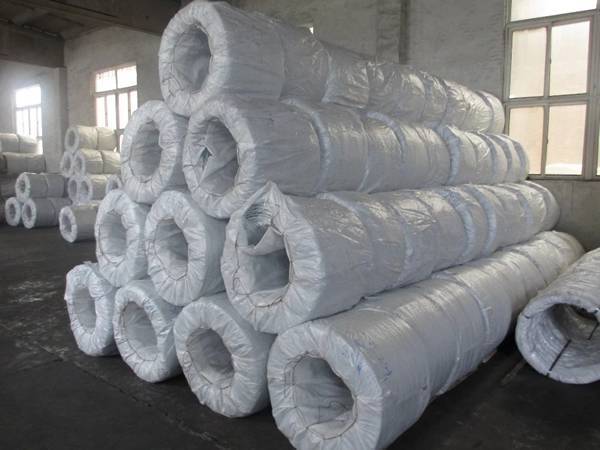

Several rolls of PVC coated steel wires are packed with woven bags.

Woven bag package

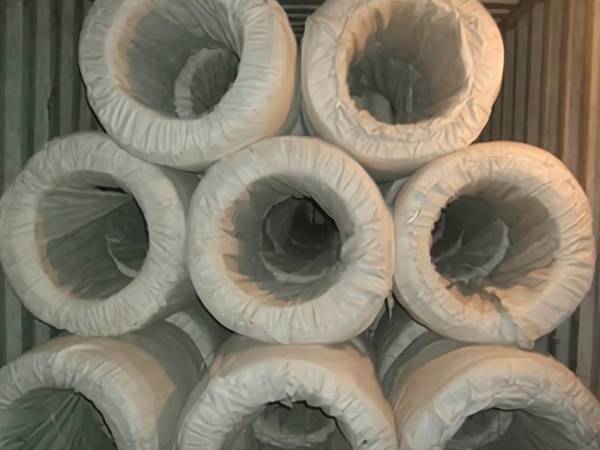

Several rolls of PVC coated steel wires in the container.

Delivery

Features

Made using improved quality PVC granules that resistance to sun's UV rays and weather conditions.
Produced in various different colors.
PVC quality and flexibility is the ideal property for mesh weaving.
Core wire can be low carbon steel wire and galvanized steel wire.
Blend with surrounding environments.
Can be used in harsh environments.

Gallery

PVC coated wires are widely used for weaving meshes and fences, such as chain link fence, gabions and chicken wires.
PVC coated wires are used in wire hanger or handicraft production.
It can also be used in daily life binding and industrial tying.

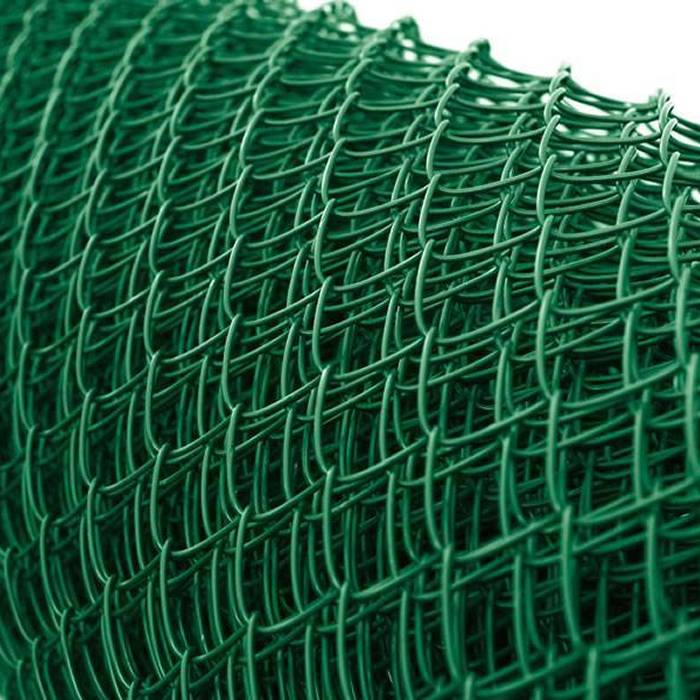

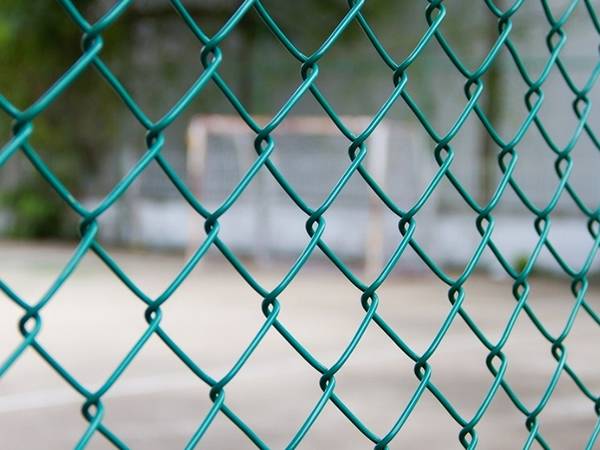

Chain link fence

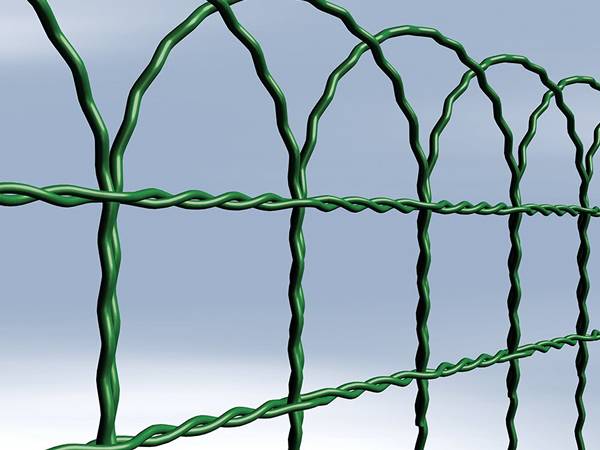

A piece of green PVC coated boarder fence.

garden boarder fence

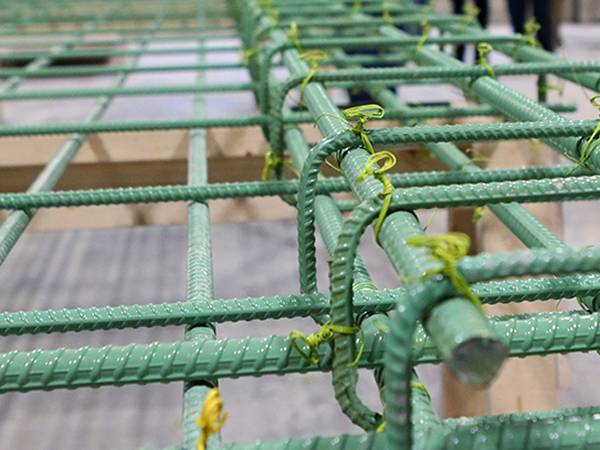

Several concrete bars are tying with yellow-green PVC caoted wires.

Binding wires

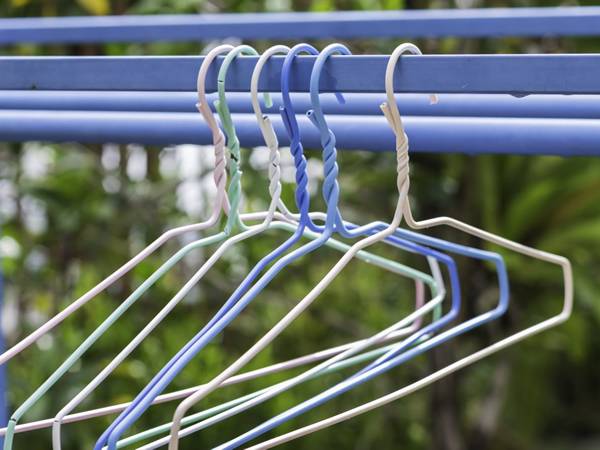

Wire hanger
