Palisade Fencing From Linkland

Palisade Fence is a popular high security fence in European, Australian and South African markets. It is designed to be strong, durable and offers excellent protection against climbing and traversing. Its majestic appearance, minimal foot holes and strong vertical steel panels ensure excellent protection against unauthorized access, vandalism and attacks. Also, it is a great alternative to tall walls. Generally, it is widely used to solve various perimeter security needs from general purpose to high security use, and is widely used in various residential, commercial and industrial applications, including but not limited to highways, airports, docks, schools, sports facilities Venues, leisure facilities, etc.

Contact Us MORE INFO

Specification

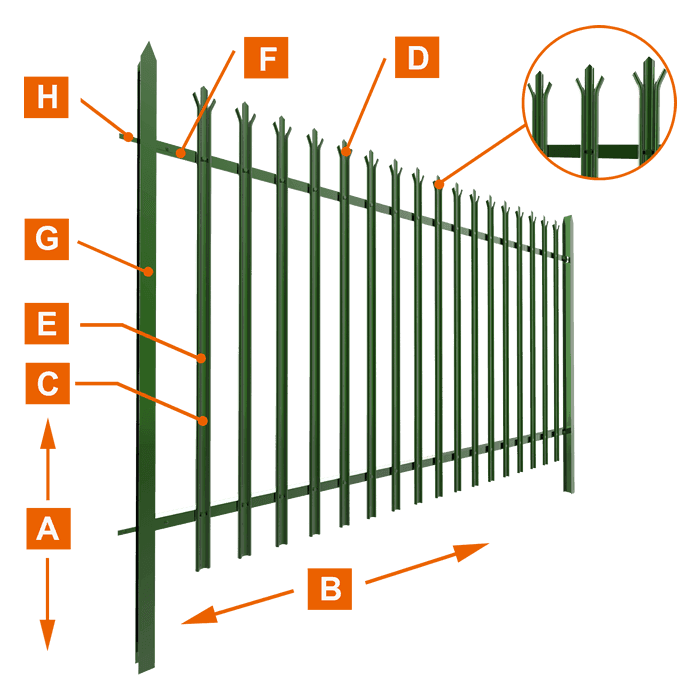

The picture shows the diagram and details of the palisade fencing.

A Height: 1800 mm, 2100 mm, 2400 mm, 3000 mm

b Width: 2750 mm

c Pale Type: W-profile, D-profile and angle steel

d Pale Top: square top, triple pointed top, single pointed top, round top, round & notch top, etc.

e Pale Thickness: 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm

f Horizontal Rail: angle steel (40 mm × 40 mm × 4 mm, 50 mm × 50 mm × 5 mm, 50 mm × 50 mm × 6 mm)

g Post: square post (60 mm × 60 mm, 80 mm × 80 mm, 100 × 100 mm); I post (100 × 55 mm)

h Connection: fish plate (40 mm × 8 mm × 150 mm)

Table 1 Specification of W-Section Type
Panel Size		W-Section Pale: 70 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	2/2.5/3 mm	17 pcs
2.4 m	2.75 m	2/2.5/3 mm	17 pcs
3.0 m	2.75 m	2/2.5/3/3.5 mm	17 pcs
W-section Pale: 62 mm
1.8 m	2.75 m	1.5/2/2.5 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 6 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5 mm	17 pcs

Table 2 Specification of D-Section Type
Panel Size		D-Section Pale: 65 mm		Horizontal Rail	Post
Height	Width	Pale thickness	Qty: Pale	Angle Steel	Square Post	I Post
1.8 m	2.75 m	1.5/2/2.5/3 mm	17 pcs	40 × 40 × 4 mm, 50× 50 × 5 mm	60 × 60 mm, 80 × 80 mm, 100 × 100 mm	100 × 55 mm
2.1 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
2.4 m	2.75 m	1.5/2/2.5/3 mm	17 pcs
3.0 m	2.75 m	1.5/2/2.5/3 mm	17 pcs

Notes:

All panel pales are provided in 17 pieces;
M8 × 30, M12 × 30 anti-vandal steel or stainless steel bolts are provided;
All colors are available in Ral;
Other materials and specifications are available upon request.

Category

Surface Treatment

We have both galvanized and powder coating palisade fencing for your choice. All RAL colors are available.

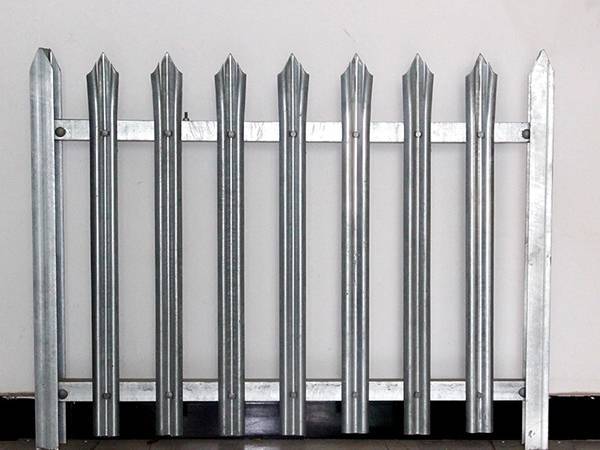

Galvanized

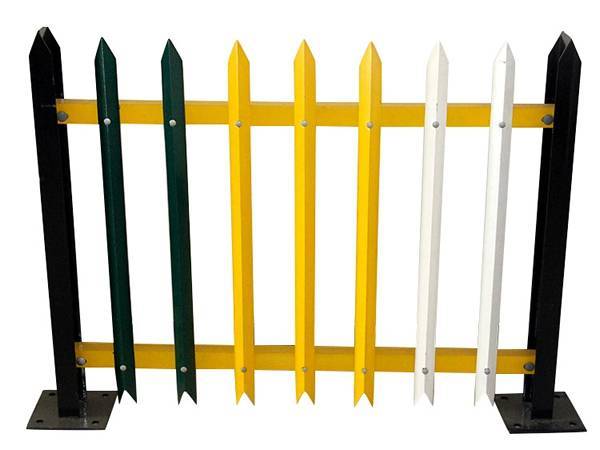

Powder coating

Pales

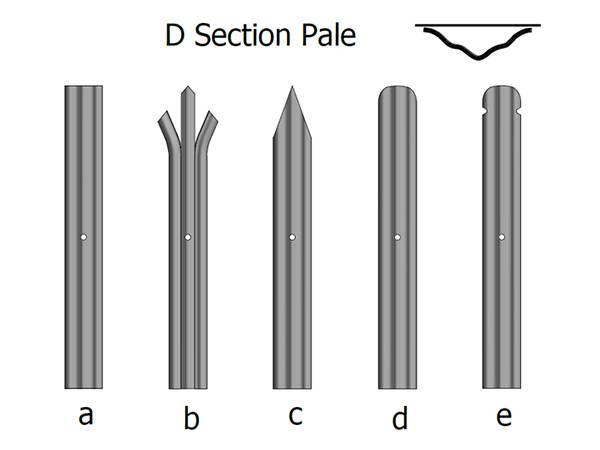

Our palisade fencing can be divided into three types by pale profile, namely, D-section pales, W-section pales and angle steel pales as listed below.

a. square top;
b. triple pointed top;
c. single pointed top;
d. round top;
e. round & notch top

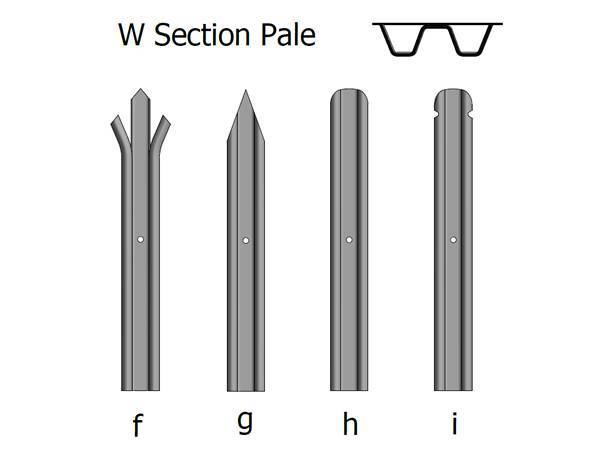

f. triple pointed top;
g. single pointed top;
h. round top;
i. round & notch top

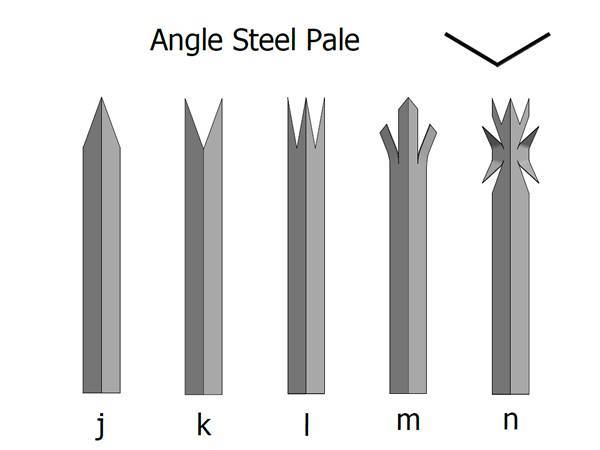

The picture shows the angle steel pale heads we can offer.

j. single pointed top;
k. double pointed top;
l. triple pointed top;
m. triple pointed & splayed top;
n. triple pointed & spikes top

Connection

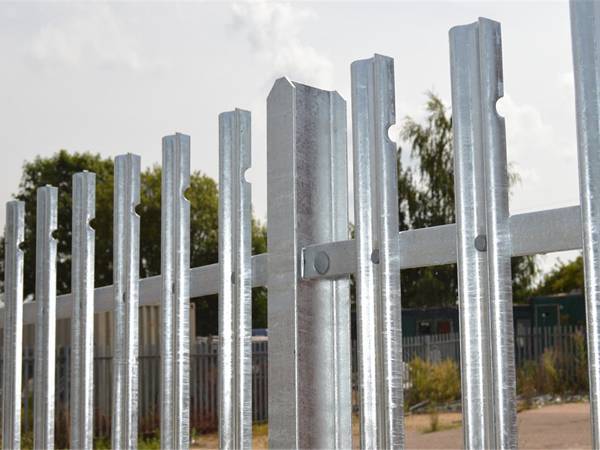

I post connection

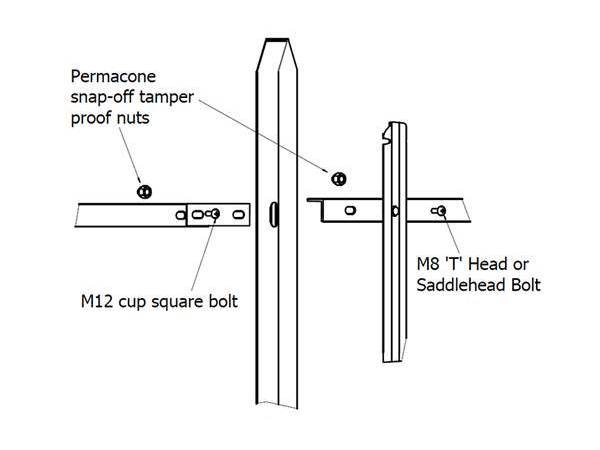

I post connection details

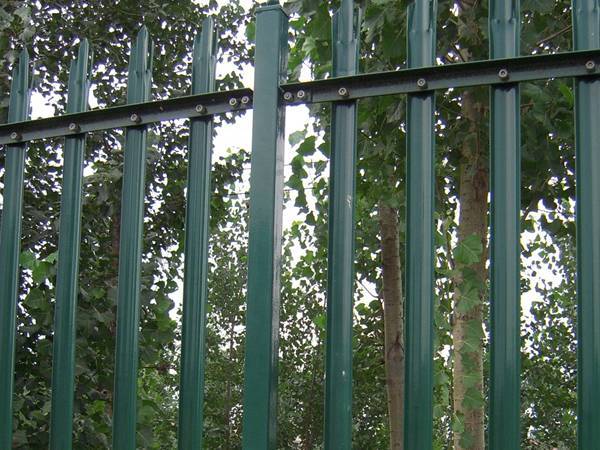

Square post connection

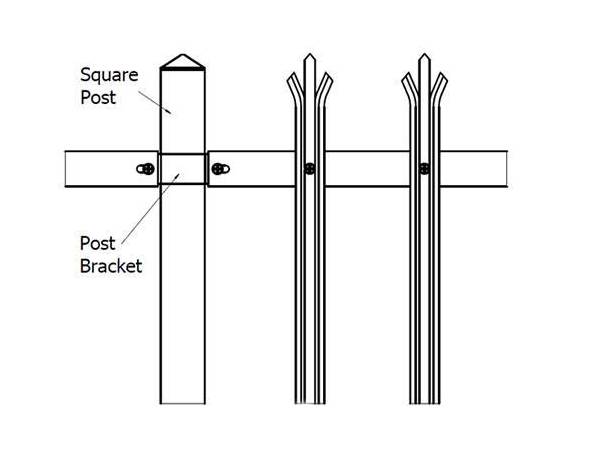

Square post connection details

Production

Production Flow Chart

Step 1

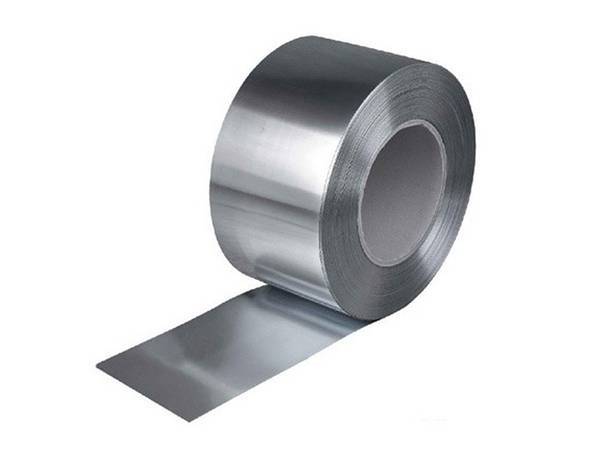

raw materials (galvanized steel coil)

Step 2

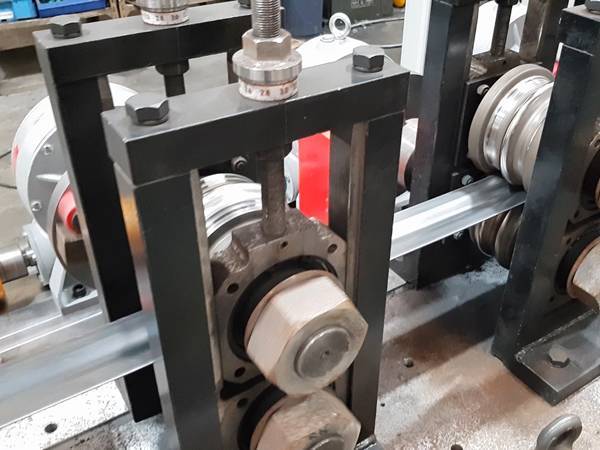

pale profile forming

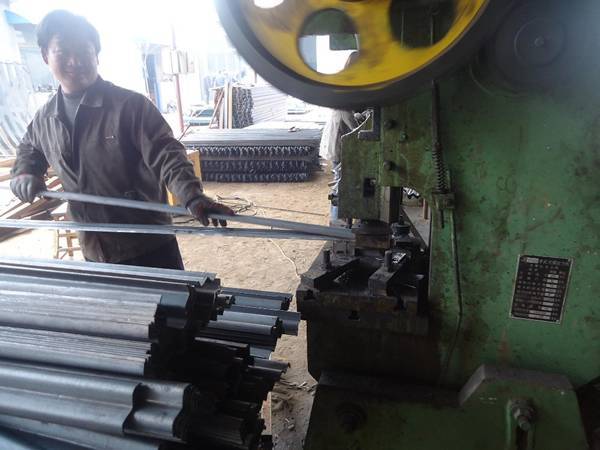

The machine cuts the palisade fencing pale into desired length.

Step 3

pale cutting

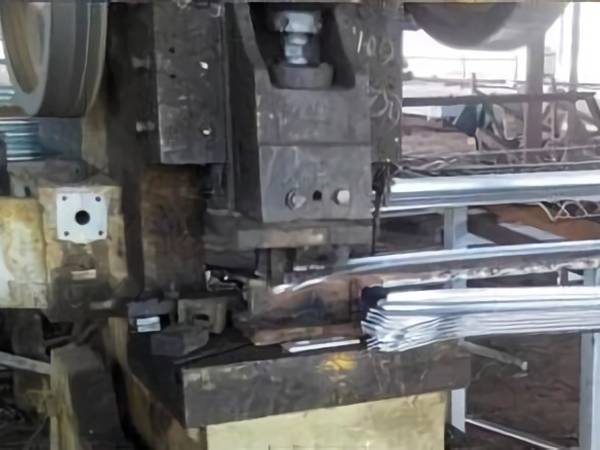

The machine is manufacturing the palisade fencing pale head.

Step 4

pale head forming

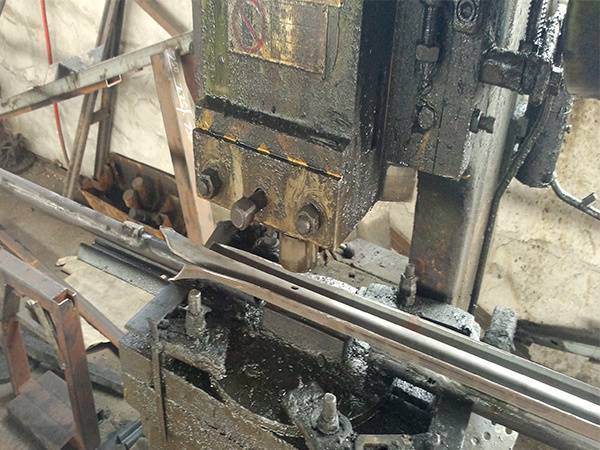

The machine is punching holes in the palisade fencing pales.

Step 5

pale punching

Palisade fencing pales are stored on the pallet.

Step 6

finished pale

Package & Delivery

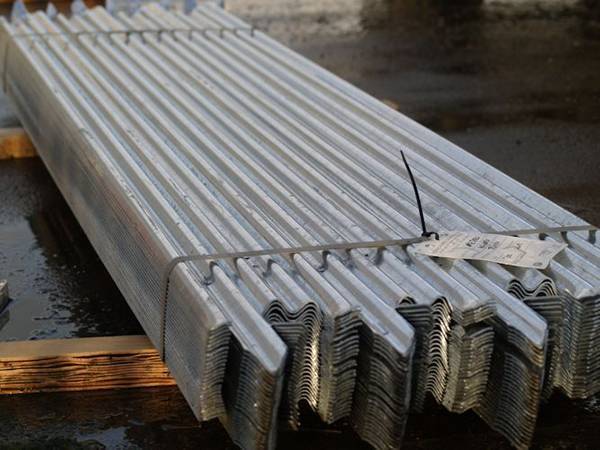

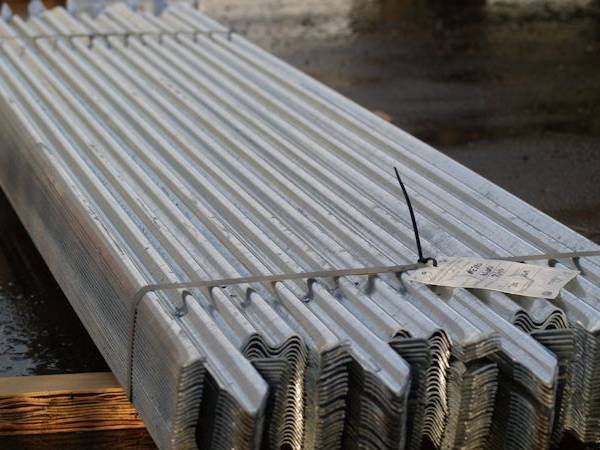

Palisade fencing pales are packaged with plastic belts and are placed on the ground.

Palisade fencing pale package

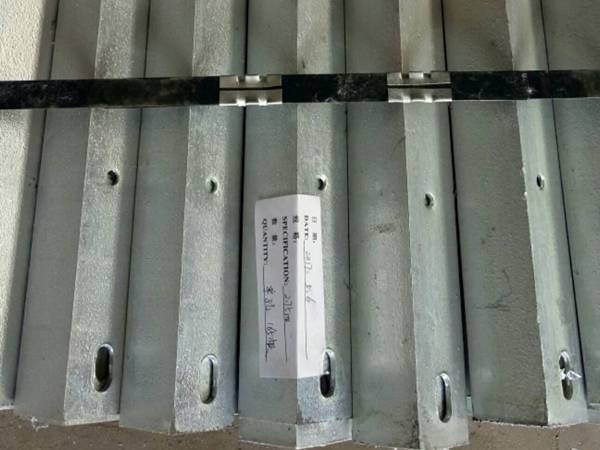

Palisade fencing horizontal rails are packaged with plastic belts and are placed on the ground.

Palisade fencing horizontal rail package

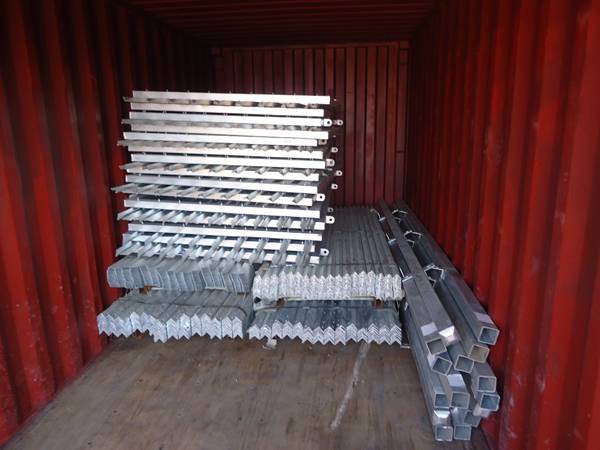

All palisade fencing components are transported to the compartment for delivery

Palisade fencing delivery

Features

Providing a higher level of security and excellent protection against unauthorized access, vandalism and attack.
High tensile fixings and support base offer maximum resistance to deformation.
A wide range of designs and colors are available to perfectly match up with most surrounding.
Excellent corrosion & rust resistance and weather resistance performance.
Fast and easy installation and less maintenance.

Gallery

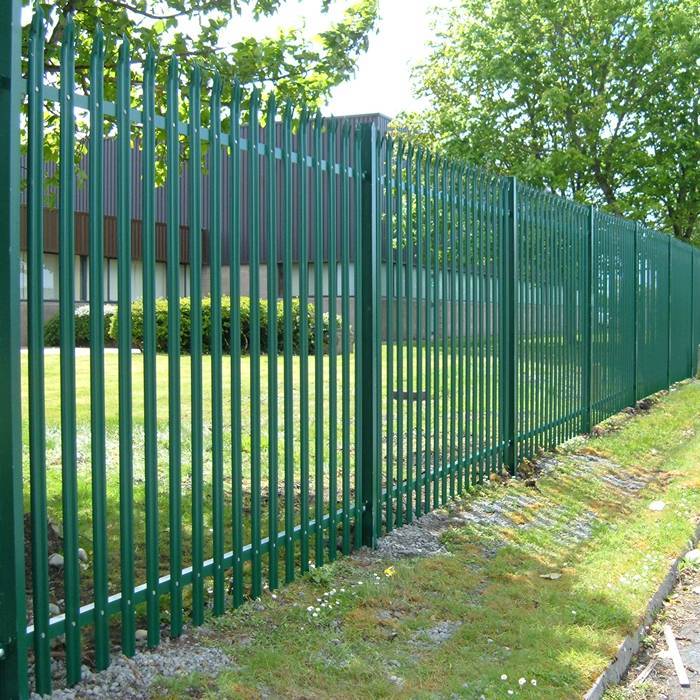

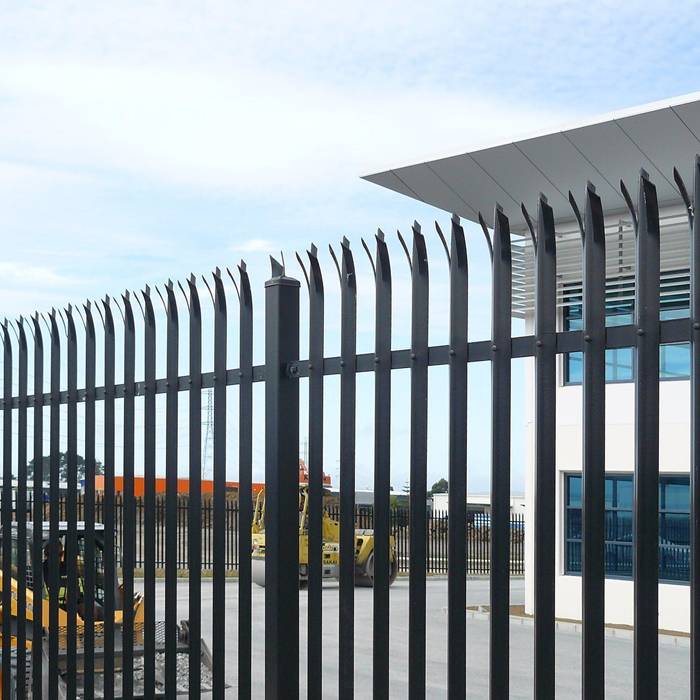

Palisade fencing is designed to provide a high level of security for a wide range of outdoor applications and is widely used in schools, commercial buildings, parks, churches, stadiums, railways, yards, companies, etc.

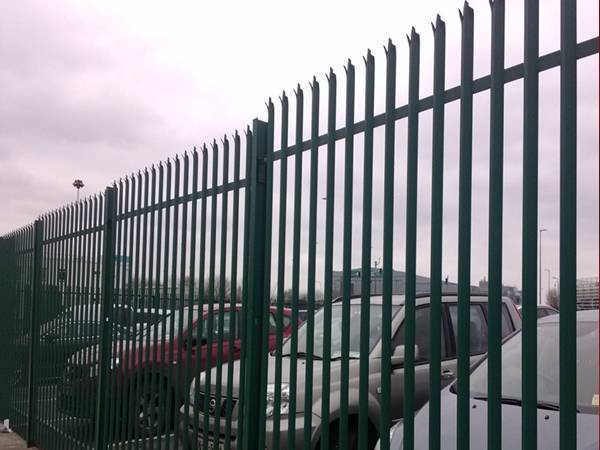

Palisade fencing is used to create some space for parking lots.

Palisade fencing for parking lots

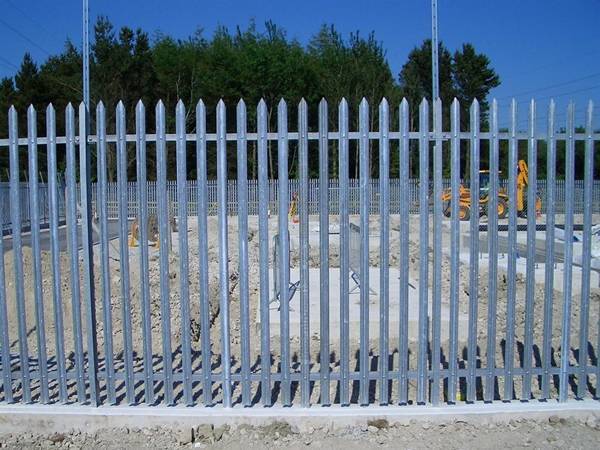

A construction site is encircled by a palisade fencing to prevent unauthorized personnel from entering.

Palisade-fencing for construction sites

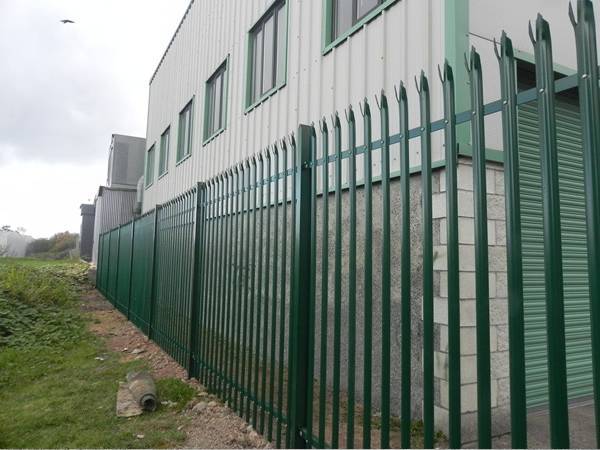

Palisade fencing is used to create enclosures for factories.

Palisade fencing for factories

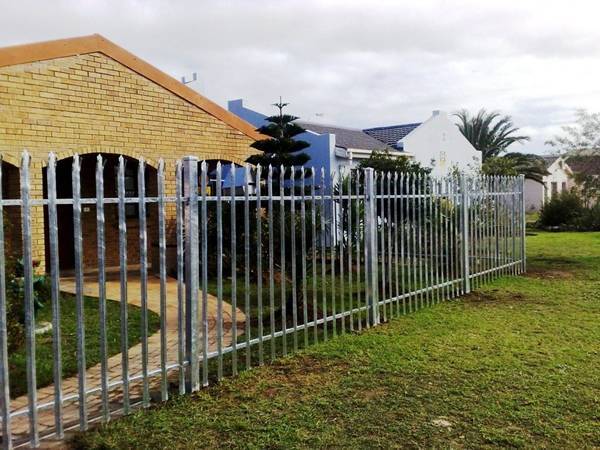

Palisade fencing is used to build residential gardens.

Palisade fencing for gardens

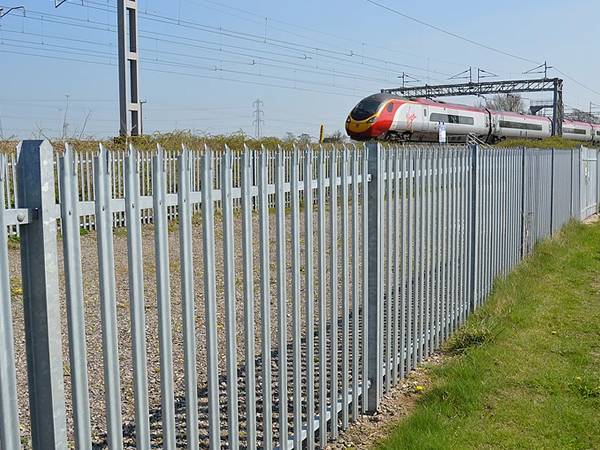

A train is running along railways enclosed by palisade fencing.

Palisade fencing for railways

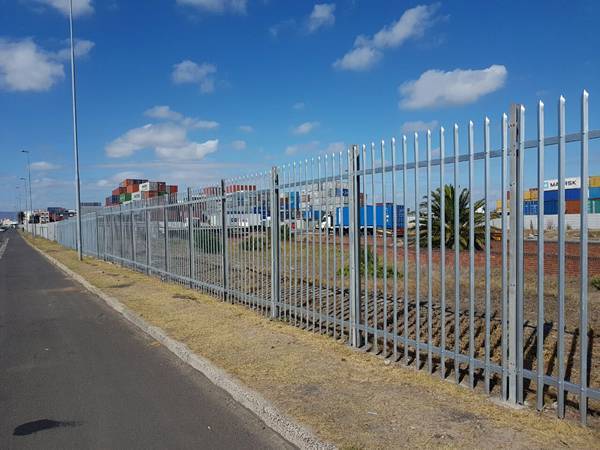

Palisade fencing is set up along highways.

Palisade fencing for highways
