Australia Temporary Fence From Linkland

Australia Temporary Fence is a kind of temporary fence manufactured in accordance with Australian Standard AS 4687-2007 Temporary Fencing and Hoardings and is designed to withstand harsh Australian climates. It is constructed by galvanized welded wire mesh and round tubes, which provides a smooth surface with excellent rust & corrosion resistance performance and a rigid structure that works well for years. Australia temporary fence is an ideal choice for preventing unauthorized access and is widely used in infrastructure, civil, industrial, commercial & demolition sites, construction sites, accident spots and a wide range of major public events.

Contact Us MORE INFO

Specification

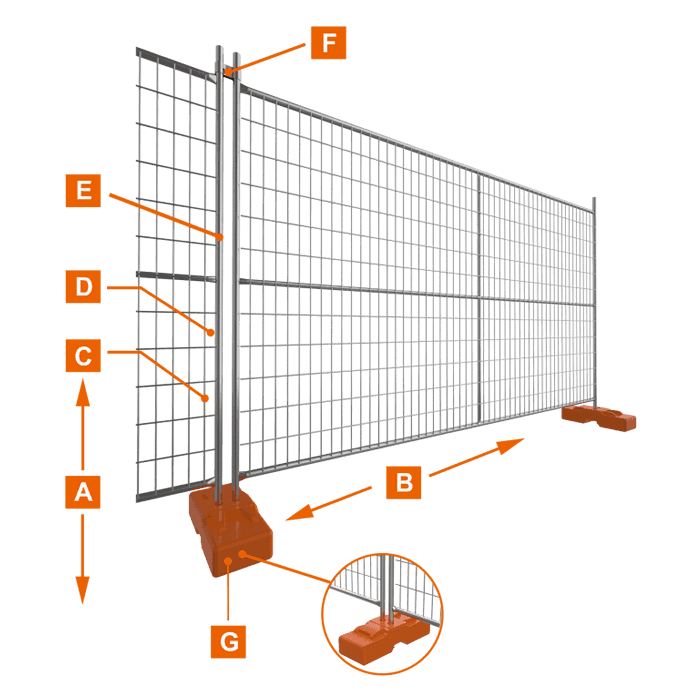

The picture shows the diagram and the details of the Australia temporary fence.

A Height: 1800 mm, 2100 mm, etc.

b Width: 2100 mm, 2400 mm, 2900 mm, etc.

c Wire Diameter: 2.5 mm, 3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 5.0 mm

d Mesh Opening: 50 mm × 100 mm, 50 mm × 150 mm, 75 mm × 100 mm, 75 mm × 150 mm

e Frame: Round pipe (outside diameter 32 mm, 38 mm, 40 mm, 42 mm, 48 mm)

f Clamp: metal clamp

g Feet: 580 mm × 245 mm × 130 mm, 600 mm × 220 mm × 150 mm

Notes: hot dipped galvanized before welding or hot dipped galvanized after welding

Components & Accessories

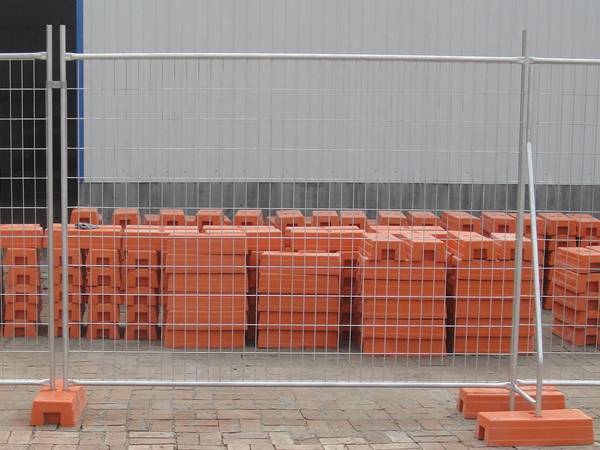

The main component of Australia temporary fence is welded fence panels, panel clamps and plastic feet as shown below.

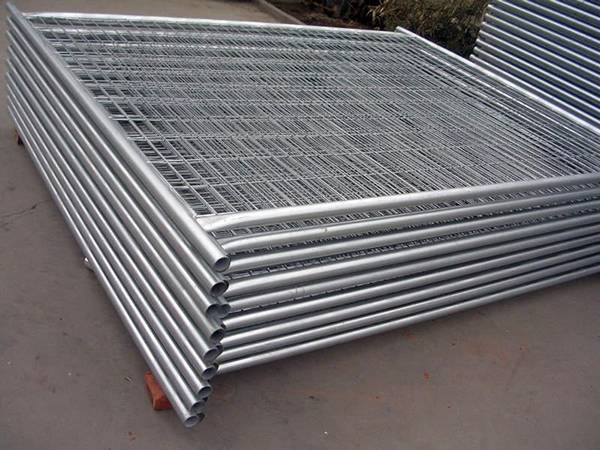

Fence panels

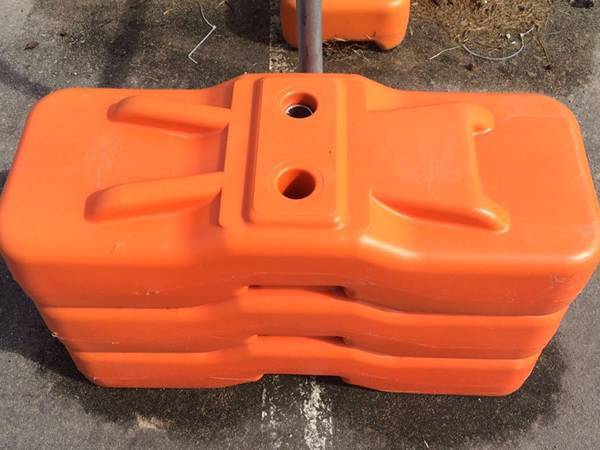

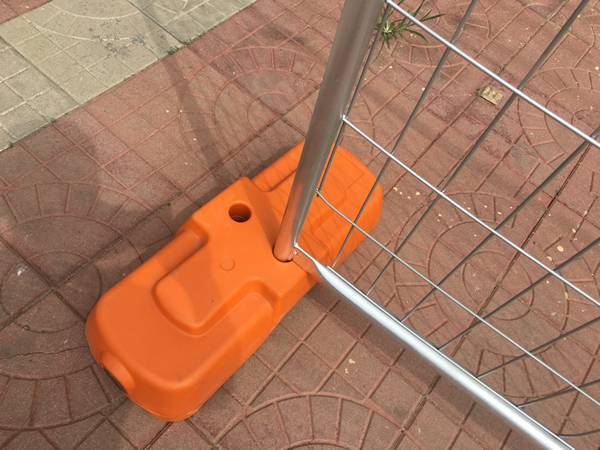

Two pipes of wire mesh are inserted in an orange plastic foot.

Plastic feet

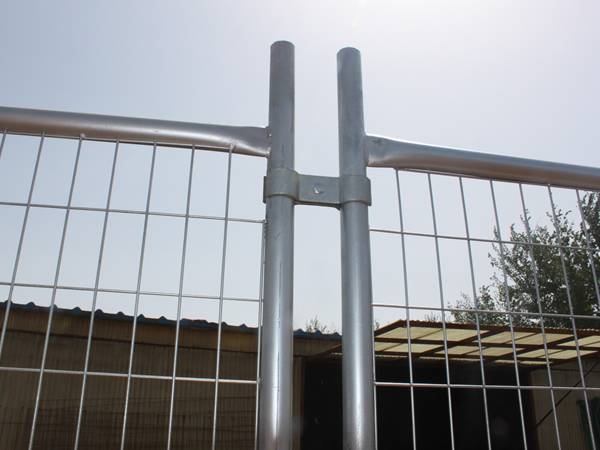

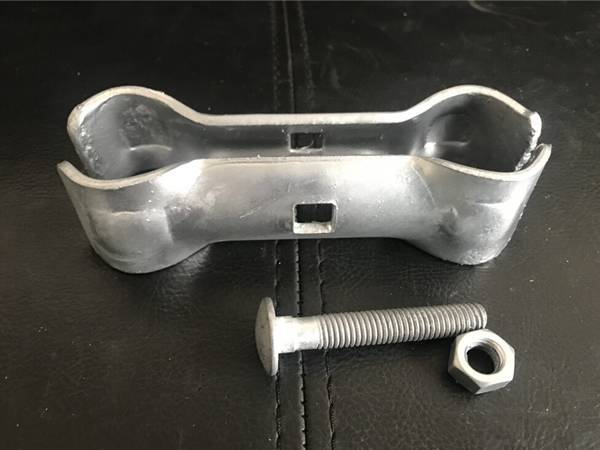

A clamp is used to fix two round pipes of Australia temporary fence.

Fence clamp

Optional Accessories

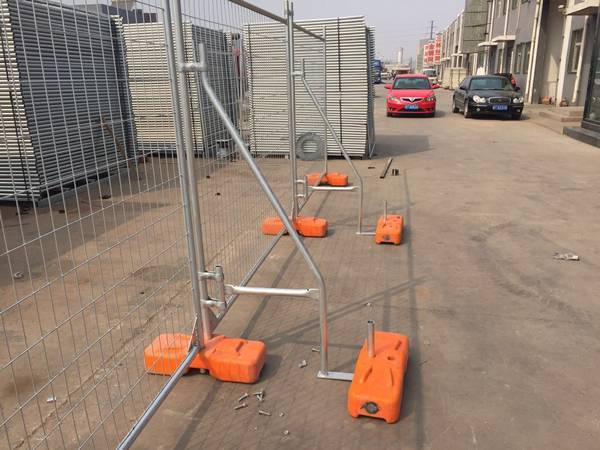

Braces

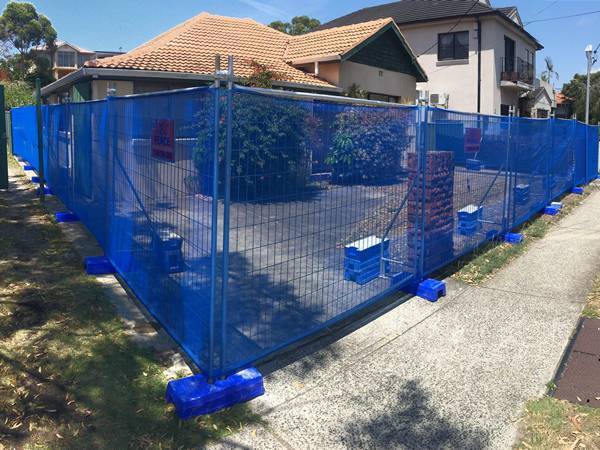

Shade cloth

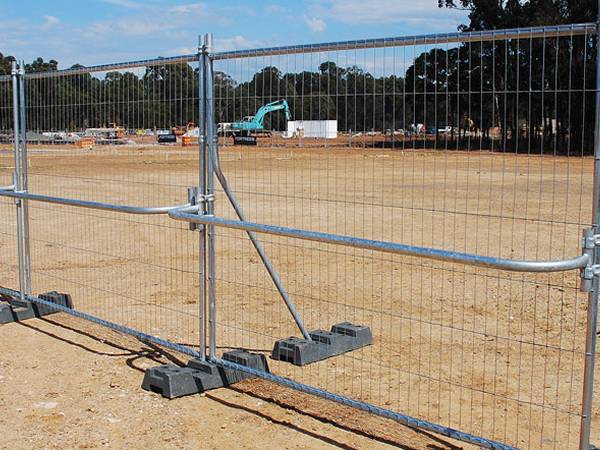

Handrails

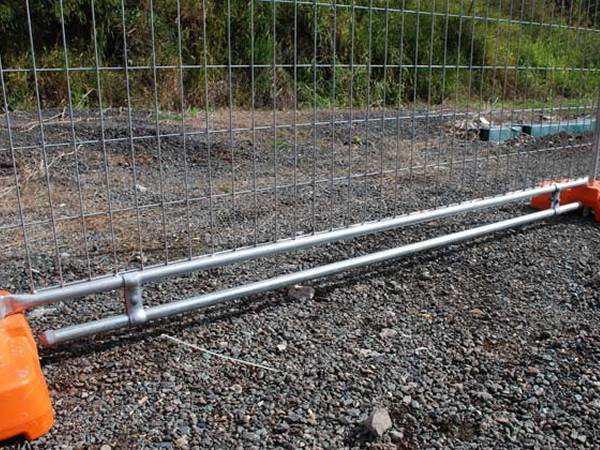

A dog bar is added to the bottom of the Australia temporary fence to prevent dogs from entering.

Dog bars

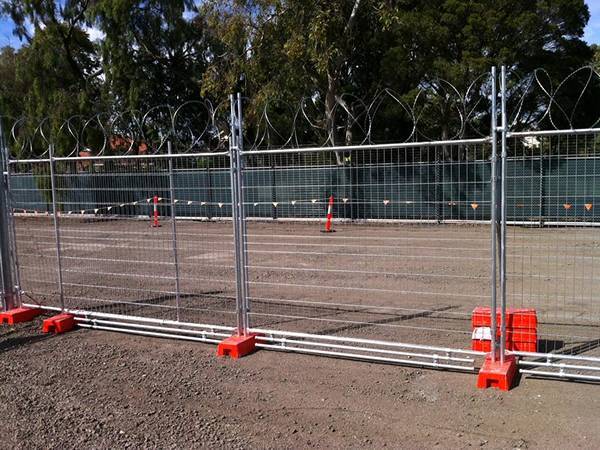

Razor wires

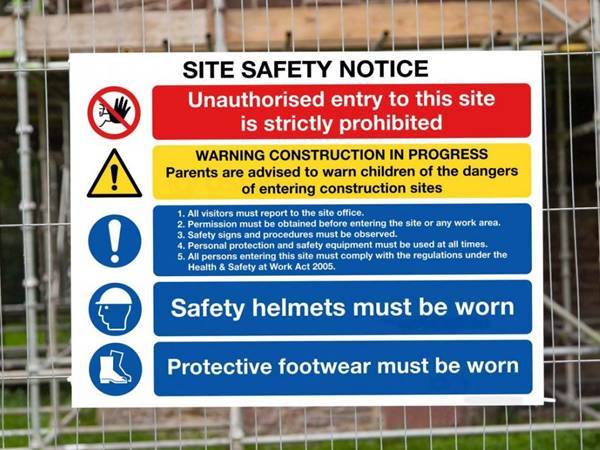

A warning sign is attached to the Australia temporary fence to remind pedestrians.

Warning signs

Production

Production Flow Chart

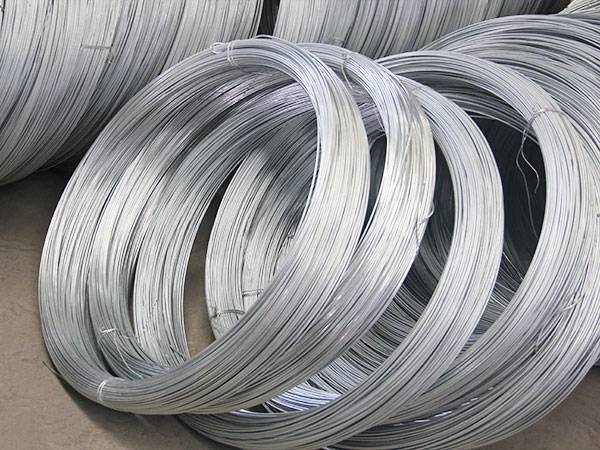

Many galvanized steel wire rolls are coiled on reels.

Step 1

raw materials (galvanized steel wires)

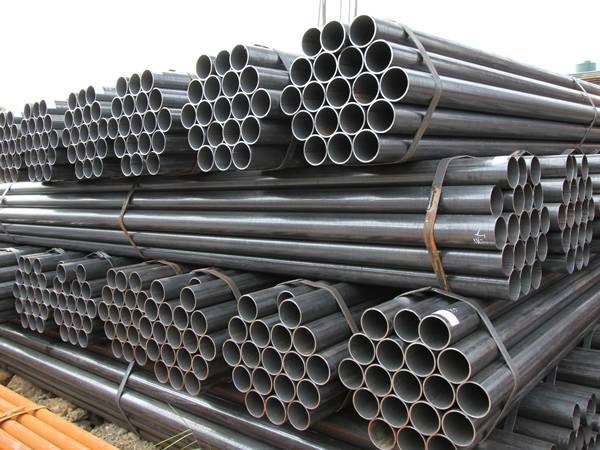

Many galvanized steel pipes are piled on the ground.

Step 2

raw materials (galvanized steel pipes)

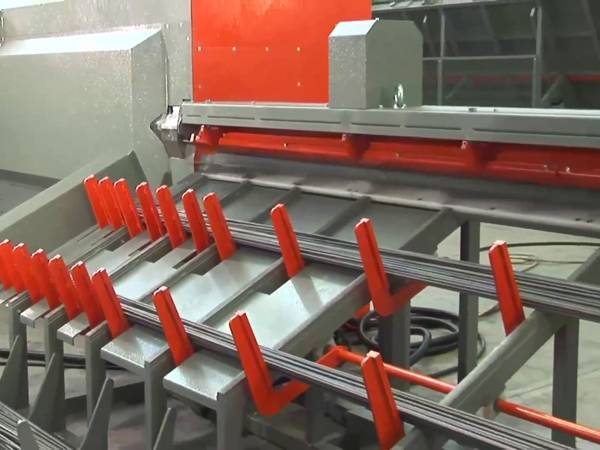

Steel wires are straightened and cut into designed length.

Step 3

steel wire straightening and cutting

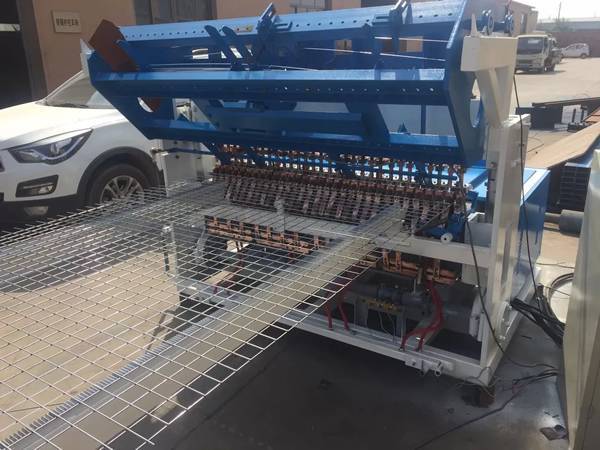

A welding machine is producing welded wire mesh.

Step 4

wire mesh welding

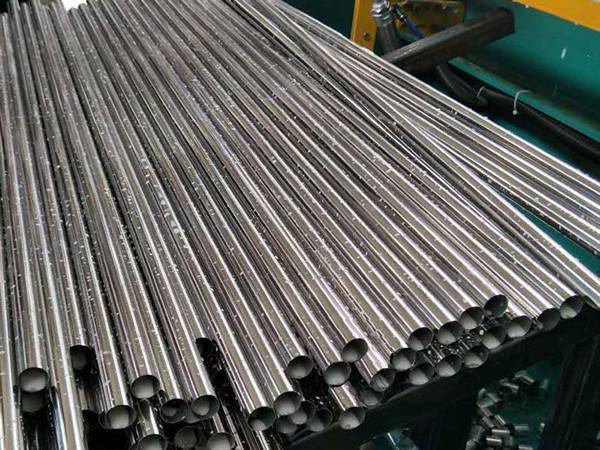

Many steel pipes are cut into standard length.

Step 5

pipe cutting

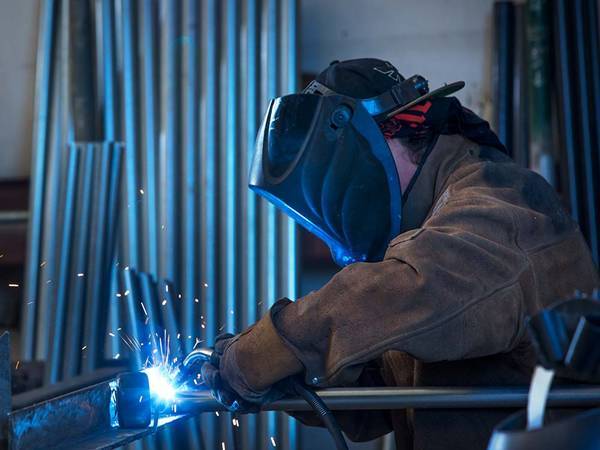

Step 6

fence frame welding

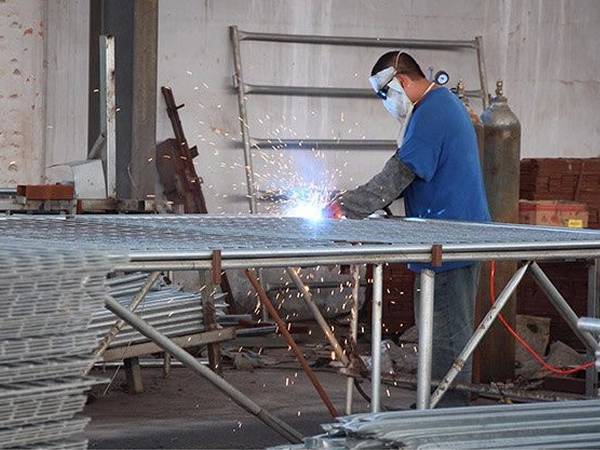

A worker is welding the welded wire mesh and the frame together.

Step 7

temporary fence panel welding

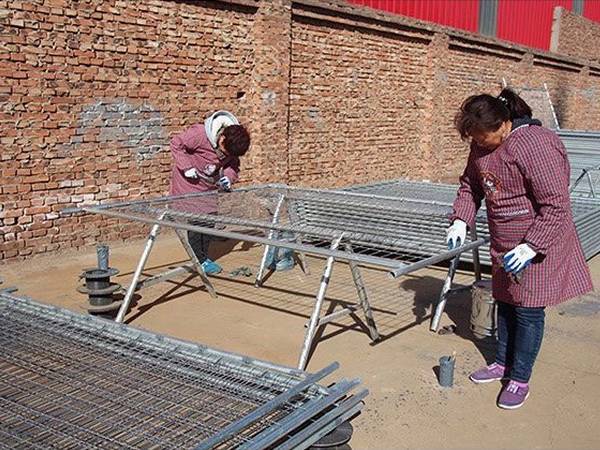

Two workers are polishing the temporary fence panel.

Step 8

temporary fence panel polishing

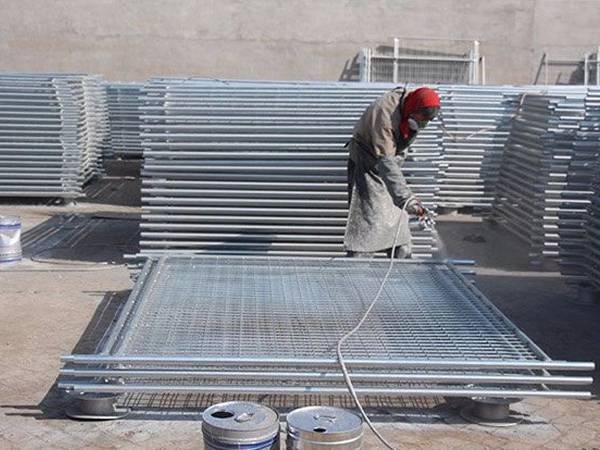

A worker is spraying silver powder on the surface of the temporary fence panel.

Step 9

temporary fence panel spraying

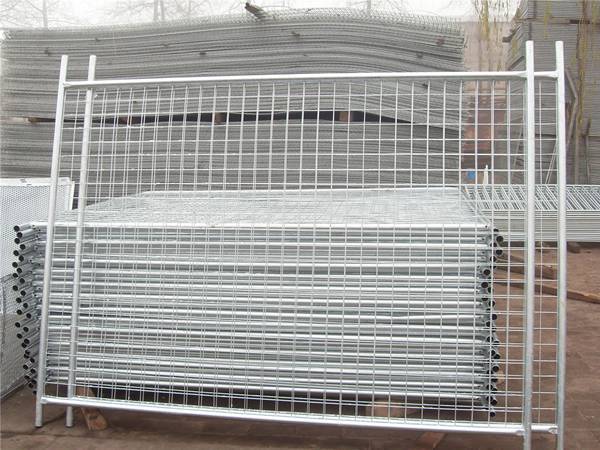

Step 10

finished Australia temporary fence panels

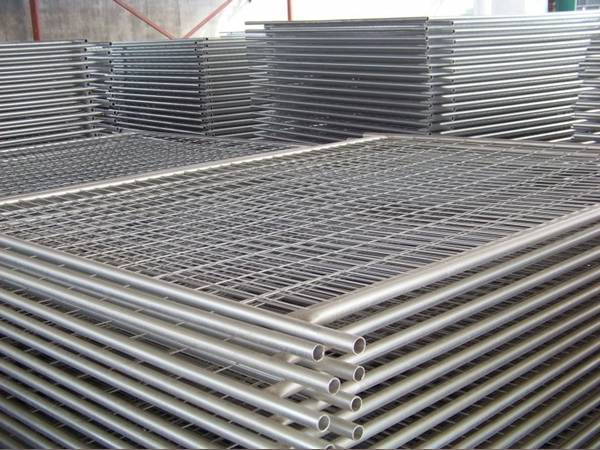

Step 11

Australia temporary fence storage

Package & Delivery

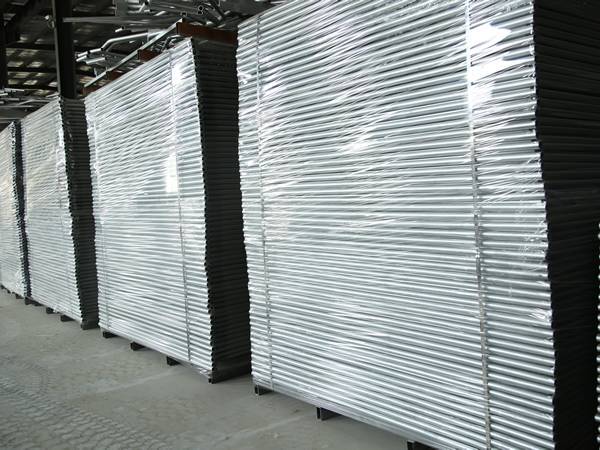

Australia temporary fence panels are placed on the pallet and packaged with plastic belts.

Australia temporary fence panel package

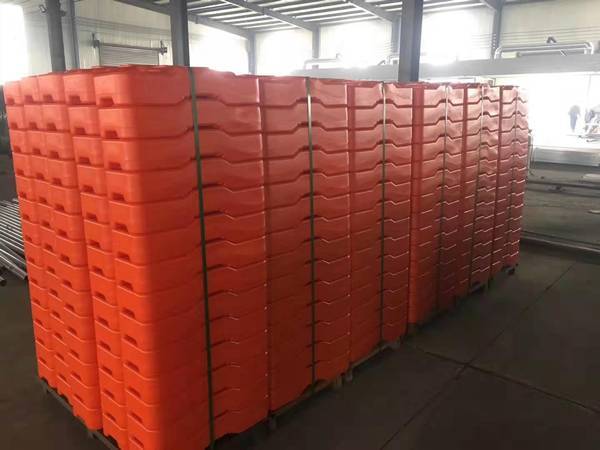

Australia temporary fence plastic feet are placed on the ground neatly and package with plastic belts.

Australia temporary fence plastic feet package

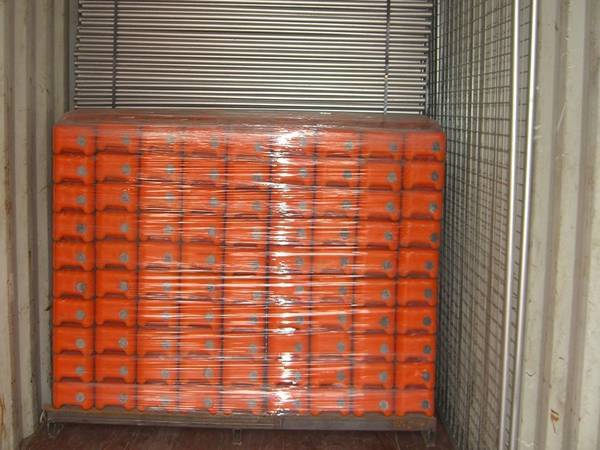

Australia temporary fence panels and plastic feet are placed on the compartment for delivery.

Australia temporary fence delivery

Features

Smooth and elegant appearance. The surface is well treated to eliminate all burrs for safe installation and removal.
Full hand welding technology. This full welding technology provides a strong structure to extend its service life and prevent breakage.
Excellent applicability. It can be placed on a variety of grounds including soil, sand, asphalt and concrete surfaces.
Solid and strong base support. The concrete inside the plastic feet provide a solid and strong base support for the temporary fence.
Easy installation and removal. All assemble and disassemble work can be done by one single person without digging holes, which saves both time and labor.
Great cost effective. It can be installed and removed for many times and for different uses.

Gallery

Australia temporary fence is widely used in infrastructure, civil, industrial, commercial & demolition sites, construction sites, accident spots and a wide range of major public events.

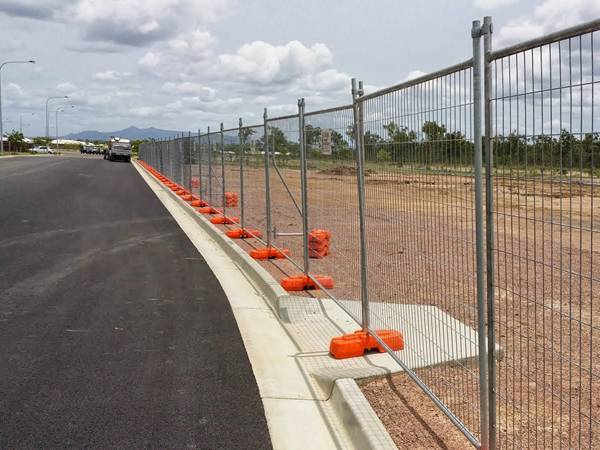

Australia temporary fence is placed along roadside.

Australia temporary fence for roadside

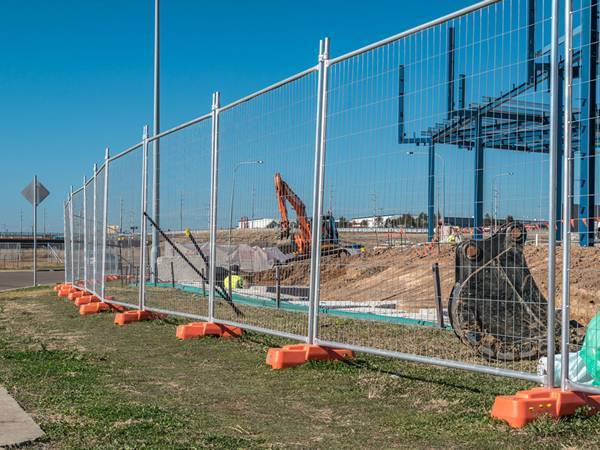

Australia temporary fence is used to encircle a construction site to prevent others from entering.

Australia temporary fence for construction sites.

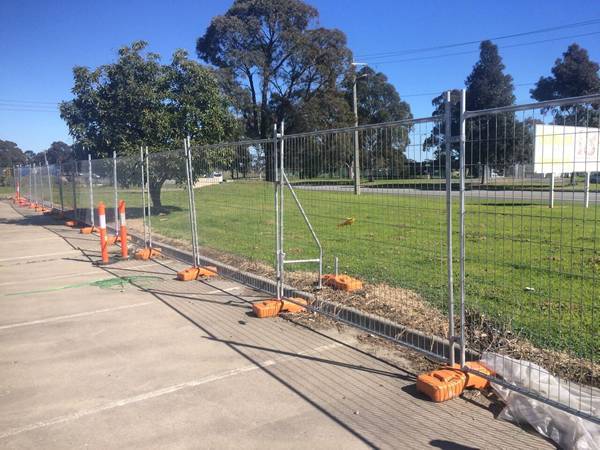

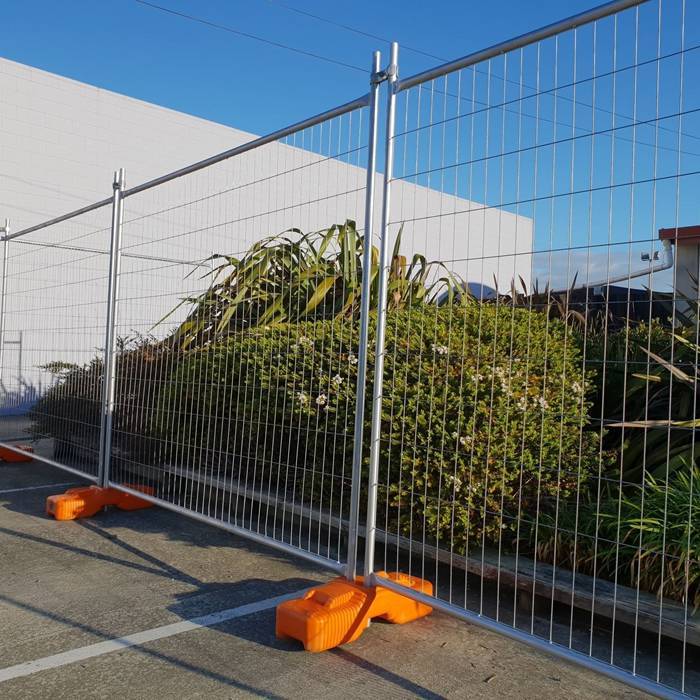

A vast of grassland and many tall trees are encircled by Australia temporary fence.

Australia temporary fence for parks

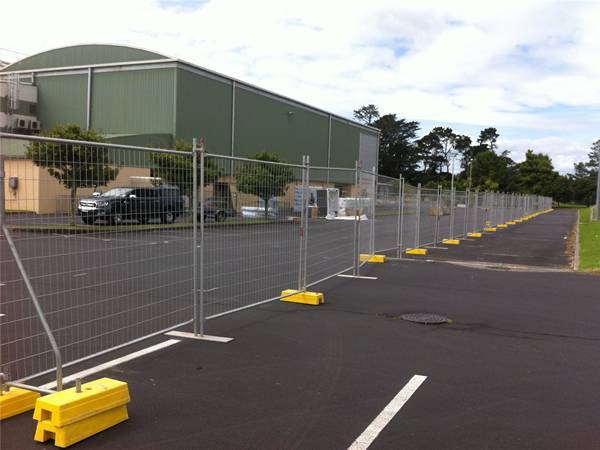

Australia temporary fence is used to encircle a boundary for industrial sites.

Australia temporary fence for industrial sites.
