Woven Gabion

Woven Gabions Baskets From Linkland

Woven gabions, also known as woven gabion baskets, are usually rectangular containers made of galvanized steel wire or stainless steel wire. They are widely used in the civil engineering industry, especially in buildings with severe soil erosion or erosion.

Often used in conjunction with geotextiles, woven gabions can be filled with soil or stone to ensure stability and durability, improve waterproofing and erosion control, reduce water flow and recapture bed sediment in streams, and provide Surrounding soil and structures provide additional support.

Heavy galvanized twisted gabions are produced in compliance with EN 10244 and ASTM A641 standards, and PVC coating requirements comply with ASTM A 975 standards.

Contact Us MORE INFO

Specification

Materials: galvanized wires, Galfan wires, PVC coated wires.
Colors: common is green and gray and any color is available upon your request.
Opening: 60 × 80 mm, 80 × 100 mm and other customized sizes.
Gabion sizes: 2 × 1 × 1 m, 1 × 1 × 1 m, 3 × 1 × 1 m and customized sizes.

Popular Sizes of Woven Gabions
Gabion box/Mattress Size			Wire Diameter			Mesh opening	Diaphragm (unit)	Number of Cells
length (m)	Width (m)	Height (m)	Mesh Wire (mm)	Selvage Wire (mm)	Tie Wire (mm)	Mesh opening	Diaphragm (unit)	Number of Cells
2.0	1.0	0.15–0.3	2.0 2.2 2.4 2.7 3.0	2.4 2.7 3.0 3.4 3.9	2.0 2.0 2.0 2.2 2.4	60 × 80 80 × 100 80 × 120 100 × 120 100 × 150 120 × 150	1	2
3.0	1.0	0.15–0.3					2	3
4.0	1.0	0.15–0.3					3	4
1.0	1.0	0.5					0	1
1.0	1.0	1.0					0	1
2.0	1.0	0.5					1	2
2.0	1.0	1.0					1	2
3.0	1.0	1.0					2	3
3.0	1.0	0.5					2	3
4.0	1.0	1.0					3	4
The quantity of tie wire: 2% weight of gabion box All sizes can customized according to your request

Category

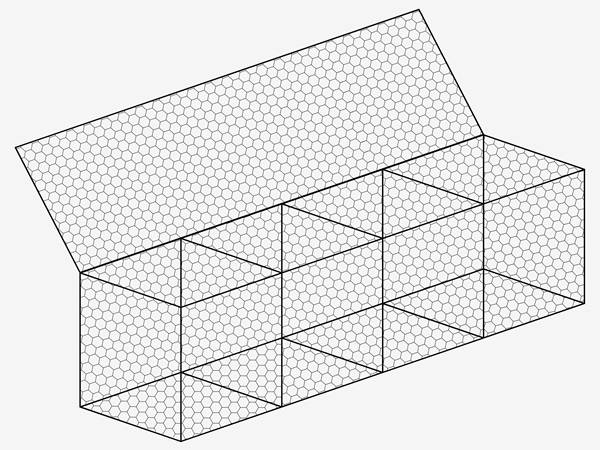

Gabion Box

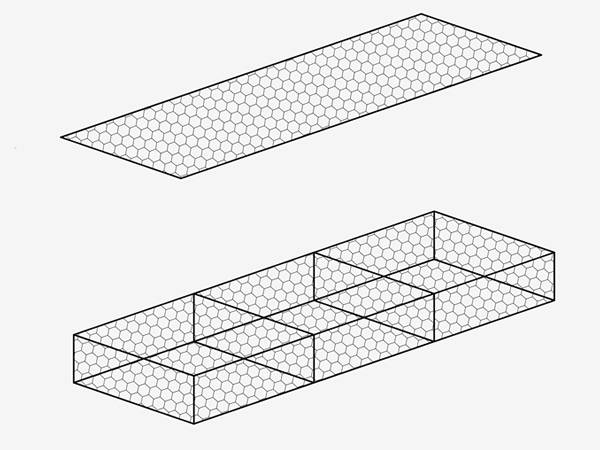

Gabion Mattress

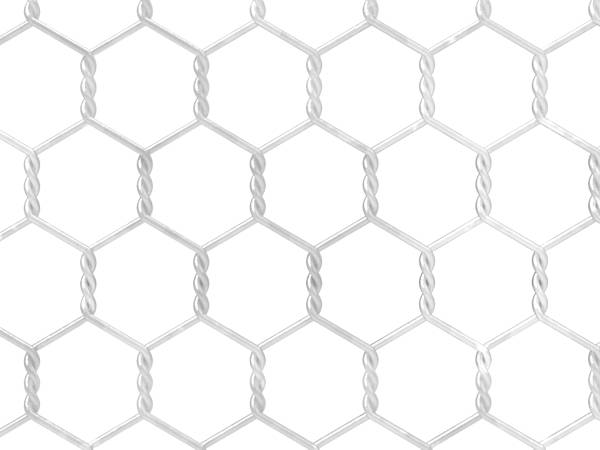

Galvanized woven gabions

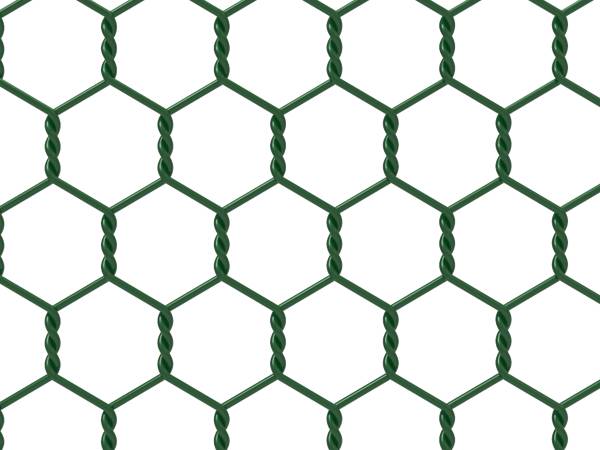

PVC coated woven gabions

Production

Production Flow Chart

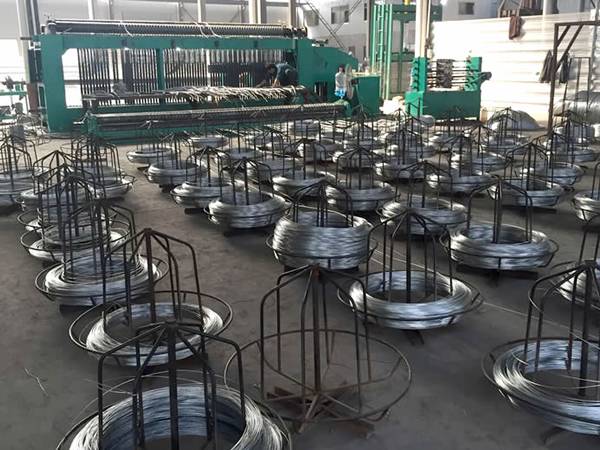

Several axis of galvanized steel wires in the workshop

Step 1

Materials

Step 2

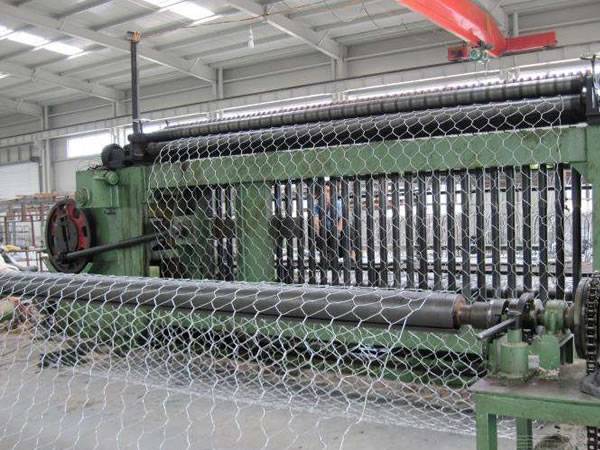

Weaving

Step 3

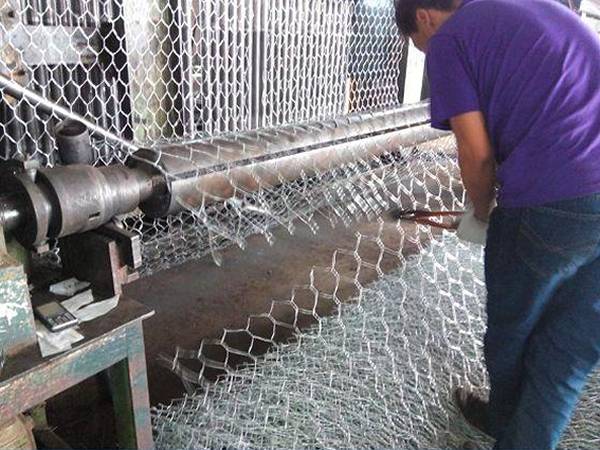

Cutting

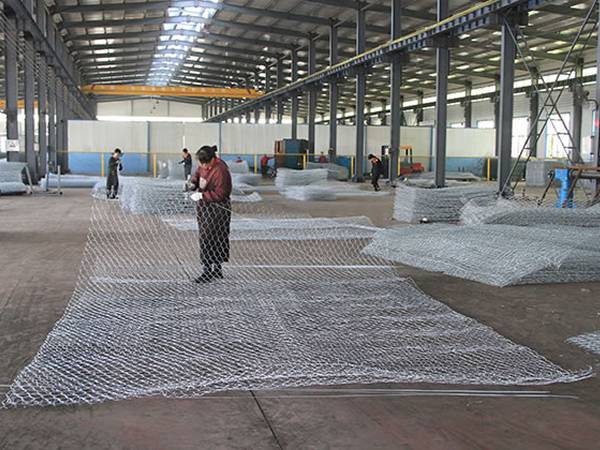

Step 4

Assembling

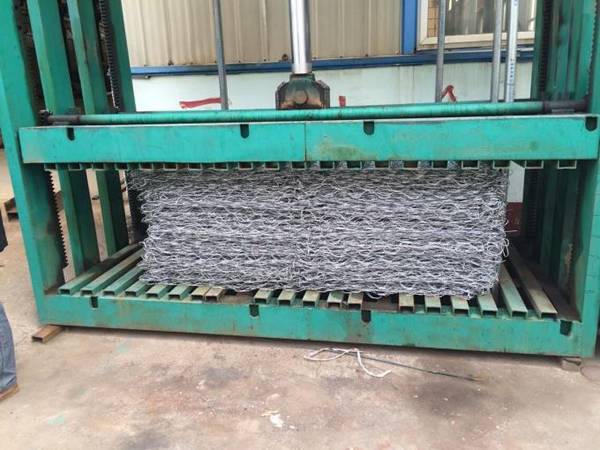

Step 5

Compressing

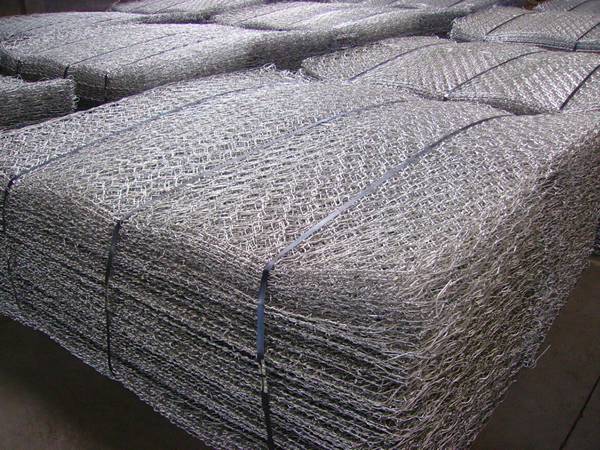

Several bundles of woven gabion baskets in the warehouse

Step 6

Packing

Package & Delivery

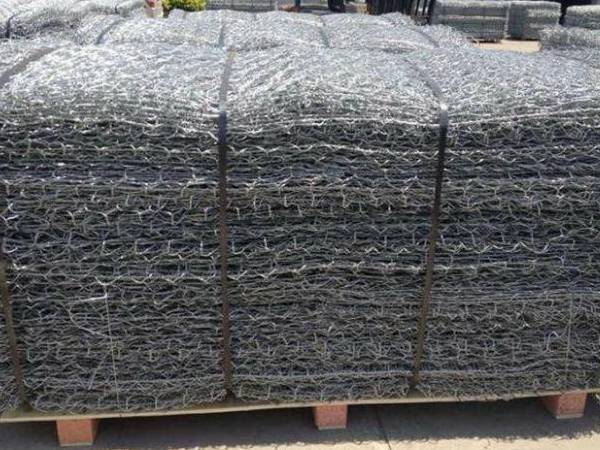

Several pallets of woven gabion mattresses on the ground.

Pallet package

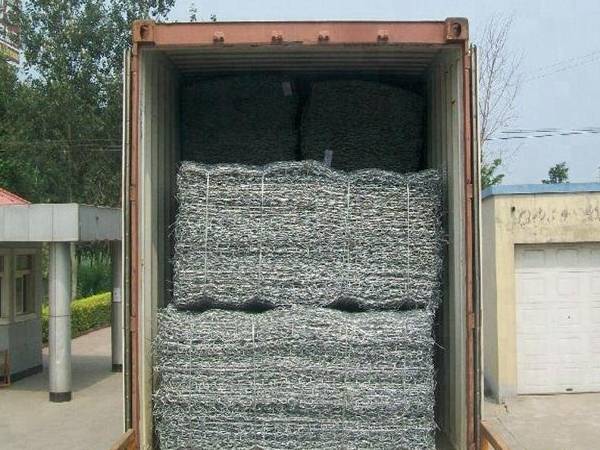

Several bundles of woven gabions in the container

Delivery

Features

Robust & flexible structure
Woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses. In addition, they accommodate different settlements such as unstable soil conditions or areas where the going gets rough. Meanwhile, all their edges are reinforced by heavy wire selvedge for added strength.
Good hydraulic properties.
Woven gabion baskets can provide effective hydraulic properties and can be used to make various water conservancy projects and flood control facilities to effectively control water flow and prevent erosion.
High versatility.
Woven gabion baskets can be used in various engineering projects, such as river bank protection, dam reinforcement, soil and water conservation, flood control projects, etc., with a wide range of applications.
Long lifespan.
All of our woven gabion baskets are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our products can last up to 120 years based on different exposure conditions.

Gallery

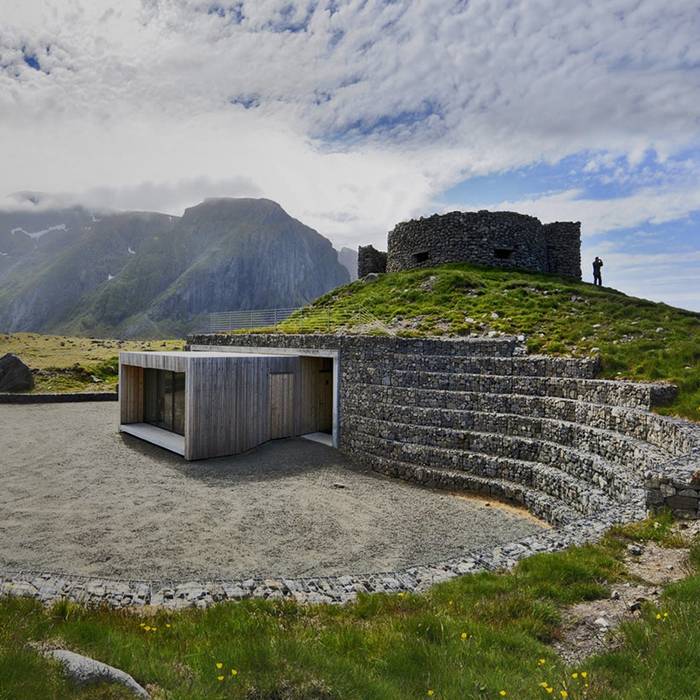

Gabion retaining wall
Desert gabion
Gabion Channel linings
Rockfall protection
Gabion landscaping
drainage
Gabion bank

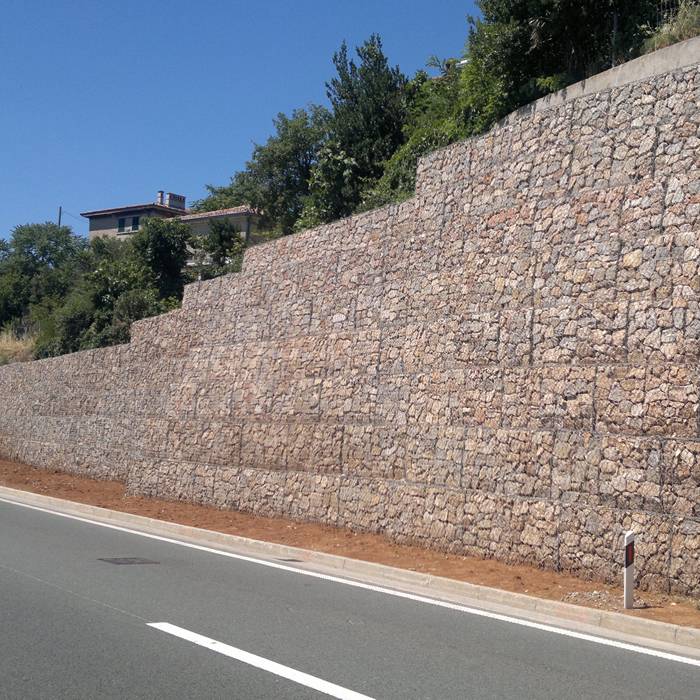

Roadway and bridge protection.
Erosion protection.
Slope paving and weirs.
Earth reinforcing structures.
Hydraulic structures.
Outfall structures.
Coastal embankment works.
Dams and culverts.
Stream, river and canal training works.

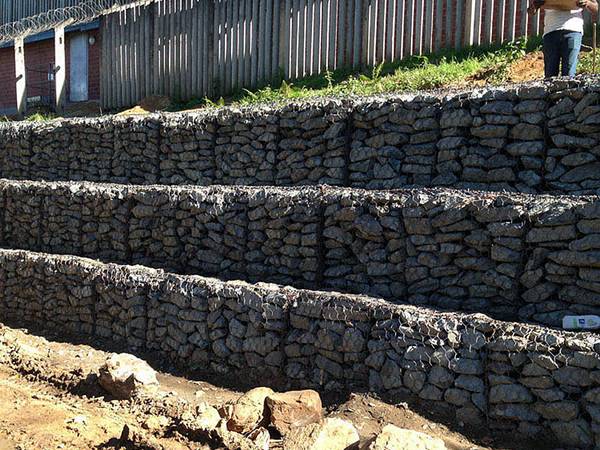

Three layers of gabions are installed on the slope

Retaining wall

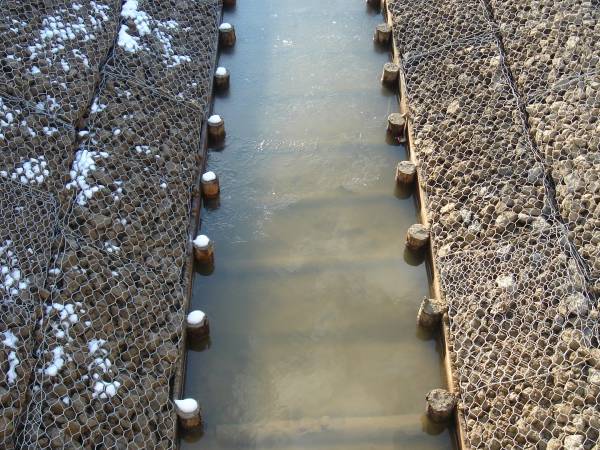

River bank

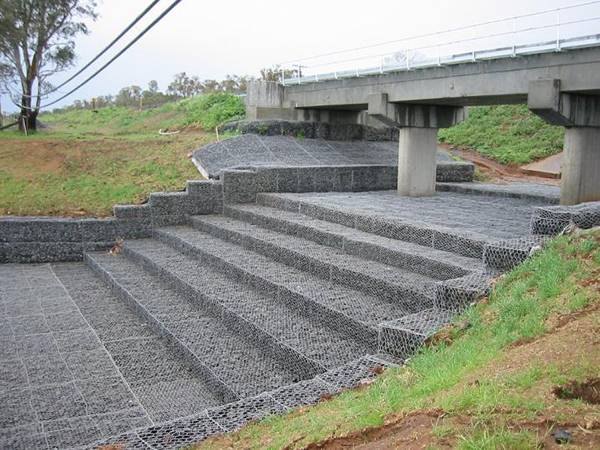

Gabion mattresses are paved in the channel.

Channel lining.

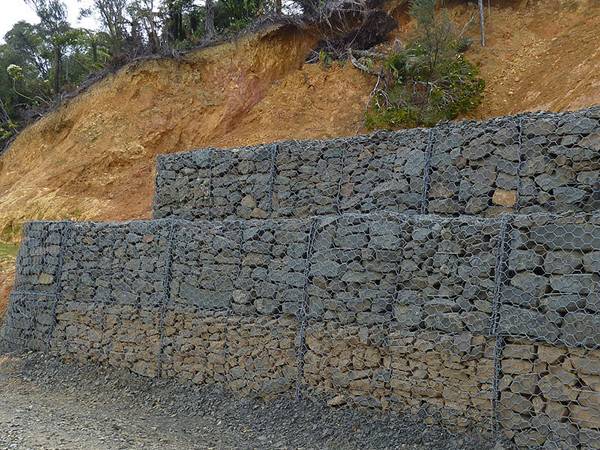

Three layers of galvanized woven gabions are paved on the slope.

Slope protection

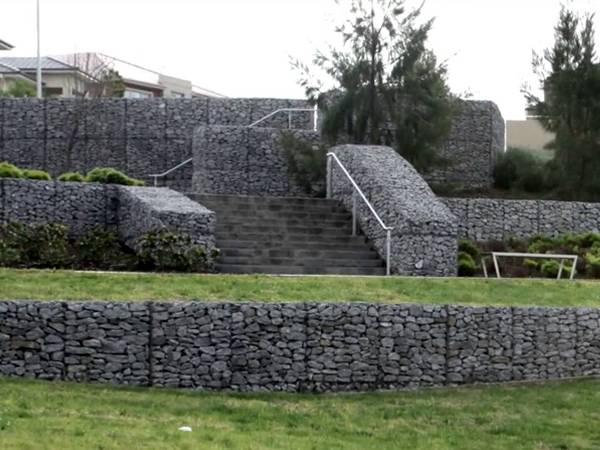

Steps, wall and other places of the sites are made of galfan gabions.

Gabion landscaping

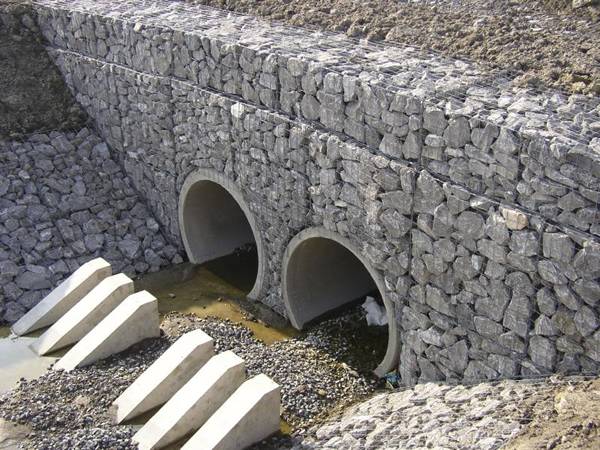

Drainage
