Steel Grating

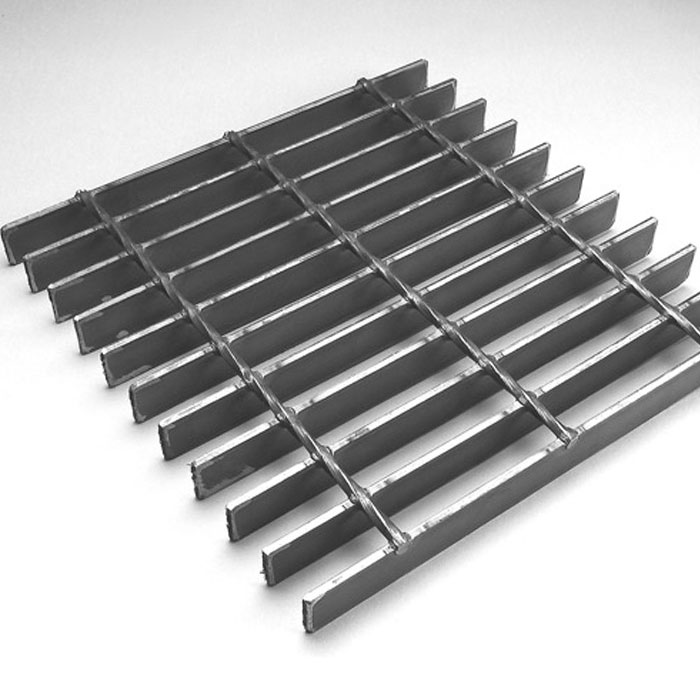

Steel Grating made by welding with flat steel and cross/round bars with certain distances.
Our Galvanized Steel Grating enjoy the feature of high strength, light structure, high bearing,
convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.

1)Raw material :Low carbon steel, stainless steel, aluminum alloy
2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.

3)Open-end type and closed-end type

Contact Us MORE INFO

Specification

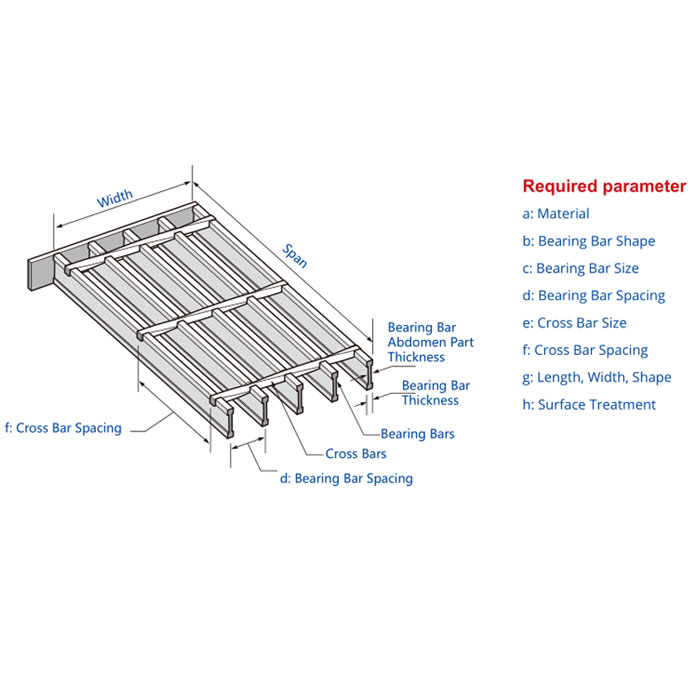

Common Specification Of Steel Grating
Material Standard	ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304, Mild steel & Low carbon steel, etc
*Bearing Bar(widththickness)**	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment	untreated(black), hot-dipped galvanized ,powder coated, electroplate, painting or as per customers' requirement.
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Packing	1) LCL(less than one container load): packed with plastic film then on the pallets 2) FCL(full container load): nude packing 3) Other special package :according to customers' requirements.
Payment Term	T/T,L/C, Paypal, Western Union, MoneyGram, Credit Card ,D/A,D/P, Trade assurance
Remarks: Other sizes also can be customized according to customers' requirement.

Category

Galvanized

PVC coating

Several pieces of powder coating welded wire mesh panel.

Stainless steel

Production

Production Flow Chart

Several low carbon steel wires in the workshop.

Step 1

Material

Step 2

Straightening and cutting

A machine is producing welded wire mesh panel.

Step 3

Welding

A powder coating line of welded wire mesh panel

Step 4

Surface treatment

Several pieces of welded wire mesh panel on the ground.

Step 5

Finished

Package & Delivery

Several pallets of wire mesh panels in the warehouse.

Pallet package

Several cases of welded wire mesh panel in the warehouse.

Wooden case package

Several pallets of welded wire mesh panels in the container.

Delivery

Features

Material savings: The way to withstand the most material under the same load conditions, and correspondingly, the material of the support structure can be reduced.

Less investment: save materials, labor, labor, free cleaning and maintenance.

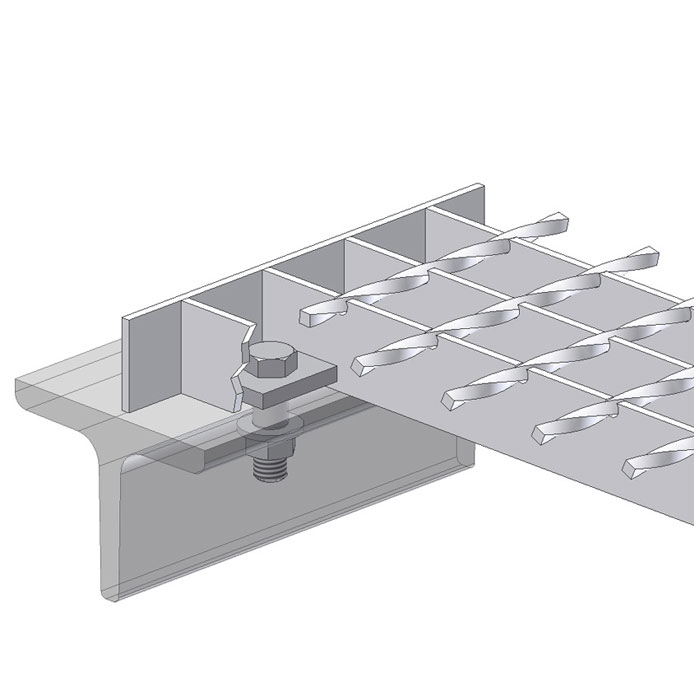

Simple construction: It can be completed by one person with bolts clamped or fixed on the pre-installed support.

Save time: The product does not require on-site rework and is installed very quickly.

Durable: It is treated with hot dip zinc and anti-corrosion treatment before leaving the factory. It has strong impact resistance and heavy pressure.

Modern style: beautiful appearance, design specifications, ventilation and light, giving people a modern and smooth feeling.

Lightweight structure: less material, light structure and easy lifting.

Reduce wind resistance: due to good ventilation, small wind resistance and wind damage.

Anti-soil: no rain, snow, or dust. Ventilation, lighting, heat dissipation, explosion-proof, good anti-slip performance
