Chain Link Fencing From Linkland

Chain link fencing, also known as cyclone fencing, hurricane fencing, or diamond mesh fencing, is a type of woven fence typically constructed using galvanized or PVC-coated steel wire. The wires are intricately woven together to form an attractive diamond pattern. Chain link fencing offers a cost-effective solution for both residential and commercial applications.

For residential use, lower heights are commonly chosen, while higher heights are preferred for commercial settings to enhance security. Chain link fencing is versatile and finds applications in various settings, including roads, railways, airports, equipment and facility protection, pet and small animal husbandry, as well as zoo enclosures.

Among the different options available, galvanized and green chain link fences are the most popular worldwide. However, other colors can be requested to suit specific preferences or aesthetic requirements.

Contact Us MORE INFO

Specification

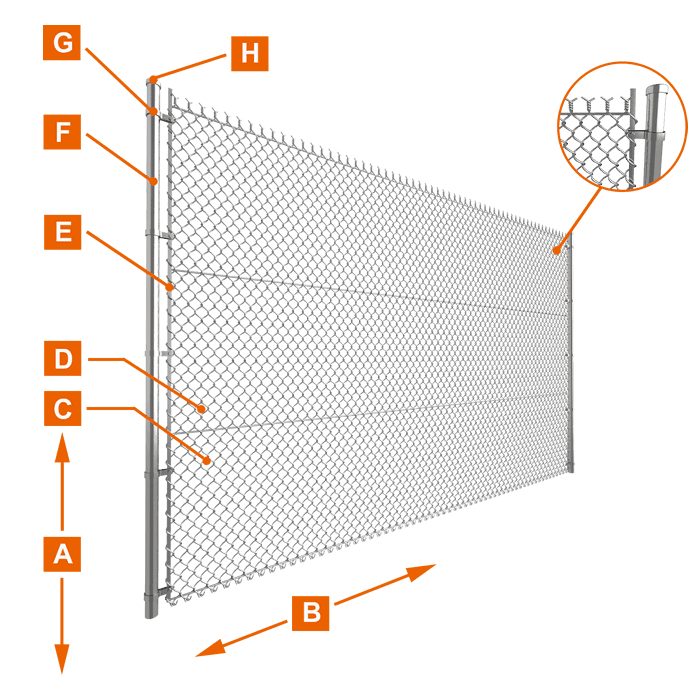

The picture shows the diagram and details of the chain link fence.

Mesh opening (D)	1''	1.5''	2''	2-1/4"	2-3/8''	2-1/2"	2-5/8"	3''	4''
Mesh opening (D)	25 mm	40 mm	50 mm	57 mm	60 mm	65 mm	70 mm	75 mm	100 mm
Wire diameter (C)	18 Ga. – 13 Ga.		16 Ga. – 8 Ga.					14 Ga. –6 Ga.
	1.2–2.4 mm		1.6–4.2 mm					2.0–5.0 mm
Width (B)	50–100 m (or more)
Height (A)	0.5–6.0 m
Round post & rail diameter (F)	32 mm, 42 mm, 48 mm, 60 mm, 76 mm, 89 mm; thickness: 0.8–5.0 mm

e Tension Bar: 25.0 mm × 5.0 mm

g Clamp: metal clamp

h Post Cap: metal rain cap/anti-UV PP cap

Notes:

All colors are available in Ral;
Other materials and specifications are available upon request.

Category

Raw Materials

We have both galvanized and PVC coated chain link fence for your choice. All RAL colors are available

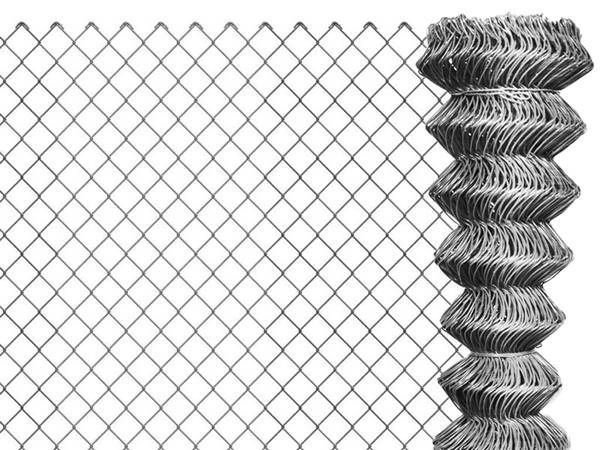

Galvanized chain link fence

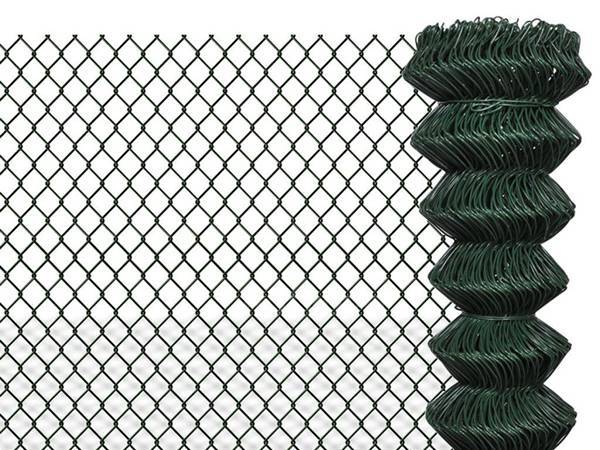

PVC coated chain link fence

Selvage

We have twist-twist, knuckle-knuckle and knuckle-twist selvages for you to choose from.

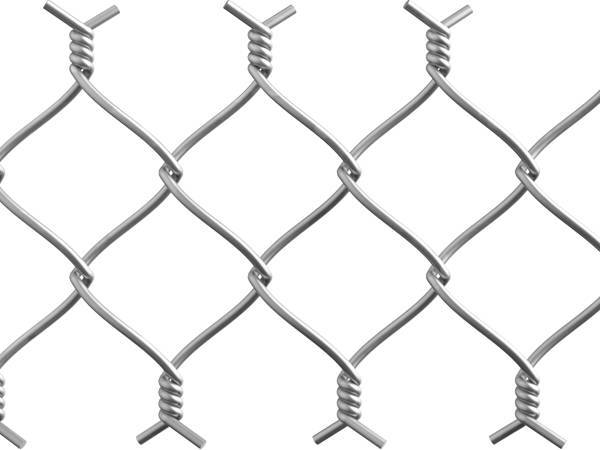

The chain link fence fabric with twist selvedge at both ends.

Chain link fence with twist-twist selvedge

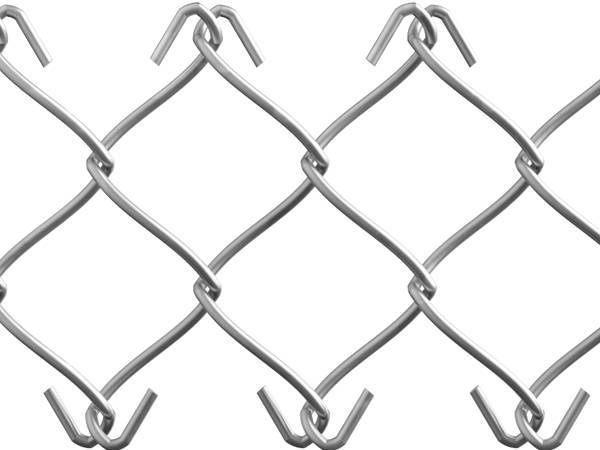

The chain link fence fabric is knuckled at both ends.

Chain link fence with knuckle-knuckle selvedge

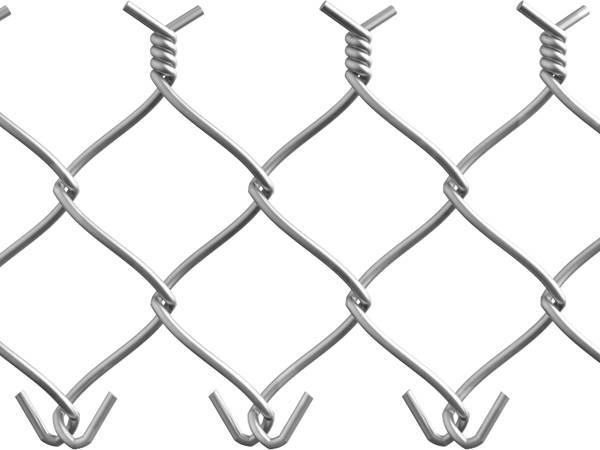

The chain link fence fabric is knuckled at the bottom and twist selvedge at the top.

Chain link fence with knuckle-twist selvedge

Components & Accessories

Our chain link components include gates, framework and chain link fabric as shown below. In addition, a variety of accessories are available to help you connect and secure your chain link fence properly and firmly.

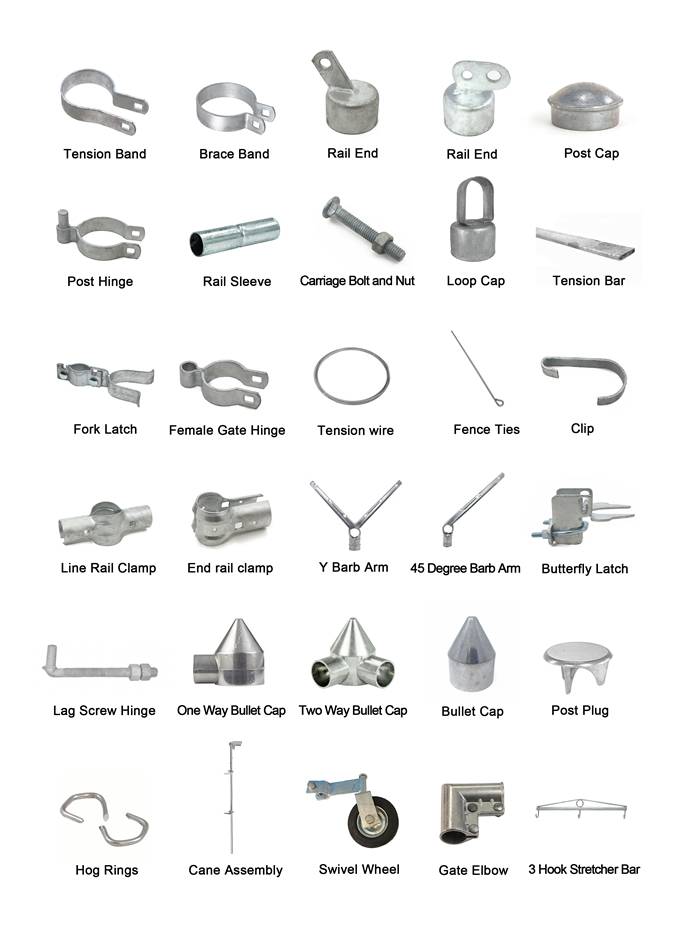

The picture shows the main components of the chain link fence and its accessories.

Chain link fence components & accessories

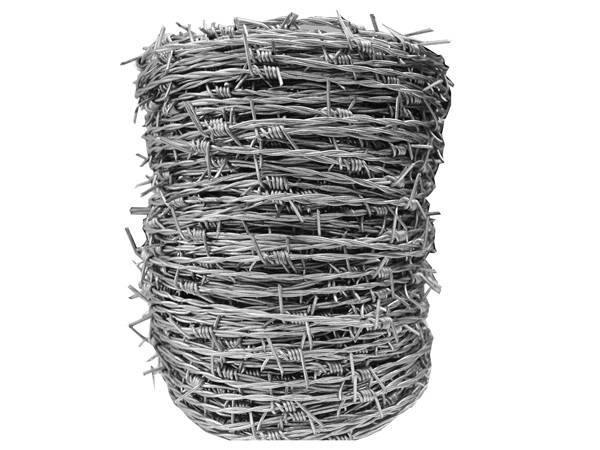

Barbed wires

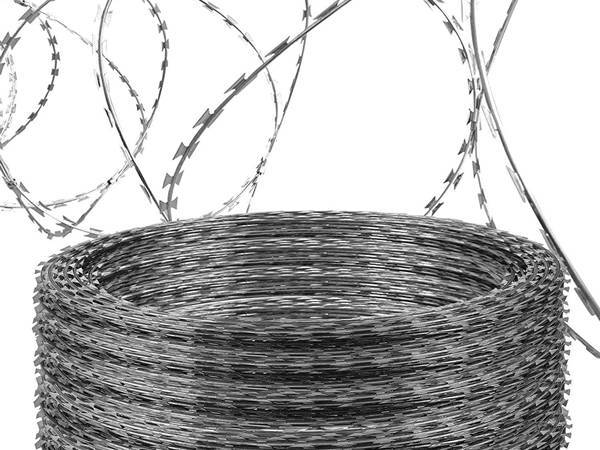

Razor wires

Production

Production Flow Chart – Galvanized Chain Link Fence

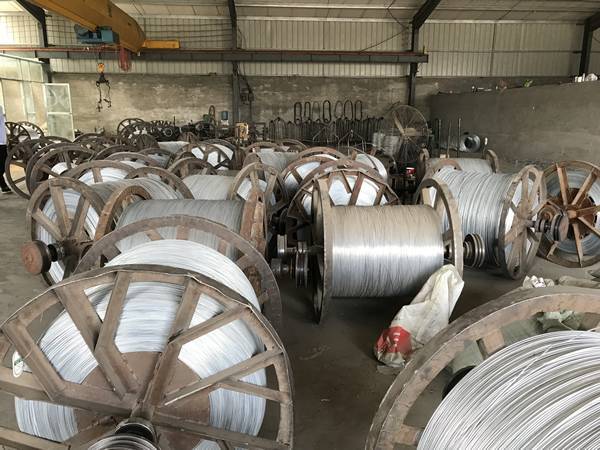

Galvanized steel wires are coiled on reels.

Step 1

raw materials

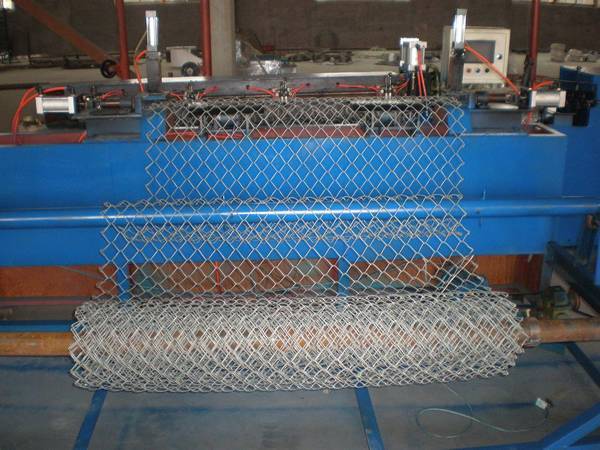

A weaving machine is producing galvanized chain link fabric

Step 2

chain link fabric production

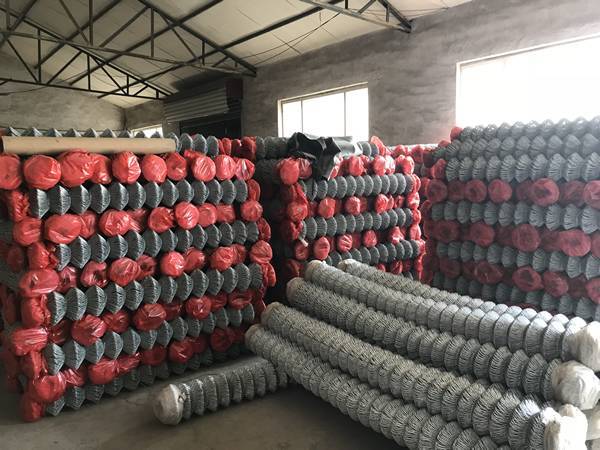

All galvanized chain link fences are packaged in rolls for storage.

Step 3

finished chain link fence

Production Flow Chart – PVC Coated Chain Link Fence

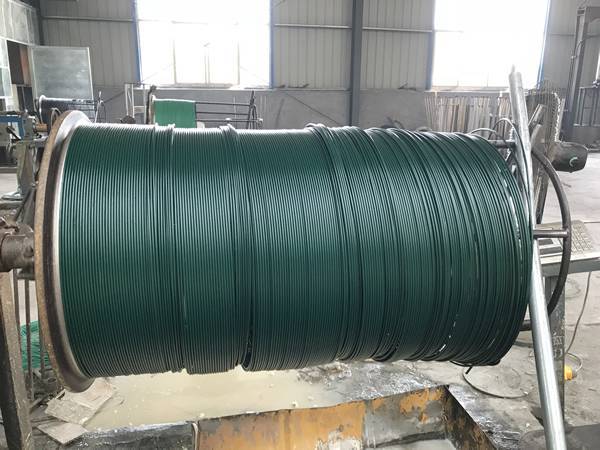

PVC coated steel wires are coiled on reels.

Step 1

raw materials

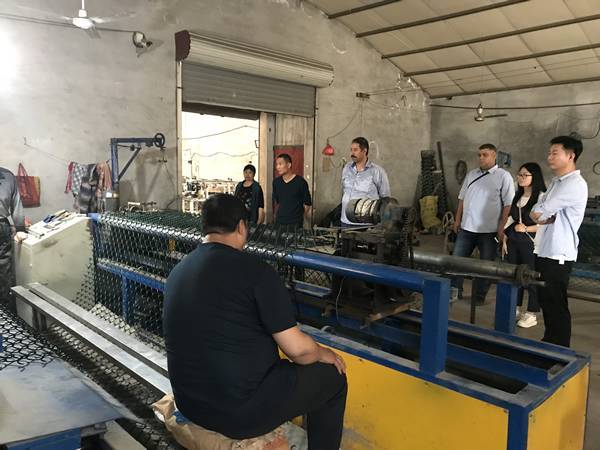

Many visitors are watching the production process of PVC coated chain link fabric.

Step 2

chain link fabric production

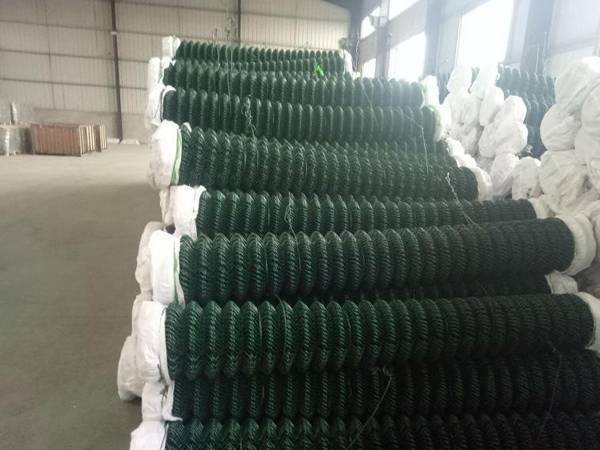

All PVC coated chain link fences are packaged in rolls for storage.

Step 3

finished chain link fence

Package & Delivery

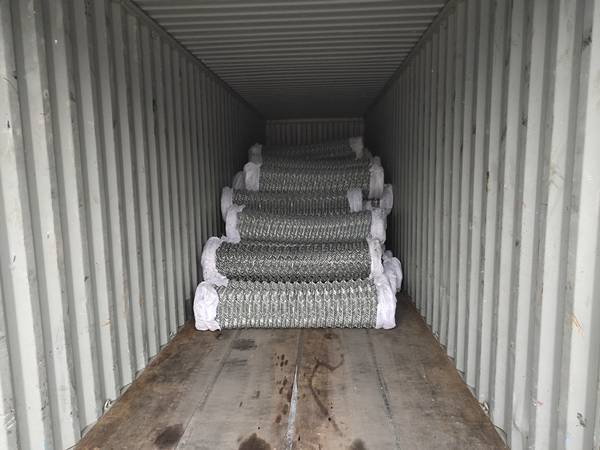

Several rolls of chain link fence are packaged with woven bags at both ends and are placed on the compartment.

Chain link fence fabric delivery

Many chain link fence posts are lifted and transported to the compartment.

Chain link fence post delivery

Features

Security. It can create an enclosure to prevent pets or kids out of the yard and protect their security.
Privacy & visibility. It can protect your privacy while maintaining a certain range of visibility.
Affordability. Its relatively inexpensive price is really a budge-friendly choice for all users.
Durability. High quality raw materials ensure its great corrosion, rust and weather resistance performances.
Versatility. A variety of specifications and accessories for you to choose from to meet all your demands.
Less maintenance. Its high strength, solid structure and corrosion and weather resistance performances make it strong enough and require less maintenance.
Easy to repair. Damaged part of chain link fence can be easily replaced and matched with the rest of the fence.

Gallery

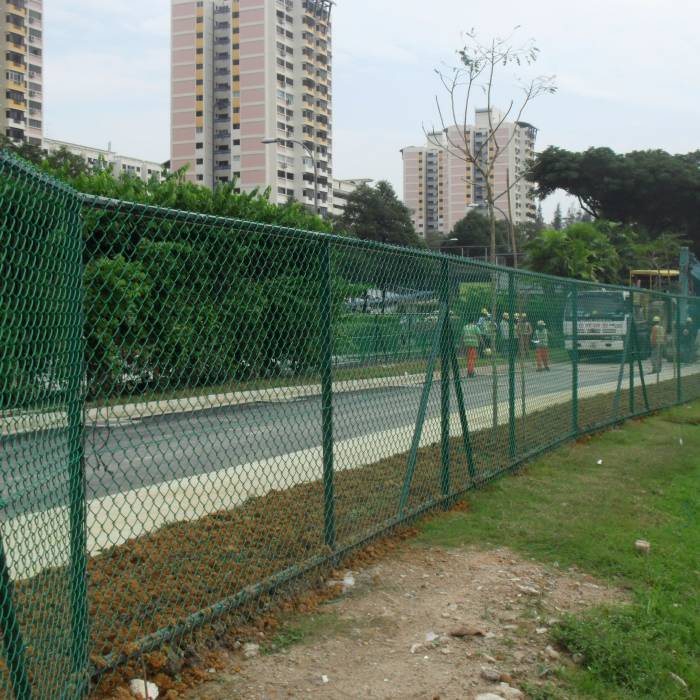

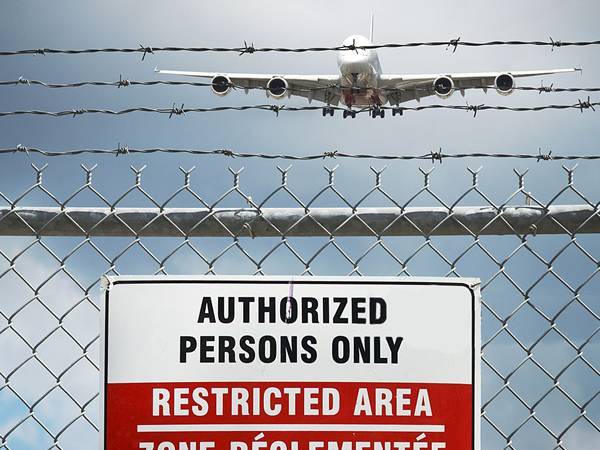

It is widely used for residential and commercial applications to create a secure barrier and provide both visibility and security. Besides, it is a great option for road, railway and airport fencing, equipment and facilities protection, pet and small animal raising as well as zoo fencing.

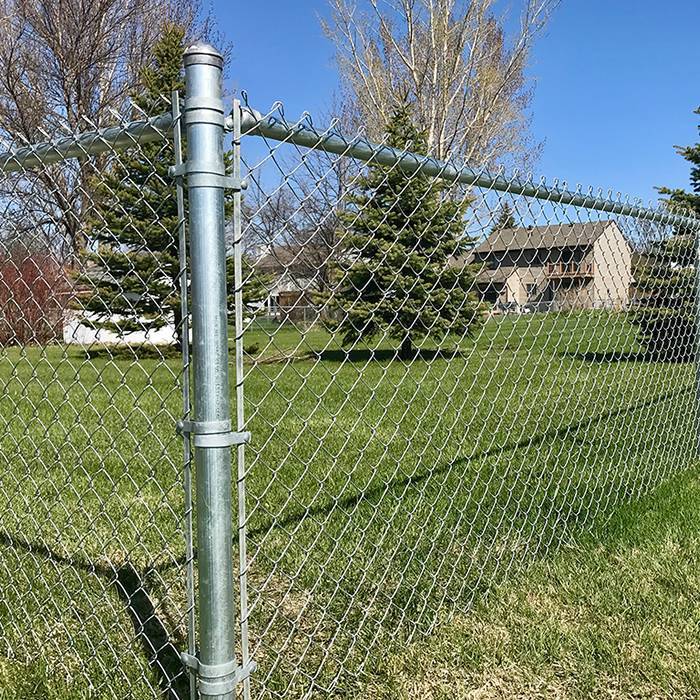

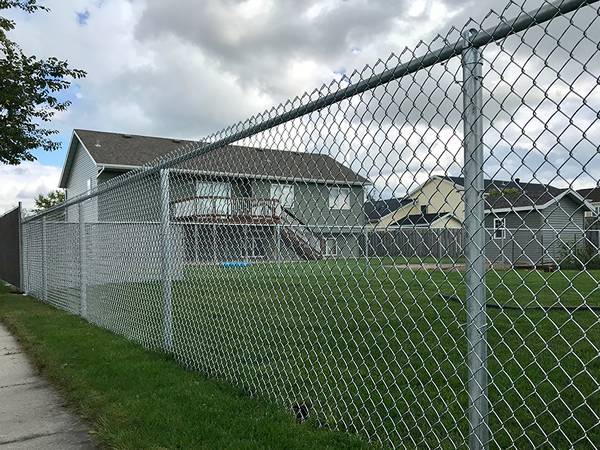

Several houses are enclosed by a residential enclosure made of chain link fence.

Chain link fence for residential enclosure

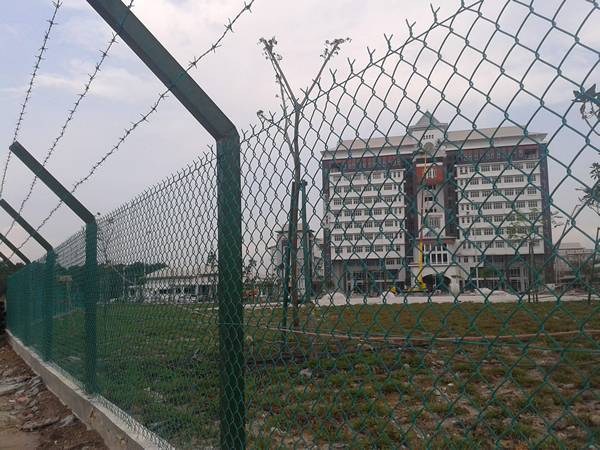

A commercial building is enclosed by an enclosure made of chain link fence.

Chain link fence for commercial buildings

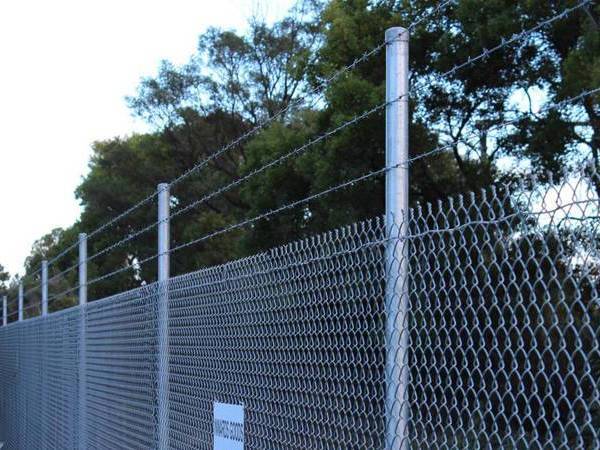

A section of chain link fence is placed to protect forest.

Chain link fence for forest protection

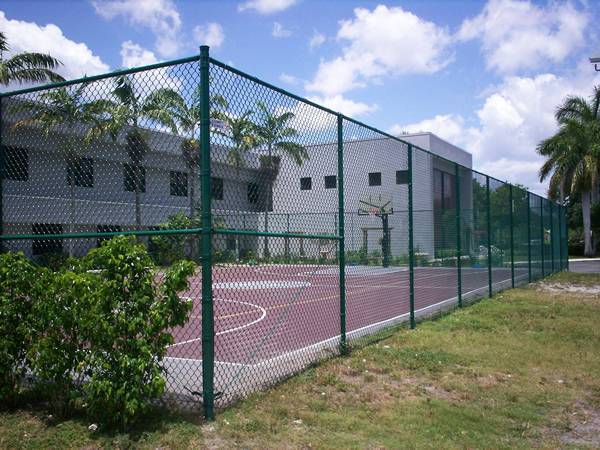

A playground made of chain link fence is displayed.

Chain link fence for playground

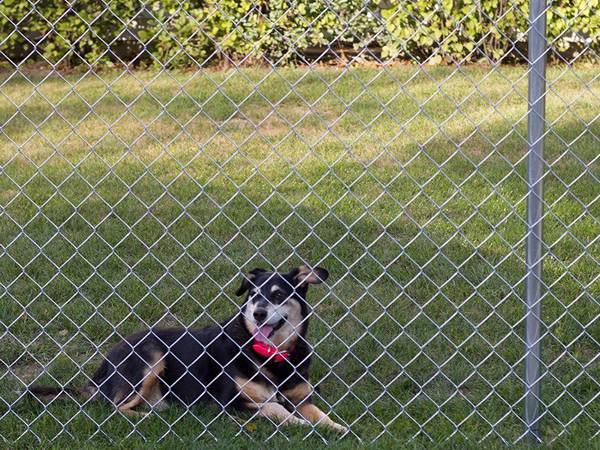

A dog is kept inside the chain link fence.

Chain link fence for pets.

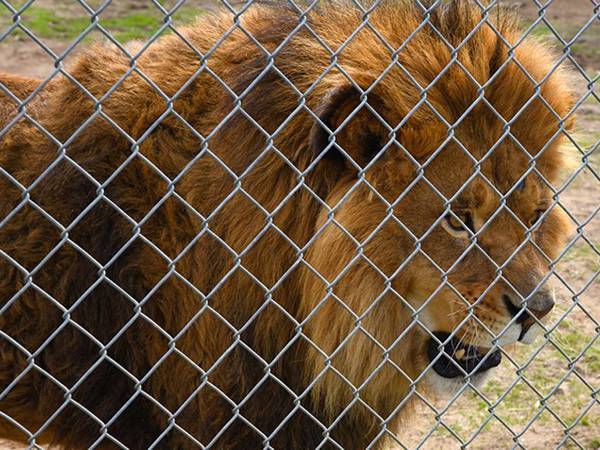

A lion is raised inside the chain link fence.

Chain link fence for zoo animals

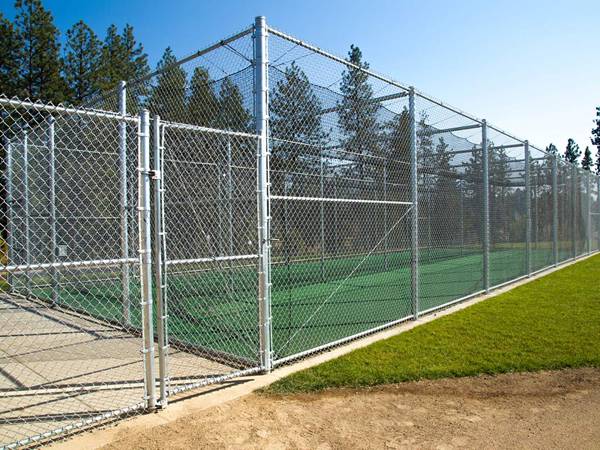

The galvanized chain link fence is used to create a sports field for sports players.

Chain link fence for sports field

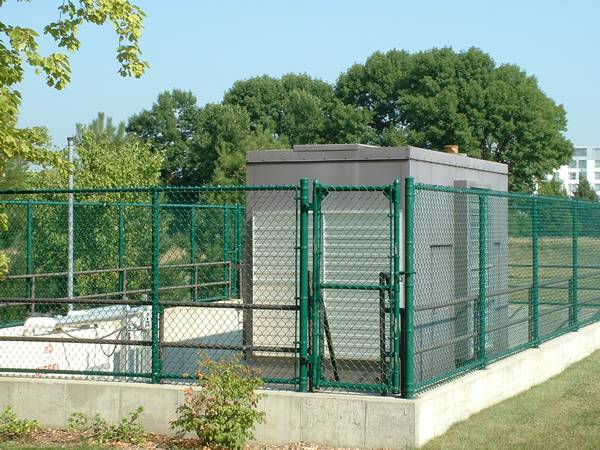

A power facility house is encircled by green chain link fence.

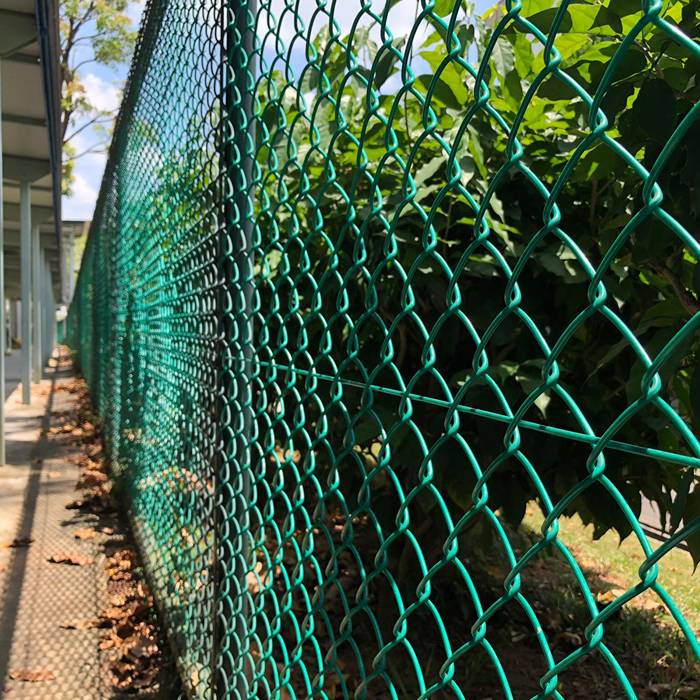

Green chain link fence for power devices

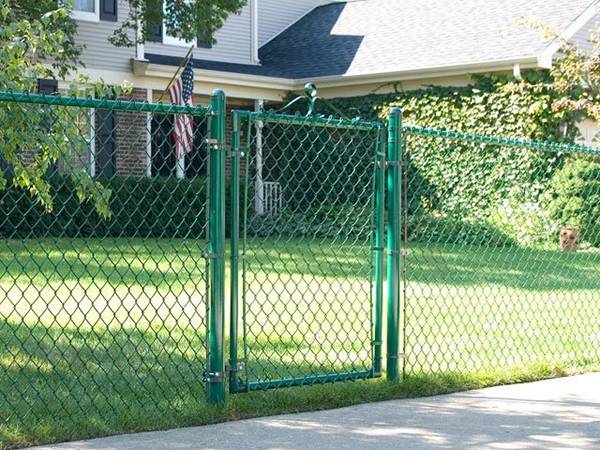

A private villa is enclosed by green chain link fence.

Green chain link fence for home yard
