Concertina Razor Wire From Linkland

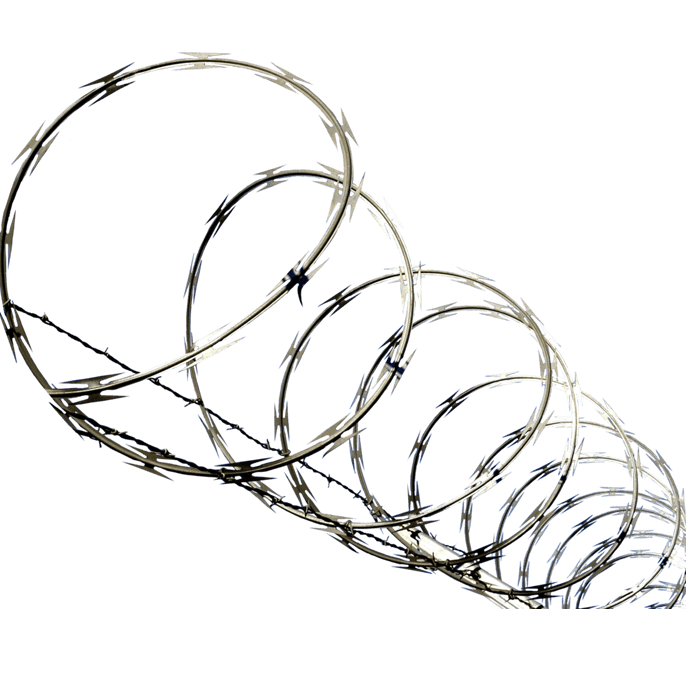

concertina razor wire, also known as Razor wire, is a modern and highly effective type of security fencing with strong protective and isolation capabilities. It is constructed using stamped steel plates with attached steel wires. The sharp blades of razor wire evoke a sense of fear, acting as a powerful deterrent. The blades are designed with double threads, resembling the belly of a snake.

Razor wire offers excellent resistance and is widely used for security purposes. Its construction is convenient and straightforward. It provides enhanced protection and isolation, making it an ideal choice for various applications.

Contact Us MORE INFO

Specification

Types of Razor wires: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-65, CBT-60
Material of Razor Wire:
- Normal hot dipped galvanized razor wire (40–60 g/m²)
- Heavily zinc coated razor wire (70–270 g/m²)
- Stainless steel 304 or 316 grades razor wire
Clips of concertina wire: 3 clips, 5 clips or without clips
Coil Diameter of concertina wire: 300/450/500/600/700/800/950/1000 mm
Package of razor wires
- Waterproof paper inside, woven bag outside, then 50 rolls/bundle or as required
- Nude package, then packing by wooden pallet or in bulk

Table 1: Coil Diameters & Data
The Coil Diameter	No. of loops	Length Per Coil	Razor Wire Types	Notes
450 mm	33	7–8 m	CBT-60.65	single coil
500 mm	56	12–13 m	CBT-60.65	single coil
700 mm	56	13–14 m	CBT-60.65	single coil
960 mm	56	14–15 m	CBT-60.65	single coil
450 mm	56	8–9 m(3 clips)	BTO-10.12.18.22.28.30	cross type
500 mm	56	9–10 m (3 clips)	BTO-10.12.18.22.28.30	cross type
600 mm	56	10–11 m (3 clips)	BTO-10.12.18.22.28.30	cross type
600 mm	56	8–10 m (5 clips)	BTO-10.12.18.22.28.30	cross type
700 mm	56	8–10 m (5 clips)	BTO-10.12.18.22.28.30	cross type
800 mm	56	11–13 m (5 clips)	BTO-10.12.18.22.28.30	cross type
900 mm	56	12–14 m (5 clips)	BTO-10.12.18.22.28.30	cross type
960 mm	56	13–15 m (5 clips)	BTO-10.12.18.22.28.30	cross type

Table 2: Blade Types & Data
Item	Thickness (mm)	Wire Dia. (mm)	Barb Length (mm)	Barb Width (mm)	Barb spacing (mm)
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5±0.1	28±1	15±1	45±1
BTO-30	0.5±0.05	2.5±0.1	30±1	18±1	45±1
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±2

Category

Structure

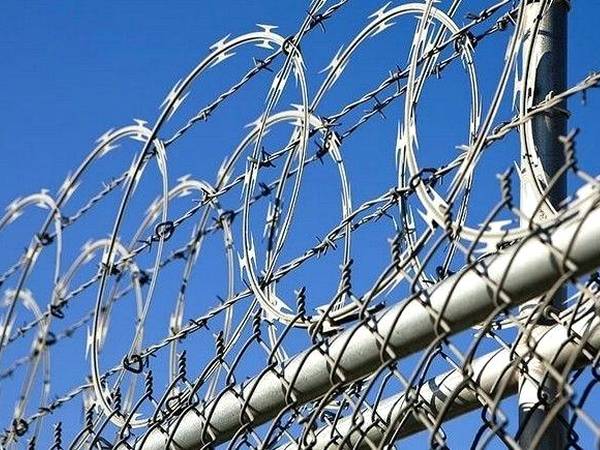

Flat wrap

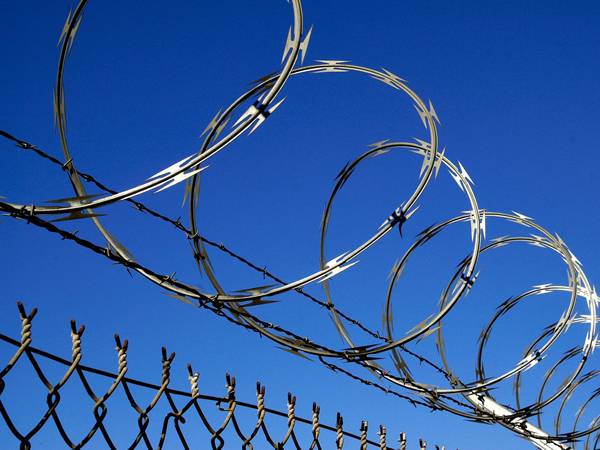

Single Coil

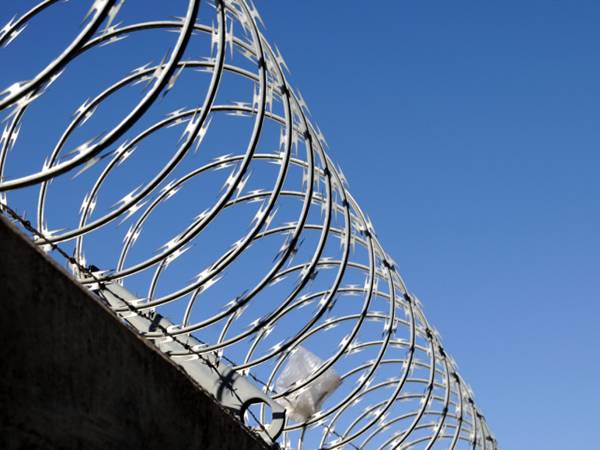

Concertina

Material

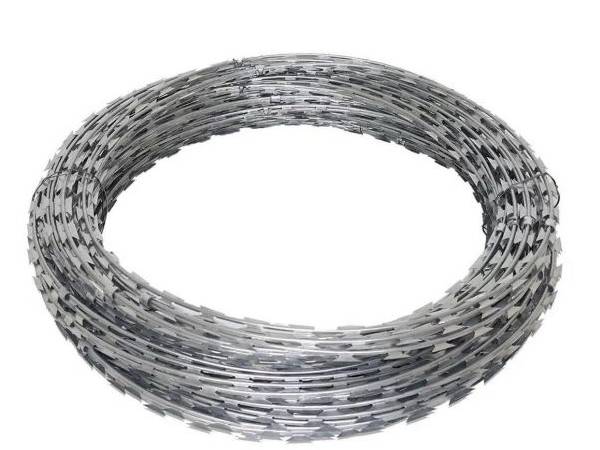

Galvanized

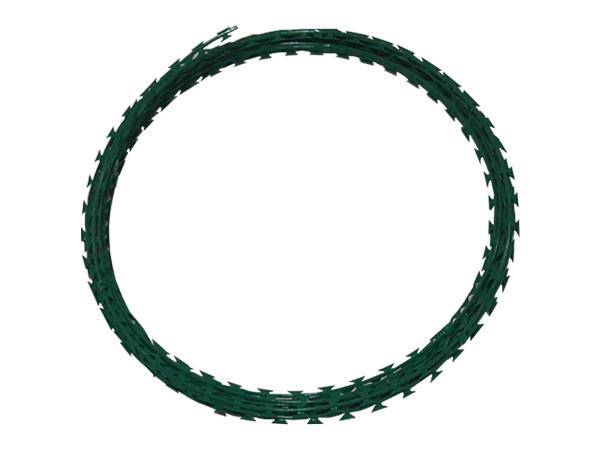

A roll of PVC coating razor wire on white background

Powder coating

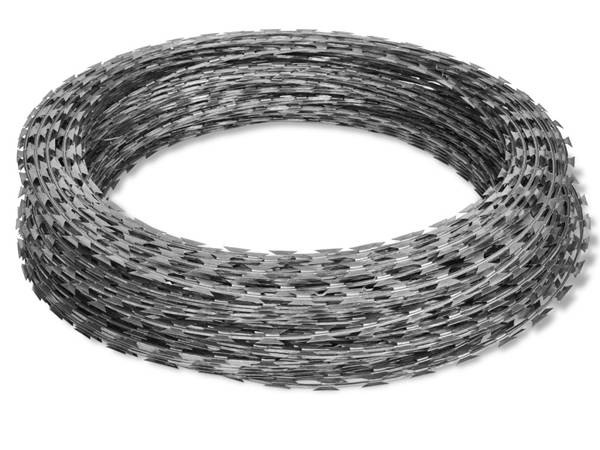

Stainless steel

Production

Production Flow Chart

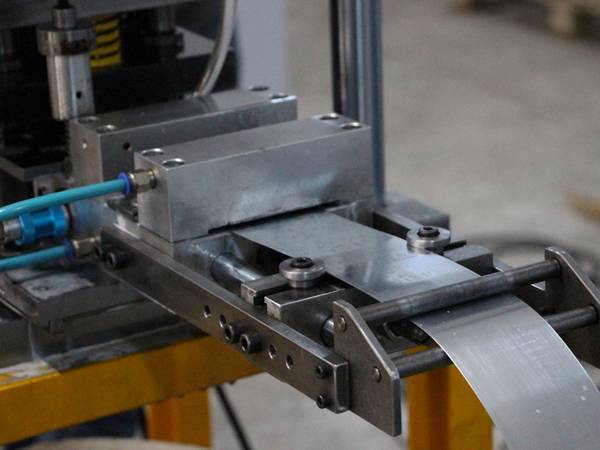

Place the proper sized stainless steel plate into the punching machine

Step 1

Plates

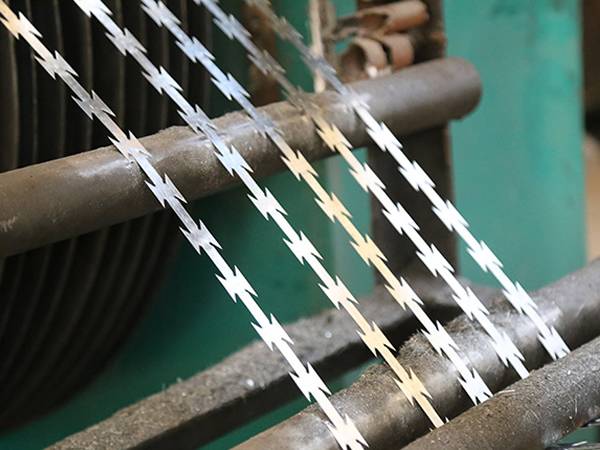

Different types of gill nets are constructed by breaking, cutting and welding.

Step 2

Plate Forming

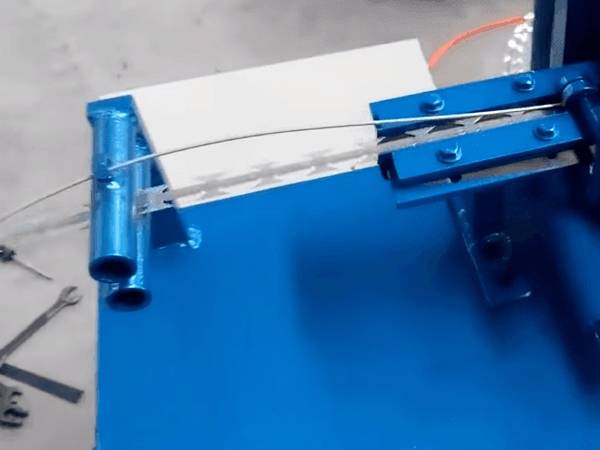

Press the razor steel plate and wire together tightly.

Step 3

Razor Wire Forming

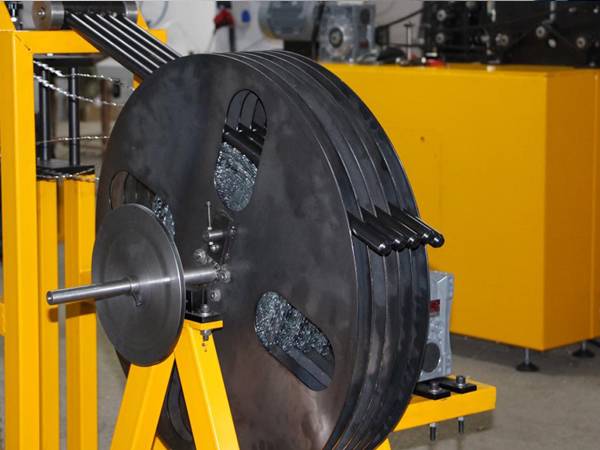

The razor wires within the winding machine are rolled into a round shape.

Step 4

Razor Wire Coil

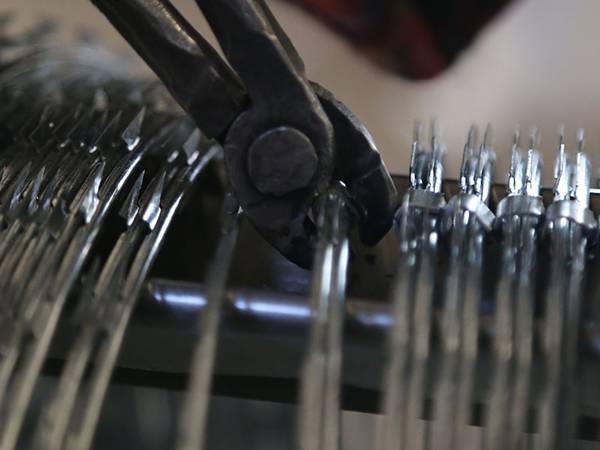

Step 5

Clip installation

Several packed razor wires in the warehouse

Step 6

Package

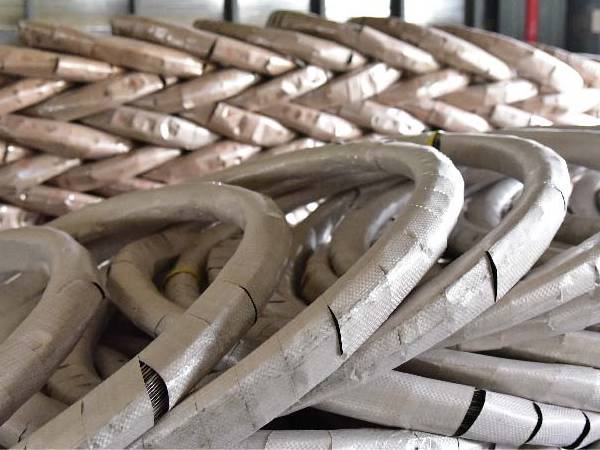

Package & Delivery

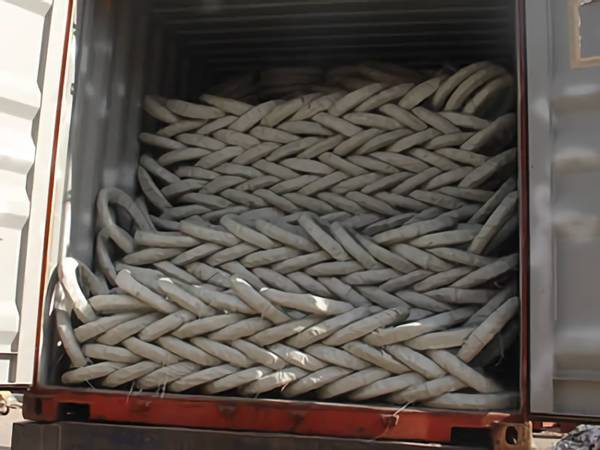

Several rolls of razor wires in the container

Bilk delivery

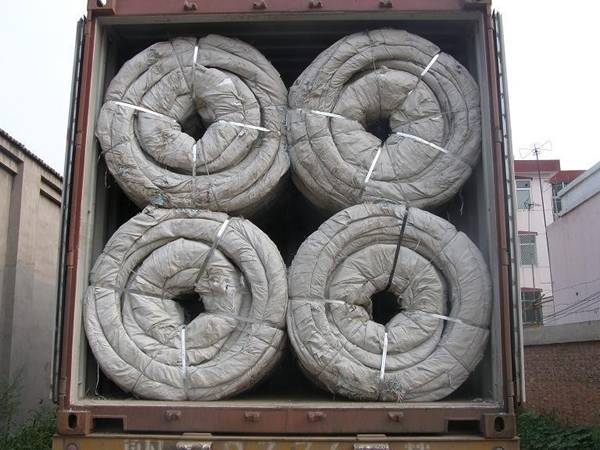

Several bundles of razor wires in the container

Bundle delivery

Features

Galvanized metal, stainless steel and PVC coated materials for choices.
Excellent anti-resistance effect.
Custom sizes available.
Can be used with various security fencing for higher security grade.
Available for residential, commercial, industrial and military purpose.

Gallery

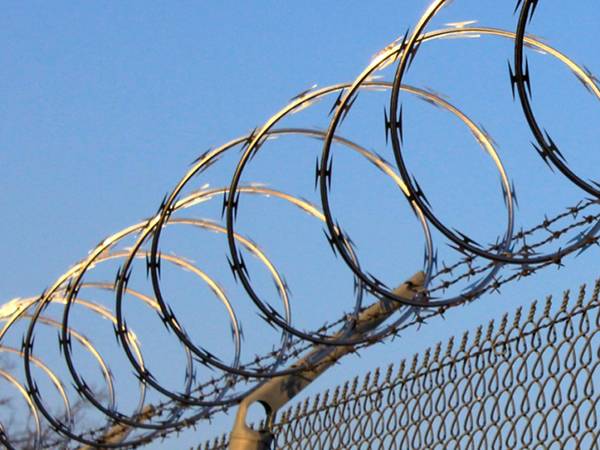

A line of concertina razor wire are installed at the top of chain link fence

With chain link fence

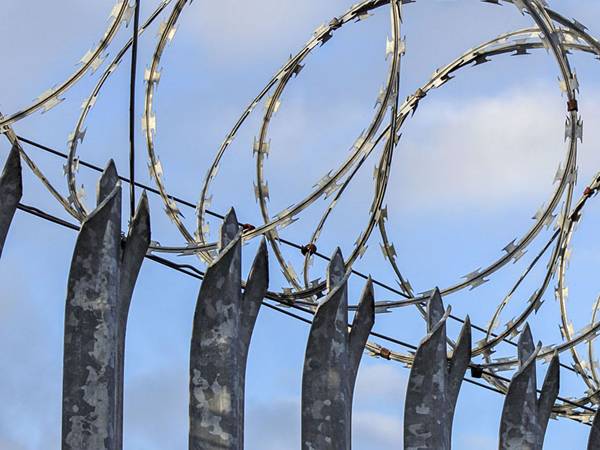

A line of concertina razor wire are installed at the top of palisade fence

With palisade fence

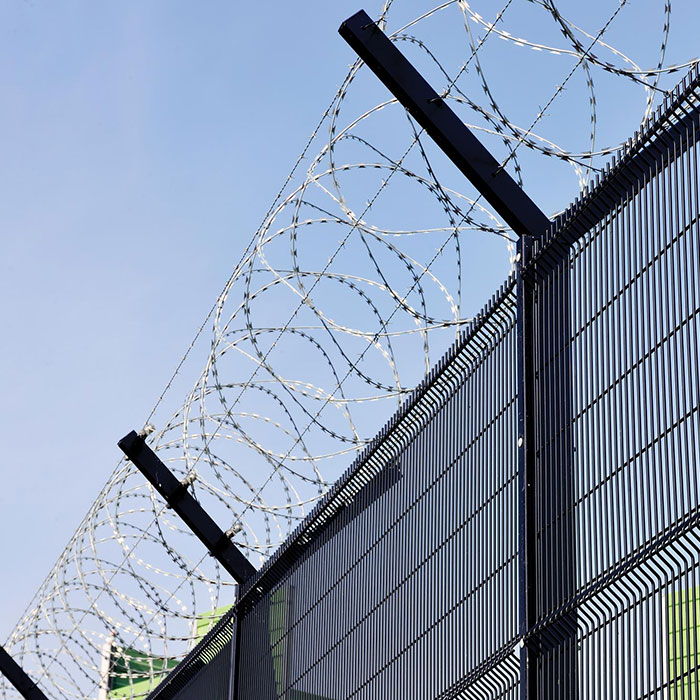

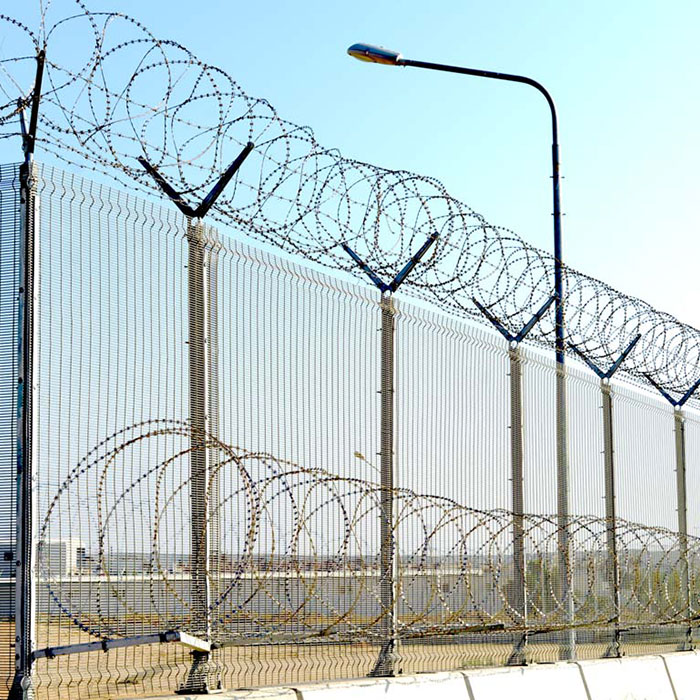

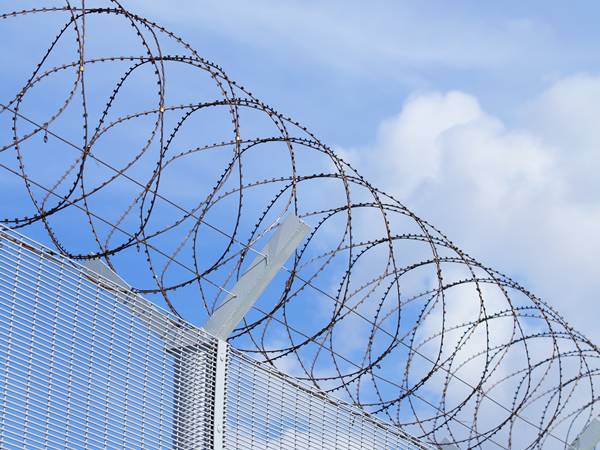

A line of concertina razor wire are installed at the top of 358 high security fence

With 358 high security fence

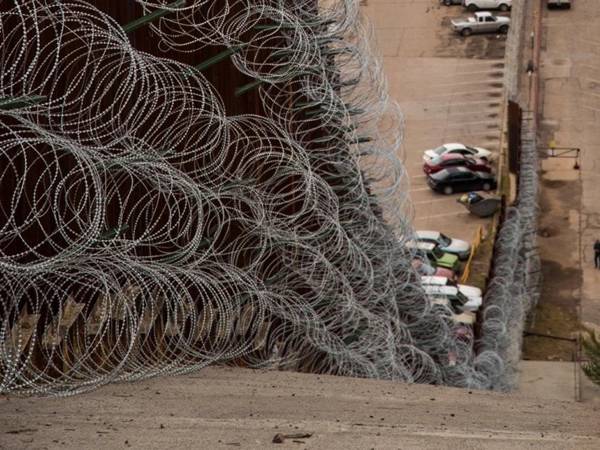

Country boundary
