BRC / Roll Top Fence From Linkland

BRC fence, also known as roll top fence, is a specially designed welded mesh fence with unique top and bottom "rolled" edges. It is made of high-strength steel wires that are welded together and bent to form a triangular roll-top surface at its top and bottom to provide a strong structure and precise mesh. Its rolled edges not only provide a truly user-friendly surface, but also maximum rigidity and excellent visibility. It is currently very popular in Singapore, Japan, South Korea and Southeast Asia. It is mainly used in parks, schools, playgrounds, factories, parking lots, residential quarters and other places as safety fences or barriers.

Contact Us MORE INFO

Specification

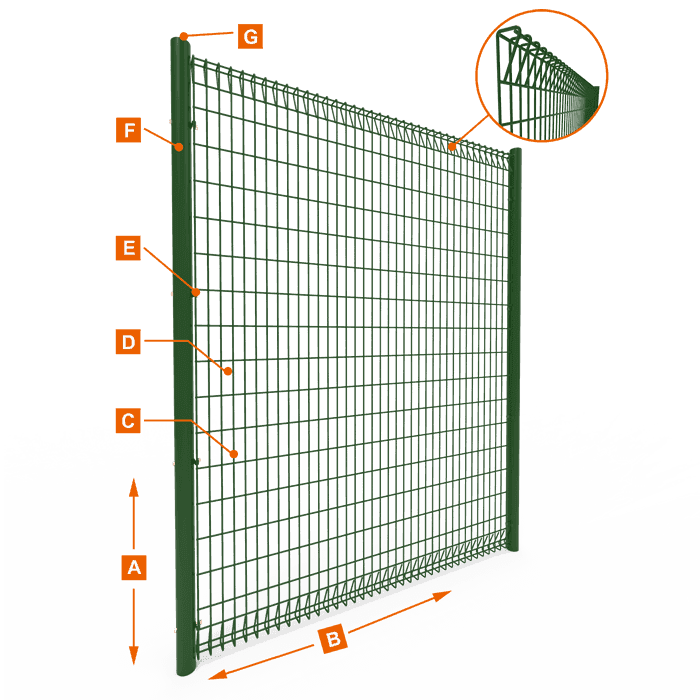

The picture shows the diagram and details of the BRC fence.

A Height: 900–2400 mm

b Width: 1500–3000 mm

c Wire Diameter: 4.0 mm, 4.5 mm, 5.0 mm, 6.0 mm

d Mesh Opening: 50 × 150 mm, 50 × 200 mm, 50 × 300 mm

e Clamp: metal clamp / anti-UV plastic clamp

f Post: Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);
Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);
Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

g Post Cap: metal cap/anti-UV plastic cap

Notes:

All colors are available in Ral;
Other materials and specifications are available upon request.

Category

Surface Treatment

According to the surface treatment, our BRC fence can be divided into two types as shown below.

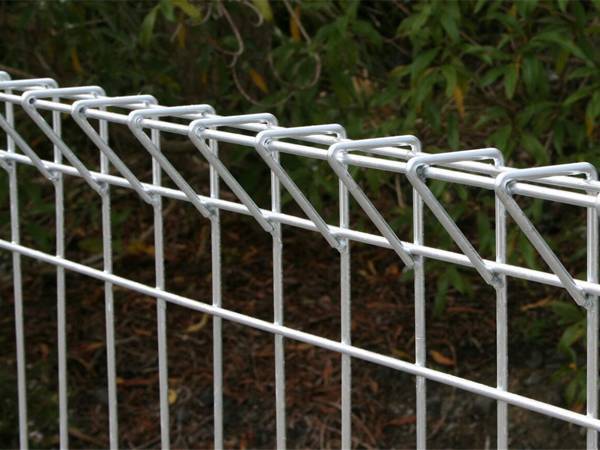

Galvanized BRC fence

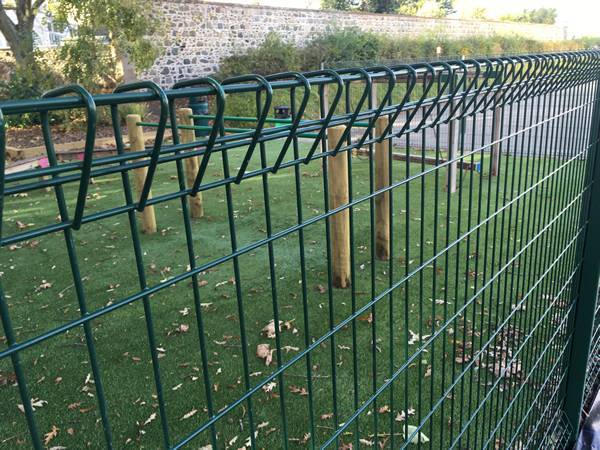

Powder coating BRC fence

Components & Accessories

The main components and connection methods of our BRC fence are as shown below.

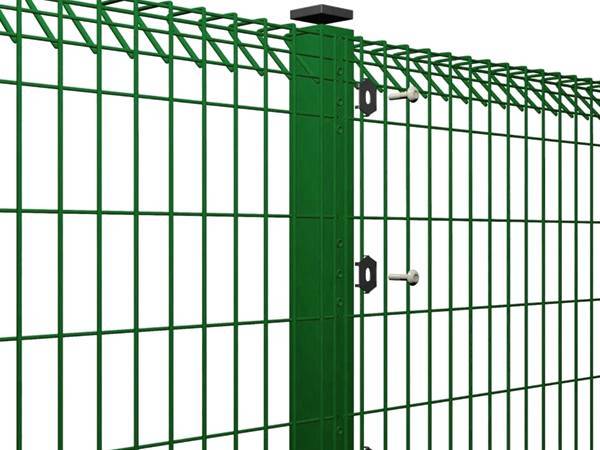

Square post connection

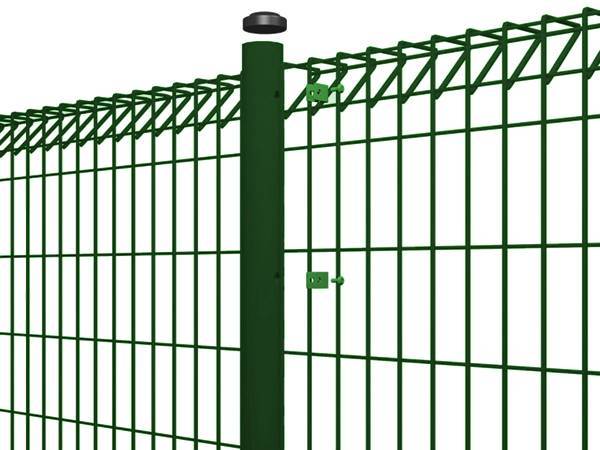

Round post connection

Optional Accessories

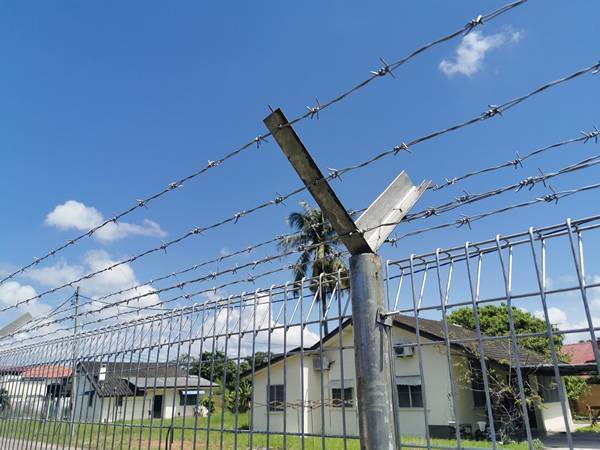

Barbed wires

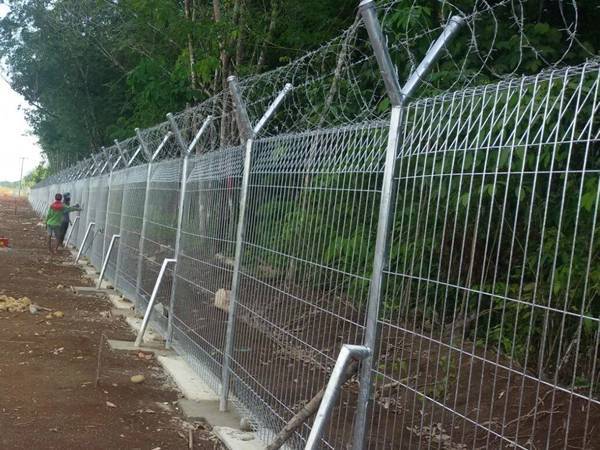

Razor wires

Production

Production Flow Chart – Powder Coating BRC Fence

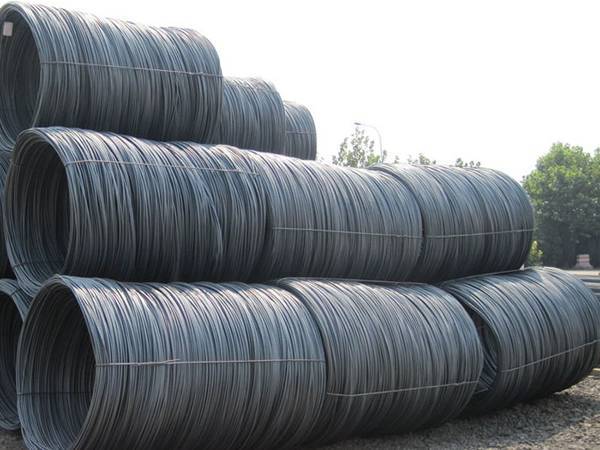

Many carbon steel wire rolls are placed on the ground.

Step 1

raw materials (carbon steel wires)

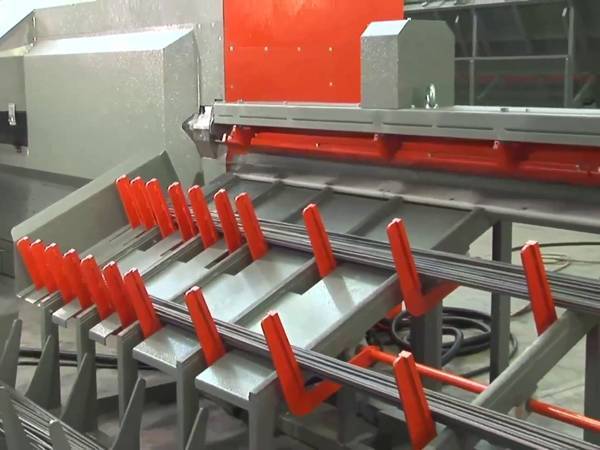

Steel wires are straightened and cut into designed length.

Step 2

steel wire straightening and cutting

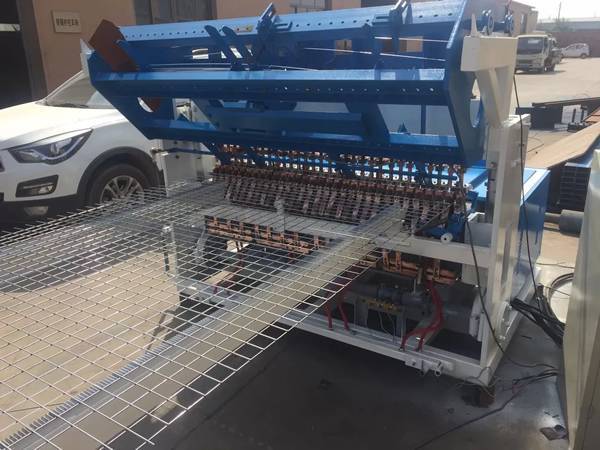

A welding machine is producing welded wire mesh.

Step 3

wire mesh welding

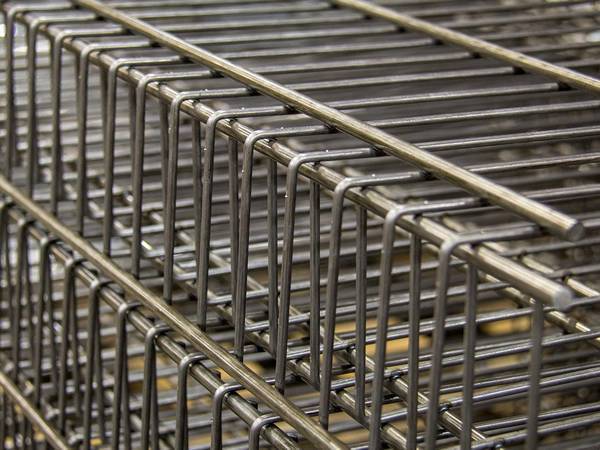

The wire mesh is bent to form the roll top edges.

Step 4

wire mesh bending

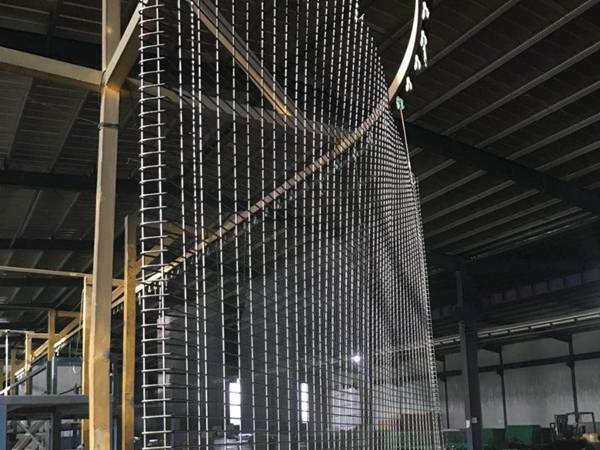

A piece of BRC fence is hanging in the air for powder coating.

Step 5

wire mesh powder coating

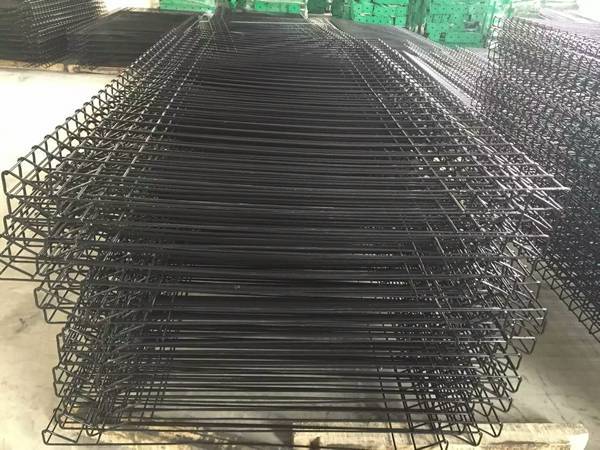

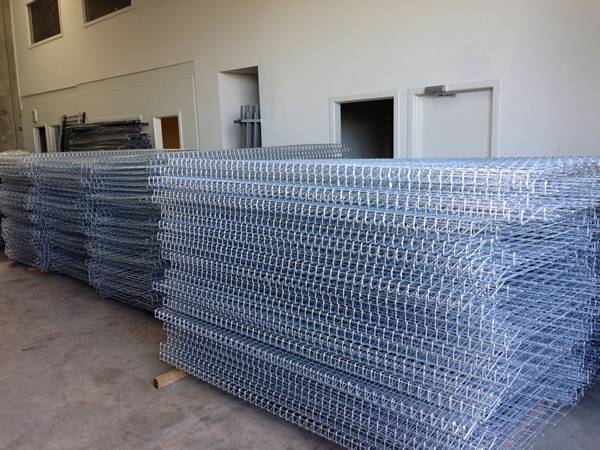

Many powder coating BRC fence panels are placed on the ground.

Step 6

finished BRC fence panels

Production Flow Chart – Galvanized BRC Fence

Step 1

raw materials (carbon steel wires)

Step 2

steel wire straightening and cutting

Step 3

wire mesh welding

Step 4

wire mesh bending

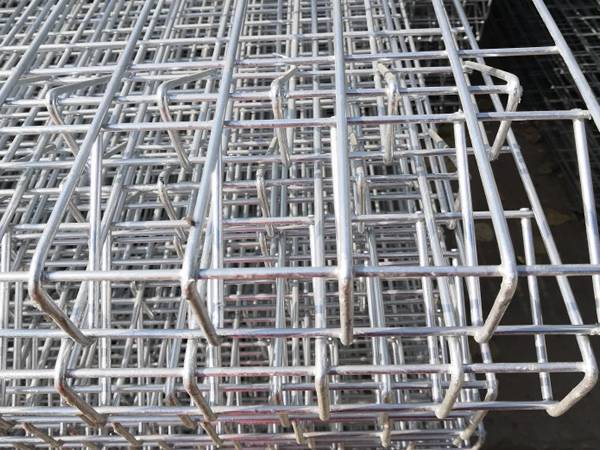

A pile of BRC fence panels are galvanized.

Step 5

wire mesh galvanizing

Many galvanized BRC fence panels are placed on the ground

Step 6

finished BRC fence panels

Package & Delivery

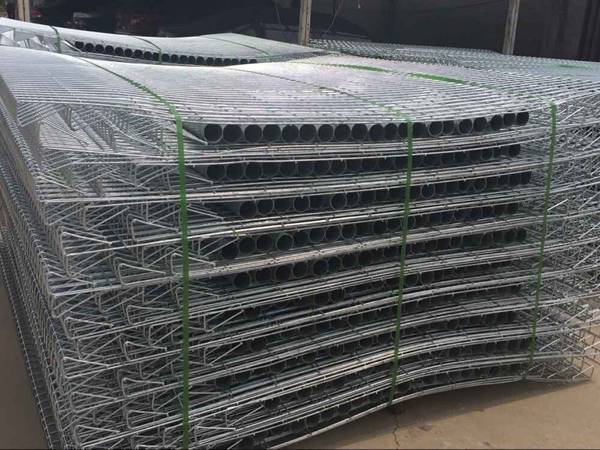

BRC fence panels and round posts are packaged together with plastic belts.

BRC fence panel package

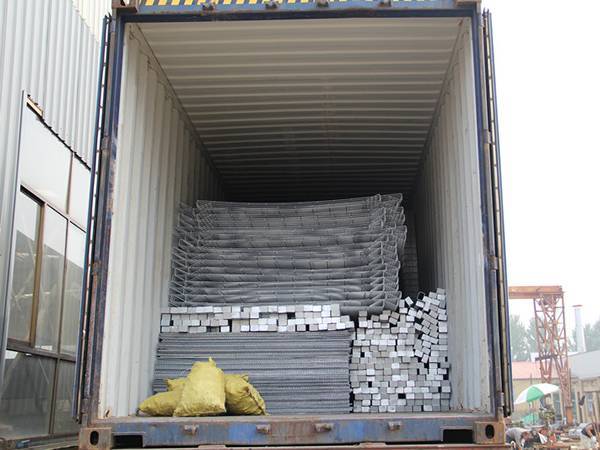

BRC fence panels, posts and accessories are properly placed on the compartment.

BRC fence delivery

Features

Roll top edges provides both beautiful appearance and rigid structure.
Welded joints ensure the firm structure and long service life.
High quality raw materials and galvanized and powder coating treatment ensure our BRC fence has excellent corrosion and rust resistance performance and great weatherproof performance.
The mesh opening of the BRC fence panels provides excellent visibility and security.
All colors are available in Ral to adapt to most environments.
Less maintenance and long service life.

Gallery

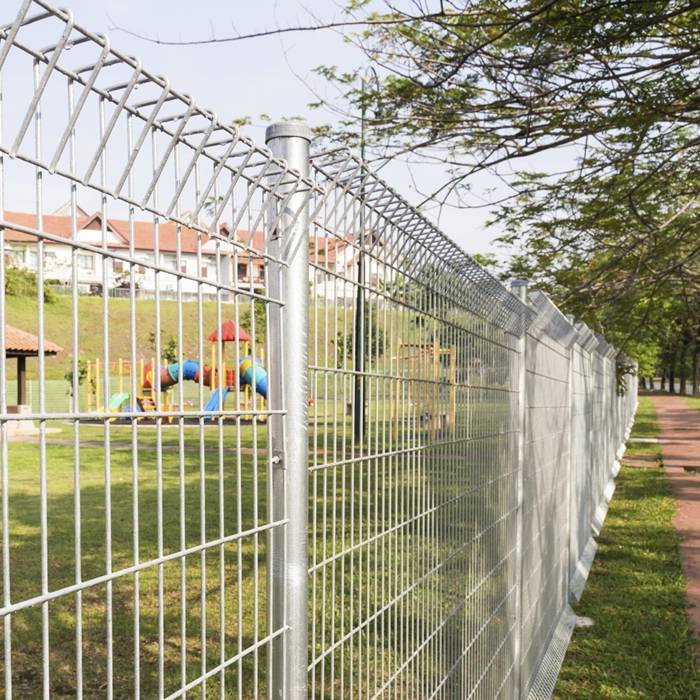

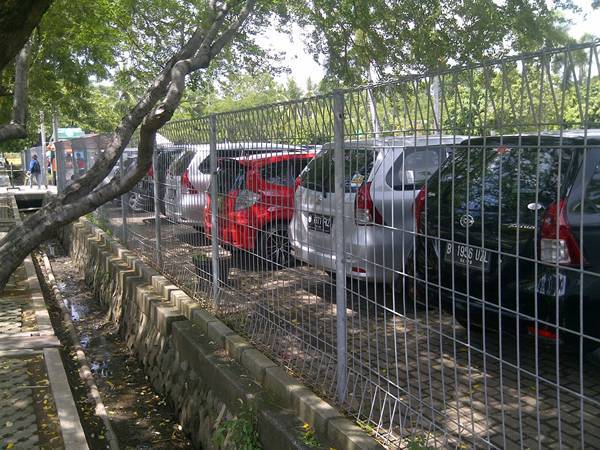

BRC fence is used to create boundaries for parking lots.

BRC fence for parking lots.

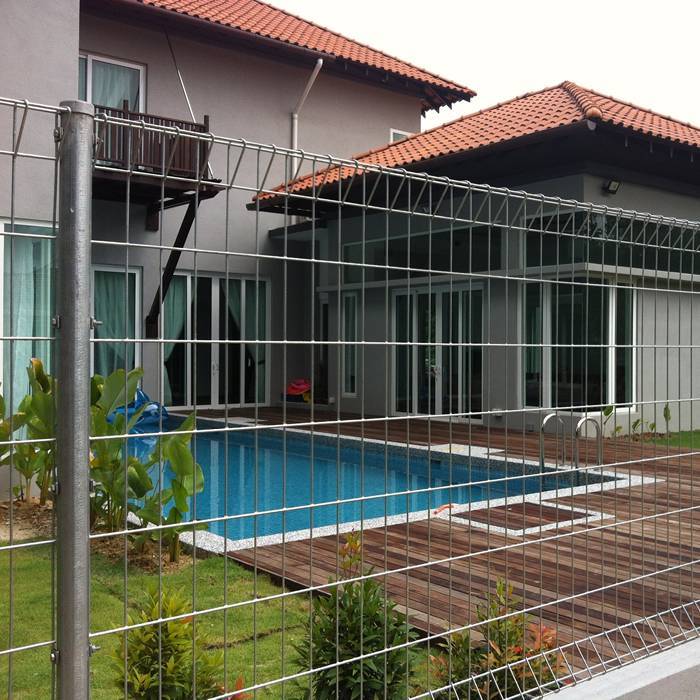

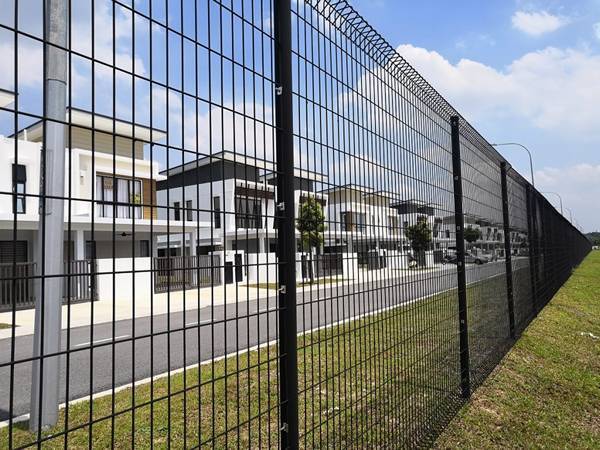

BRC fence is used as security fence to protect residential communities.

BRC fence for residential communities

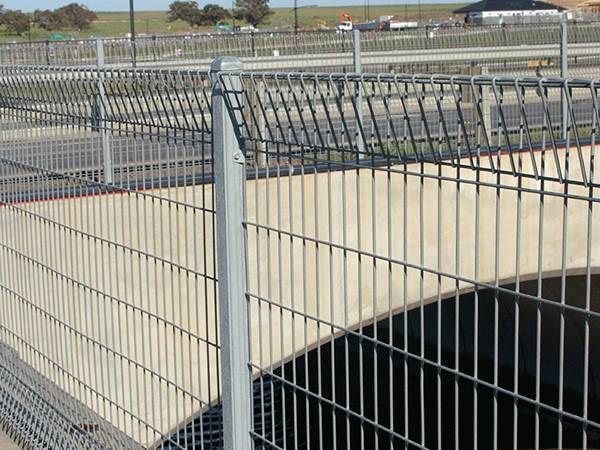

BRC fence is used to create boundaries for bridges to provide more security.

BRC fence for bridges

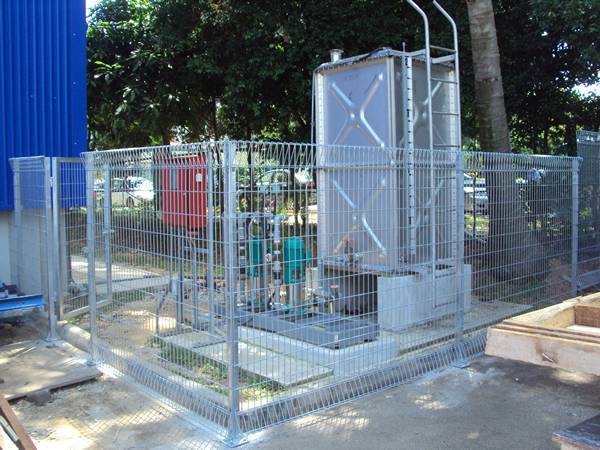

BRC fence is used to protect facilities.

BRC fence for facilities

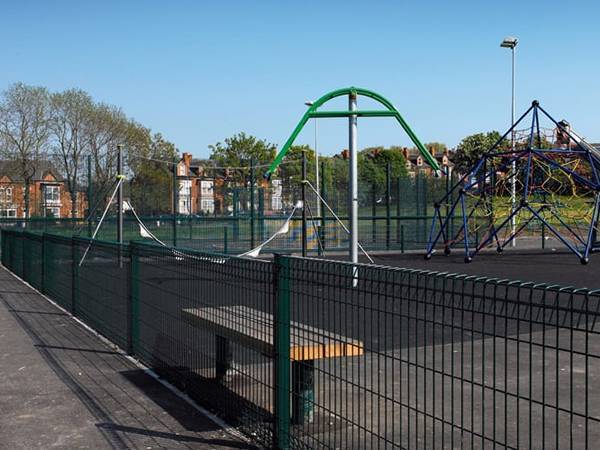

BRC fence is used to protect entertainment facilities in the amusement park.

BRC fence for amusement parks

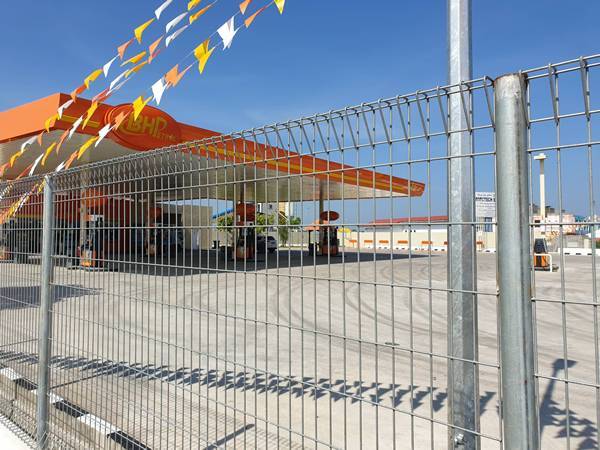

BRC fence is used to create boundaries for gas station.

BRC fence for gas stations
