Hinge Joint Knot Field Fence From Linkland

Hinge joint fence, also known as hinged field fence and Cattle fence, is the most common and economical knot in agricultural and animal husbandry fences. Knots are created by wrapping vertical guy pieces around the rope at each intersection. This design has a smooth surface that eliminates animal strikes without damage.

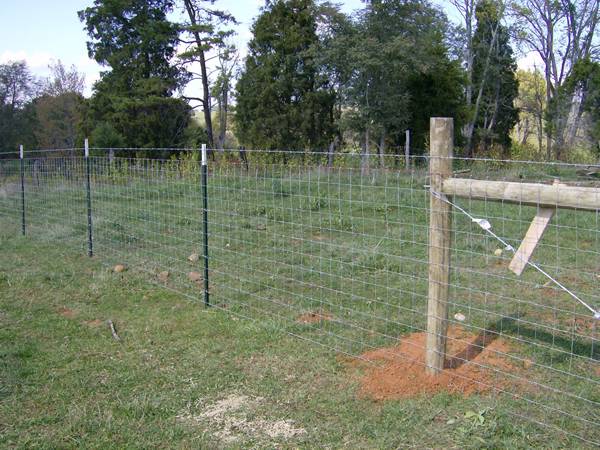

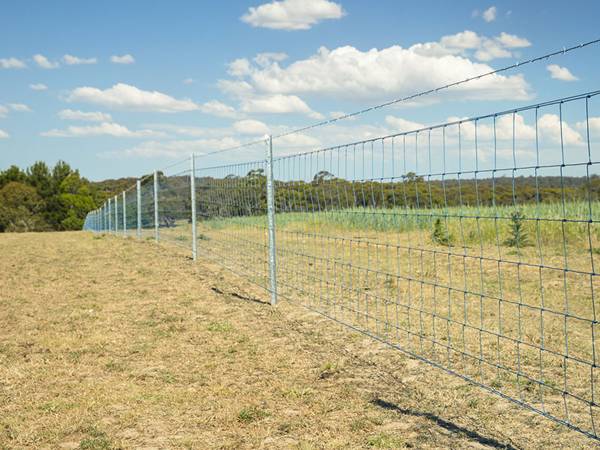

Hinge joint fence is available in different heights for different animals and purpose. And it is commonly installed with steel T post or Y post.

Contact Us MORE INFO

Specification

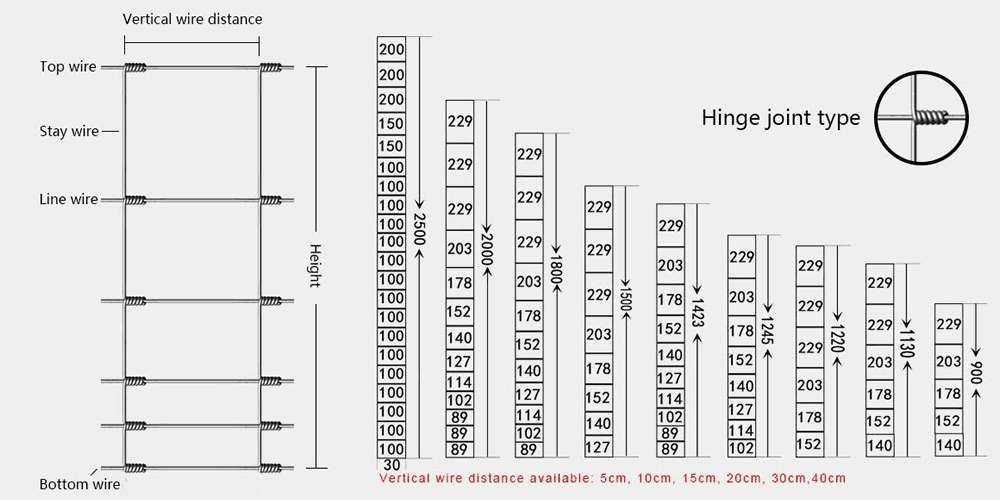

A drawing shows the popular sizes of hinge joint knot fence

Material: high quality high carbon steel wire, low carbon steel wire.
Height range: from 0.6 m to 2.45 m. Common is 1.2 m, 1.5 m and 1.8 m
Knot type: hinge joint type
Line wire diameter: 1.6/2.0/2.5/3.0 mm
Top and bottom wire diameter: 2.0/2.5/3.0/3.7 mm
Main market: Malaysia, Australia, Peru, North America, and Africa

Specifications of Hinge joint knot Field Fence/ Cattle fence
Mesh Size		G.W. (kg)	Wire Diameter (mm)
7/150/813/50	102 + 114 + 127 + 140 + 152 + 178	19.3	2.0/2.5 mm
8/150/813/50	89 (75) + 89 + 102 + 114 + 127 + 140 + 152	20.8	2.0/2.5 mm
8/150/902/50	89 + 102 + 114 + 127 + 140 + 152 + 178	21.6	2.0/2.5 mm
8/150/1016/50	102 + 114 + 127 + 140 + 152 + 178 + 203	22.6	2.0/2.5 mm
8/150/1143/50	114 + 127 + 140 + 152 + 178 + 203 + 229	23.6	2.0/2.5 mm
9/150/991/50	89 (75) + 89 + 102 + 114 + 127 + 140 + 152 + 178	23.9	2.0/2.5 mm
9/150/1245/50	102 + 114 + 127 + 140 + 152 + 178 + 203 + 229	26.0	2.0/2.5 mm
10/150/1194/50	89 (75) + 89 + 102 + 114 + 127 + 140 + 152 + 178 + 203	27.3	2.0/2.5 mm
10/150/1334/50	89 + 102 + 114 + 127 + 140 + 152 + 178 + 203 + 229	28.4	2.0/2.5 mm
11/150/1422/50	89 (75) + 89 + 102 + 114 + 127 + 140 + 152 + 178 + 203 + 229	30.8	2.0/2.5 mm

Category

T posts

Y posts

Production

Production Flow Chart

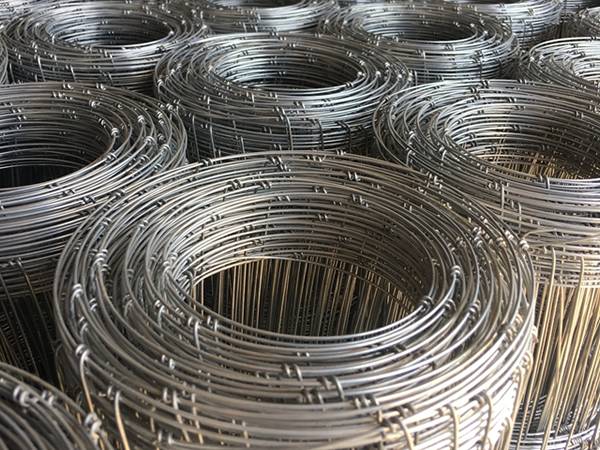

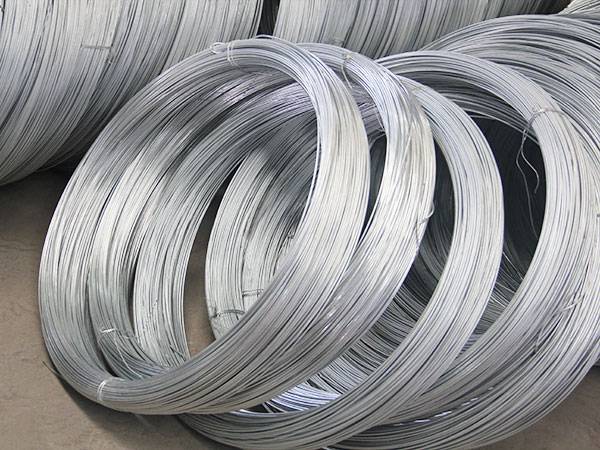

Several galvanized steel wires on the ground.

Step 1

Material

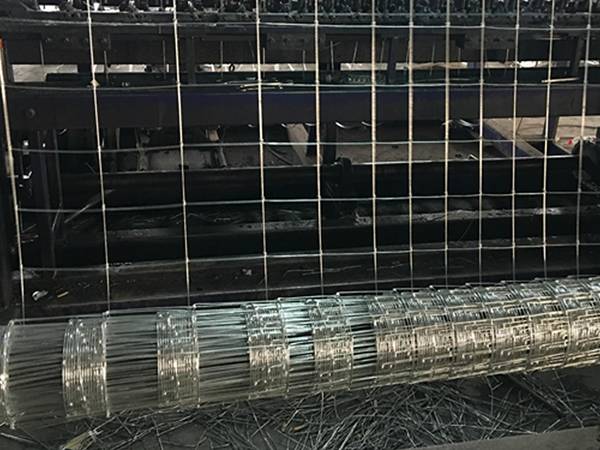

A machine is weaving the hinge joint knot field fence.

Step 2

Production

Step 3

Warehouse

Package & Delivery

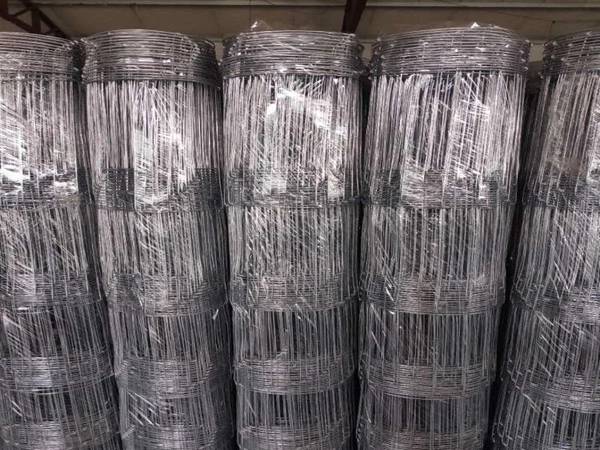

Several rolls of hinge joint knot field fences are wrapped with plastic films.

Plastic film package

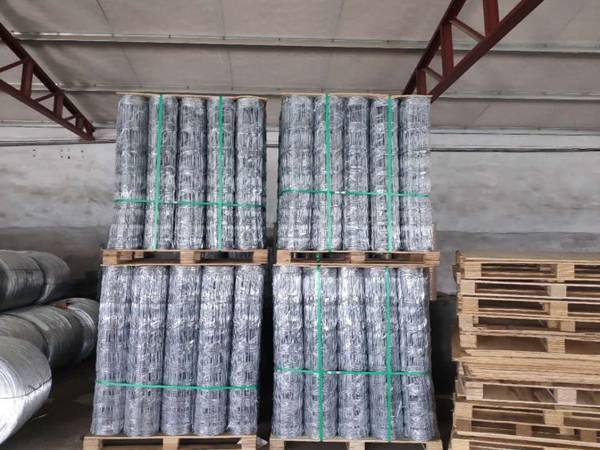

Several pallets of hinge joint knot field fences in the warehouse.

Pallet package

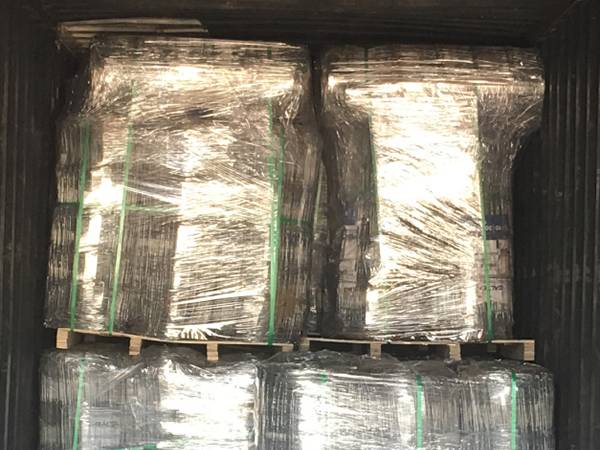

Several pallets of hinge joint knot field fences in the container.

Fence delivery

Features

The most economical and commonly used field fence type.
Smooth surface protect animals from being damaged.
Different height options for different animals.
Different horizontal wire spacing for different growth period.
Different vertical wire spacing for different tensile strength.
Suitable for chicken, rabbit, cat, horse, sheep, deer and even camel.

Gallery

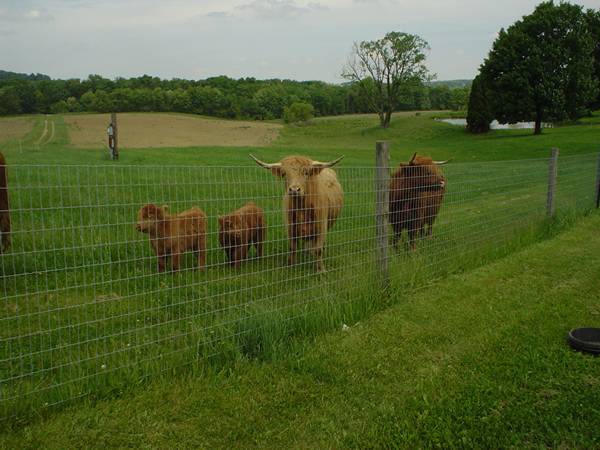

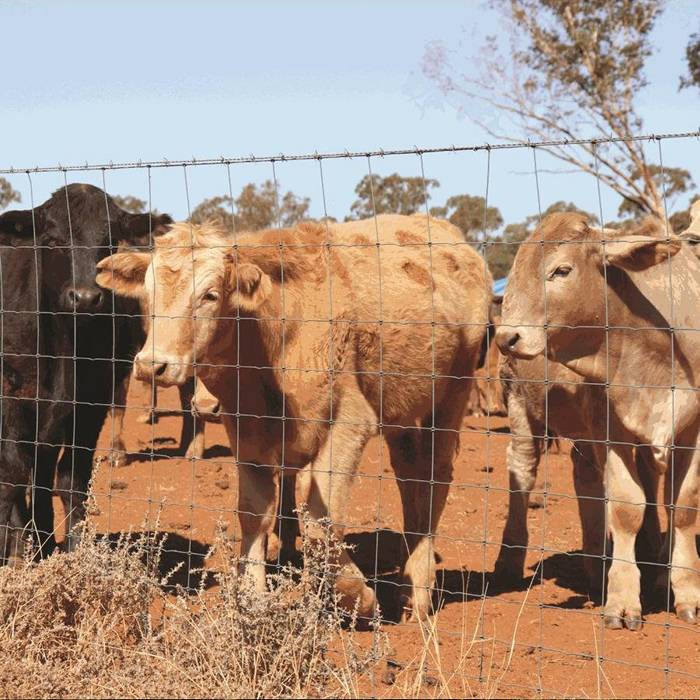

Hinge joint knot fences are surrounding the grassland with several cattle in it.

For cattle/ Cattle fence

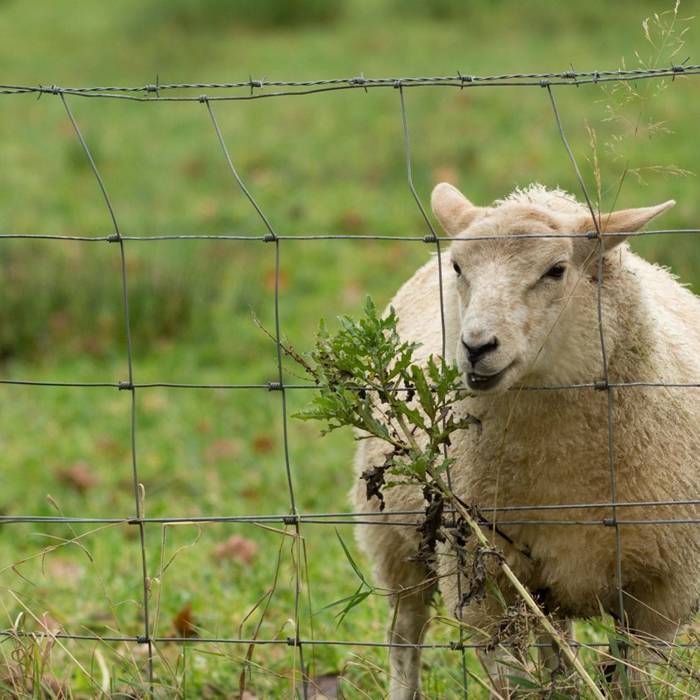

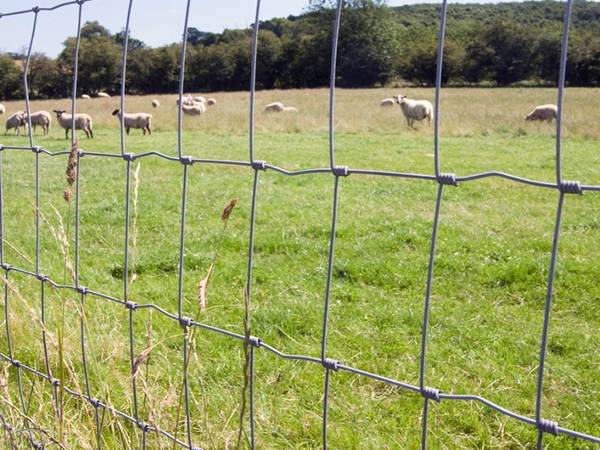

Hinge joint knot fences are surrounding the grassland with several sheep in it.

For sheep

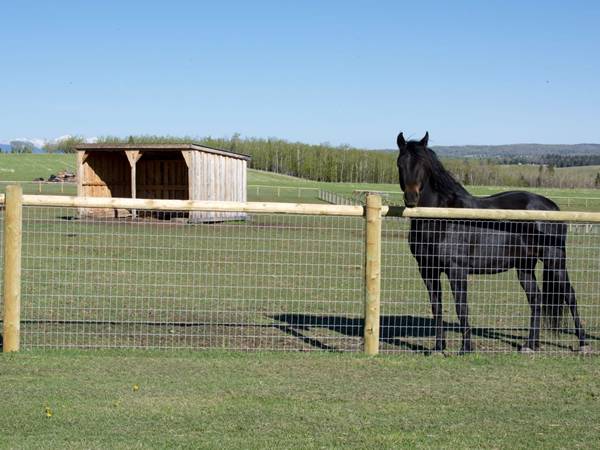

Hinge joint knot fences are surrounding the grassland with a horse in it.

For horse

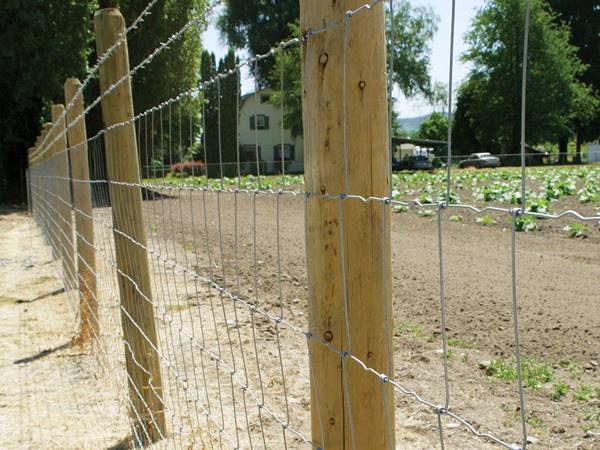

Hinge joint knot fences are surrounding the farmland

For agriculture
