Barbed Wire From Linkland

Barbed wire is used in various security fences and barriers. It can be laid directly on the ground, installed on top of a fence or in rows as a free-standing barrier. To prevent corrosion, barbed wire is available in galvanized, PVC coated and stainless steel.

Barbed wire is regarded as an economical and effective protection measurement in both residential, agricultural, commercial and industrial applications.

Contact Us MORE INFO

Specification

Material: Materials: Q195 and Q235 or high tensile steel wire
Surface Treatment: Hot dipped Galvanized, Electro galvanized and PVC coated
Tensile Strength:
- Soft: 380–550 N/mm²
- High tensile: 800–1200 N/mm²
Package: Pallet package and bulk package

Galvanized barbed wire
Wire Diameter (BWG)	Length (m/kg)
Wire Diameter (BWG)	Barb Distance 3"	Barb Distance 4"	Barb Distance 5"	Barb Distance 6"
12 × 12	6.06	6.75	7.27	7.63
12 × 14	7.33	7.90	8.30	8.57
12.5 × 12.5	6.92	7.71	8.30	8.72
12.5 × 14	8.10	8.81	9.22	9.562
13 × 13	7.98	8.89	9.57	10.05
13 × 14	8.84	9.68	10.29	10.71
13.5 × 14	9.60	10.61	11.47	11.85
14 × 14	10.45	11.65	12.54	13.17
14.5 × 14.5	11.98	13.36	14.37	15.10
15 × 15	13.89	15.49	16.66	17.50
15.5 × 15.5	15.34	17.11	18.40	19.33

PVC Coated Barbed Wire
Wire Diameter		Barbs distance	Barb length
Before coating	After coating	Barbs distance	Barb length
1.0–3.5 mm	1.4–4.0 mm	75–150 mm	15–30 mm
BWG 20 – BWG 11	BWG 17 – BWG 8	75–150 mm	15–30 mm
PVC coating thickness: 0.4–0.6 mm; different colors or length are available at customers request

Category

Structure

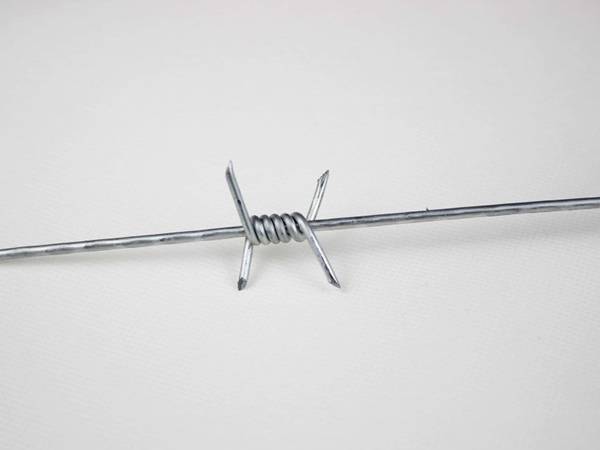

Single strand

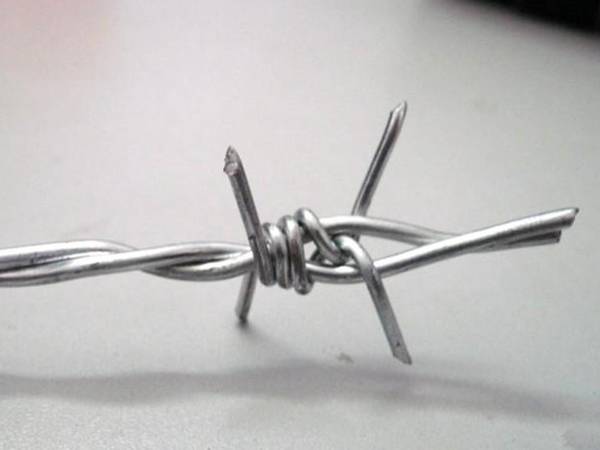

A line of double strand with normal twist barbed wire on white background.

Normal twist double strand

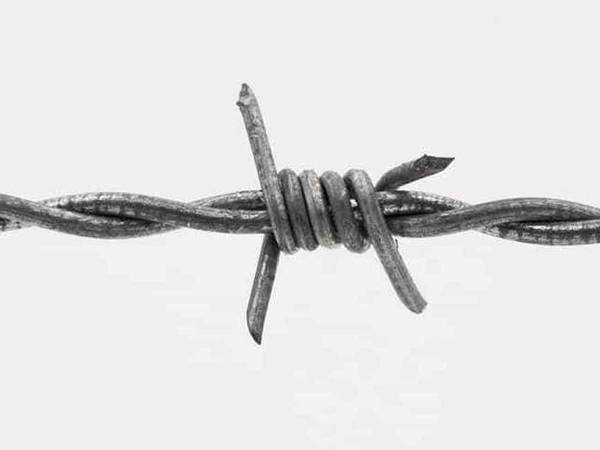

A line of double strand with reverse twist barbed wire on white background.

Reverse twist double strand

Material

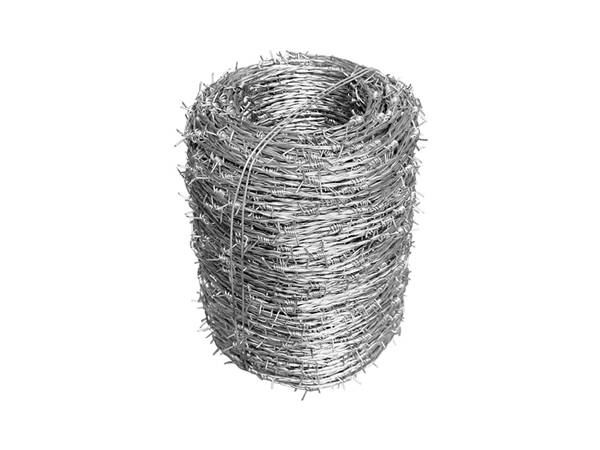

Galvanized

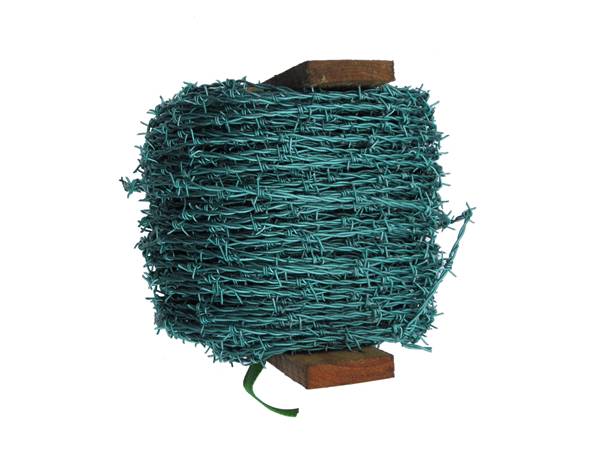

PVC coated

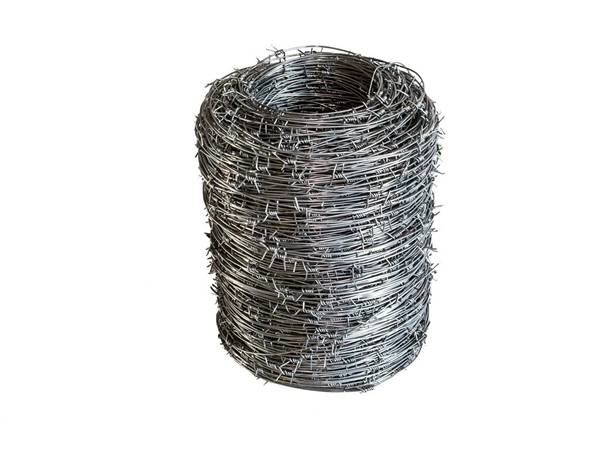

Stainless steel

Production

Production Flow Chart

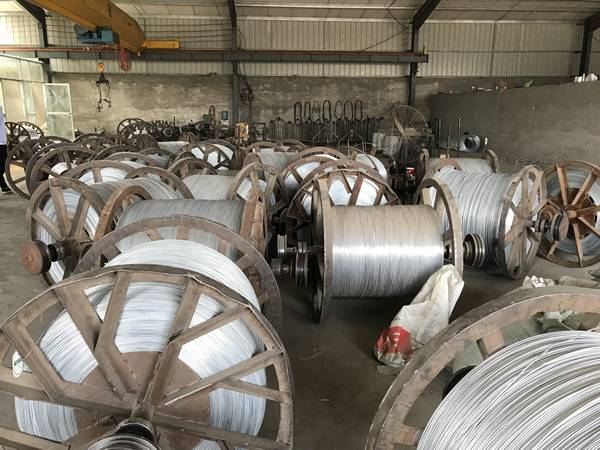

Several axis of galvanized wires in the warehouse.

Step 1

Galvanized wire material

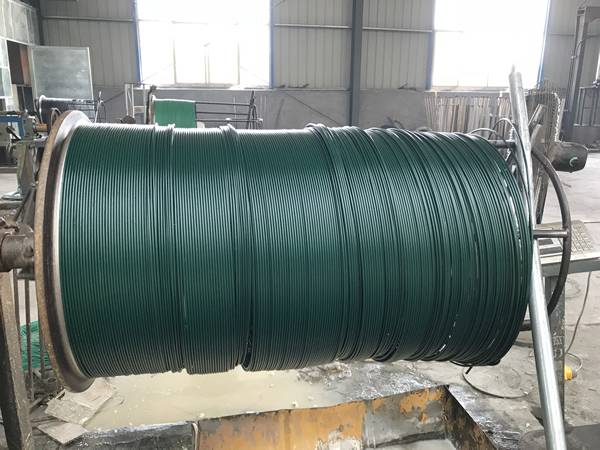

A roll of PVC coated wires in the warehouse.

Step 2

PVC coated wire material

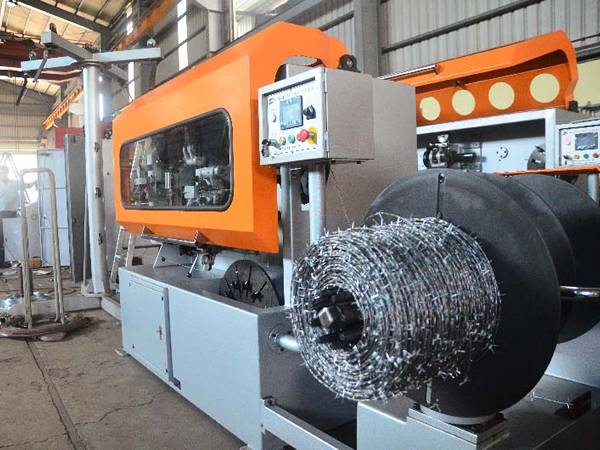

Step 3

Barbed wire production

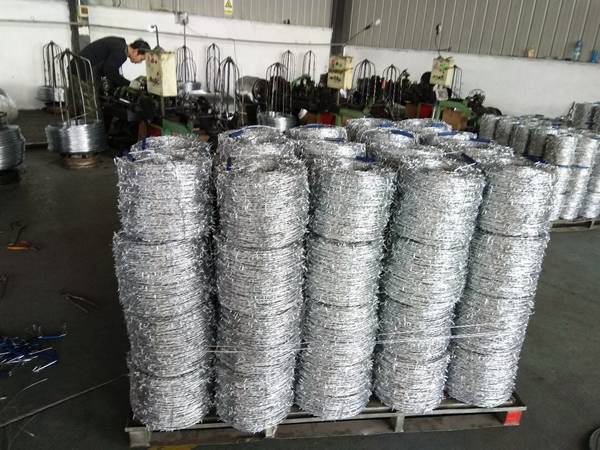

Several rolls of barbed wires in the warehouse.

Step 4

Barbed wire warehouse

Package & Delivery

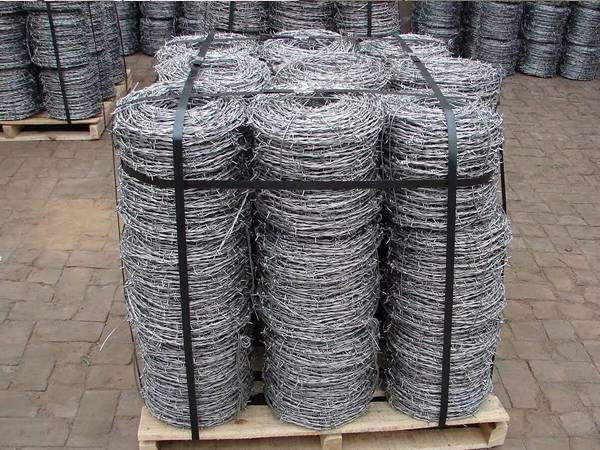

Several rolls of barbed wires on the pallets.

Barbed wire package

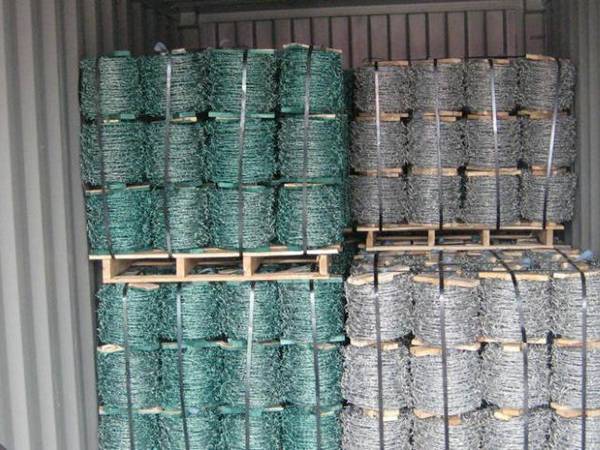

Several rolls of barbed wires in the container.

Barbed wire delivery

Features

Good corrosion resistant performance even in the moist environments.
Easy for installation.
Good isolation and protection performance.
Can be used with various wire mesh fences, such as chain link fence, welded wire fence and palisade fence.
Economical and effective protection measure.

Gallery

It can be used individually as barbed wire fences.
It is widely used combined with various wire mesh fences for additional security protection.

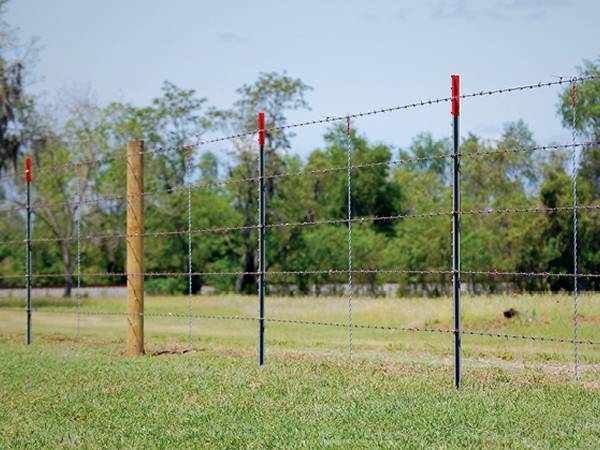

Several line of barbed wires are fastened with T posts.

Barbed wire fence

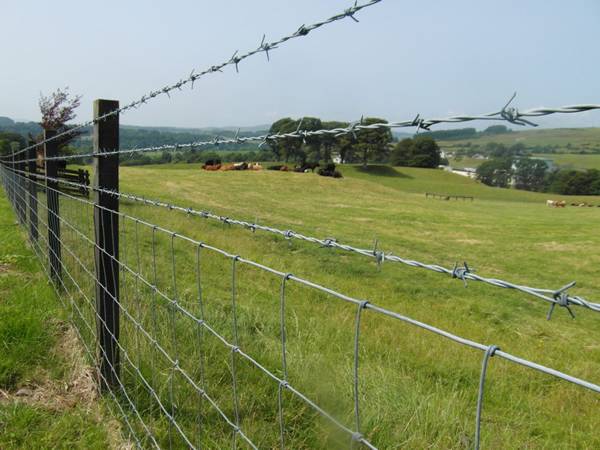

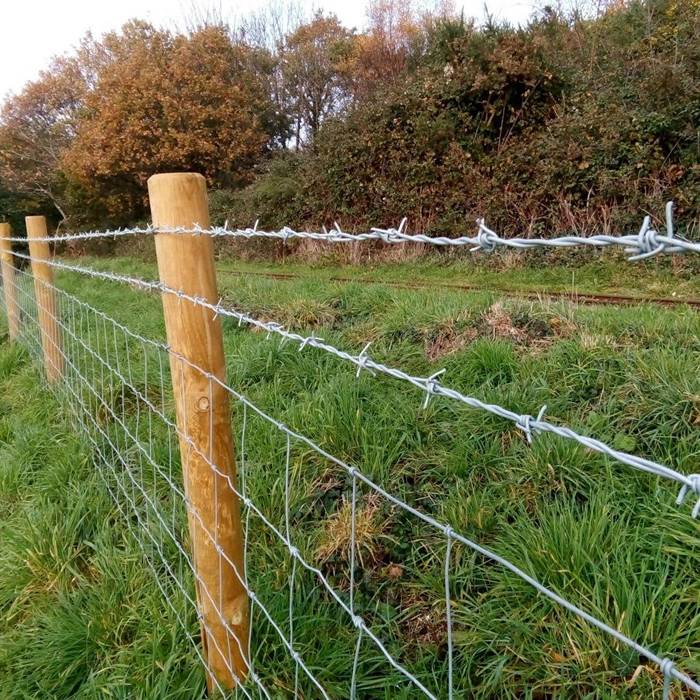

Three line of barbed wire are installed on the top of field fence.

Barbed wire with hinge joint field fence

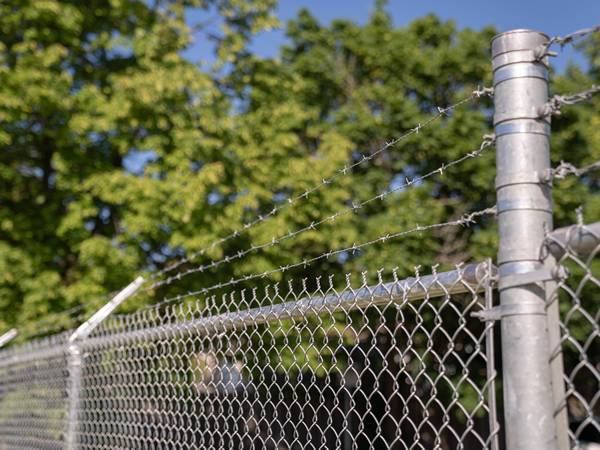

Three line of barbed wire are installed on the top of chain link fence.

Barbed wire with chain link fence

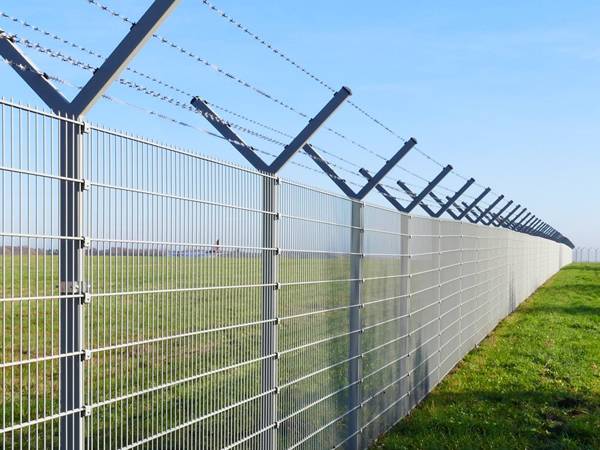

Three line of barbed wire are installed on the double wire fence.

Barbed wire with double wire fence

Request A Quote

Our professional sales representatives will provide you the suggestions of wire mesh fence and applications. Just tell us your requirements and your problems, we will help you solve them.

Linkland

Application

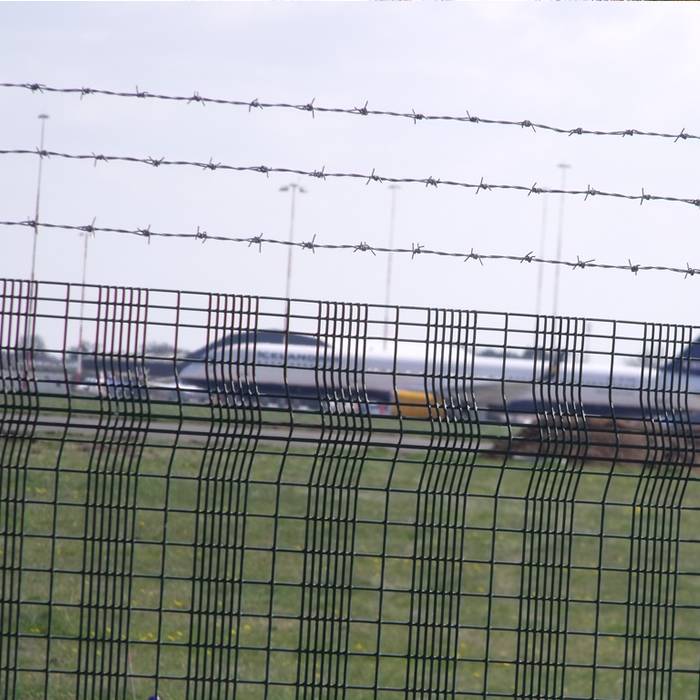

Airport Fence
