Corral Panels

homeProductsCorral Panels

Apiece of galvanized corral panel is displayed.

Corral Panels From Linkland

Corral panel, also known as livestock panel, is a kind of welded steel tube fence for cattle, horse, sheep and other livestock. Generally, it is made of square, oval or round tubes and have high strength and solid structure. It can sit directly on the ground for temporary or permanent fencing to keep cattle or sheep safe and free from wild animal attacks. We have cattle & sheep panels of different heights, lengths and number of rails for you to choose from.

Contact Us MORE INFO

Specification

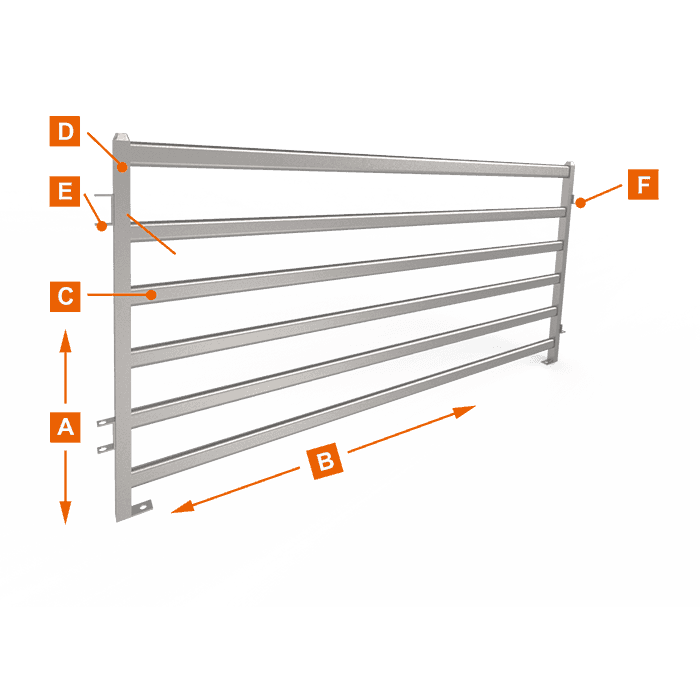

The picture shows the diagram and details of the corral panels.

A Height: 950 mm, 1000 mm, 1800 mm

b Width: 2100 mm, 2900 mm

c Horizontal rail: Round rail (32 mm OD, 42 mm OD);
Square rail (40 × 40 mm, 50 × 50 mm); oval rail (30 × 60 mm, 40 × 80 mm, 42 × 115 mm, 50 × 70 mm)

d Vertical pipe: Round pipe (32 mm OD, 42 mm OD);
Square pipe (40 × 40 mm, 50 × 50 mm)

e U lug

f L lug

Table 1 Specification of Cattle Panels
Round Rail Style	Height × Length	1.8 m × 2.1 m, etc.
	Horizontal rails	32 mm OD, 42 mm OD (6 round rails), etc.
	Vertical pipe	32 mm OD, 42 mm OD, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Material	Pre hot dipped galvanized steel pipe
	Accessories	4 lugs, 2 rain caps are welded on panels. 2 pins are included in one panel.
Square Rail Style	Height × Length	1.8 m × 2.1 m, etc.
	Horizontal rails	40 × 40 mm, 50 × 50 mm (6 square rails), etc.
	Vertical pipe	40 × 40 mm, 50 × 50 mm, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Material	Pre hot dipped galvanized steel pipe
	Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.
Oval Rail with Square Post Style	Height × Length	1.8 m × 2.1 m, etc.
	Horizontal rails	30 × 60 mm, 40 × 80 mm, 42 × 115 mm, 50 × 100 mm (6 oval rails), etc.
	Vertical pipe	40 × 40 mm, 50 × 50 mm, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Material	Pre hot dipped galvanized steel pipe
	Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.
Round tube with bent bottom base	Height	5 ft, 6 ft, 2.0 m ,etc.
	Width	9 ft, 10 ft, 12 ft, etc.
	Frame & Rail Round Tube	32 mm, 42 mm, etc.
	Thickness	1.6 mm, 2.0 mm, etc.
	Accessories	Welded parts: U lugs, rain caps, bases, pins
	Surface treatment	Hot dipped galvanized, galvanized + powder coated
Other materials and specifications are available upon request.

Table 2 Specification of Sheep Panels
Round Tube Style	Height × Length	0.95 m × 2.1 m, 1 m × 2.1 m, 1 m × 2.9 m
	Horizontal rails	32 mm OD, 42 mm OD (5 or 6 round rails)
	Vertical pipe	32 mm OD, 42 mm OD
	Thickness	1.6 mm, 2.0 mm
	Material	Pre hot dipped galvanized steel pipe
	Accessories	4 lugs, 2 rain caps are welded on panels. 2 pins are included in one panel.
Square Tube Style	Height × Length	0.95 m × 2.1 m, 1 m × 2.1 m, 1 m × 2.9 m
	Horizontal rails	40 × 40 mm, 50 × 50 mm (5 or 6 square rails)
	Vertical pipe	40 × 40 mm, 50 × 50 mm
	Thickness	1.6 mm, 2.0 mm
	Material	Pre hot dipped galvanized steel pipe
	Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.
Oval Rail with Square Post Style	Height × Length	0.95 m × 2.1 m, 1 m × 2.1 m, 1 m × 2.9 m
	Horizontal rails	30 × 60 mm, 40 × 80 mm, 42 × 115 mm, 30 × 112 mm (5 or 6 oval rails)
	Vertical pipe	40 × 40 mm, 50 × 50 mm
	Thickness	1.6 mm, 2.0 mm
	Material	Pre hot dipped galvanized steel pipe
	Accessories	2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.
Other materials and specifications are available upon request.

Category

Rail type

According to the rail type, our corral panels can be divided into three types as shown below.

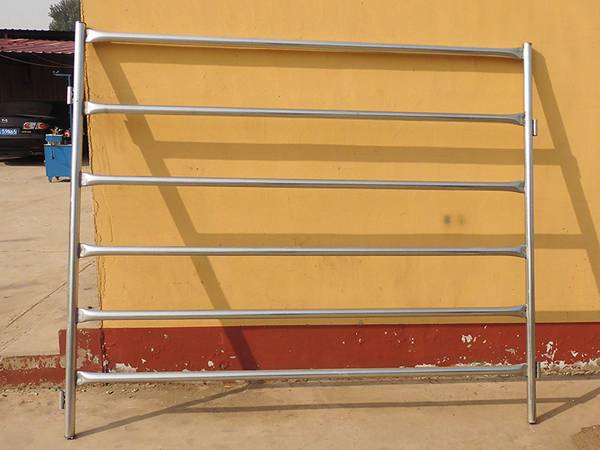

A piece of corral panel made of round rails leans against the wall.

Sheep panels – round rail style

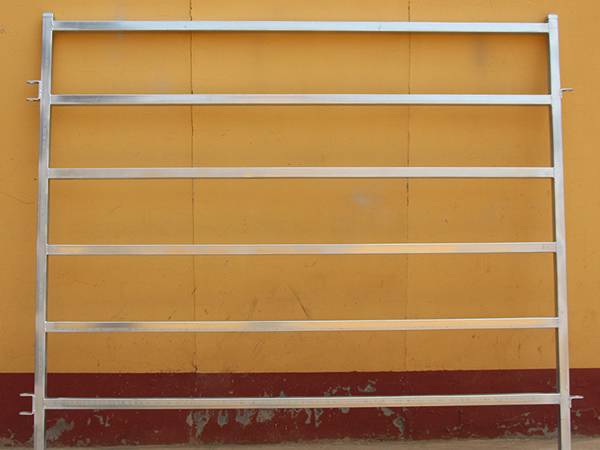

A piece of corral panel made of square rails leans against the wall.

Cattle panels – square rail style

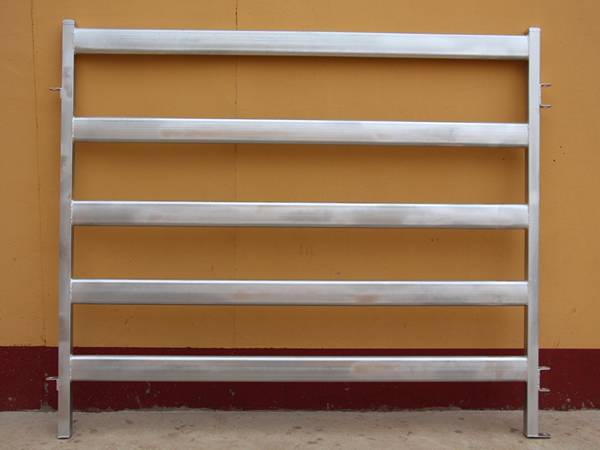

A piece of corral panel made of oval rails and square pipe leans against the wall.

Cattle panels – oval rail with square post style

Production

Production Flow Chart

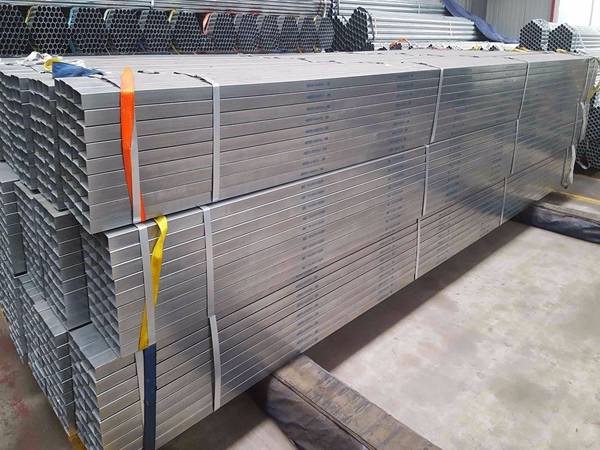

Step 1

galvanized steel pipe

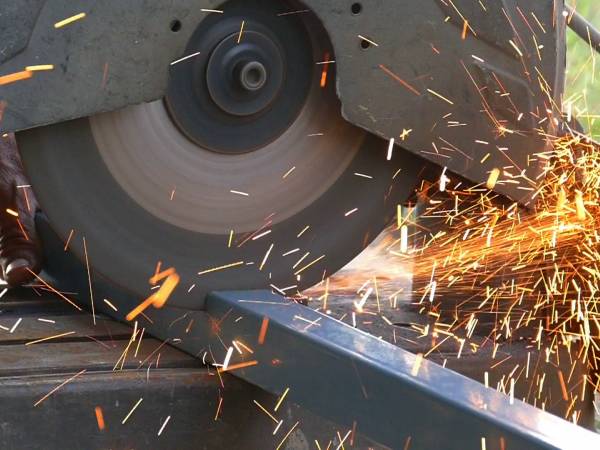

Square steel pipes are cut into standard length.

Step 2

pipe cutting

Step 3

panel welding

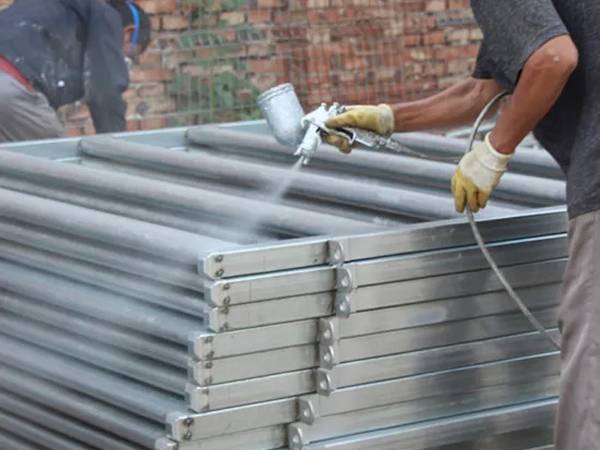

Two workers are spraying sliver powder on the corral panel surface.

Step 4

panel spraying

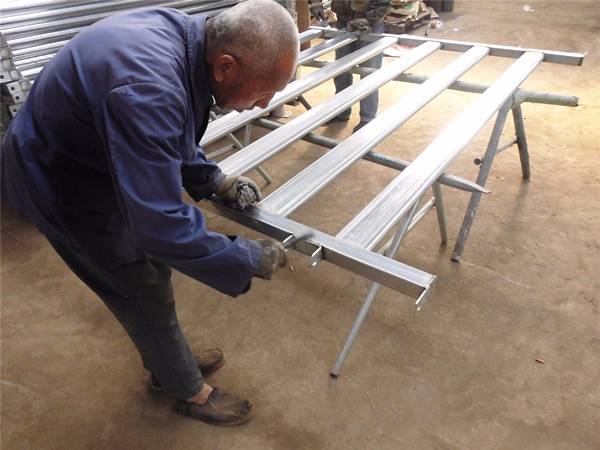

Two workers are cleaning the corral panel surface.

Step 5

surface cleaning

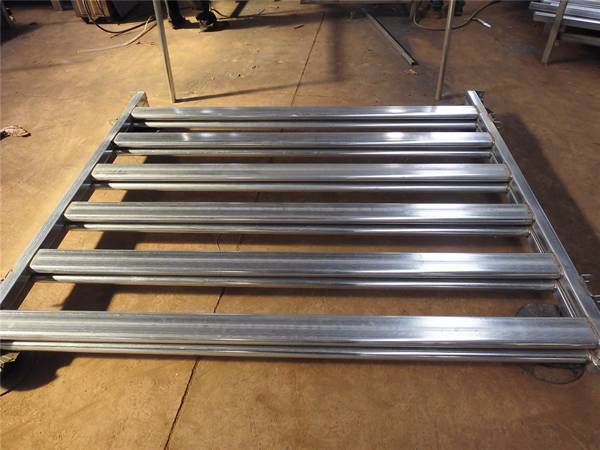

Step 6

finished corral panels

Package & Delivery

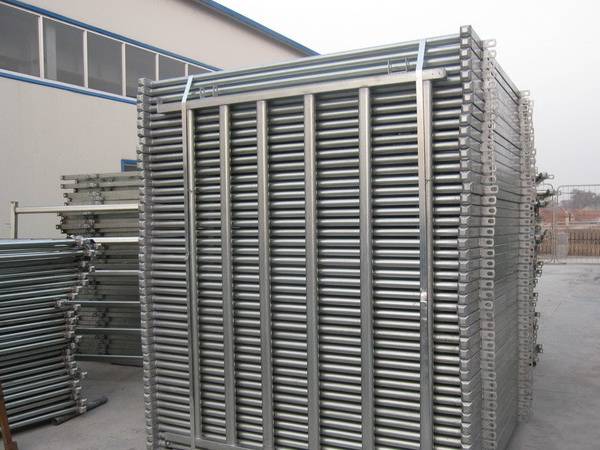

Corral panels are properly packaged with pallet and steel belts.

Corral panel package

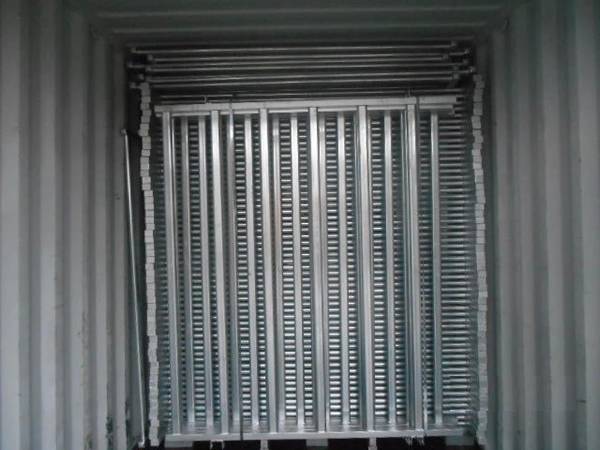

Corral panels are properly packaged and placed on the compartment.

Corral panel delivery

Features

Comfort. It creates enough space allowing animals walk freely and making them feel safe, relaxed and ease.
Portable. It can be removed easily and can be transported to everywhere you want.
Sturdy. The high quality steel tube offers great strength and creates a sturdy structure without deformation.
Durable. High quality raw materials (galvanized steel tube) ensures its great corrosion, rust and weather resistance performances and extends its service life.
Versatile. A variety of specifications for cow, cattle or sheep at different grow stages.
Convenience. Easy & quick installation and removal.
Easy installation and removal. It connects with welded lugs and pins and can be installed and removed with one person.

Gallery

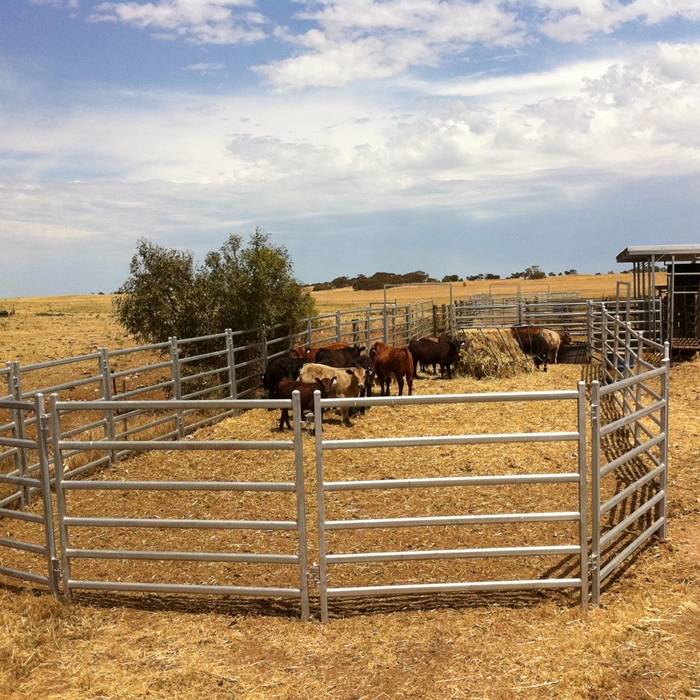

Cattle panels & sheep panels are widely used in farms, pastures and other places for temporary or permanent security fence for cattle, sheep, horses and other large animals.

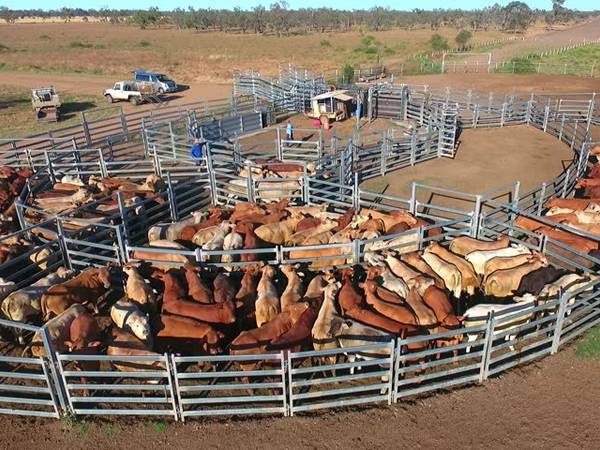

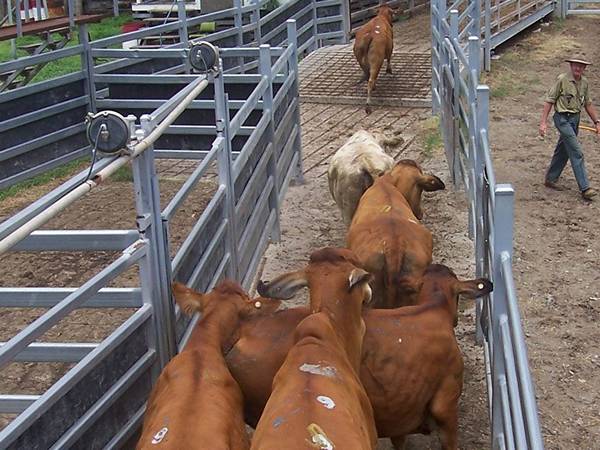

Several cattle are walking around in livestock panels

Corral panels for cattle yard

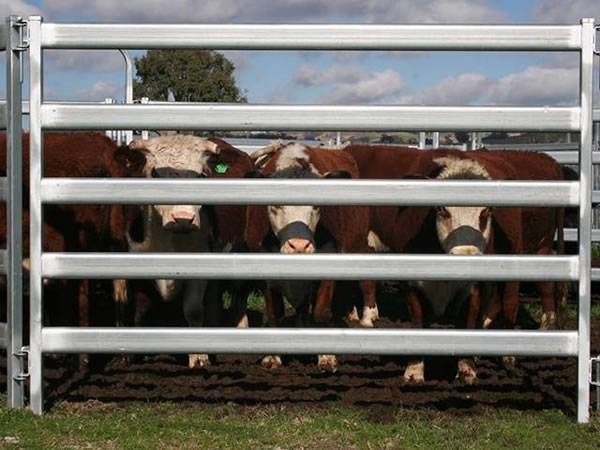

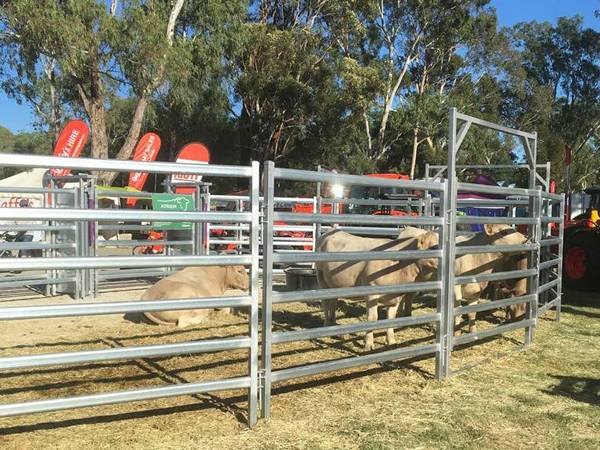

Three cattle are looking outside from corral panels.

Corral panels for cattle

Two sheep is observing the outside world from corral panels and one is laying on the ground.

Corral panels for sheep

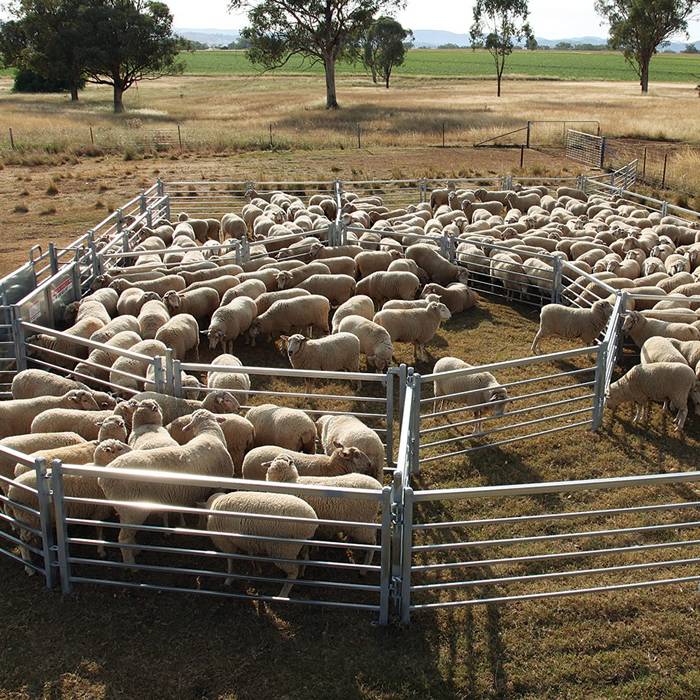

Many Australian sheep are raised in corral panels.

Corral panels for sheep yard
