Single Swing Gate

homeProductsFence GateSingle Swing Gate

A steel fence single swing gate on white background.

Single Swing Gates From Linkland

Single swing gate is generally used for pedestrian entry purpose; therefore, it is also known as pedestrian gate. It is an integral part of the whole fencing system. It offers a convenient entrance for authorized pedestrians and works with various fence panels, post and accessories to secure your properties. We have a variety of single swing gates for chain link fence, curvy welded fence, 358 high security fence, steel fence, palisade fencing, Australia temporary fence, Canada temporary fence and crowd control barrier for you to choose from.

Contact Us MORE INFO

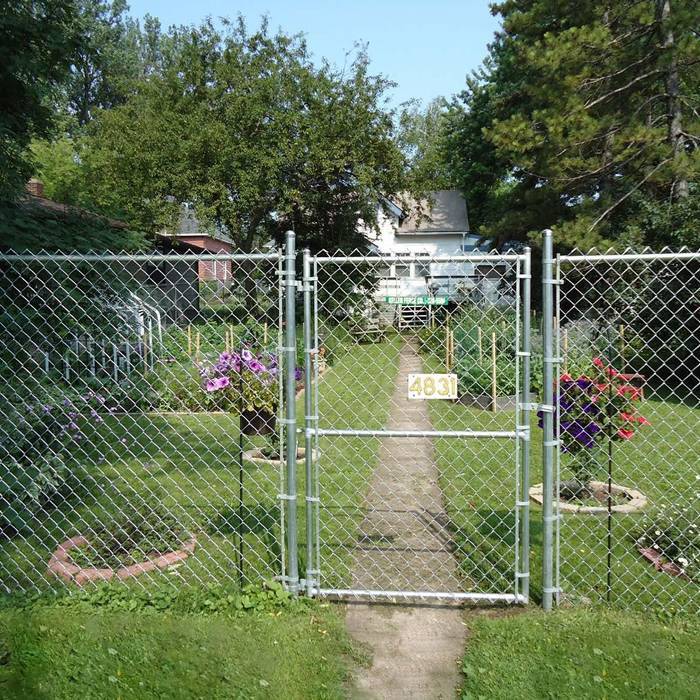

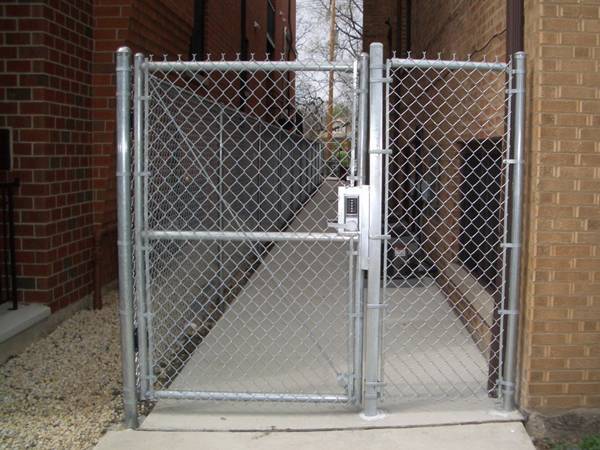

A galvanized chain link single swing gate is displayed.

Chain link fence single swing gate

Match with chain link fence

Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
Width	0.8 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m
Mesh Size	50 × 50 mm, 60 × 60 mm, 70 × 70 mm
Wire Diameter	3.0–5.0 mm
Post (round)	48 mm OD, 60 mm OD
Frame Tube	32 mm OD, 38 mm OD, etc.

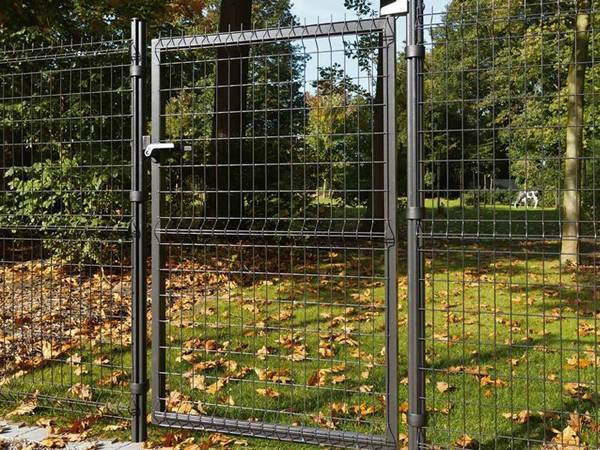

A black powder coating curvy welded fence single swing gate is displayed.

Curvy welded fence single swing gate

Match with curvy welded fence

Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
Width	0.8 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m
Mesh Size	50 × 100 mm, 50 × 200 mm, 75 × 150 mm
Wire Diameter	3.0–5.0 mm
Post (square)	60 × 60 mm, 80 × 80 mm, 100 × 100 mm
Frame Tube	20× 20 mm, 25× 25 mm, 30 × 30 mm
Surface Treatment	Hot dipped galvanized, powder coating

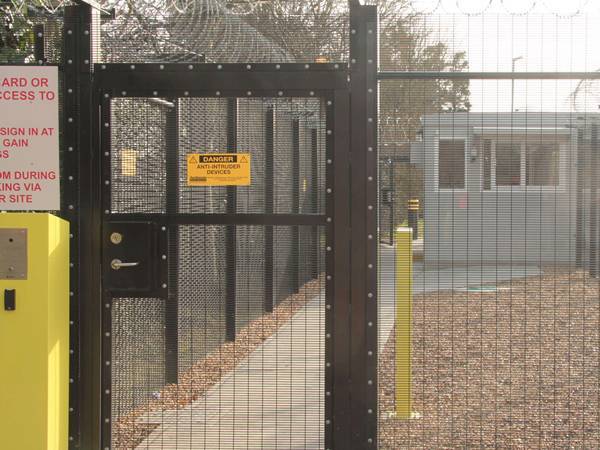

A black powder coating 358 security fence single swing gate is displayed.

358 high security fence single swing gate

Match with 358 high security fence

Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
Width	0.8 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m
Mesh Size	76.2 × 12.7 mm (3" × 0.5")
Wire Diameter	3.2 mm, 4.0 mm
Post (square)	60 × 60 mm, 80 × 80 mm, 100 × 100 mm
Frame Tube	25× 25 mm, 30 × 30 mm
Surface Treatment	Hot dipped galvanized, powder coating

A black powder coating steel fence single swing gate is displayed.

Steel fence single swing gate

Match with steel fence

Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
Width	0.8 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m
Vertical Tube Space	100 mm, 120 mm, 150 mm, 170 mm
Tube Size	15 × 15 mm, 19 × 19 mm, 30 × 30 mm, 40 × 40 mm
Post (square)	60 × 60 mm, 80 × 80 mm, 100 × 100 mm
Surface Treatment	Hot dipped galvanized, powder coating

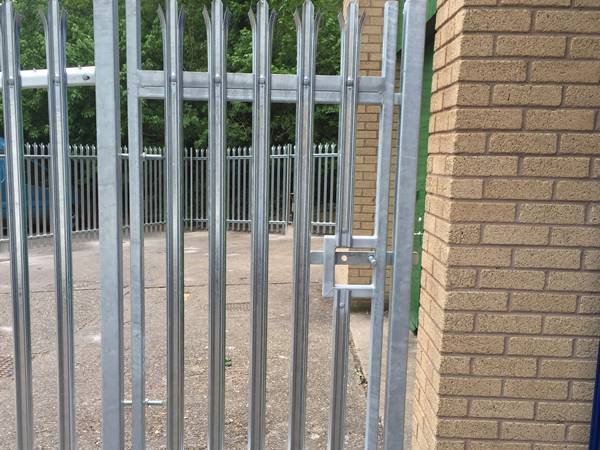

A galvanized palisade fencing single swing gate is displayed.

Palisade fencing single swing gate

Match with palisade fencing

Height	1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m
Width	0.8 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m
Angle Steel	40 × 40 mm, 50 × 50 mm
Pale Size (W/D)	62 mm, 65 mm, 70 mm
Post (square)	60 × 60 mm, 80 × 80 mm, 100 × 100 mm
Surface Treatment	Hot dipped galvanized, powder coating

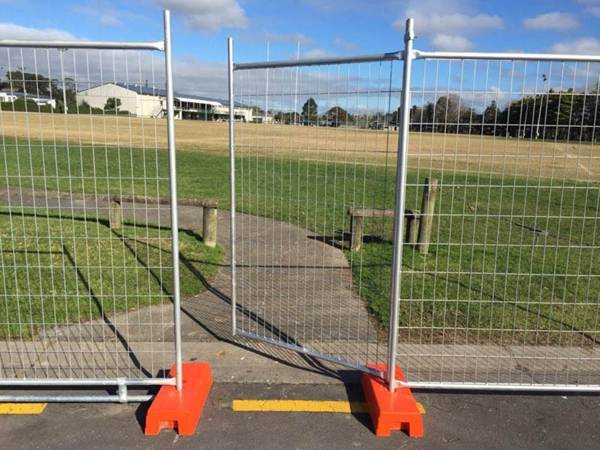

An Australia temporary fence single swing gate is displayed.

Australia temporary fence single swing gate

Match with Australia temporary fence

Height	2.1 m
Width	1.0–1.3 m
Mesh Size	50 mm × 100 mm, 50 mm × 150 mm, 75 mm × 100 mm, 75 mm × 150 mm
Wire Diameter	3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 5.0 mm
Frame Tube	32 mm OD, 38 mm OD, etc.
Surface Treatment	Hot dipped galvanized

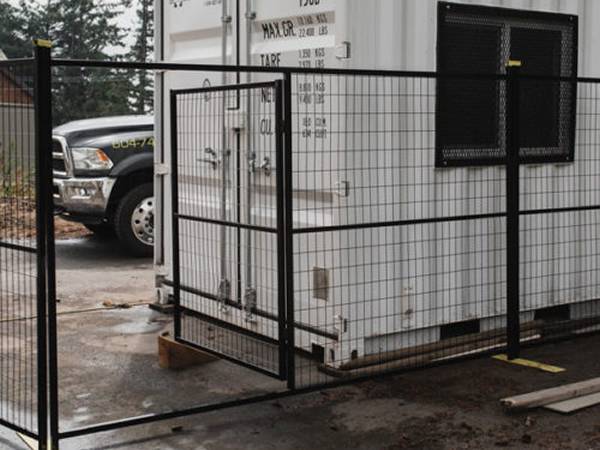

A black powder coating Canada temporary fence single swing gate is displayed.

Canada temporary fence single swing gate

Match with Canada temporary fence

Height	1.8 m
Width	1.0–1.3 m
Mesh Size	50 mm × 100 mm, 50 mm × 150 mm, 75 mm × 100 mm, 75 mm × 150 mm
Wire Diameter	3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, etc.
Frame Tube	25× 25 mm, 30 × 30 mm
Surface Treatment	Powder coating

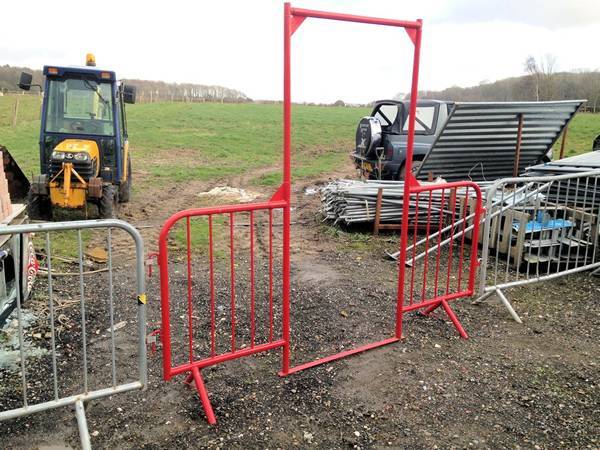

A red powder coating crowd control barrier single swing gate is displayed.

Crowd control barrier single swing gate

Match with crowd control barrier

Height	3.0 m
Width	1.3 m
Frame Tube	40 mm OD
Surface Treatment	Hot dipped galvanized, powder coating
