Galvanized Steel Wire

homeProductsSteel WiresGalvanized Steel Wire

A piece of welded razor wire with diamond mesh opening.

Galvanized Steel Wire From Linkland

There are two types of galvanized steel wire: electro-galvanized steel wire and hot-dip galvanized steel wire. They have excellent corrosion resistance and are durable.

Galvanized steel wires are the most widely used and popular metal wire types in building, mesh weaving, electrical cable amouring, agriculture and many other fields.

Contact Us MORE INFO

Specification

Material: low carbon steel wire.
Surface treatment: electrical galvanized and hot dipped galvanized.
Wire diameter: BWG 6 to BWG 26
Zinc coating
- Electrical galvanized: min. 15 g/m²
- Common hot dipped galvanized: 30–110 g/m²
- Heavy hot dipped galvanized: 110–366 g/m²
Package
- Nude package
- Plastic film package
- Plastic film & woven bag package
- Plastic film & hessian cloth package.

	SWG		BWG		BG		AWG
NO	INCH	MM	INCH	MM	INCH	MM	INCH	MM
5	0.212	5385	0.220	5.588	0.2225	5.652	0.1819	4.621
6	0.192	4.877	0.203	5.156	0.1981	5.032	0.1620	4.115
7	0.176	4.470	0.180	4.572	0.1764	4481	0.1443	3.665
8	0.160	4.046	0.165	4.191	0.1570	3.988	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1398	3.551	0.1144	2.906
10	0.128	3251	0.134	3.404	0.1250	3.175	0.1019	2588
11	0.116	2.946	0.120	3.408	0.1313	2327	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0991	2.517	0.0808	2.053
13	0.092	2337	0.095	2.413	0.0882	2.240	0.0720	1.828
14	0.080	2.032	0.083	2.108	0.0785	1.994	0.0648	1.628
15	0.072	1.829	0.072	1.829	0.0699	1.775	0.0571	1.450
16	0.064	1.626	0.065	1.651	0.0625	1.588	0.0508	1.291
17	0.056	1.422	0.058	1473	0.0556	1.412	0.0453	1.150
18	0.048	1.219	0.049	1.245	0.0495	1.257	0.0403	1.024
19	0.040	1.016	0.042	1.067	0.0440	1.118	0.0359	0.912
20	0.036	0.914	0.035	0.839	0.0392	0.996	0.0320	0.812
21	0.032	0.813	0.032	0.813	0.0349	0.887	0.0285	0.723
22	0.0280	0.711	0.028	0.711	0.03125	0.794	0.02535	0.644
23	0.0240	0.610	0.025	0.635	0.02782	0.707	0.02010	0.573
24	0.0220	0.559	0.022	0.559	0.02476	0.629	0.01790	0.511
25	0.0200	0.508	0.020	0.508	0.02204	0.560	0.01594	0.455
26	0.0180	0.457	0.018	0.457	0.01961	0.498	0.01420	0.405
27	0.0164	0.417	0.016	0.406	0.1745	0.443	0.01420	0.361
28	0.0149	0.376	0.014	0.356	0.01562	0.397	0.01264	0.321
29	0.0136	0345	0.013	0.330	0.01390	0.353	0.01126	0.286
30	0.0124	0.315	0.012	0.305	0.01230	0.312	0.01003	0.255
31	0.0116	0-295	0.010	0.254	0.01100	0.270	0.00893	0.227
32	0.0109	0274	0.009	0.229	0.00980	0.249	0.00795	0.202
33	0.0100	0254	0.008	0.203	0.00870	0.221	0.00708	0.180
34	0.0092	0.234	0.007	0.178	0.00770	0.196	0.00630	0.160
35	0.0084	0.213	0.005	0.127	0.00690	0.175	0.00561	0.143
36	0.0076	0.193	0.004	0.102	0.00610	0.155	0.00500	0.127

Production

Production Flow Chart

Step 1

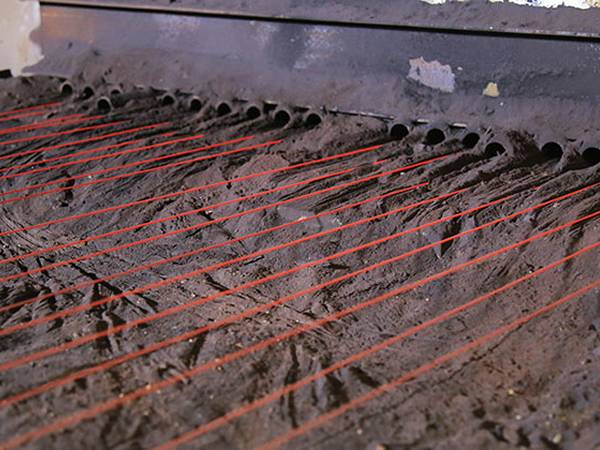

Annealing

Step 2

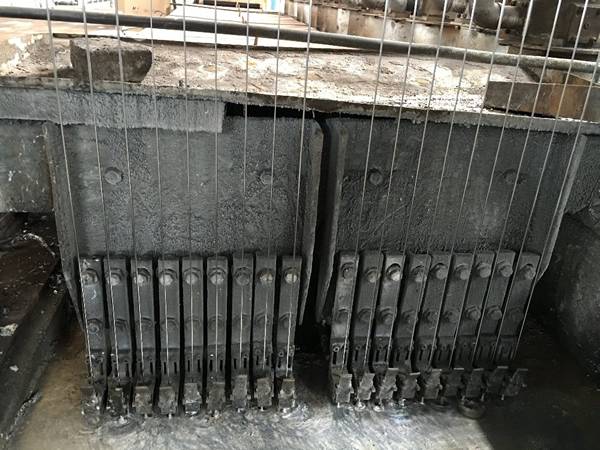

Galvanizing

Package & Delivery

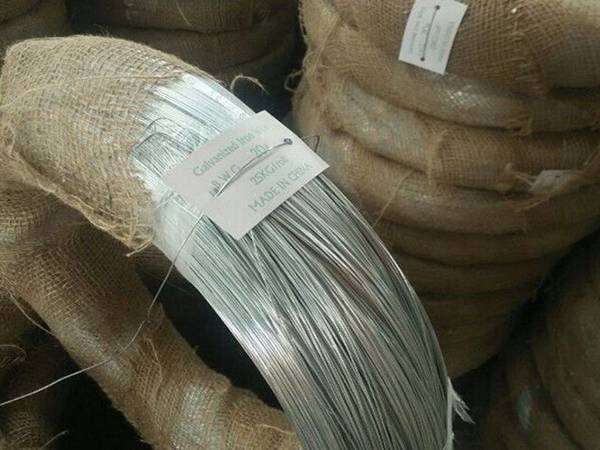

Several rolls of galvanized steel wires are packed in plastic film and hessian cloth

Plastic film and hessian cloth package

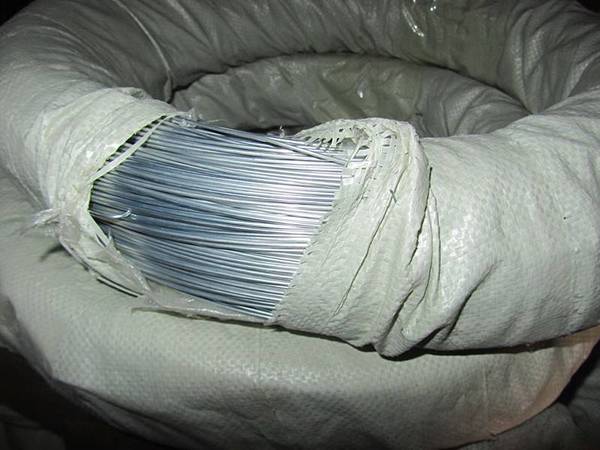

Several rolls of galvanized steel wires are packed in plastic film and woven bag

Plastic film and woven bag package

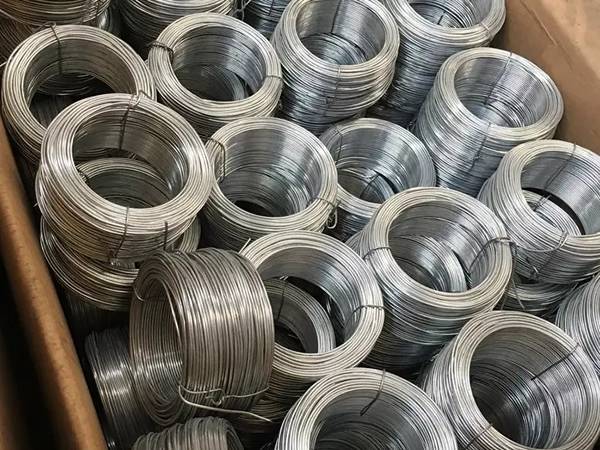

Small coils

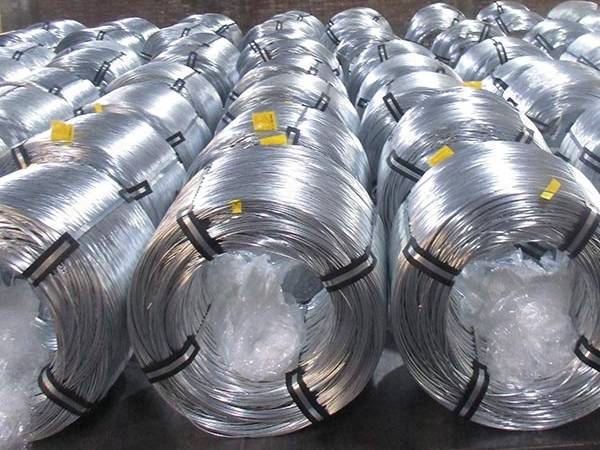

Big coils

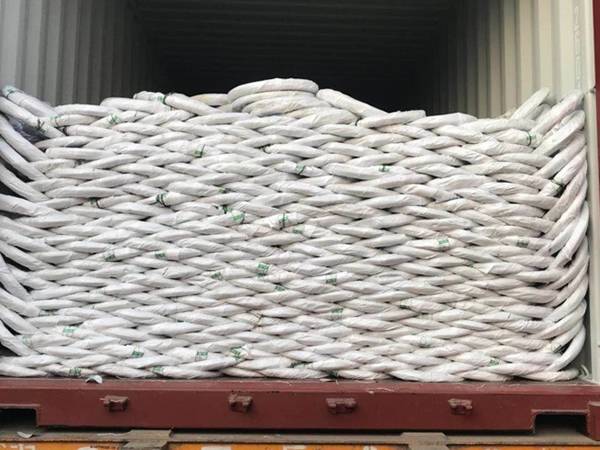

Several rolls of galvanized steel wires in the container

Bulk loading

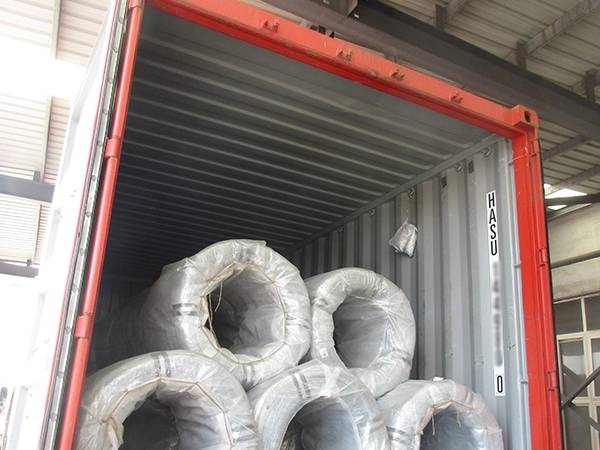

Several bundles of galvanized steel wires in the container

Bundle loading

Features

BWG 6 to BWG 26 wire diameters for choice.
Electrical galvanized and hot dipped galvanized surfaces options.
Coils, spools and other packages are available.
Available for weaving mesh and binding in agriculture, industrial and construction applications.
Customized sizes and packages are available.

Gallery

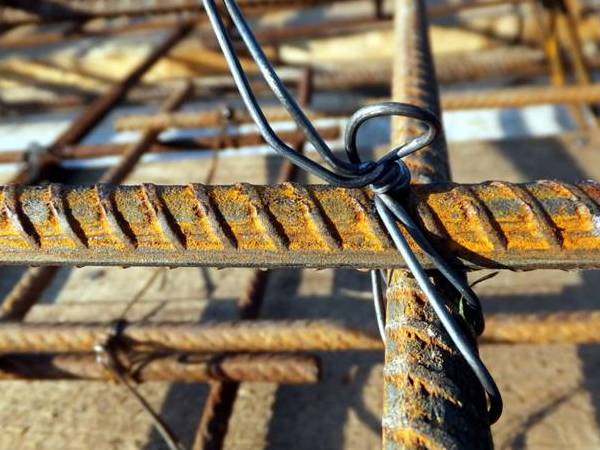

A piece of galvanized wire is binding rebars.

Rebar binding

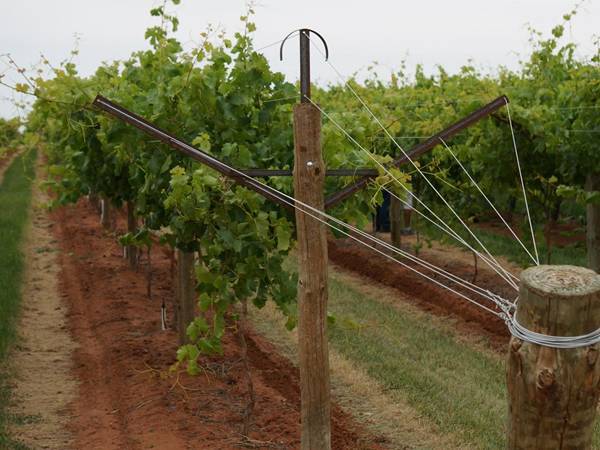

Several galvanized steel wires are binding the grape plants

Vineyard support

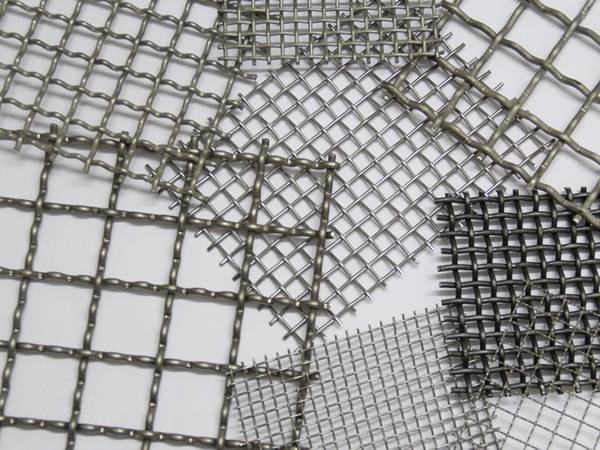

Several pieces of galvanized steel wire meshes on white background.

Weaving mesh

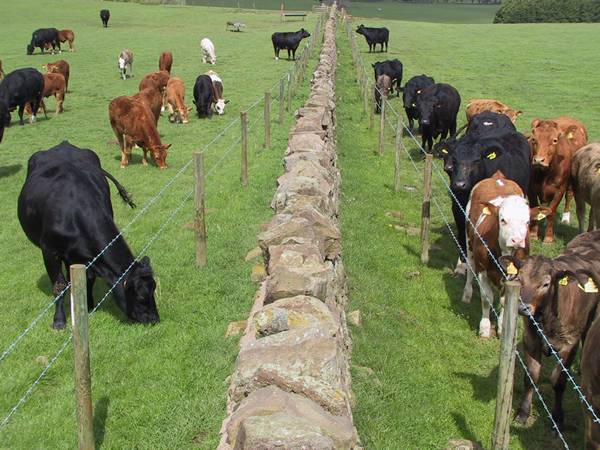

The cattle on the grassland and enclosed by galvanized oval wires.

Livestock enclosure
